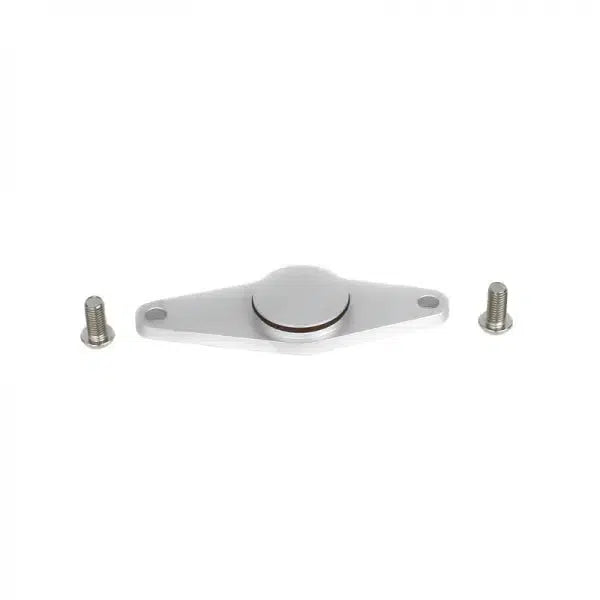

1989-2002 Cummins Rear Freeze Plug Retaining Plate w/ O-Ring (PDM-08200)
Purchase to earn 99 Dirty Dollars Learn More
Description
Description
Fits
| Year | Make | Engine |
| 1989-1998 | Dodge |
12V, 24V & 4BT 5.9L Cummins |
Tired of factory plugs that leak? This rear block freeze plug plate replaces the soft plug at the back of your Cummins with a solid, leak-proof upgrade. Fits 6B 12 Valve, 98–02 24 Valve, and 4BT engines. Perfect for heater core deletes, performance builds, or just stopping coolant from going where it shouldn’t. Includes a high-temp Viton O-ring for a clean, reliable seal.
Part Number: PDM-08200
Features
Features
- High-temp Viton O-ring for a reliable, lasting seal
- Machined plate replaces rear block freeze plug
- Designed for clean, tool-free installation
- Built for off-road and performance Cummins setups
- Durable solution for common coolant leak points
Notes
Notes
Clean the freeze plug bore thoroughly using a wire brush or emery cloth to remove all rust and scale. Add a small chamfer to the bore edge to allow the O-ring to compress properly. Lube both the O-ring and the bore with motor oil.
Install the plate by hand only; no hammer or tools needed. If it doesn’t go in smoothly with hand pressure, double-check your prep. Damaging the O-ring can lead to a poor seal.
