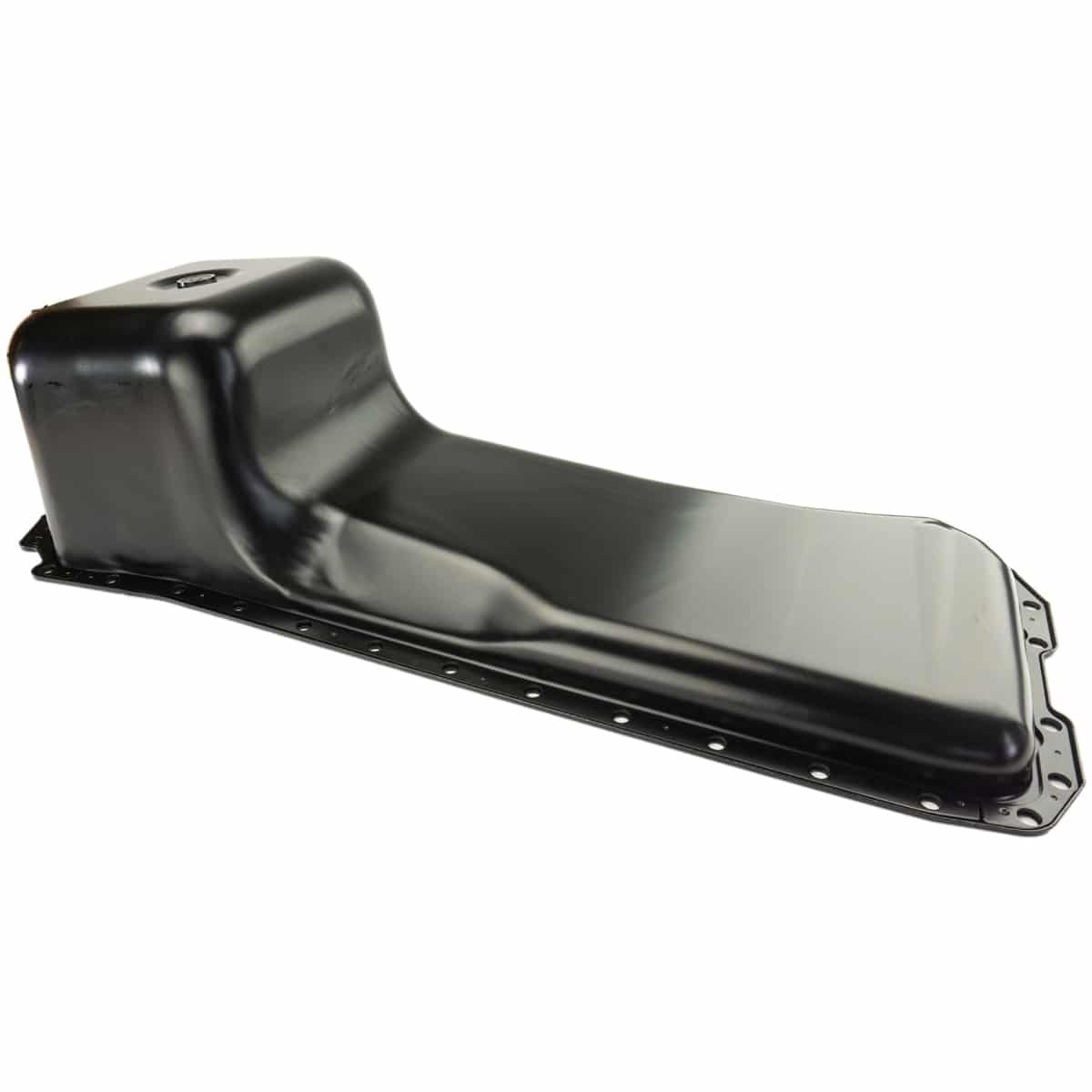

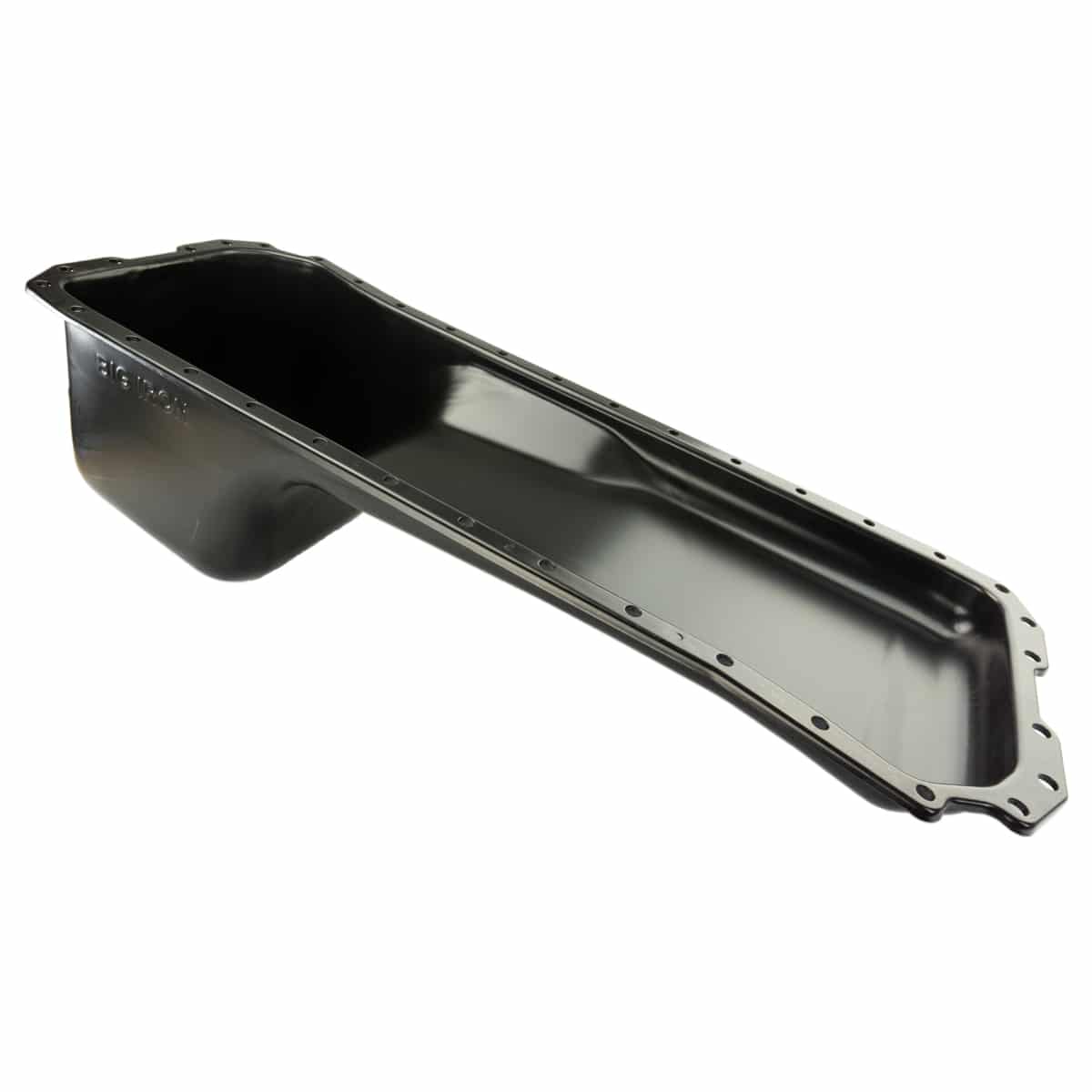

1989-2002 Cummins Big Iron Oil Pan (Stamped) (BI591224VOPMS)

Stamped-steel Big Iron oil pan for 1989-2002 Dodge Ram 2500/3500 trucks running the 5.9L Cummins (12V and 24V). Specifically built for engines that have main studs and a Gorilla Girdle installed — the back of the pan has a pre-pressed indentation for the girdle bar, so you don't have to modify the OE pan and risk oil leaks.

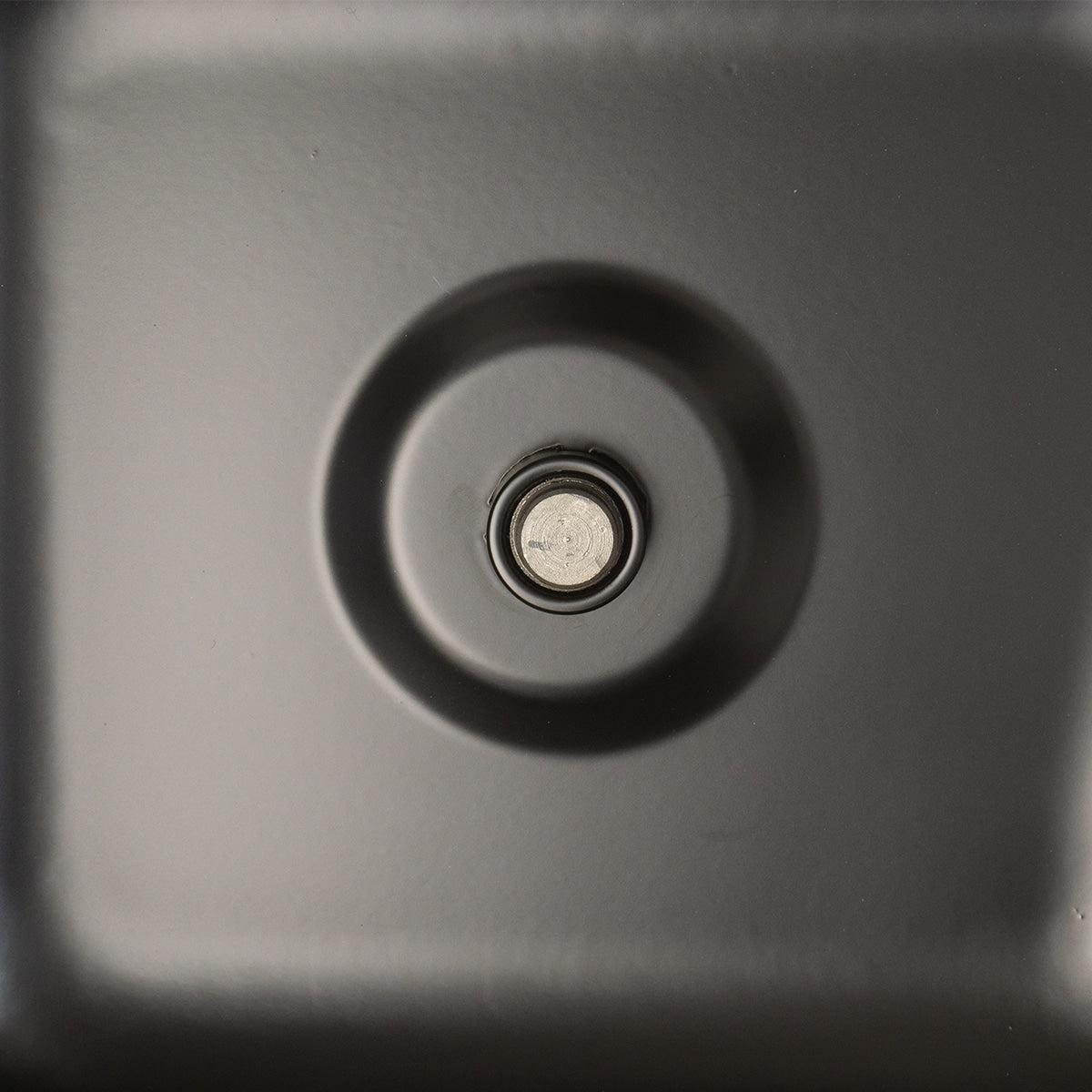

Same four drain holes around the rear main stud nut as the cast Big Iron pan for full drainage. Reinforced lip and longer bolts required (same BI591224VOPB extended bolt kit).

• Stamped Steel Construction
• Pre-Pressed Girdle Relief in Back of Pan
• 4 Drain Holes for Complete Pan Drainage
• Thicker Reinforced Sealing Lip
• Direct Bolt-On Replacement
• For Engines with Gorilla Girdle Installed
• Part Number: BI591224VOPMS

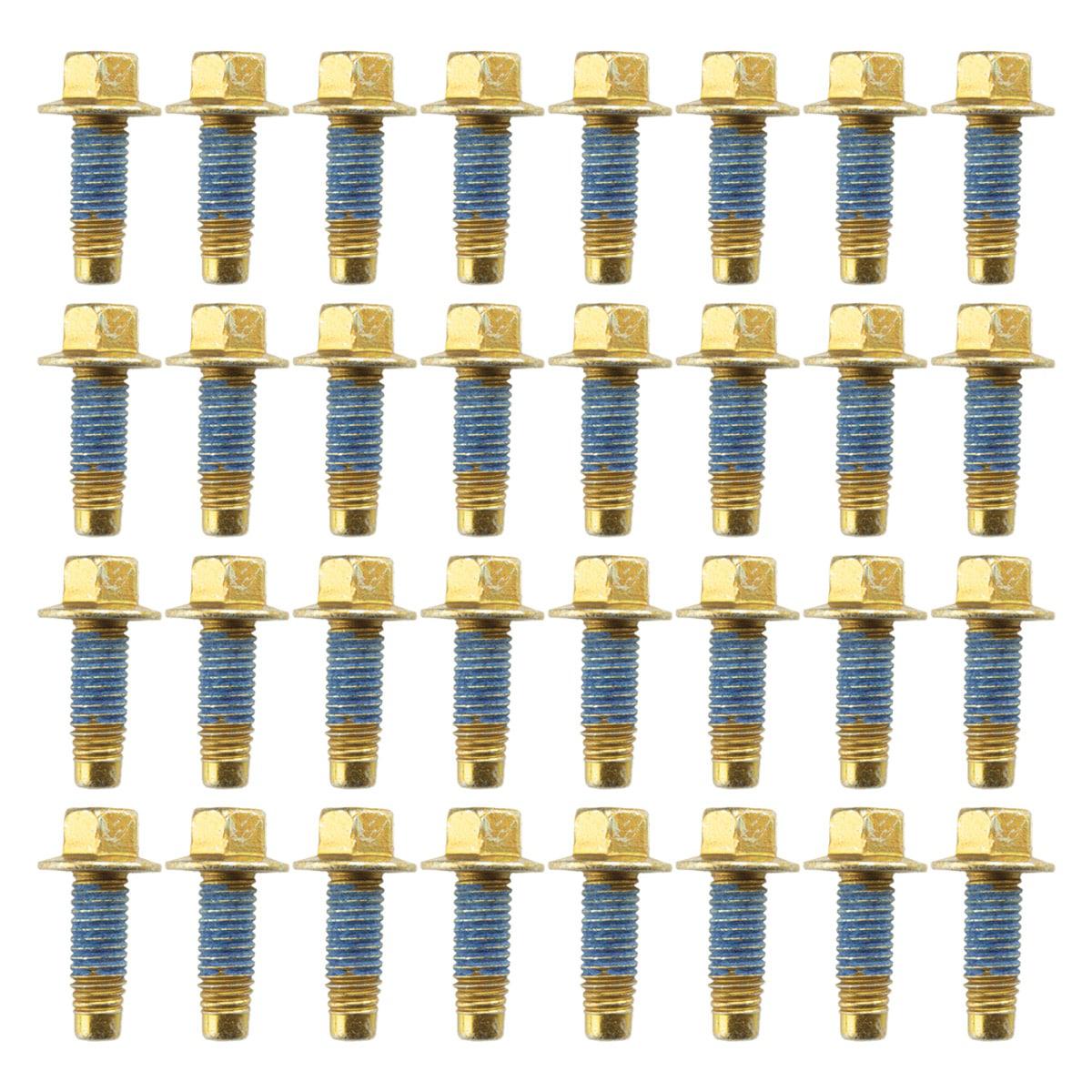

• Requires extended oil pan bolts (BI591224VOPB).
• If your engine does NOT have a girdle installed, use the cast Big Iron pan (BI591224VOP) instead — that's the cleaner choice when there's no girdle to clear.
• 1989-1993 1st gen trucks: a 1994-2002 oil pickup tube is required.
