1989-1998 Cummins Stage 2 Race Performance Camshaft (210/220) (PDM-12VHP)
Purchase to earn 1107 Dirty Dollars Learn More
Description
Description

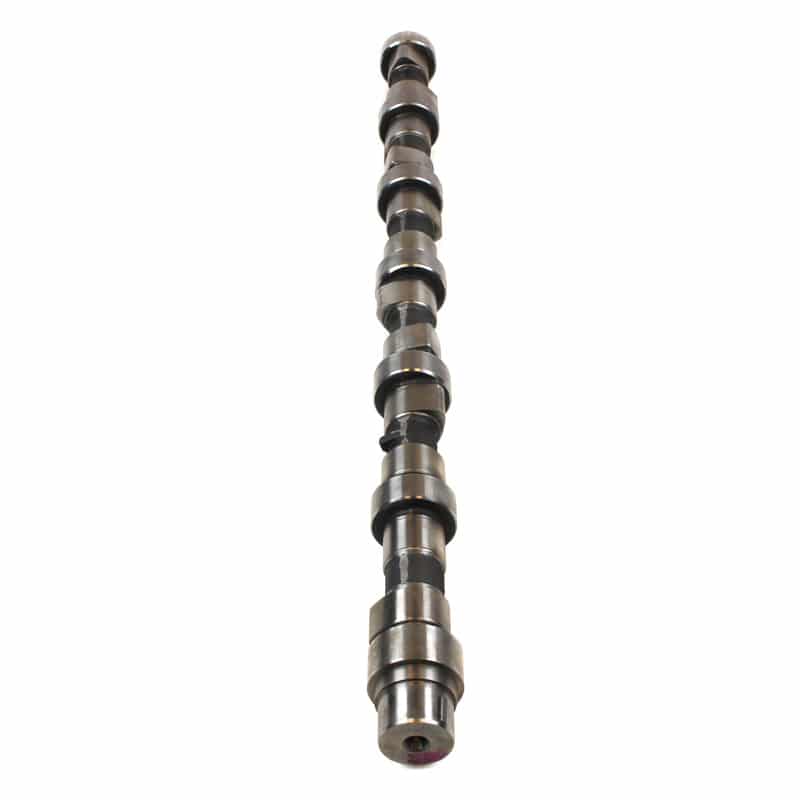

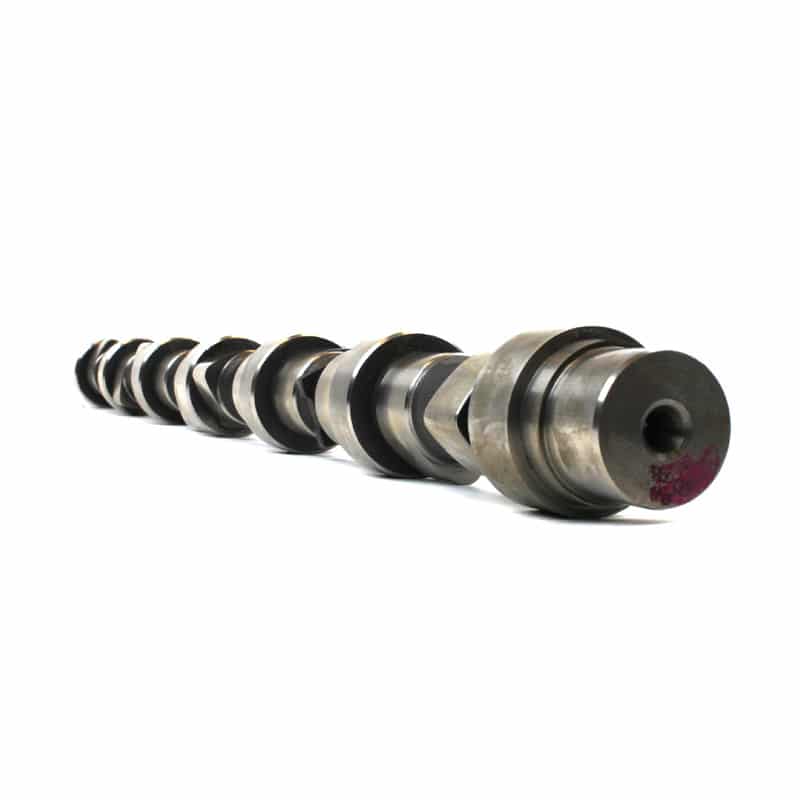

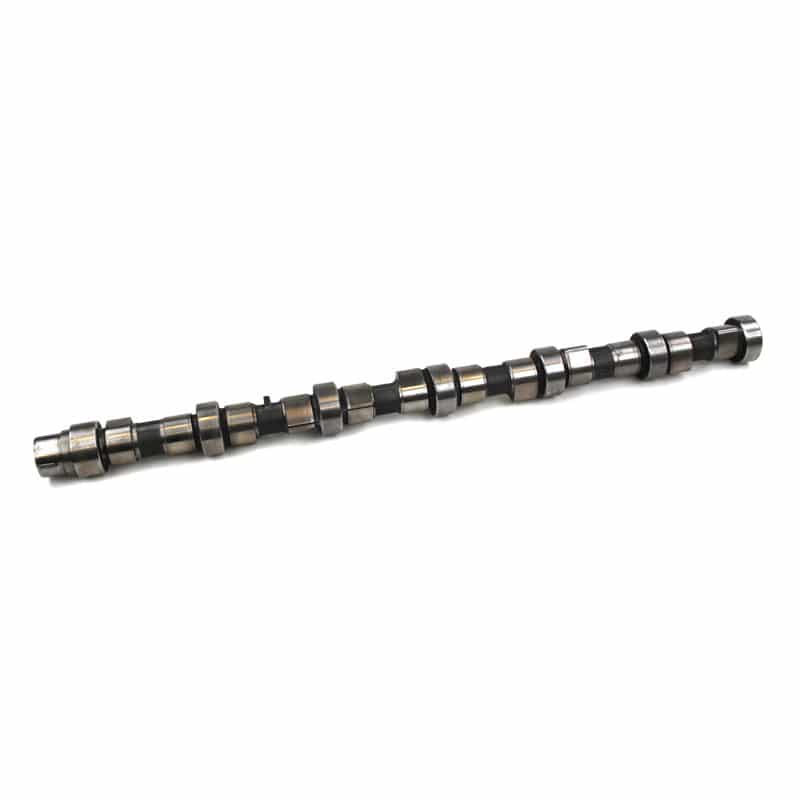

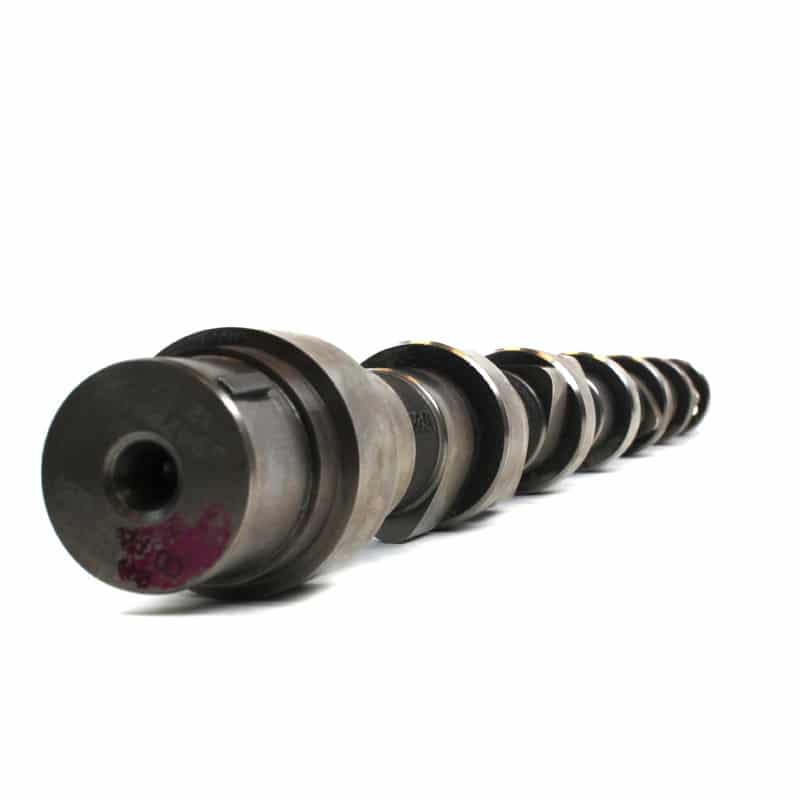

Stage 2 race-spec performance camshaft (210/220 duration) for 1989-1998 Dodge 5.9L 12V Cummins engines. Big-lift, big-duration lobe profile aimed at sled-pulling, drag, and dyno builds — not a drop-in. Requires .100" valve reliefs in the pistons before installation, plus stiffer valve springs and pushrods to handle the lift.
Features
Features
- Stage 2 Race Performance Camshaft
- 210/220 Duration
- For Race & Sled-Pull Builds
- Part Number: PDM-12VHP
Notes
Notes
- Requires .100" piston valve reliefs. Will hit stock or stage-1 piston tops without machining. Fly-cut pistons (e.g. marine big-bowl PDM-03523 fly-cut variant) clear this cam.
- Always measure piston-to-valve clearance after installing — every block/head/piston combo is slightly different.
- Required pairing: 150 lb performance valve springs (24G801) and billet pushrods (24GE03 or chromoly).
Questions and Answers
Questions and Answers
Previously asked questions
We've compiled a list of questions and answers below.
Don't see your question? Ask us anything about this product.
Ask a Question-
What is the lift of this cam and it's a steel cam
No, it iss a premium ductile iron cast cam, not a billet steel cam, and it features an aggressive high-lift profile of .330" intake lift and .355" exhaust lift.
