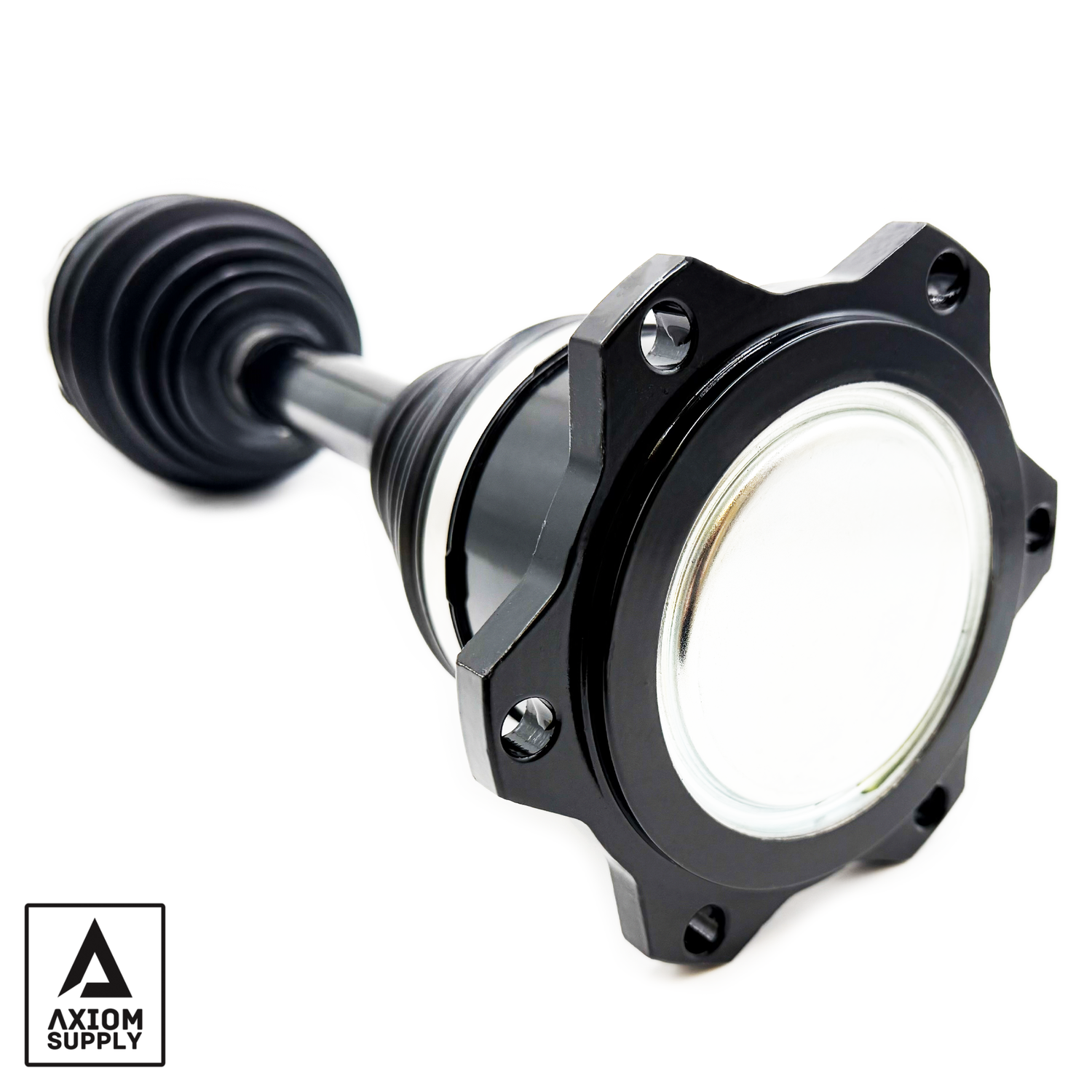

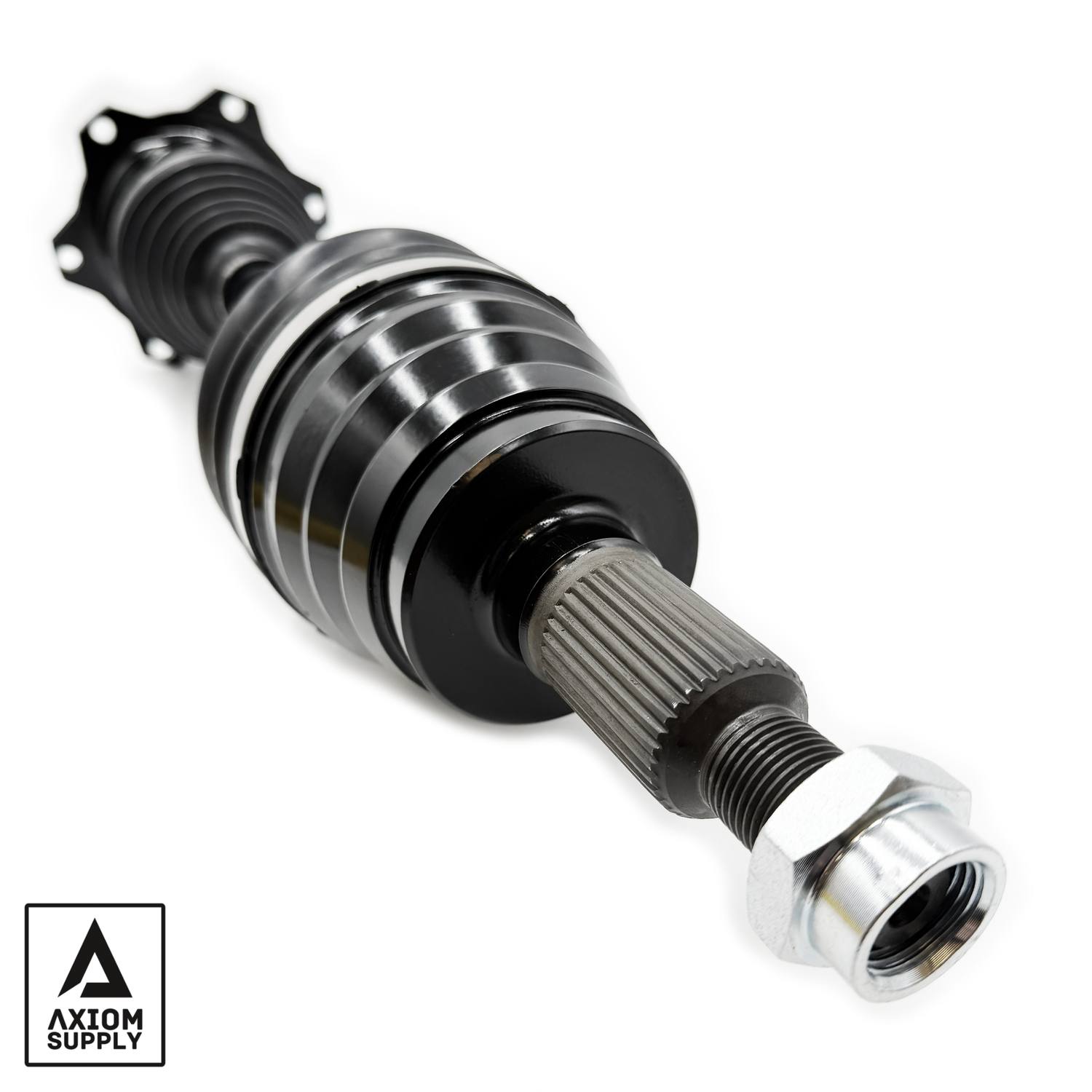

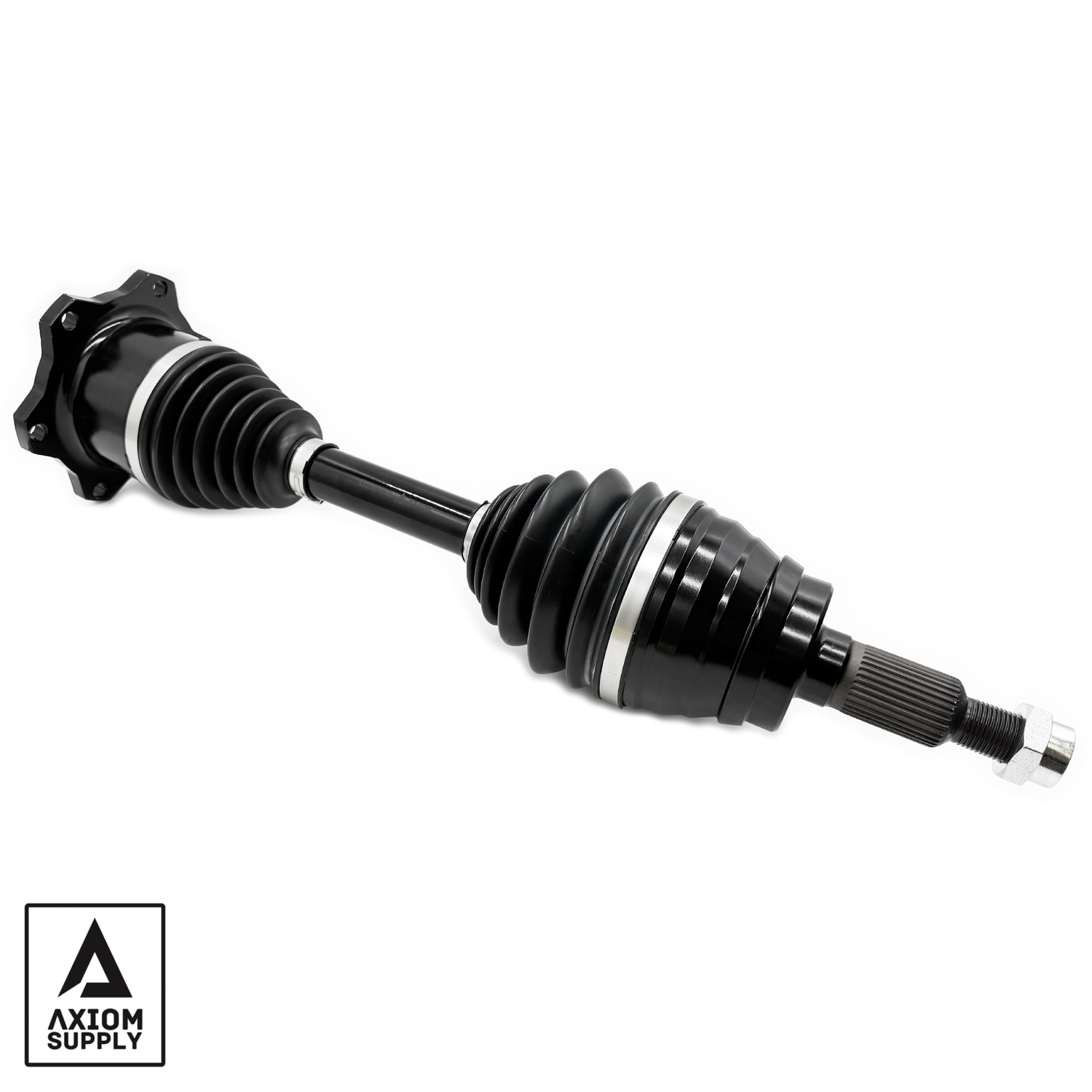

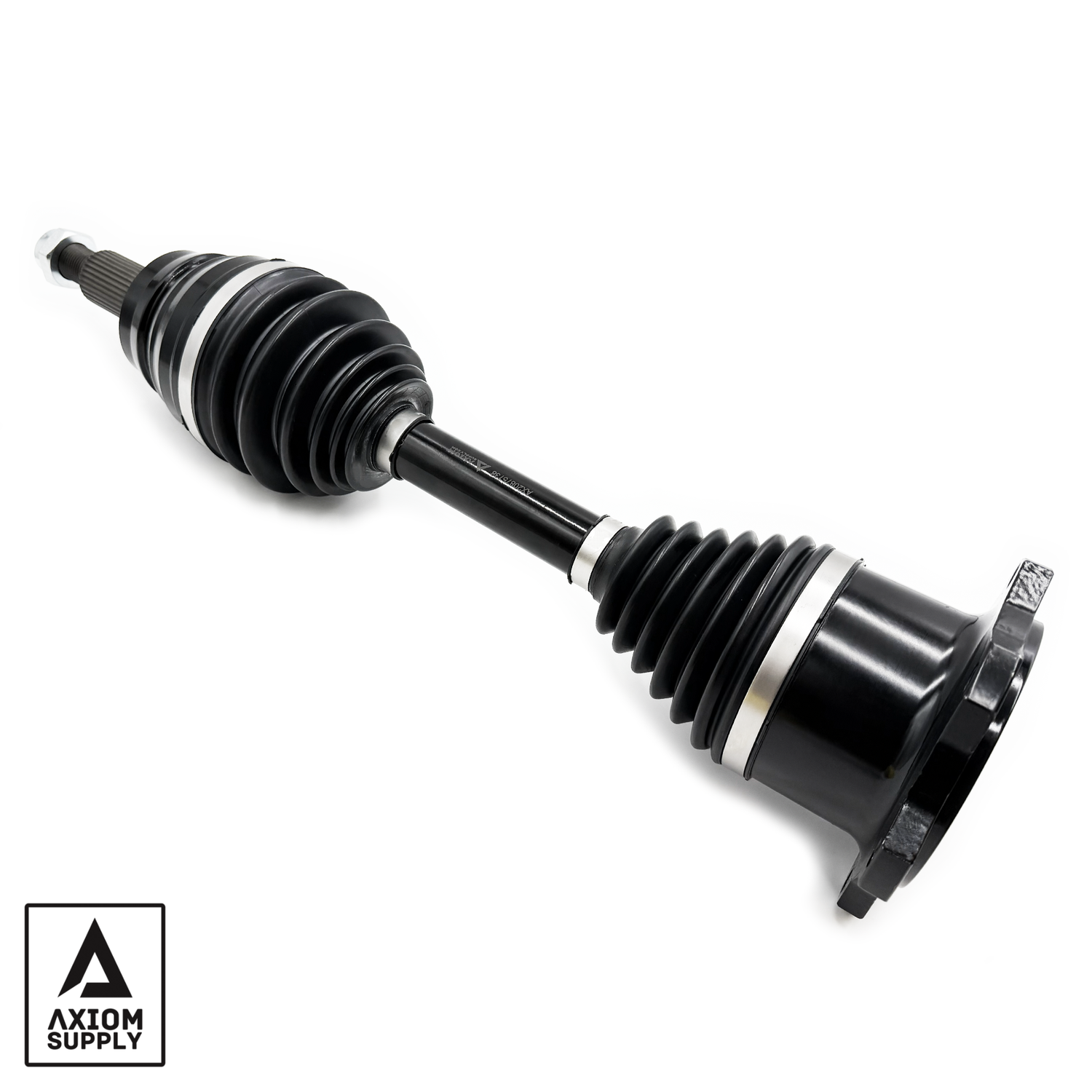

1988-2006 GM 1500 Reaper Series CV Axle Assembly (AXCV99)

The Reaper Series CV axle was built to end the cycle of torn boots and clicking joints on GM 6 lug 4WD trucks and SUVs. Factory axles were never designed around lifted geometry, oversized tires, or heavy towing, so Axiom built this one with oversized CV balls and cages for higher torque capacity and more articulation, a TPE boot that shrugs off UV, heat, and oil, and an e-coated finish that fights corrosion from salt and road debris. It installs with factory geometry as a direct OEM style replacement, no cutting or modification required.

Part Number: AXCV99

• Reaper Series premium construction built to exceed OEM durability standards
• Advanced e-coated finish resists salt, moisture, and road debris corrosion
• TPE (thermoplastic elastomer) CV boot is UV stable, heat resistant, and oil resistant, engineered to outlast rubber boots
• Oversized high torque internals with larger CV balls and cages for smoother power transfer and more articulation
• Built to survive lifted and leveled suspension geometry, towing, and off-road use
• OEM style direct fit with factory geometry, no modifications, cutting, or adjustments required

• 1 x Reaper Series CV Axle Assembly

• Fits 4WD, 6 lug models only
• Axle nut torque: 177 lb-ft (240 N·m)
• Inner CV flange bolt torque: 58 lb-ft (79 N·m)
• Torque fasteners with the vehicle on the ground and follow OEM tightening procedures; proper torque is critical for bearing preload and CV longevity
