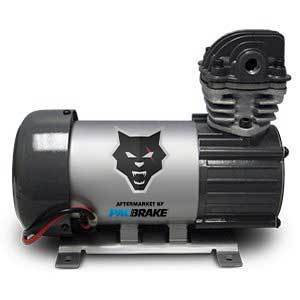

Universal HP265 Series 12V Air Compressor w/Vertical Pump Head (HP10625V)

Description

Fits: Universal

The Pacbrake HP625 Series 12 Volt Heavy Duty Air Compressor Kit is intended for filling air tanks for both the on and off-road markets. This compressor will provide quick and effortless inflation power thanks to its 3/4HP air compressor that has a 100% duty cycle (1 hour @ 100psi). All AMP compressors have a max working pressure of 150psi, feature an oil-less design, and are mountable in any orientation. So whether you are wanting to fill your air suspension, supply air to your train horns, fill flat tires, or power small air tools, the HP625 Series Air Compressor will get the job done!

Part Number: HP10625V

Features

• Copper wire wound permanent magnet motor
• Oil-less design
• Sealed bearings
• PTFE piston ring
• Cast aluminum cylinder head
• Hard anodized aluminum cylinder and aluminum sleeve
• Vertical Pump Head
• HP625 Series

• Volts 12 Volt

Compressor Specifications

• 12V DC
• 100 percent at 100 PSI duty cycle
• 3/4 HP
• Vertical head configuration
• Size is 11.5 inch x 6 inch x 9.5 inch or 293 mm x 153 mm x 242 mm (LxWxH)
• Weight is 17.7 lbs

Notes

• The HP625 series Pacbrake compressors require the use of the unloader assembly (Kit Number HP10116) for use with an air tank.

Installation

• For Installation Instructions, Please Click Here
