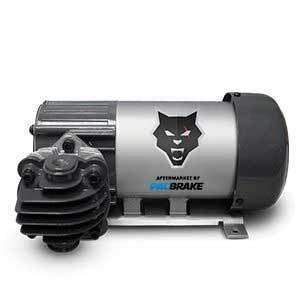

Universal HP625 Series 12V Air Compressor w/ Horizontal Pump Head (HP10625H)

Fits: Universal

The Pacbrake HP625 Series 12 Volt Heavy Duty Air Compressor Kit is intended for filling air tanks for both the on and off-road markets. This compressor will provide quick and effortless inflation power thanks to its 3/4HP air compressor that has a 100% duty cycle (1 hour @ 100psi). All AMP compressors have a max working pressure of 150psi, feature an oil-less design, and are mountable in any orientation. So whether you are wanting to fill your air suspension, supply air to your train horns, fill flat tires, or power small air tools, the HP625 Series Air Compressor will get the job done!

Part Number: HP10625H

• Copper wire wound permanent magnet motor
• Oil-less design
• Sealed bearings
• PTFE piston ring
• Vast aluminum cylinder head
• Hard anodized aluminum cylinder and aluminum sleeve.
• HP625 Series

• 12 Volt

Compressor Specifications:

• 12V DC
• 100 percent at 100 PSI duty cycle
• 3/4 HP
• Horizontal head configuration; size 11.5 inch x 9.5 inch x 6 inch or 293 mm x 242 mm x 153 mm (LxWxH)
• Weight 17.7 lbs.

• For Installation Instructions, Please Click Here

• The HP625 series Pacbrake compressors require the use of the unloader assembly (Kit Number: HP10116) for use with an air tank.
