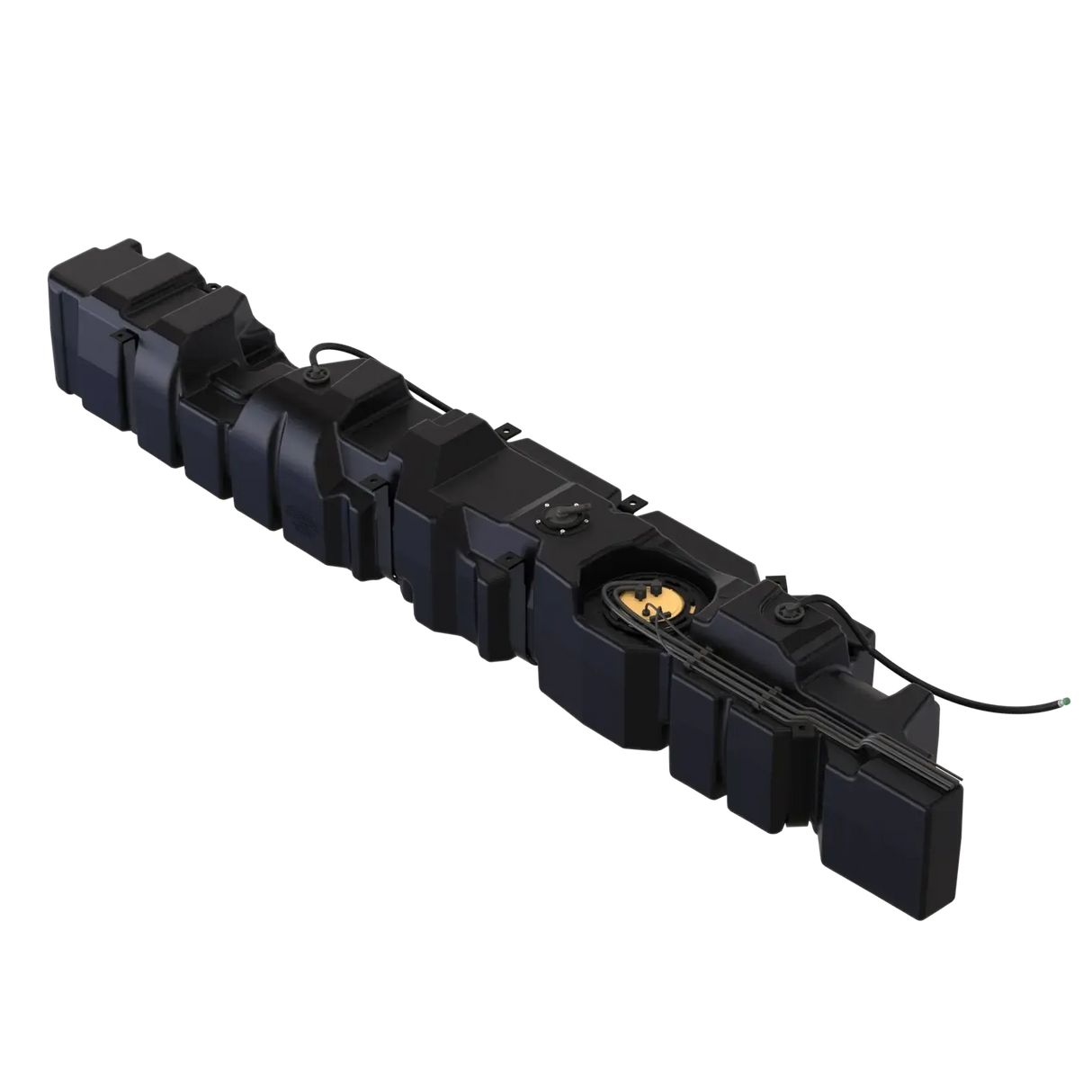

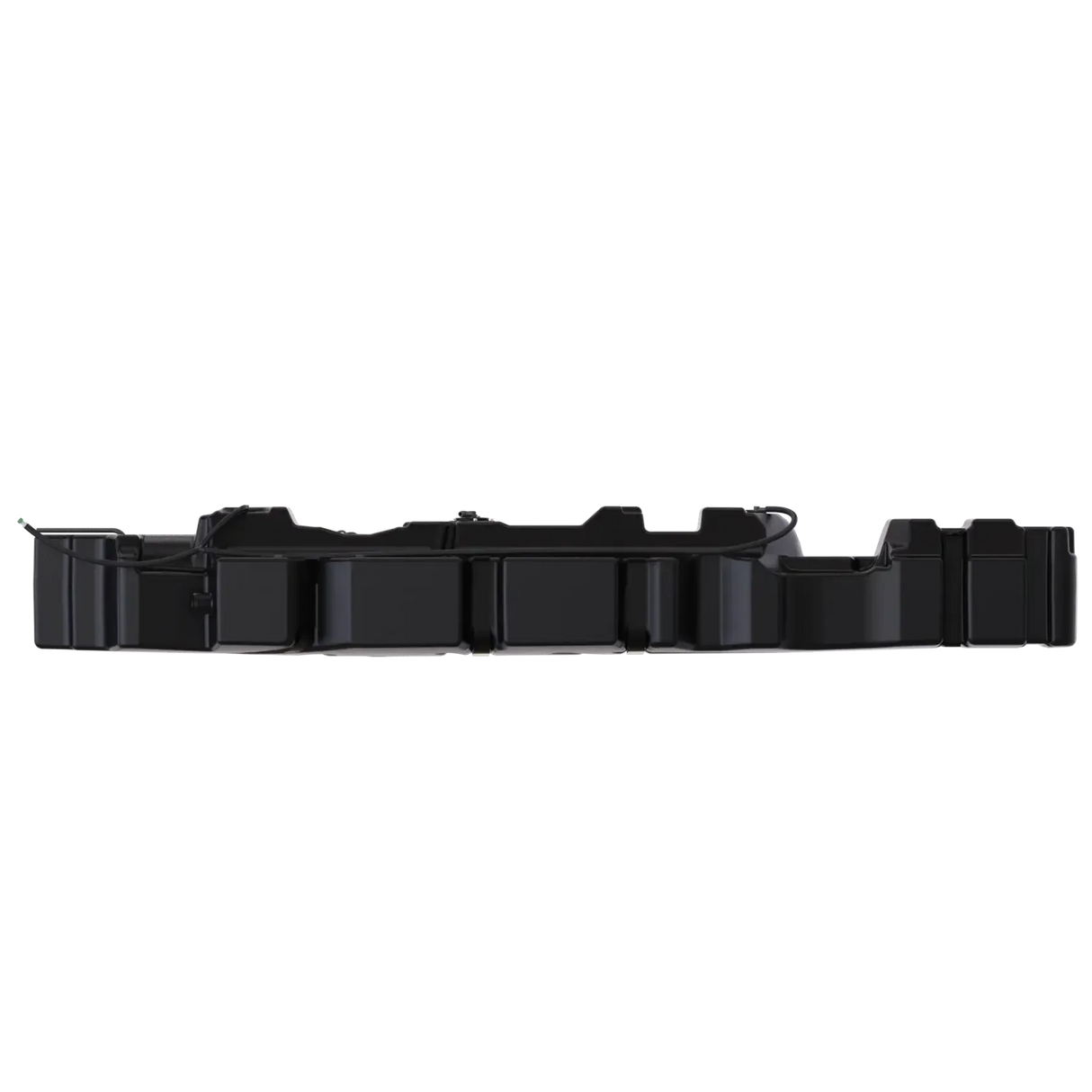

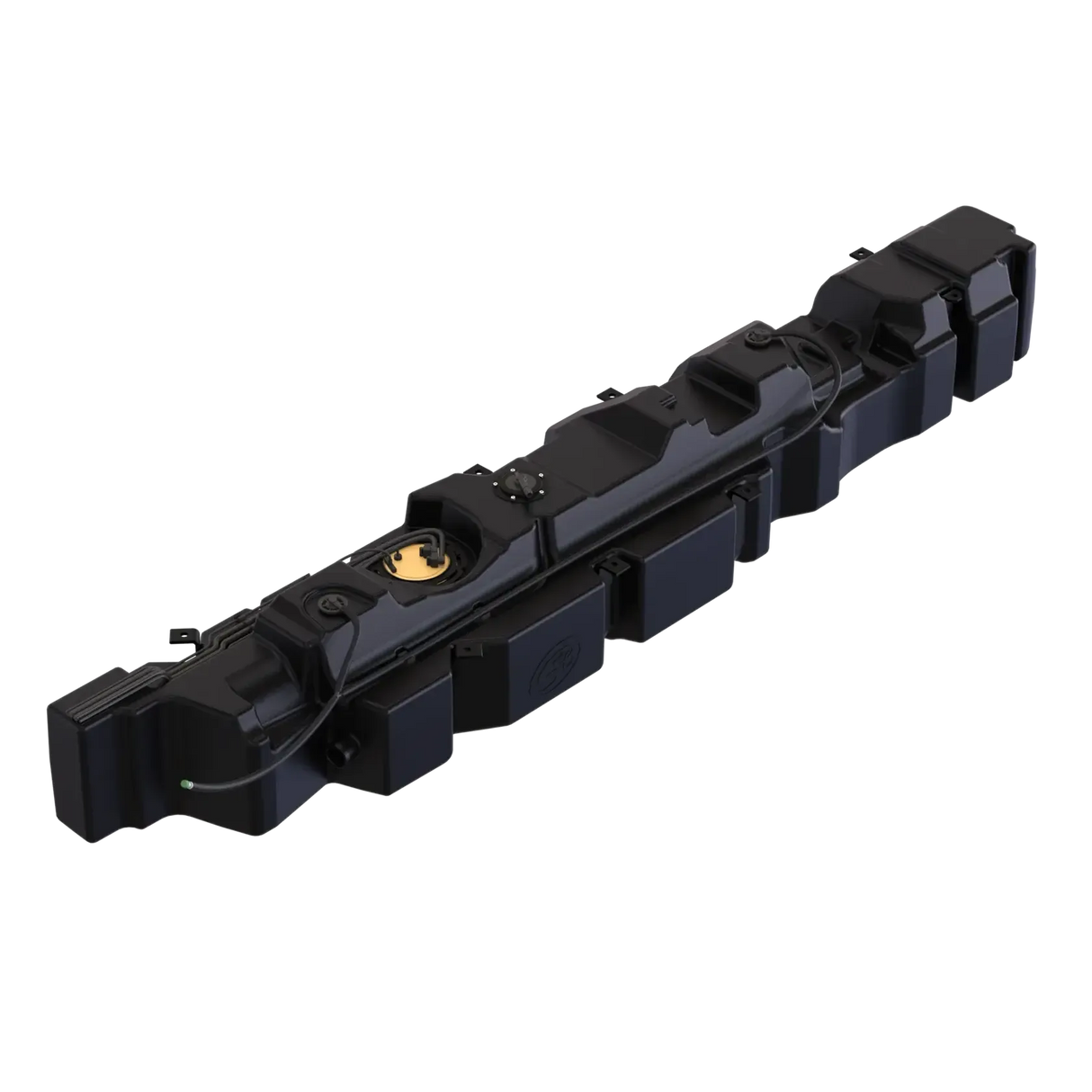

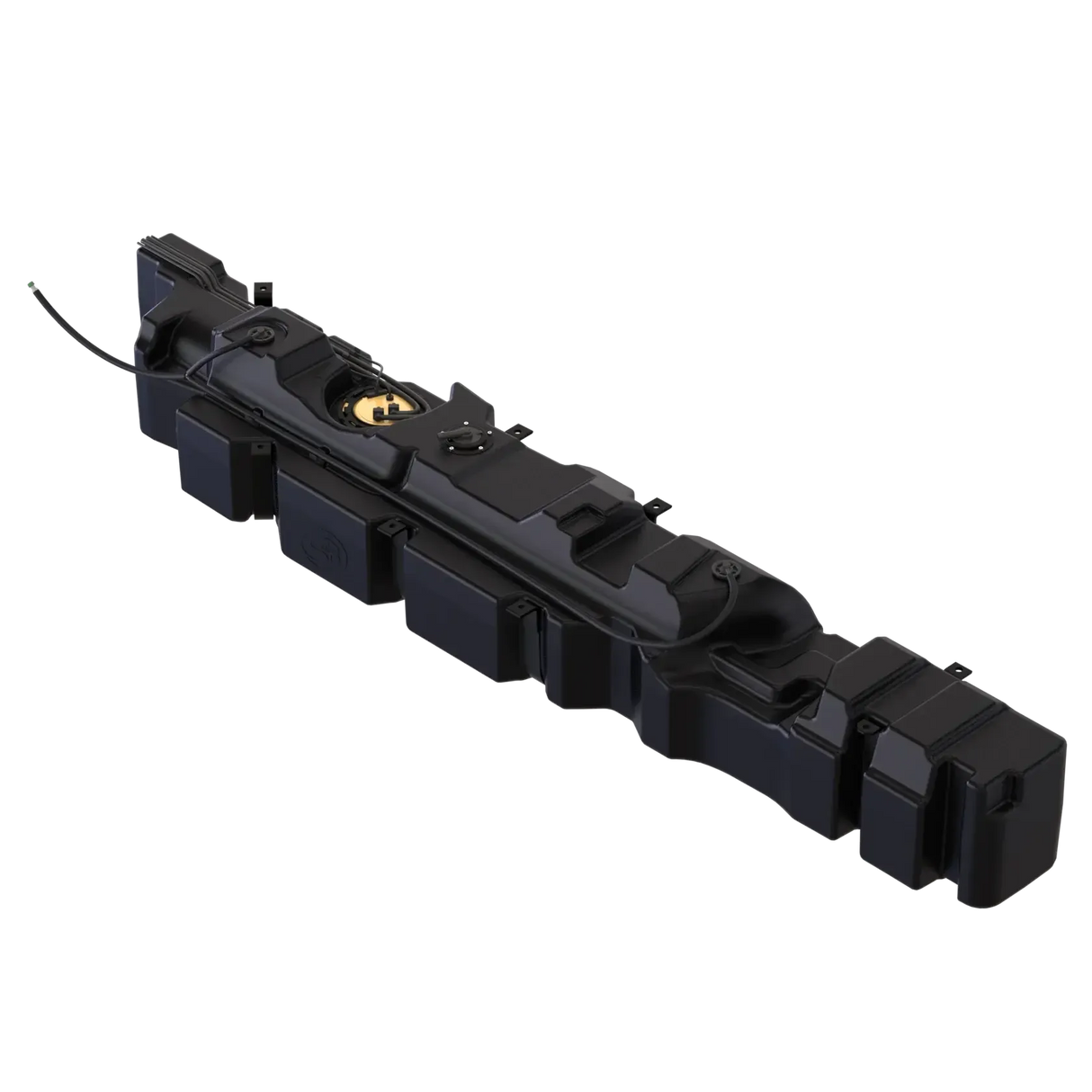

2019-2025 Mercedes 45 Gallon Replacement Fuel Tank (10-1031)
Purchase to earn 2075 Dirty Dollars Learn More
Description
Description
Fits
| Year | Make | Model | Engine |
|---|---|---|---|
| 2019-2022 | Mercedes | Sprinter | 2.0L, Diesel |
| 2019-2022 | Mercedes | Sprinter | 3.0L, Diesel |
| 2020-2023 | Storyteller | Classic Mode 4x4 | 3.0L, Diesel |
| 2020-2023 | Storyteller | Beast Mode 4x4 | 3.0L, Diesel |
| 2020-2024 | Winnebago | Navion | 3.0L, Diesel |
| 2020-2024 | Winnebago | View | 3.0L, Diesel |
| 2021-2023 | Storyteller | Stealth Mode 4x4 | 3.0L, Diesel |
| 2022-2023 | Pleasure-Way | Rekon 4x4 | 3.0L, Diesel |
| 2022-2023 | Winnebago | Adventure Wagon 70 | 3.0L, Diesel |
| 2023-2025 | Mercedes | Sprinter | 2.0L, Diesel |
| 2023-2025 | Storyteller | Classic Mode 4x4 | 3.0L, Diesel |
| 2023-2025 | Storyteller | Stealth Mode 4x4 | 3.0L, Diesel |
| 2023-2025 | Storyteller | Beast Mode 4x4 | 3.0L, Diesel |
| 2025 | Winnebago | Ekko | 2.0L, Diesel |
Upgrade your 2019-2025 Mercedes with this 45-gallon replacement fuel tank. It fits in the original spot with an extra rear strap and doesn’t extend beyond the original tank’s space. Made from durable ¼” thick crosslink polyethylene, it offers more fuel capacity without affecting your fuel gauge accuracy. Note: the distance-to-empty reading will still reflect the original tank size. Backed by a lifetime warranty for lasting reliability.
Part Number: 10-1031
Features
Features
- Midship tank type
- Approximately 45 gallons vs 24 gallons OE
- Weight 45lbs
- Sump: No
- Drain: No
- Sending unit OE
- Straps included
- Dimensions 98.28"x15.41"x14.17"
- Warranty
Installation
Installation
Notes
Notes
-
This tank will NOT fit:
- 144” Dually Vans
- 170” Crew Vans (1 row of seats)
- Vans with plumbing/items 24 inches from the rear end of the OEM tank or 19 inches from the rear end of the large rear cross-member.
- Storyteller XO (accommodation coming soon)
- 2019-2022 Vans: Part # 10-1027 is a shorter 40-gallon tank and will work for 170" Crew Vans, 144” Dually Vans, and vans with plumbing 5"+ behind the OEM tank
- Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap).
-
When using the auxiliary fuel tap on stock tanks, tap stops pulling fuel around 1/4 tank. With the S&B Tank, it will stop pulling fuel around 1/3-1/2 tank.
Warranty
Warranty
Diesel Fuel Tanks
S&B replacement fuel tanks have a lifetime limited warranty for the original purchaser. If there is a problem with an S&B tank related to defect, materials or workmanship, S&B will replace it. All terms of the S&B Million Mile Limited Warranty also apply to S&B fuel tanks. Damage to an S&B fuel tank resulting from improper installation or use will not be covered by this warranty.
