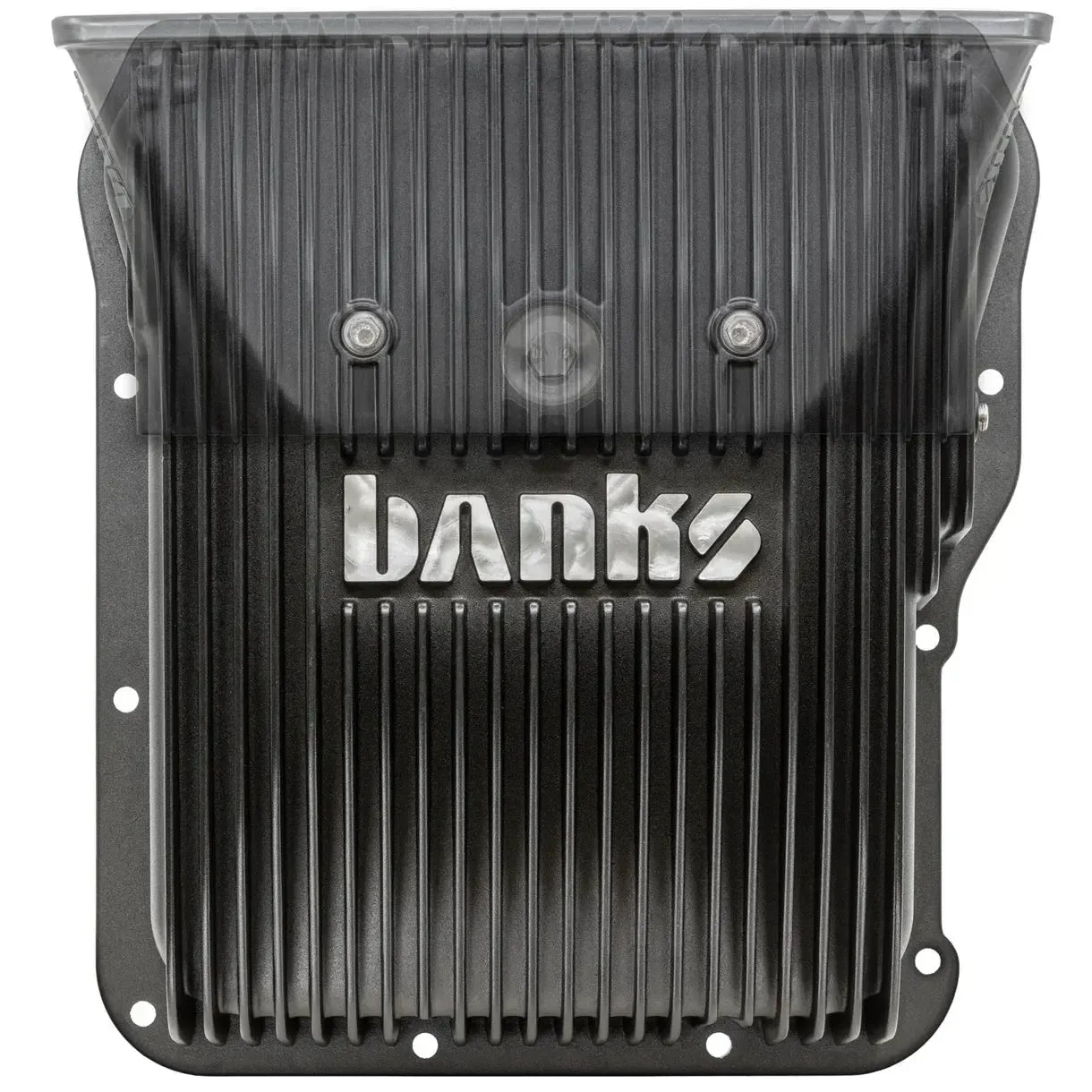

2001-2019 Duramax Banks Ram-Air Transmission Pan (35146-B)

Fits

Banks took their race-proven Ram-Air technology and engineered it into a transmission pan that actively cools your Allison 1000. This pan doesn’t just look cool, it runs cool, with FlowThru Fins, an airflow scoop, and an extra 2 quarts of capacity to reduce temps and extend transmission life. Built die-cast tough and ready for hard work.

For 6.6L Duramax trucks equipped with 5- or 6-speed Allison 1000 transmissions.

Part Number: 35146-B

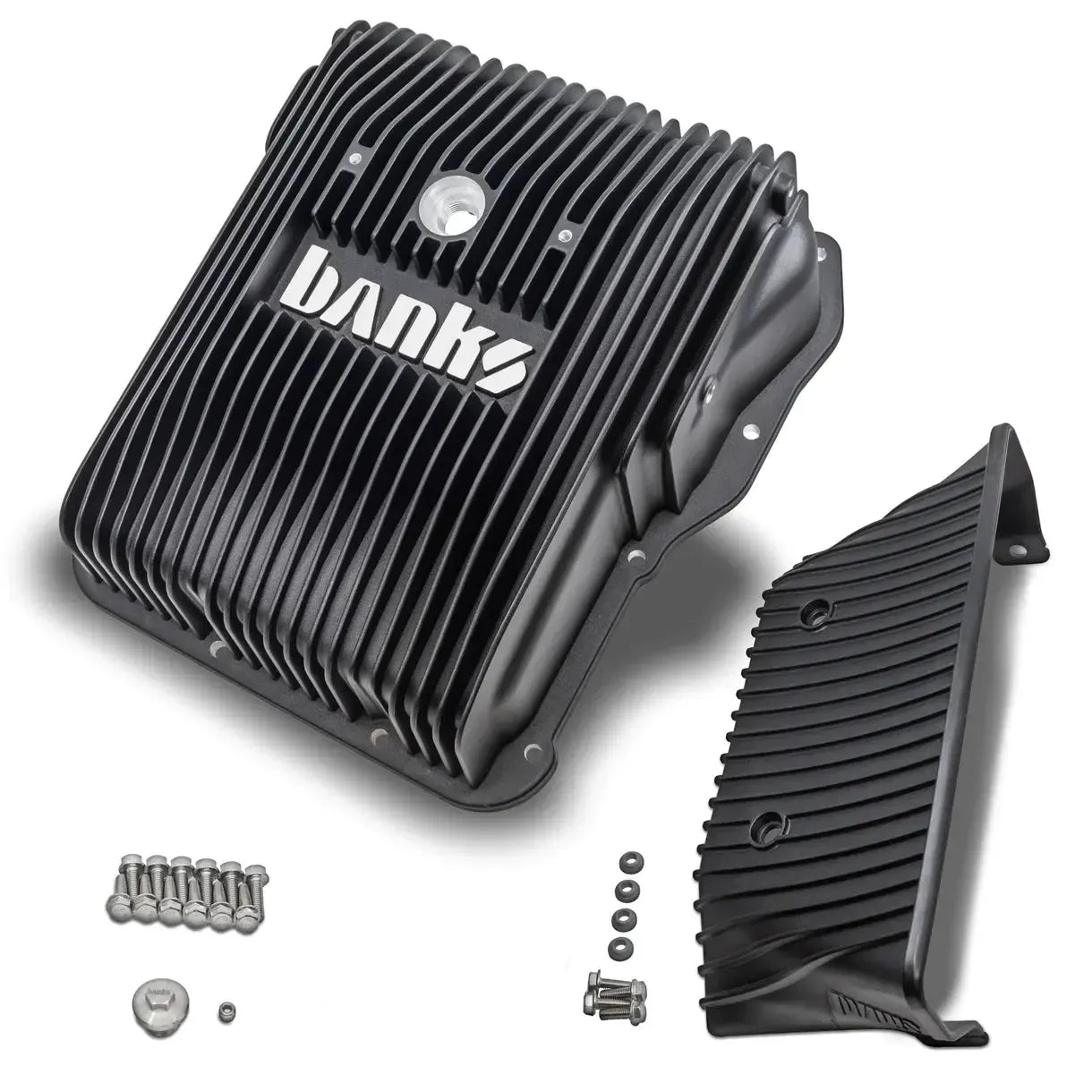

• Die-cast aluminum pan with smooth, low-porosity interior

• Adds 2 quarts of fluid capacity for improved thermal control

• FlowThru Fins™ maximize internal and external heat transfer

• Ram-Air scoop directs airflow through cooling fins

• Scoop is designed to break away to protect the pan

• 72% more heat absorption and 141% more cooling surface vs. stock

• 1/8" NPT port for temp sensor integration

• Retains full fluid drainage

• Includes integrated anti-slosh baffle and filter support

Why It's Better

The Banks Ram Air Transmission Pan for 2001-2019 Duramax trucks with Allison 1000 transmission outperforms and outcools the competition by leveraging decades of Ram-Air technology and thermal management expertise honed in racing and military engine development.

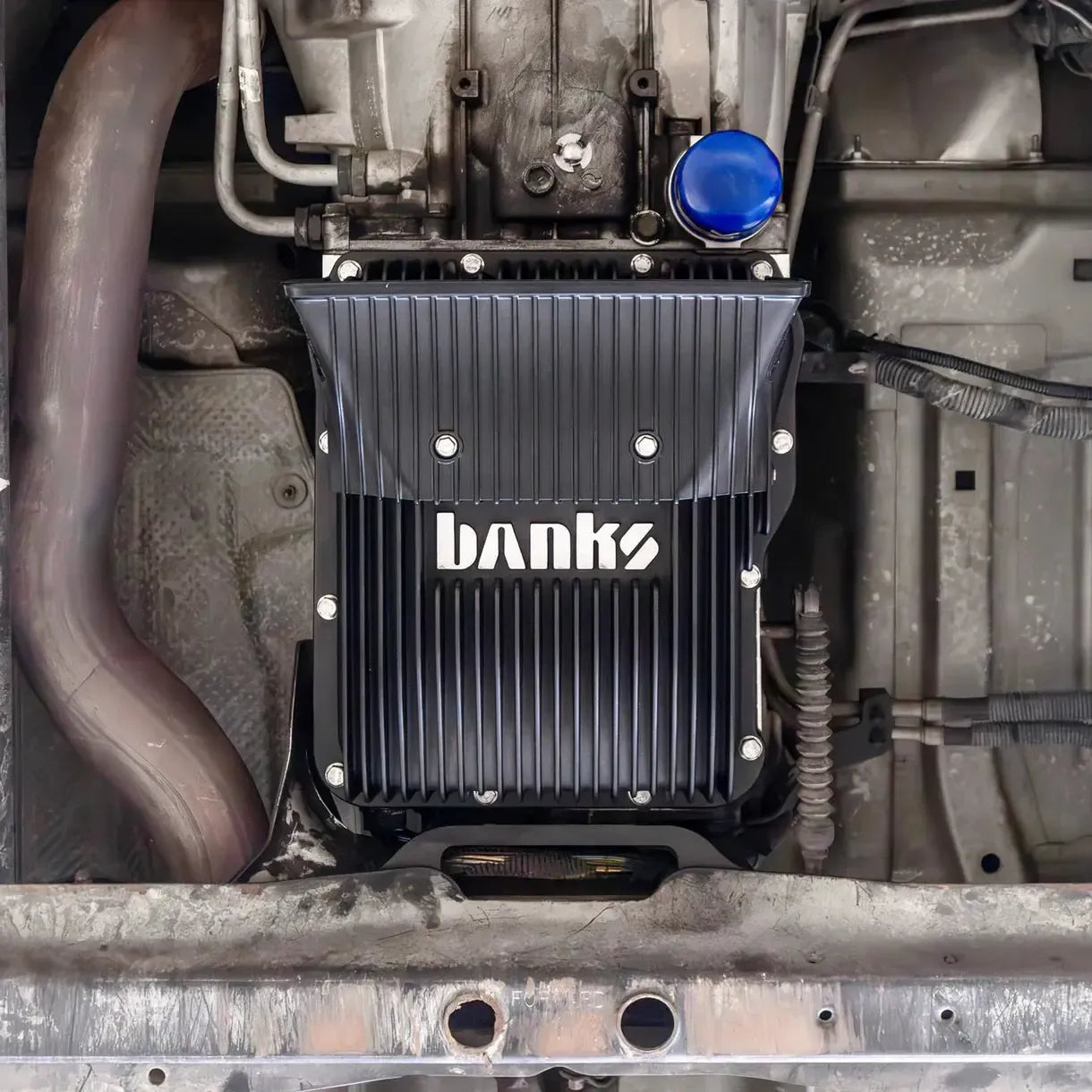

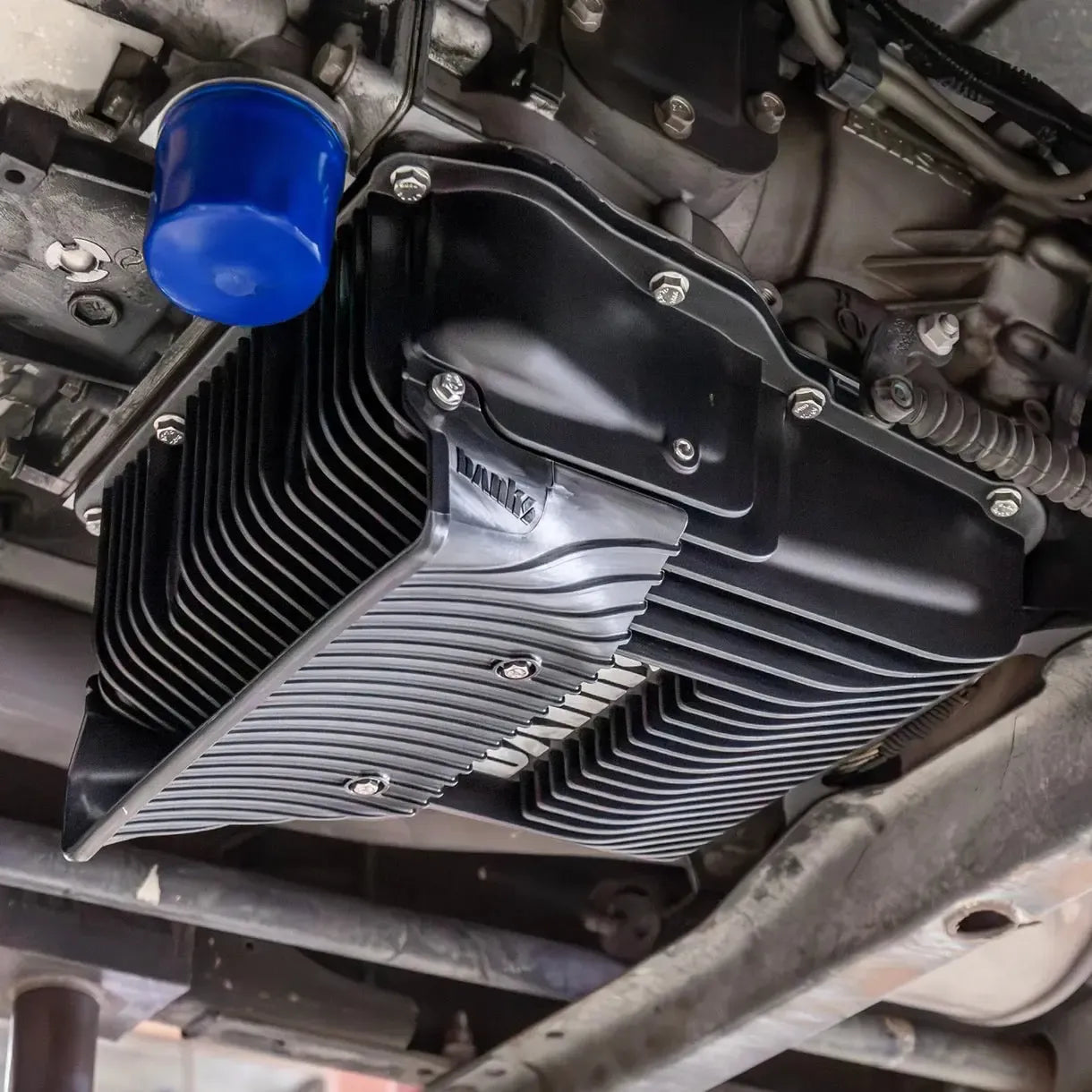

Taking advantage of the fast-moving cool air under your truck, the Ram-Air Transmission Pans' Patent Pending design draws ambient air through the large forward-facing scoop, funneling it through the external heat radiation fins.

Unlike competitive designs where the metal of the pan hangs the lowest, the Ram-Air Transmission Pan is engineered so that the lowest point is only the sacrificial front scoop while still providing 2 additional quarts of fluid capacity.

The plastic scoop is also designed to break away without causing damage to your pan, just in case. If this happens to you, let us know and we will send a replacement Ram-Air scoop on the house.

•1/8" NPT port for easily adding a supplemental temperature sensor.

•24 deep-cut external radiator fins provide more exposed surface area to the cool air moving under the truck.

•Integrated support structure for internal filter acts as anti-slosh baffles for fluid in the pan.

•18 internal fins absorb more heat from the oil than a standard or all aftermarket pans.

•Die-cast process provides a smoother, less porous interior surface and improves fluid flow in the pan.

The Banks proprietary FlowThru Fins™ maximize thermal energy transfer by lining up the internal absorption and external radiator elements with each other. Transmission fluid heat is efficiently drawn from the fluid, reducing stress on your Duramax's cooling and lubrication systems.

Banks vs Stock

The stock Duramax pan is made from stamped steel which has no internal or external fins to assist in removing heat from the fluid inside.

Without additional means to cool the fluid, it quickly becomes heat soaked with no way to radiate the additional heat load.

Banks vs The Competition

What happens when the Ram-Air goes against the competition? While others claim to have massive cooling ability with their designs featuring fins that cross haphazardly across their surface with no consideration for fluid dynamics, the Banks Ram-Air still comes out on top in total internal and external fin area.

What all others lack though, is the forward-facing Ram-Air scoop to help guide the air under your truck directly through its die-cast FlowThru Fins™, which further enhances heat transfer out of your fluid and away from your transmisison. No other pan is as well-engineered.

Die-Cast vs Sand-Cast

All Banks lubrication cooling products are die-cast, not sand-cast like competitors. Made with far greater precision, a die-cast part is denser, smoother, and has virtually no porosity compared to the equivalent sand-cast part.

Sand-cast parts often retain the sand they were molded with. Sand is an abrasive material that is bad for bearings and cylinder walls. In other words, you don’t want sand in your oil. Finally, our long, thin cooling fins are only possible with a die-cast process. Although this process costs more, it's worth it.

Fluid Dynamics

• Internal cooling fins run inline with the drain port with streamlined passageways
• Downward-facing port eases oil change process
• Lower aeration means longer fluid life

Technical Specs

• 1/8 NPT port for aux temp sensor
• External heat radiation fin count: 24
• Internal heat absorption fin count: 18
• External heat radiation surface area: 833 in²
• Internal heat absorption surface area: 505 in²
• Fasteners: 12 x stainless steel M6 flange hex bolts
• Material: A380 aluminum diecast with CNC machined surfaces

Oil service

• High temp resistant Ferrite Magnetic Drain Plug
• Fully drains oil pickup tube for quicker oil changes
• Banks recommends Amsoil Synthetic Diesel Oil
• Adds 2 quarts additional capacity(Check OEM Owners Manual)
