2013-2018 Cummins 4 Link 8" Lift Kit (BDS1614H)
The new 8" system is built around the same 4-link conversion system that is used for the 4" and 6" kits. By converting the stock radius arm front suspension to a 4-link, we are able to better control the caster change through the full suspension travel, create much better handling characteristics and maintain a quality ride unloaded without sacrificing payload.
Tire & Wheel Combinations:
- 40" x 13.50 w/ 17" x 9" and 4.5" - 5.5"
Notes:
- Not for use with factory rear airbag suspensions
- Diesel Only
- Kits come standard with a 6-Bolt indexing ring kit. If equipped with heavy-duty 8-bolt t-case order 122813 in place of 122623
- Carrier bearing drop kit will be required for 2-piece rear driveshaft #122405
- Some vehicles may require rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement
- Will not fit Cab and Chassis models
Installation:
- Click Here For Installation Instructions
- Difficulty: 3 (where 1 = easiest and 5 = complicated)
Part Number: BDS1614H
8" Front Coil Springs
Show more
8" Front Box Kit
This Box Kit includes the following products:
- Driver & Passenger 4-Link Brackets
- 2 BDS Badges
- 2 Rivet Bolt Packs
- 2 1/16” Shim
- 2 1/8in Shim
- 2 weld-in bungs
- 2 Long Machined Spacer Sleeves
- 2 Spacer Sleeves
- 2 1.250 x 0.312 x 0.875
- Rivet nut installation bolt pack
- 2 1/2" Rivet nuts
- Pitman Arm
- 8” BDS track bar bracket
- 2 Trackbar Cam (4 positions)
- 1.00 x 0.2345 x 0.25 Spacer
- 2 1/2" Bolt Tab
- Fish Wire
- 2 Sway Bar Links
- 2 Clevis Bracket
- 2 Sleeve - Upper & Lower
- 2 Offset Spacers
- 2 Brake Line Brackets
- 2 5/16” Self Taper
- 2 Bump Stop Extensions
- 2 Poly Bump Stops
- 2 Front Brake Lines
- 4 Crush washers
- 2 Clips
- 8 Zip ties
- 4 Wire clips
- Bolt Pack - Bump Stop Hardware
- Bolt Pack
- Bolt Pack - 4 Link Brackets
- Bolt Pack - Front Sway Bar Links
Show more
4-Link Box Kit
This Box Kit includes the following products:
- Upper & Lower Control Arm 4-Link Conversion
- 2 Straight Grease Zerks
- 4 Sleeves
- 4 Bushings (Large - Lower Control Arm)
- 2 Bushings (Small - Upper Control Arm)
- 2 90 Degree Grease Zerks
Show more
Rear Box Kit
Show more
Ram trucks have an optional Aisin heavy-duty 6-speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt). The 8-bolt kit also includes an internal shaft seal extension and a new shaft seal.
6-Bolt Transfer-Case Indexing Ring
Show more
8-Bolt Transfer-Case Indexing Ring
Show more
4.5" Leaf Springs (2x)
Choose this option if you want full leaf spring replacements
Show more
Add a leaf
Show more
5" Rear Block Kit
Show more
No Thanks
NX2 Series Shocks | Single (2x)
- Select this option if you would like Single NX2 Series front shocks.
- DO NOT select this option if you would like dual shocks in the front. If you would like dual front shocks, skip to the rear shock selection and select (6).
Show more
Fox 2.0 Series Shocks (2x)
Improve ride quality and capability with the FOX 2.0 performance series IFP shocks. Specially designed for BDS lift systems, these FOX 2.0 aluminum body shocks offer improved cooling capacity and corrosion protection. These shocks use race-proven vehicle-specific valving along with an internal floating piston (IFP) monotube design to separate the shock oil from high-pressure nitrogen to eliminate aeration and maximize performance on/off-road.
Show more
BDS NX2 Series | Single or Dual Shock
Note:
- Select 2 if you would like Single Rear Shocks
- Select 6 if you would like Dual Shocks
The BDS NX2 series gas shocks offer impressive performance on and off-road. Standard in most BDS lift kits, these nitrogen-charged, twin-tube shocks offer 10-stage velocity-sensitive valving for lightning-fast damper performance and control.
Show more
Front Dual Shock Bracket. This new accessory kit for the popular new Ram trucks allows for an additional shock at each of the front corners of the vehicle for extra control.
Note:
- Required if you have selected Dual Front Shocks.
No Thanks
Dual Shock Mounting Bracket
Show more
No Thanks
No Thanks
Dual Steering Stabilizer Bracket Kit
Show more
This upgrade kit includes everything needed to convert the base links included in the lift system to a disconnecting link. It is a simple conversion that does not require removing the links from the sway bar.
No Thanks
Sway Bar Disconnects
Show more
No Thanks
Universal Recoil Traction Bar
Show more
Standard Series (4" Axle)
Reduce rear pinion angle change commonly referred to as axle wrap during acceleration with these BDS heavy-duty traction bars. Tubular design for good looks as well as serious axle control.
Show more
Bracket kits are vehicle specific. The frame brackets install by drilling mounting holes for the brackets while the axle brackets install using a set of u-bolts. The traction bars and mounting brackets use a durable gloss black powder coat finish.
Note:
- Required if you selected the Recoil Traction Bar
- Bracket kits are vehicle specific.
No Thanks
Recoil Traction Bar Mounting Kit - (4" Axle/ SRW)
Show more
BDS is now offering an HD adjustable front track bar for the RAM 2500 and 3500 trucks. These new track bars are a massive upgrade to the factory unit, constructed from 1-3/8 solid steel stock reinforced with gusseted ends to handle whatever on-road and off-road abuse you can through at it. Adjustments are made at the 1-3/8-12 fine threaded center turnbuckle with pinch bolt ends to allow easy tuning to properly recenter the front axle for a range of lift heights. The track bar is formed for proper clearance around critical front-end components and is designed to easy installation without the need to clear the factory frame and axle mounts. Both ends use high-durometer polyurethane bushings with thick-walled steel sleeves for strength and reliability. Parts come with a high-quality textured black powder coat finish for a great look and excellent corrosion resistance. They are designed for use on 0-3" of lift and can be used in combination with most aftermarket track bar brackets to be used on taller lift heights.
No Thanks
No Thanks

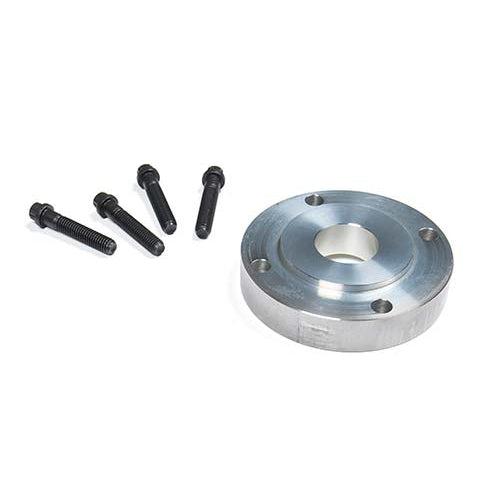

Rear Driveshaft Spacer
Show more
The kit comes with multiple shim plates for full adjustability from 1/8" to 1-1/2" of drop. Includes necessary hardware.
Note:
- For all 3"+ Lift Kits.
No Thanks
Carrier Bearing Drop Spacer
Show more
