Universal T4 Spacer Plate Kit 1/2" with Studs and Gaskets (WCF100118)

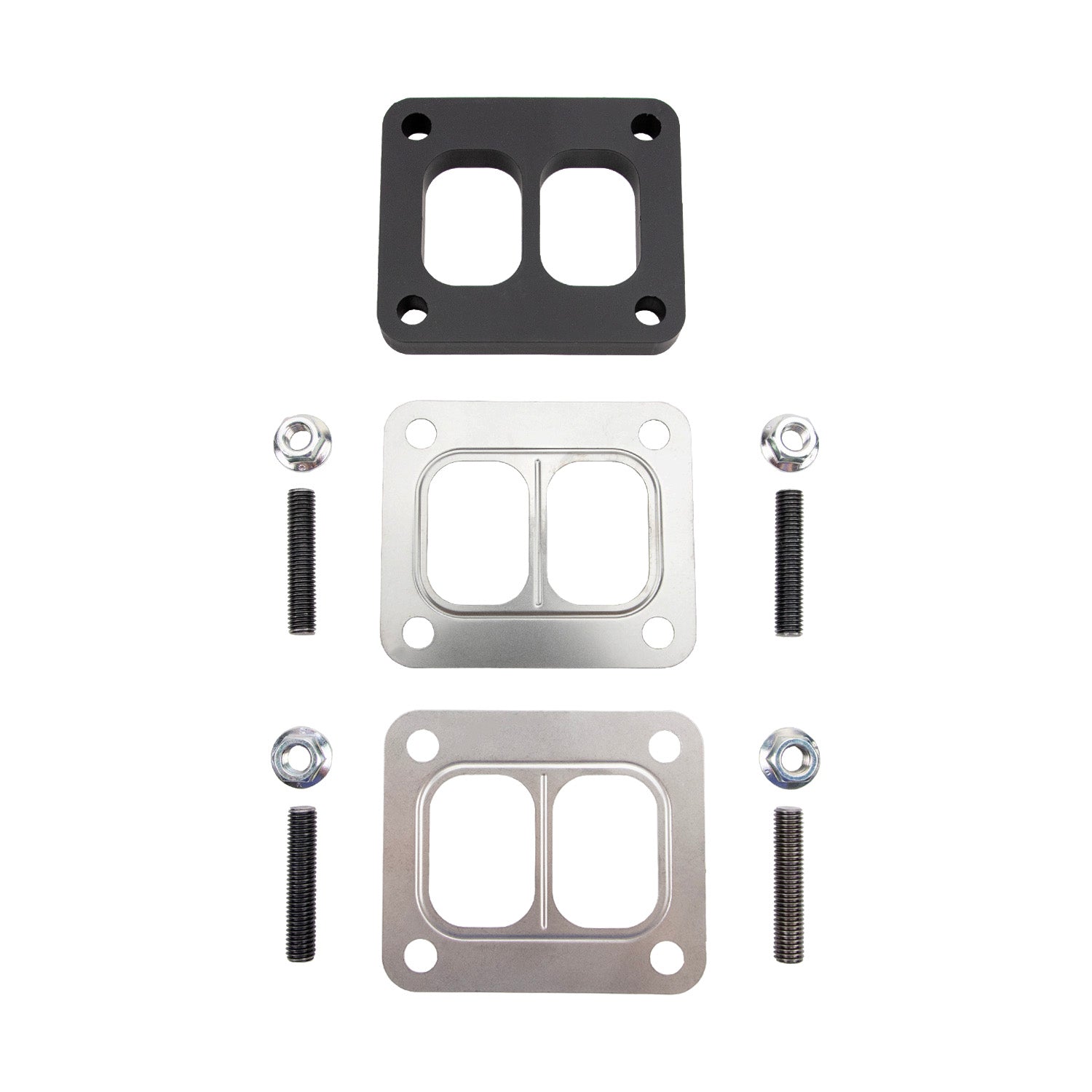

A 1/2" thick divided T4 spacer plate for moving a T4 flange turbo away from the manifold or pedestal when clearance is tight. Wehrli supplies it as a complete kit with studs, nuts, washers and two T4 gaskets, ceramic coated black so it holds up next to the hot side.

Steel plate, divided so it keeps twin-scroll pulse separation intact. The M10 studs are 1" long to account for the extra thickness. Common on Cummins compound and S300/S400 swaps where the compressor housing lands on something.

Part Number: WCF100118

• 1/2" thick steel divided T4 spacer plate
• Ceramic coated black
• M10 x 1" mounting studs, nuts and washers included
• Two T4 gaskets included
• Also available in 1" (WCF100800) and 1-1/2" (WCF100358) thicknesses
• Made in USA
