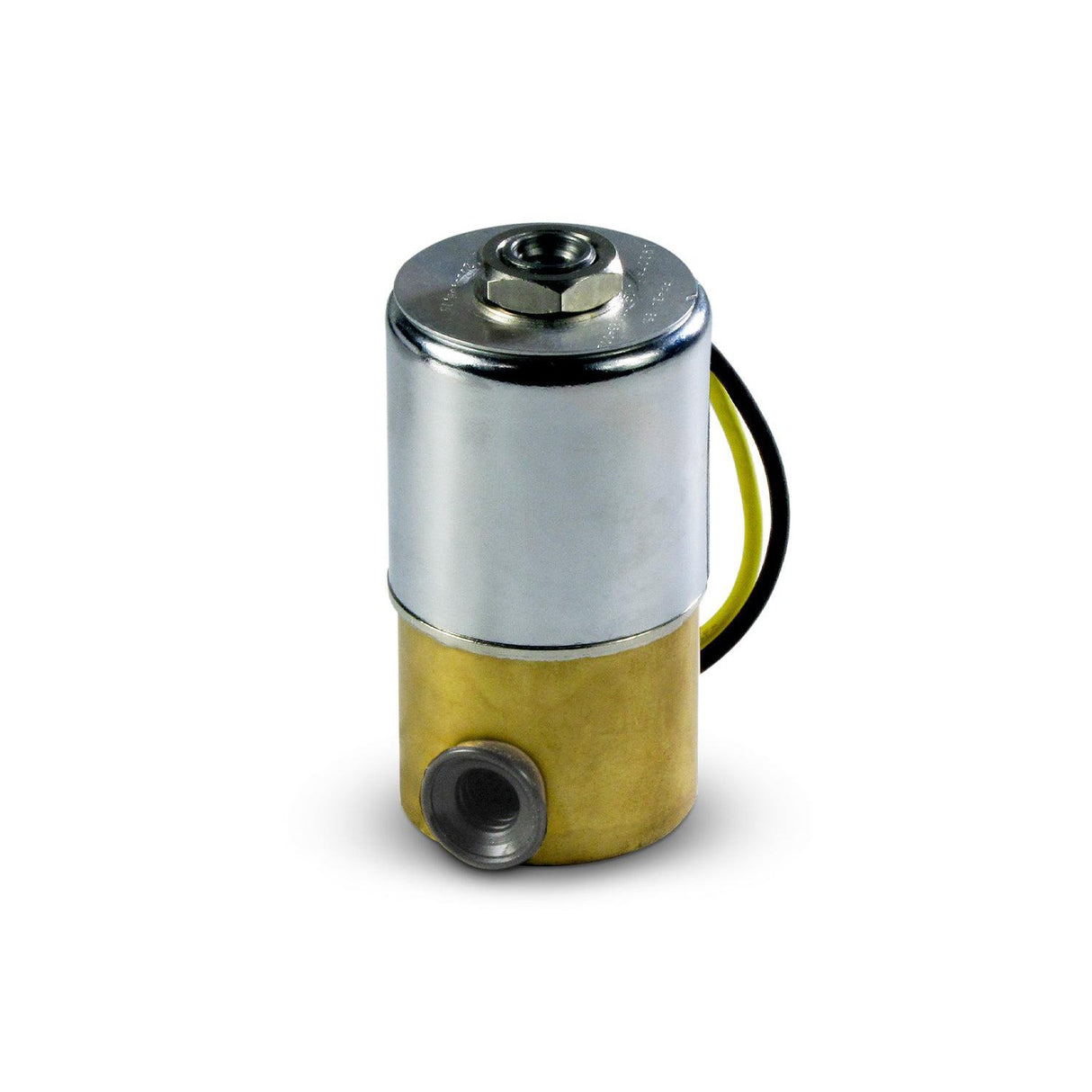

Universal HD Exhaust Brake Solenoid (C10611)

Fits: Universal

For anything to do with hydraulic or pneumatic solenoids, Pacbrake is your go-to, through their rigorous testing, these solenoids are guaranteed to meet any specialty requirement or mounting location.

Part Number: C10611

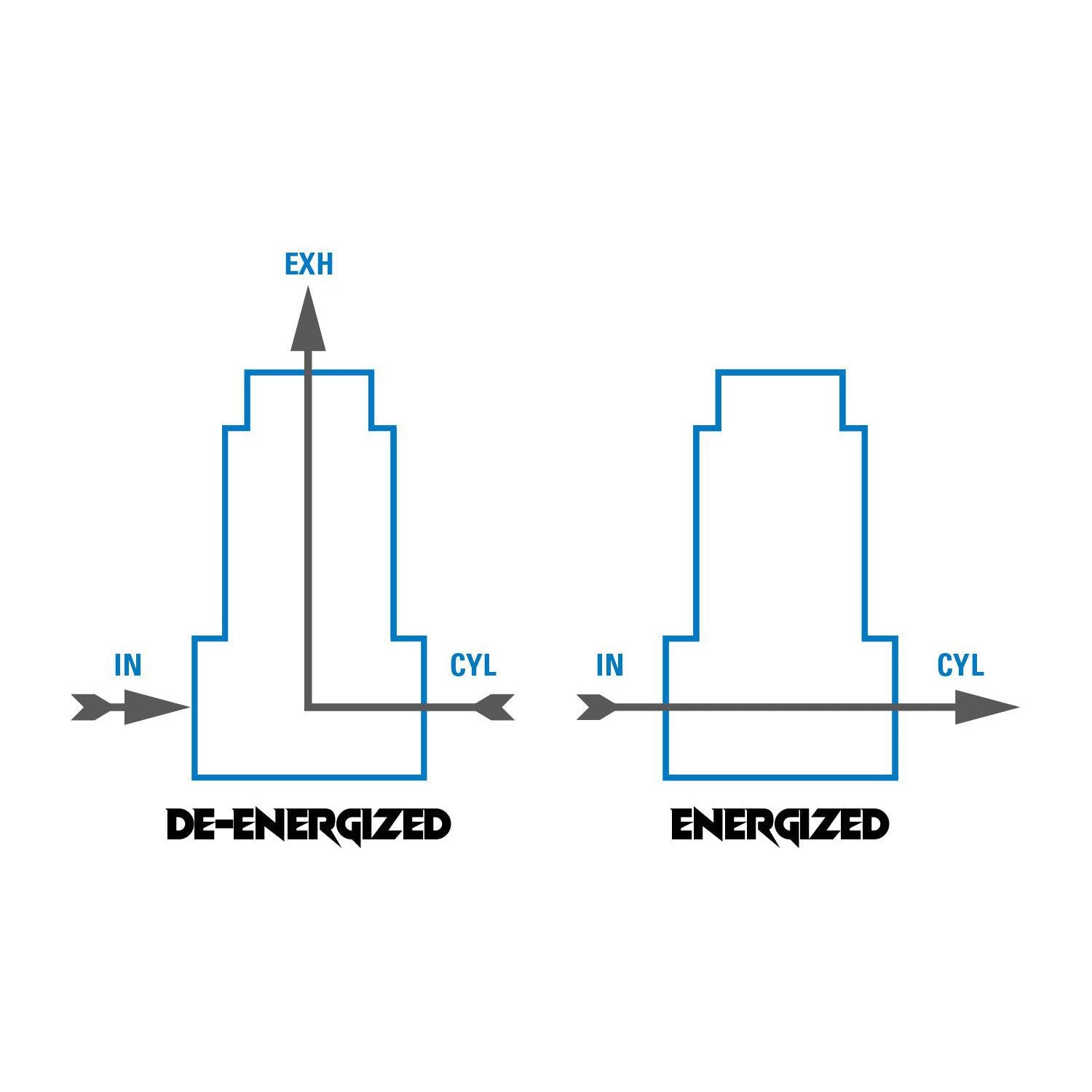

• 3-way, 2-position solenoid
• Voltage Range: 24 VDC
• Coil Resistance: 36 Ω to 45 Ω @ 24°C
• Working temperature range: -40°F to 248°F [-40°C to 120°C]
• Maximum working pressure: 0 psi to 135 psi
• Brass Solenoid Base
• Zinc Chromate Plated Carbon Steel Solenoid Body

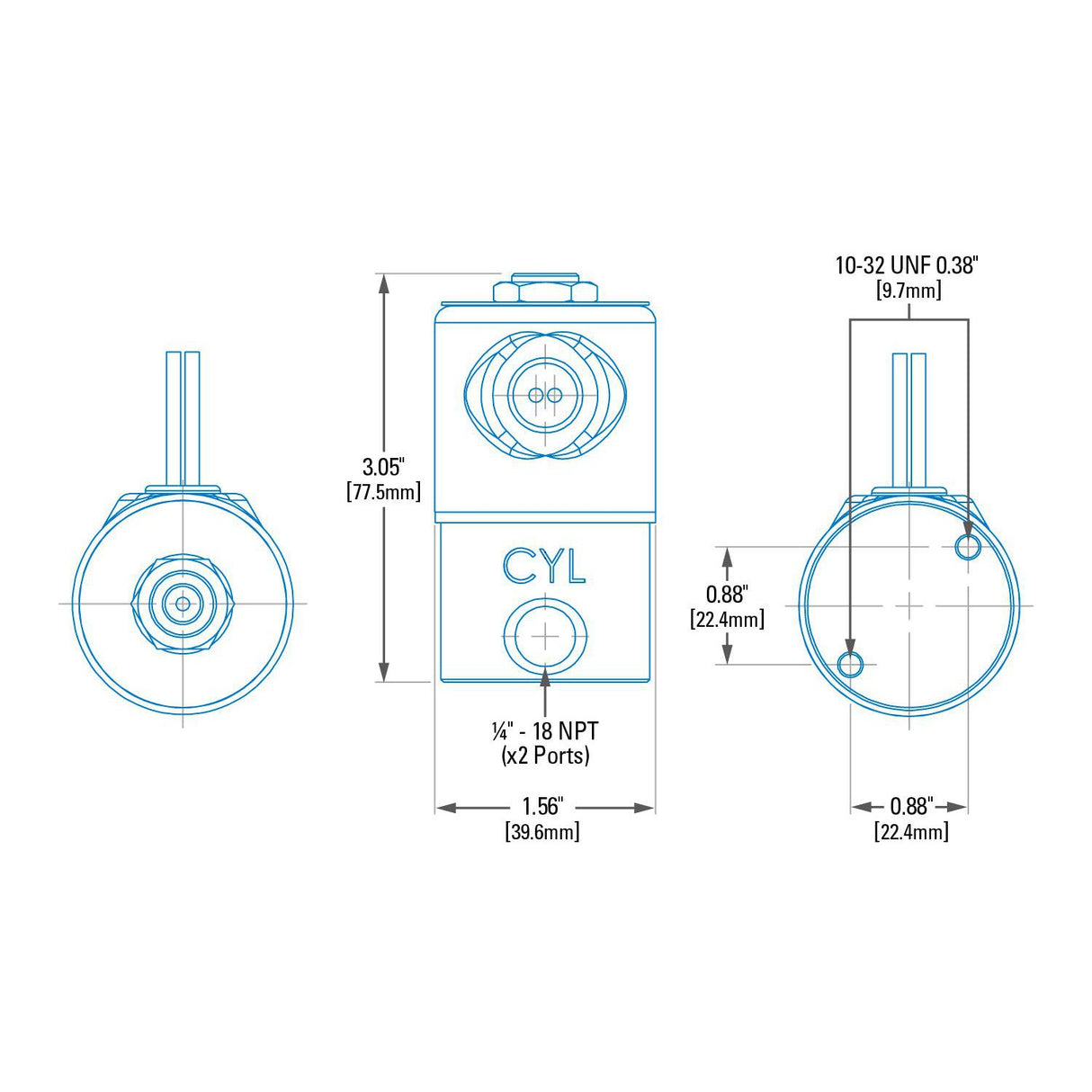

• 1/4" - 18 NPT Inlet "IN" Port — Normally Closed (opens when energized)
• 1/4" - 18 NPT Outlet "CYL" Port — Normally Open to Exhaust (Atmosphere)
• 6" [152 mm] long 18 AWG ( UL 3173) pigtail
• 1N4006 Internal Suppression Diode
• NEMA 1 Protection
