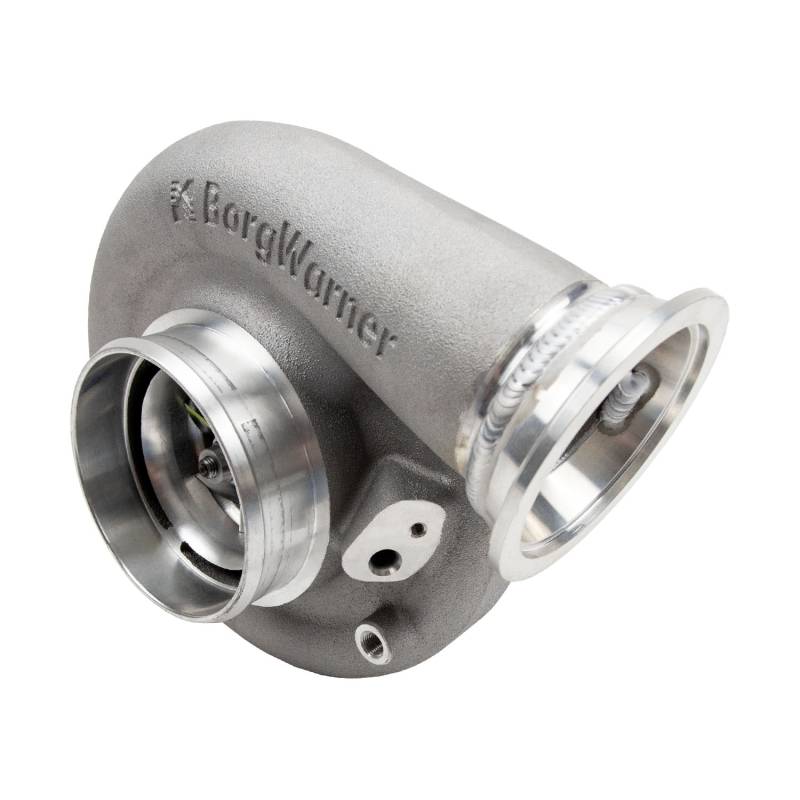

Universal Borg Warner S366 SXE with 73mm Turbine Modified with 3" V Band Outlet (WCF100200)

BorgWarner S366 SX-E super core with a 73 mm turbine wheel, with the compressor cover machined by Wehrli to a 3" V-band outlet in place of the standard 2.75" hose outlet. It was built for Wehrli's 2nd gen swap kits on the 5.9L Cummins, but it suits any build that wants a V-band connection on the cold side. Rated for 500 to 875 hp.

Super core only: center section and compressor cover. The exhaust turbine housing is sold separately, but all turbine housing mounting hardware, clamp plates and cap screws are included. Forged milled compressor wheel, 360-degree thrust bearing, integrated speed sensor port and a pre-machined boost port.

Part Number: WCF100200

• S300 SX-E 66 mm compressor wheel, 73 mm turbine
• 3" V-band compressor outlet
• Forged milled (FMW) compressor wheel
• 360-degree thrust bearing
• Integrated speed sensor port
• Pre-machined boost port
• Compressor inducer 66.11 mm, exducer 91.44 mm
• Rated for 500-875 hp
• Turbine housing mounting hardware, clamp plates and cap screws included
• Made in USA

• Super core only. Turbine housing sold separately.
• Smaller S364.5 version: WCF100181.
