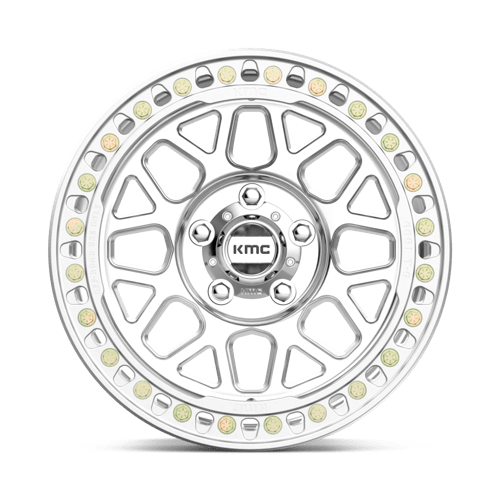

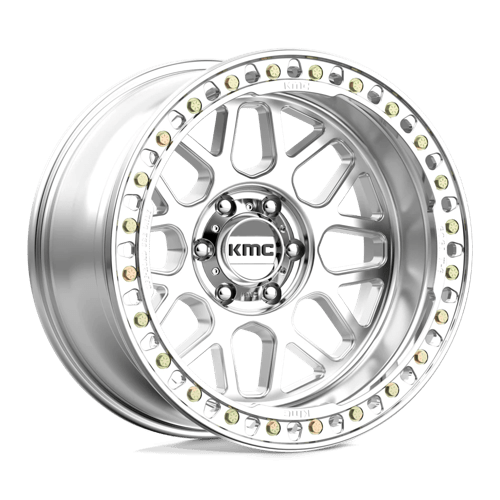

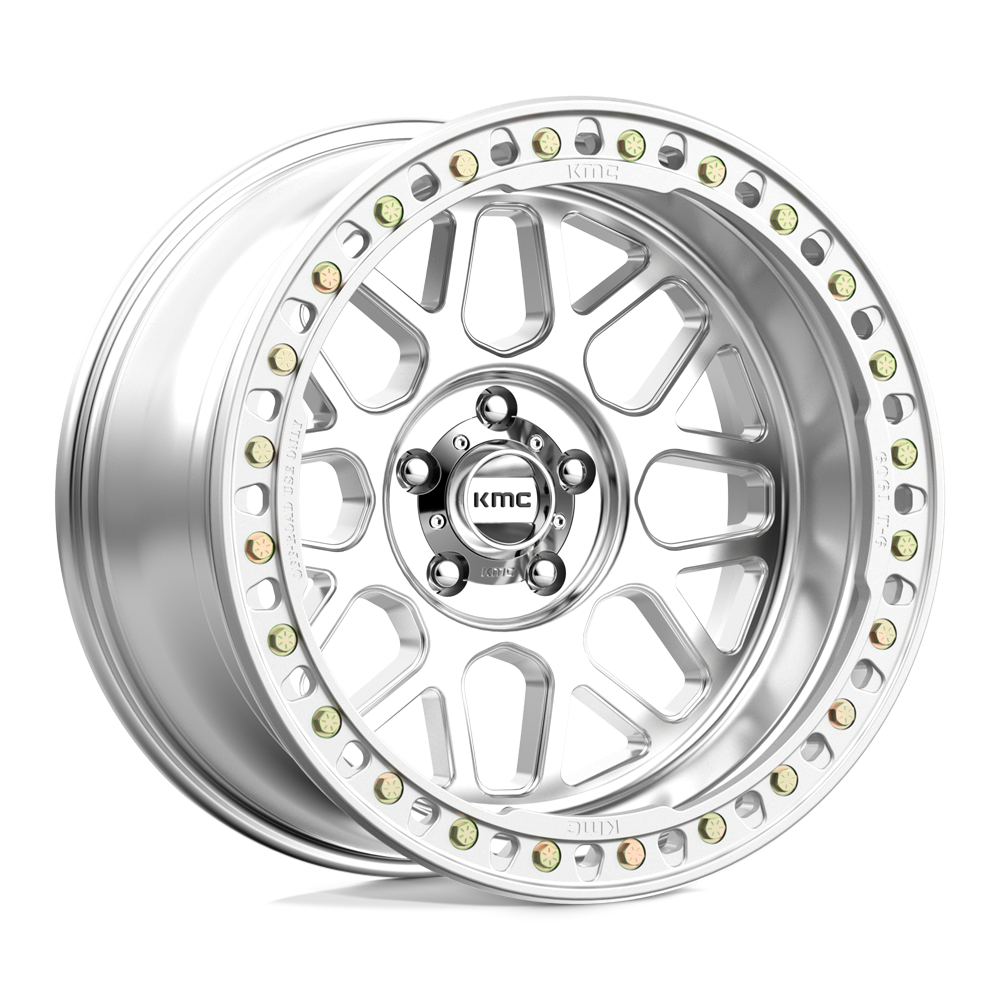

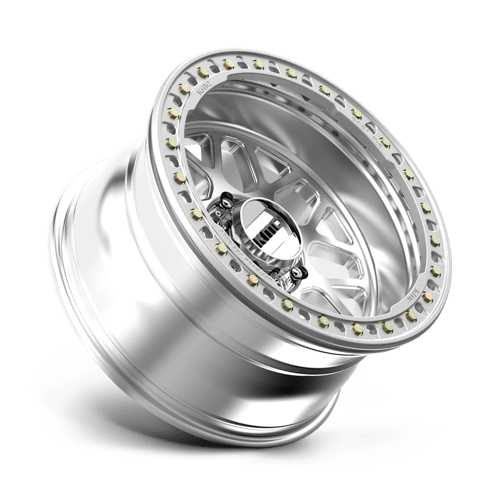

KMC KM235 GRENADE CRAWL BEADLOCK - Machined
KMC
Part Number:
KM23521050548N
$756.00 CAD
Unit price
/
Unavailable
Purchase to earn 756 Dirty Dollars Learn More
Price Match Request
KMC KM235 GRENADE CRAWL BEADLOCK - Machined
Description
Description
Fits
| SKU | Finish | Size | Diameter | Width | Lug Count | Bolt Pattern | Offset | Backspacing | Centerbore | Weight |
| KM23521050548N | Machined | 20x10 | 20.0 | 10.0 | 5 | 5x127mm (5x5.0) | -48 | 3.61 | 71.5 | 43.76 |
| KM23521060548N | Machined | 20x10 | 20.0 | 10.0 | 6 | 6x139.7mm (6x5.5) | -48 | 3.61 | 108.0 | 43.76 |
| KM23521080548N | Machined | 20x10 | 20.0 | 10.0 | 8 | 8x165.1mm (8x6.5) | -48 | 3.61 | 125.1 | 44.42 |
| KM23578550500 | Machined | 17x8.5 | 17.0 | 8.5 | 5 | 5x127mm (5x5.0) | 0 | 4.75 | 71.5 | 34.26 |
| KM23578560500 | Machined | 17x8.5 | 17.0 | 8.5 | 6 | 6x139.7mm (6x5.5) | 0 | 4.75 | 108.0 | 34.26 |
| KM23578563500 | Machined | 17x8.5 | 17.0 | 8.5 | 6 | 6x135mm | 0 | 4.75 | 87.1 | 34.26 |
| KM23578580500 | Machined | 17x8.5 | 17.0 | 8.5 | 8 | 8x165.1mm (8x6.5) | 0 | 4.75 | 125.1 | 32.97 |
| KM23578587500 | Machined | 17x8.5 | 17.0 | 8.5 | 8 | 8x170mm | 0 | 4.75 | 125.1 | 34.26 |
| KM23579050538N | Machined | 17x9 | 17.0 | 9.0 | 5 | 5x127mm (5x5.0) | -38 | 3.5 | 71.5 | 34.83 |
| KM23579080538N | Machined | 17x9 | 17.0 | 9.0 | 8 | 8x165.1mm (8x6.5) | -38 | 3.5 | 125.1 | 33.81 |
These Grenade Crawl Beadlock wheels redefy performance. Whether you are venturing back roads, trails or just cruising the pavement equip your vehicle with wheels that offer the best strength and performance. These one-piece cast aluminum wheels feature a unique multi-window design in a machined finish, a functional Beadlock and a branded center cap which is surrounded by exposed lug nuts.
They're available in a variety of sizes and other fitment options.
Part Number: KM23521050548N
Features
Features
- Machined finish
- Variety of size options
- Cast Aluminum
- Strength and performance
