Gen-Y Mega-Duty 21K Drop Hitch 2.5" Shank (GH-623)

Fits: Universal 2.5" Shank

Towing Capacity: Up to 21,000LB

Tongue Weight: 3,000LB

Drop/Raise: 6" - 18"

Dual-Ball Mount: 2″ and 2 5/16″

What Size Drop Hitch Do I Need? | Drop Hitch Stabilizer Bars

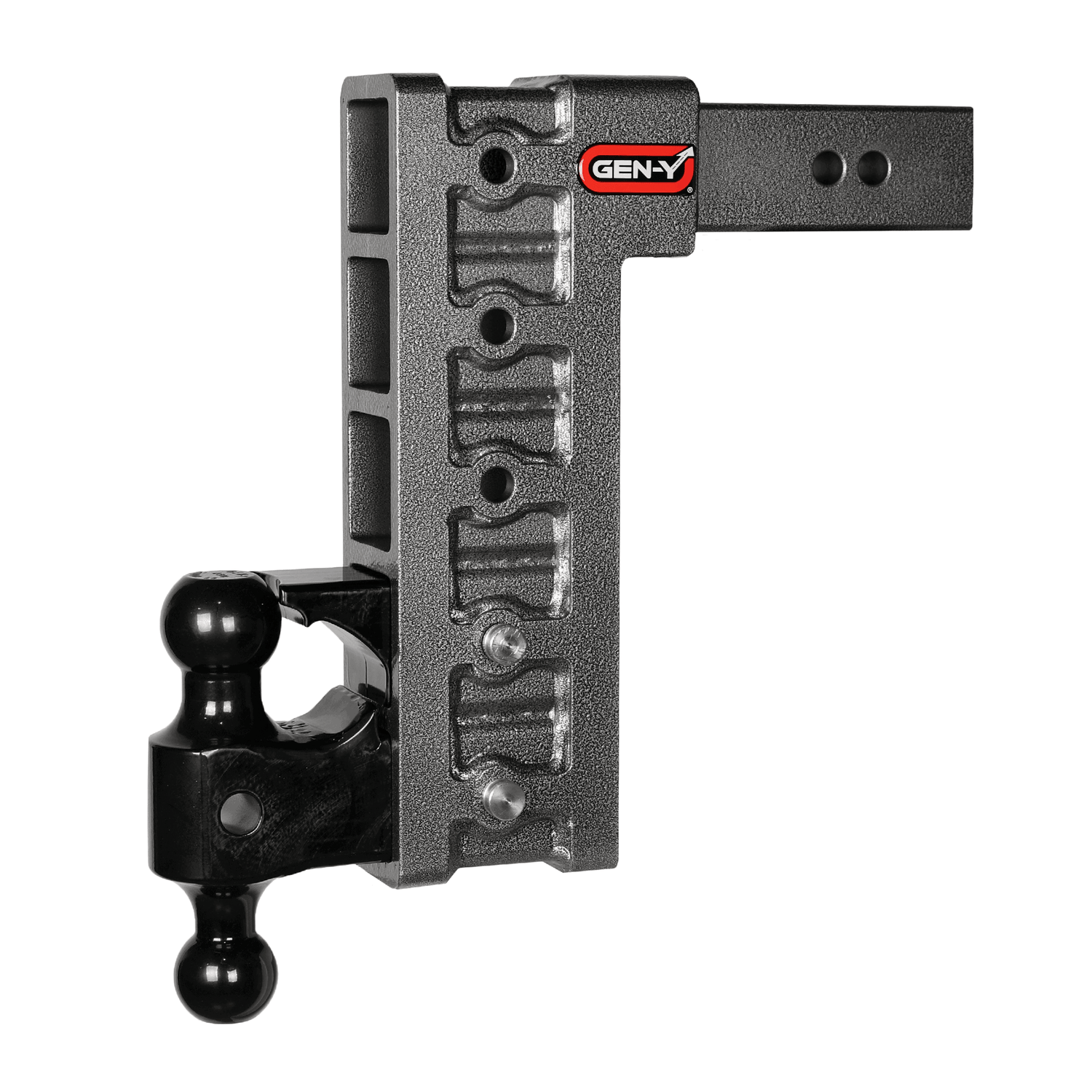

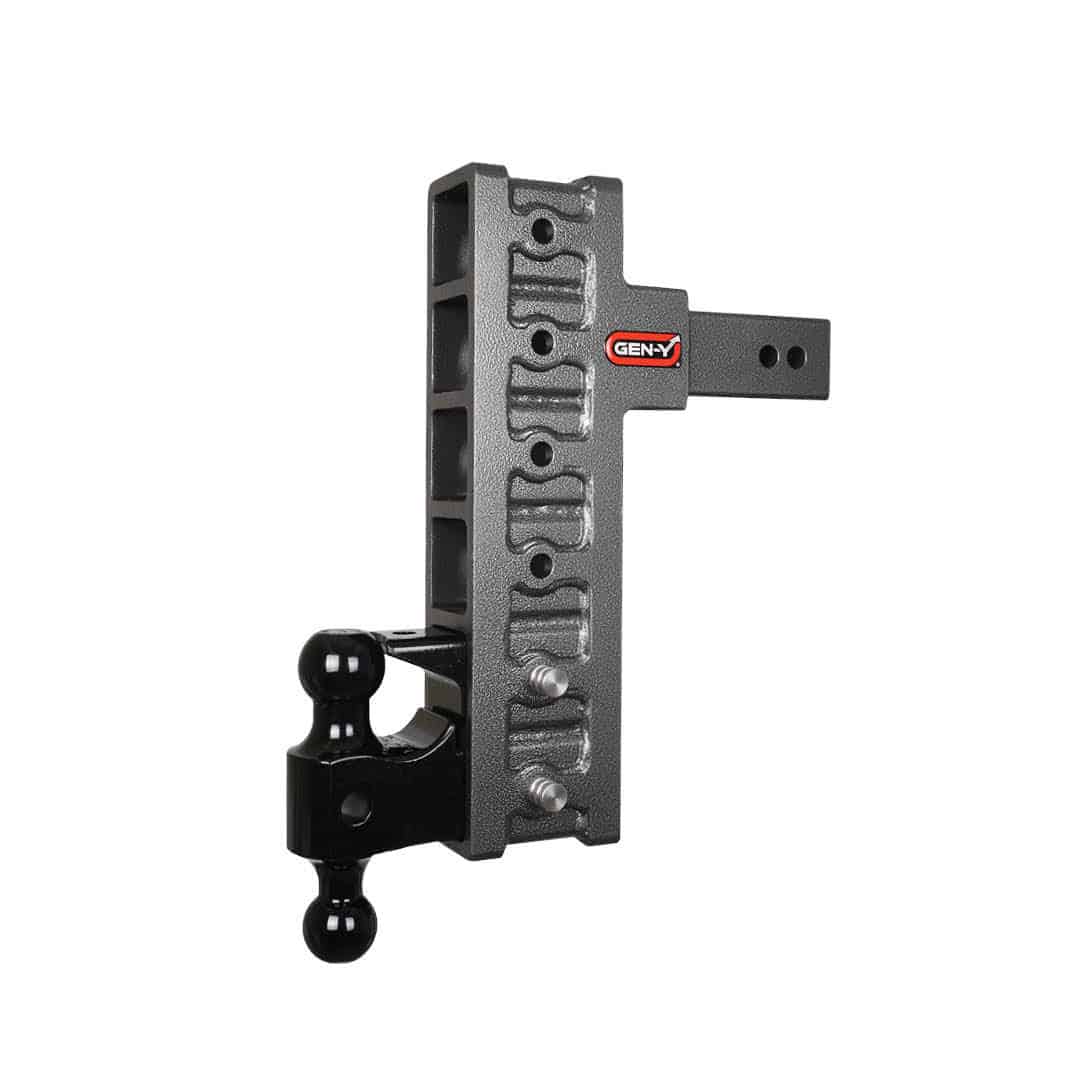

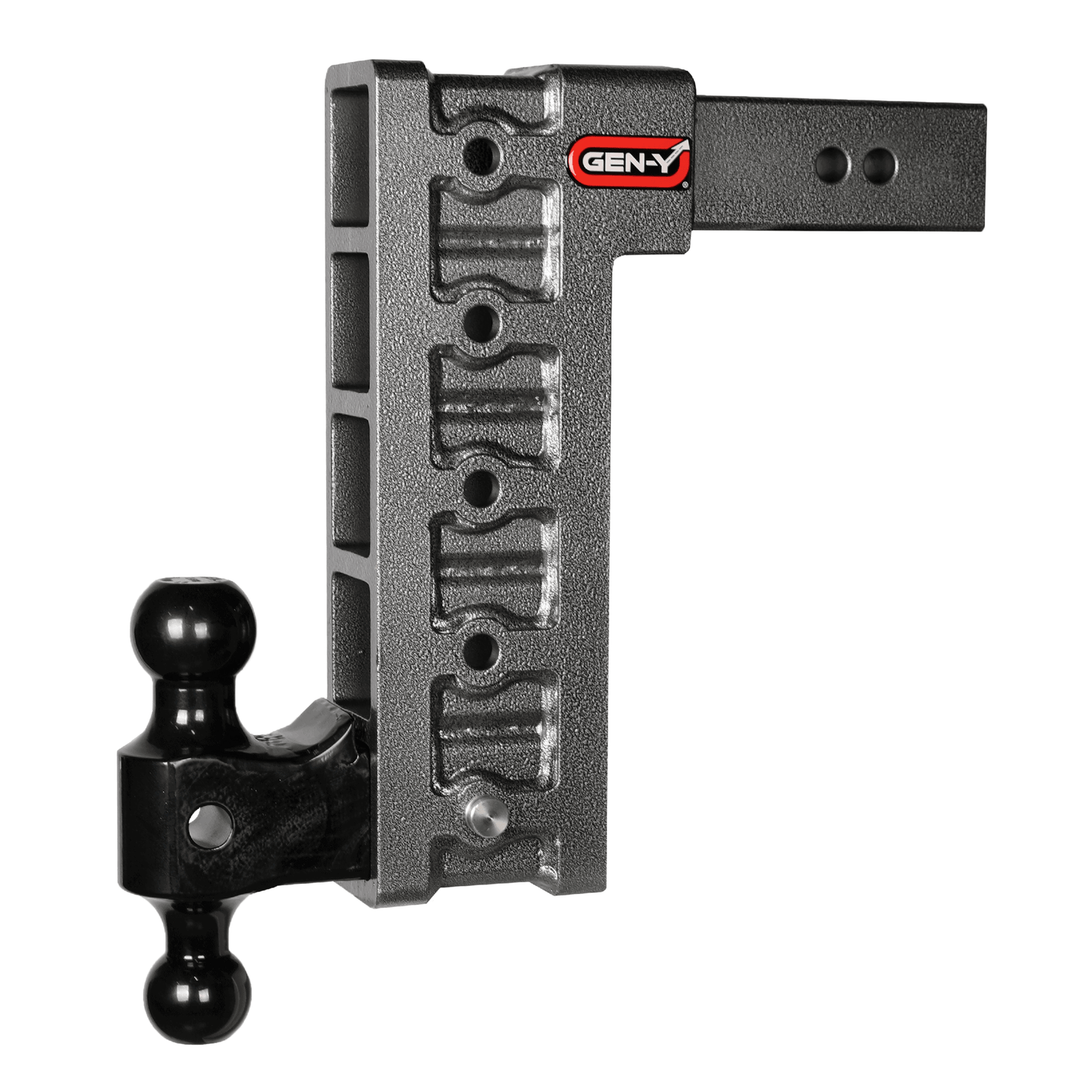

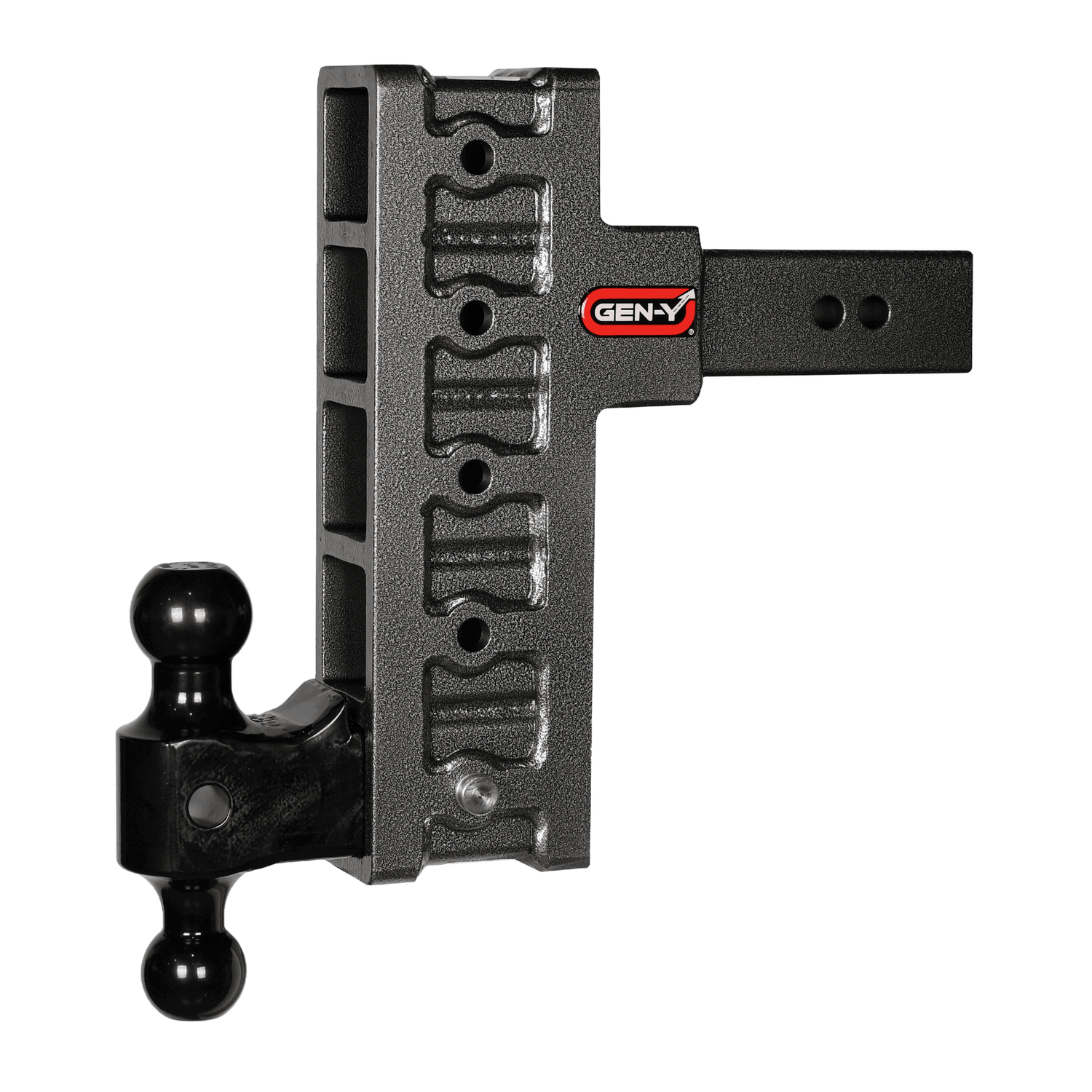

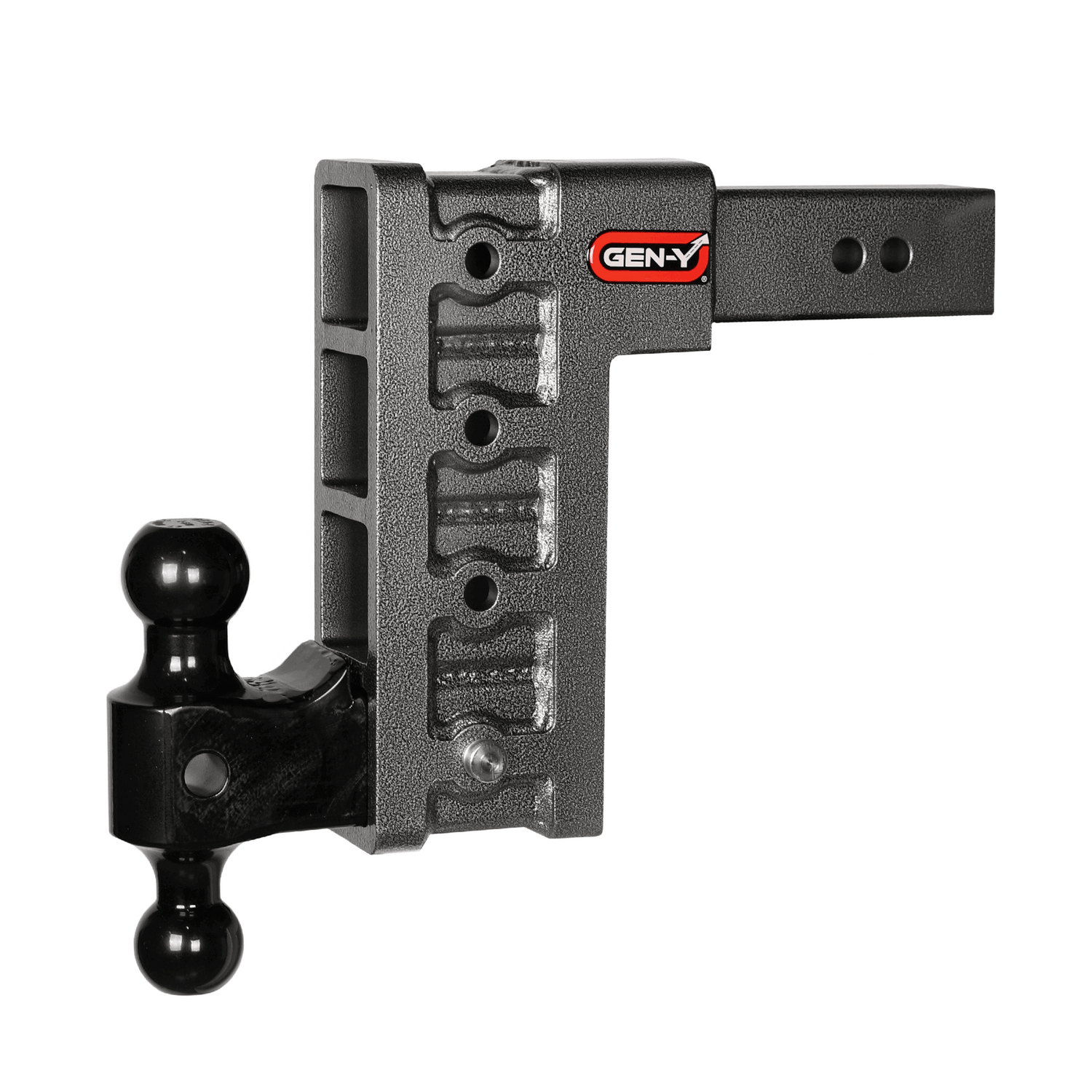

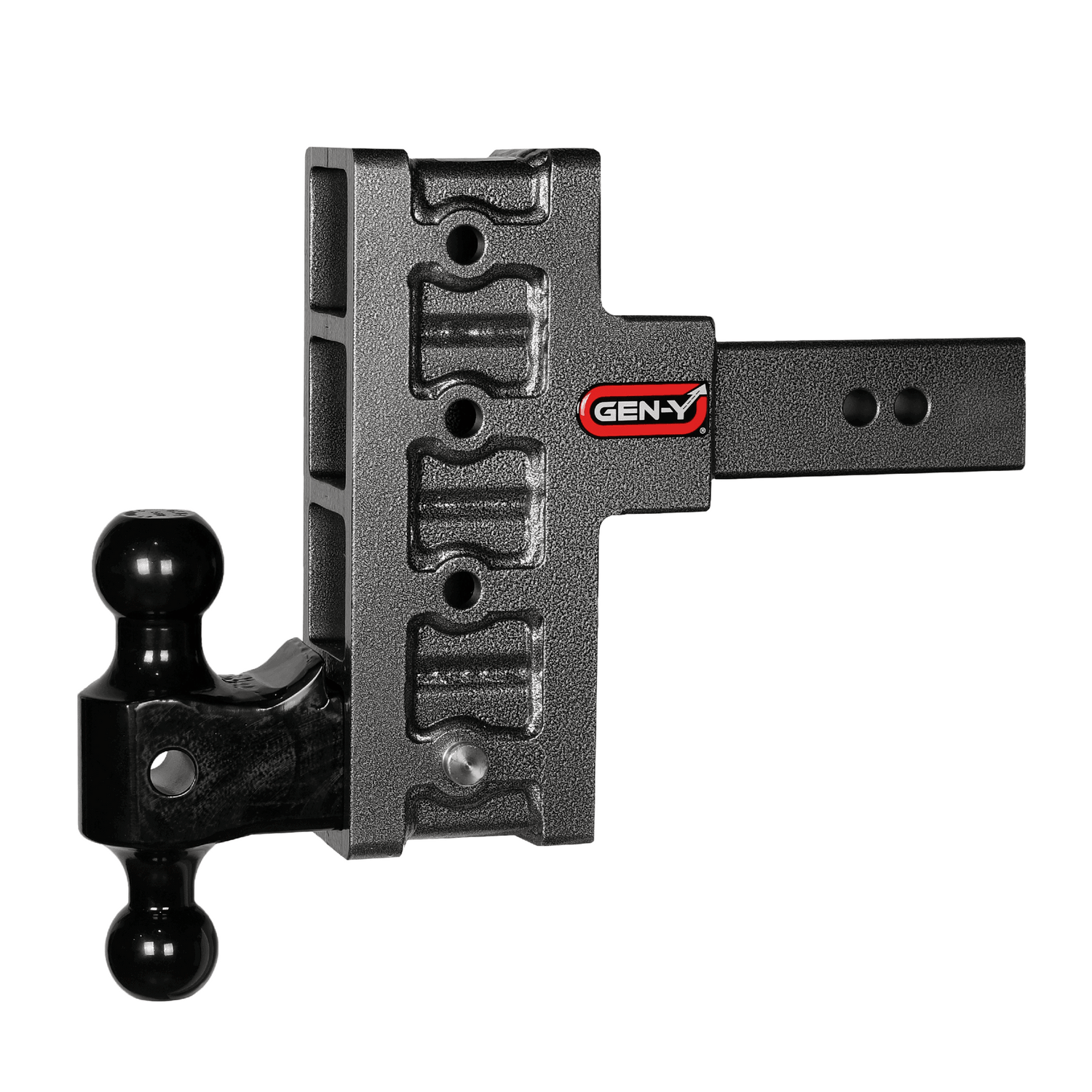

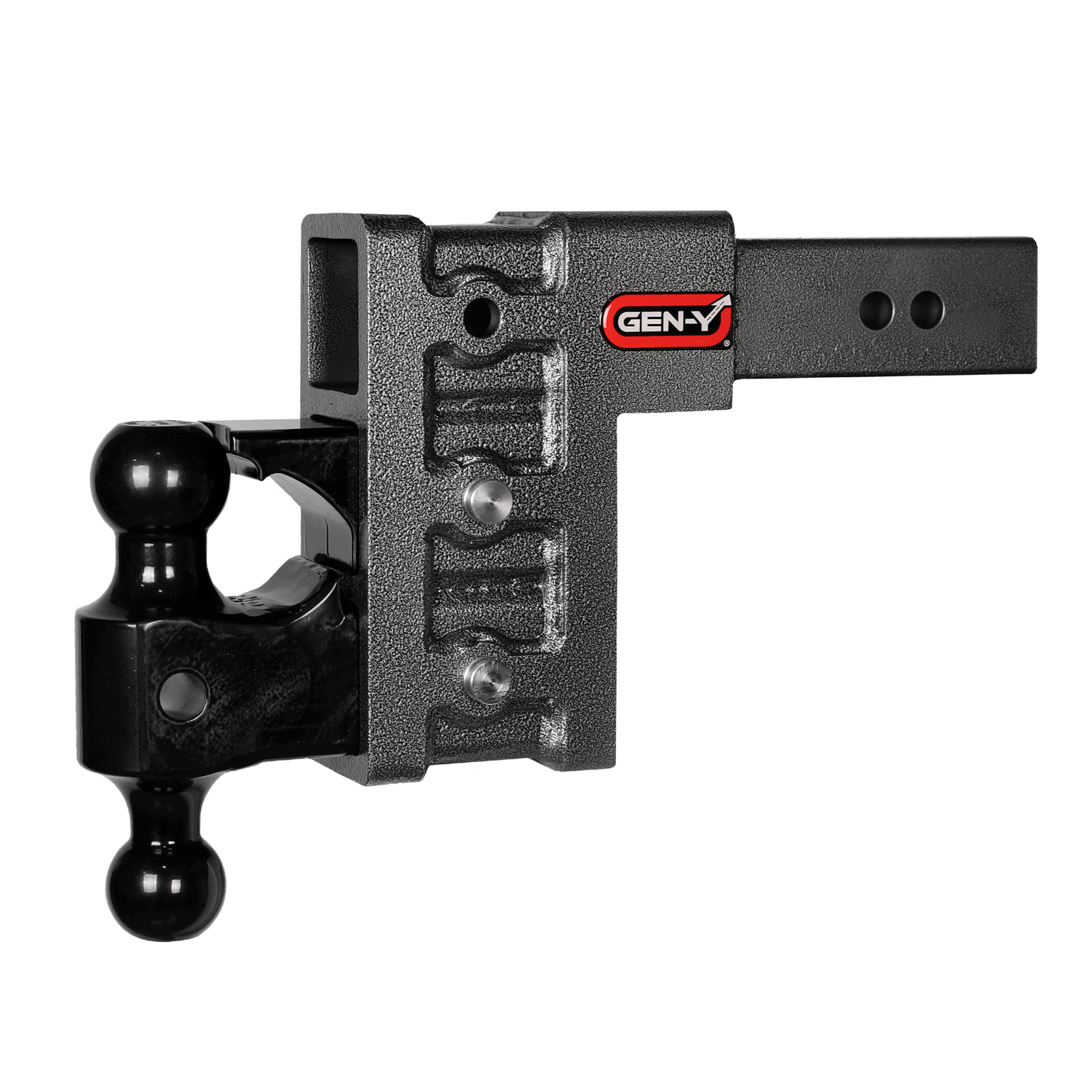

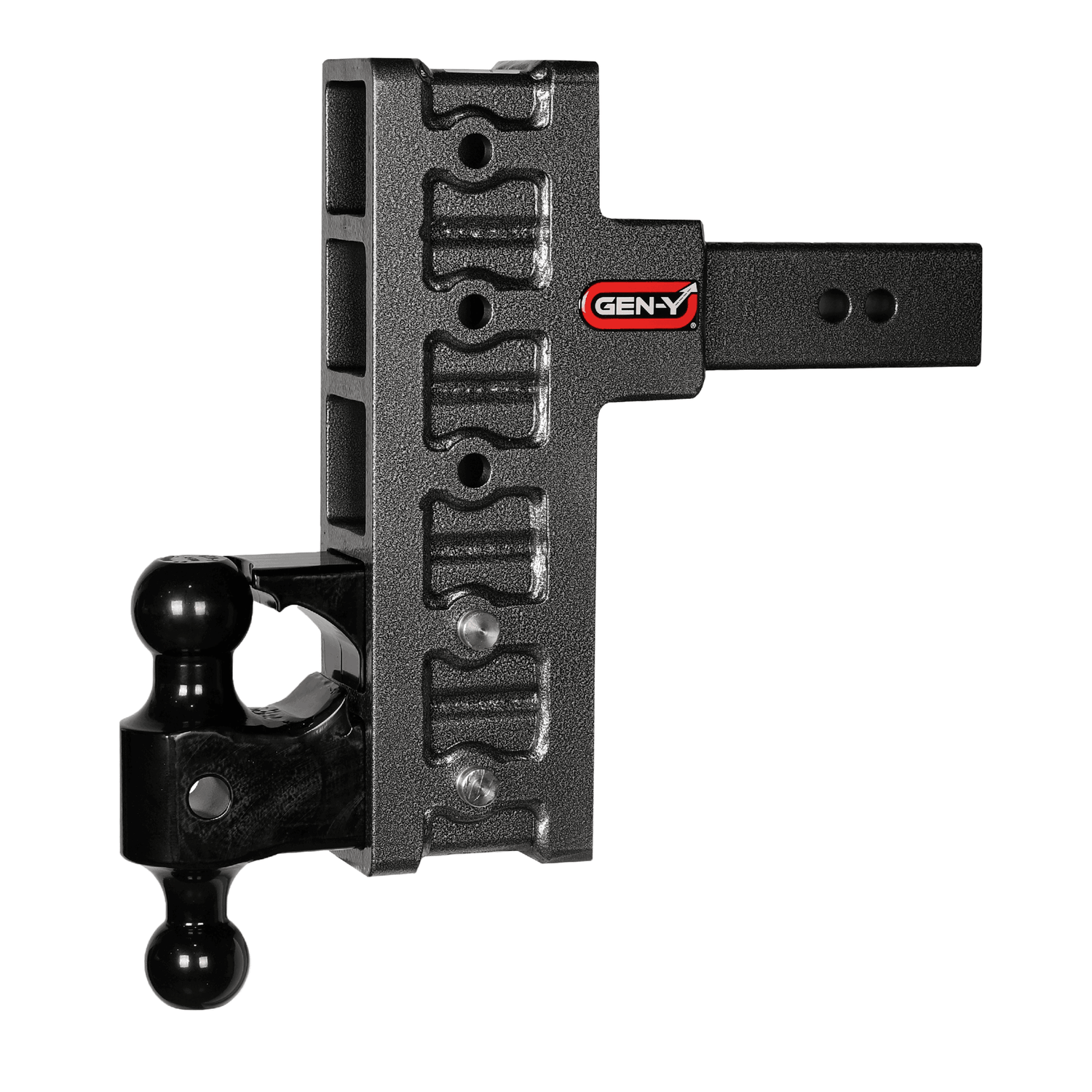

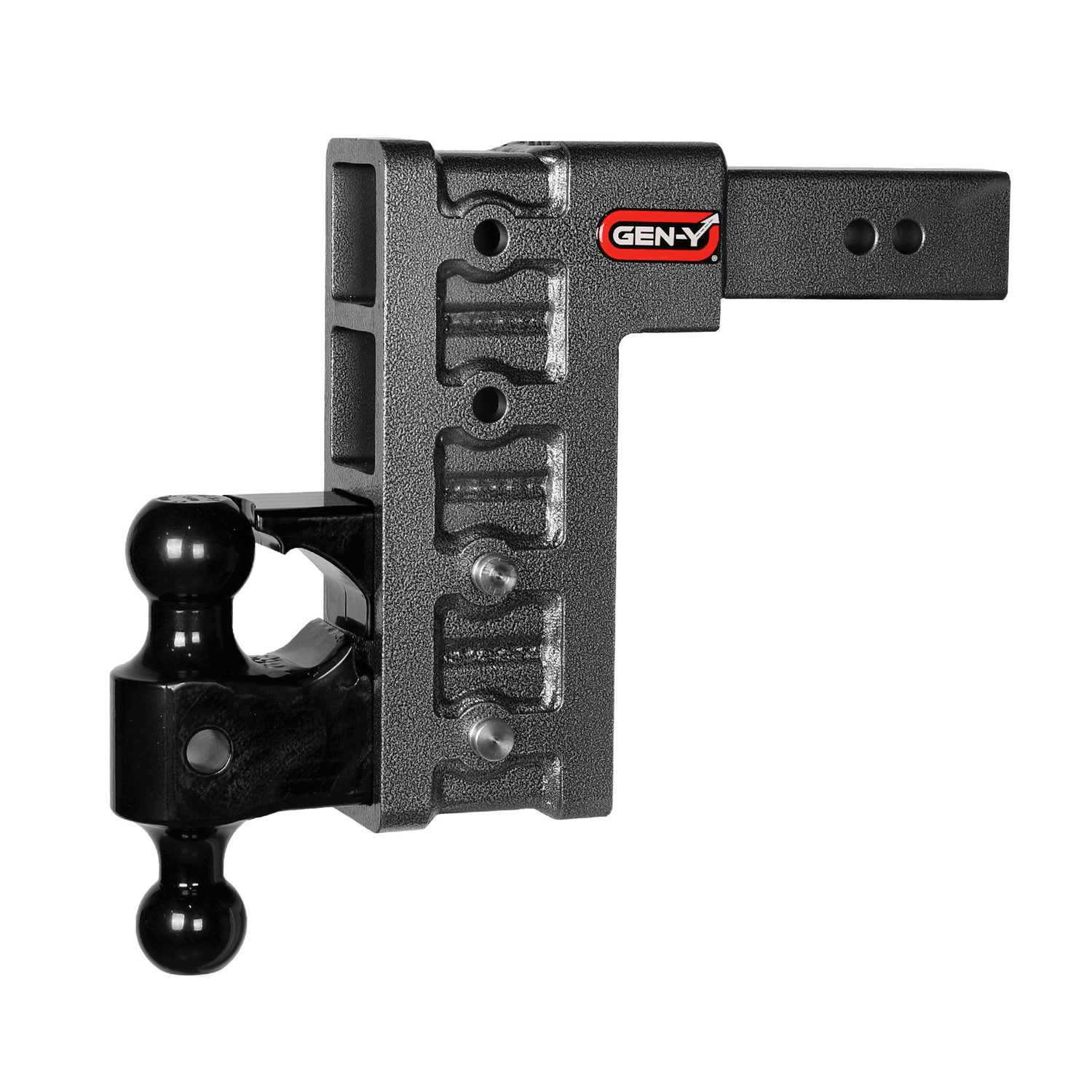

The Gen-Y Mega-Duty 21K adjustable drop hitch is the ultimate hitch for anyone that tows heavy. The Mega-Duty will adapt to any bumper style trailer on the market including pintle style couplings, the 21,000LB heavy-duty adjustable drop hitch will save you time and money.

Simply adjust your ball mount to the desired height by pulling a pin and moving the ball mount to the desired position. This ensures your trailers are being towed level, this is particularly important when towing trailers with torsion axels.

• Includes Versa-Ball Mount (2″ & 2 ⁵⁄₁₆“) and Pintle Lock
• Simple One-Pin Adjustment
• Fabricated with Heavy Duty Steel
• Sand Blasted & Coated Zinc Primer and Epoxy Powder Coated
• Designed for 1.5″ or smaller lunette rings
• Compatible With All 2" Attachments
• Contact Us for Special Colors or Sizes

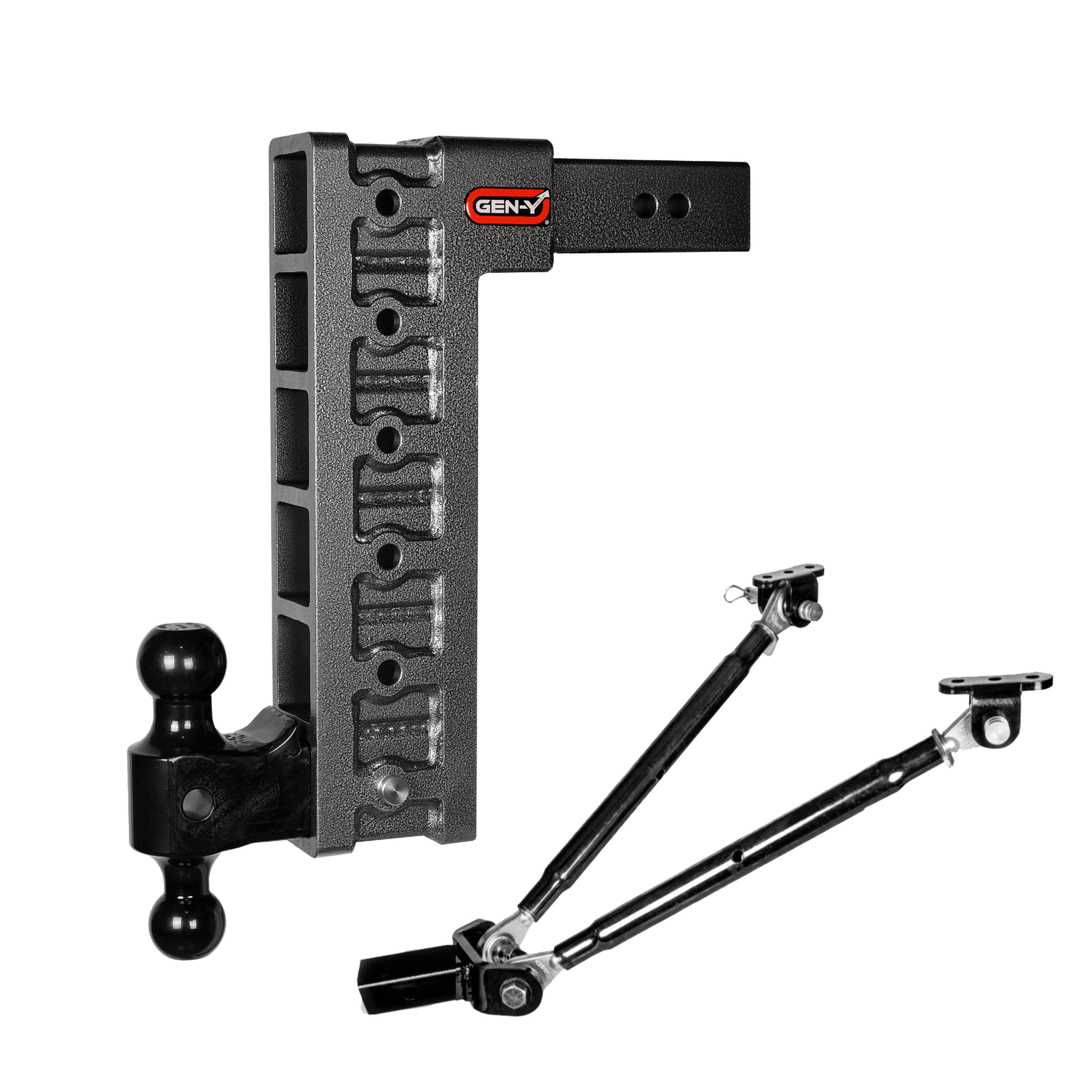

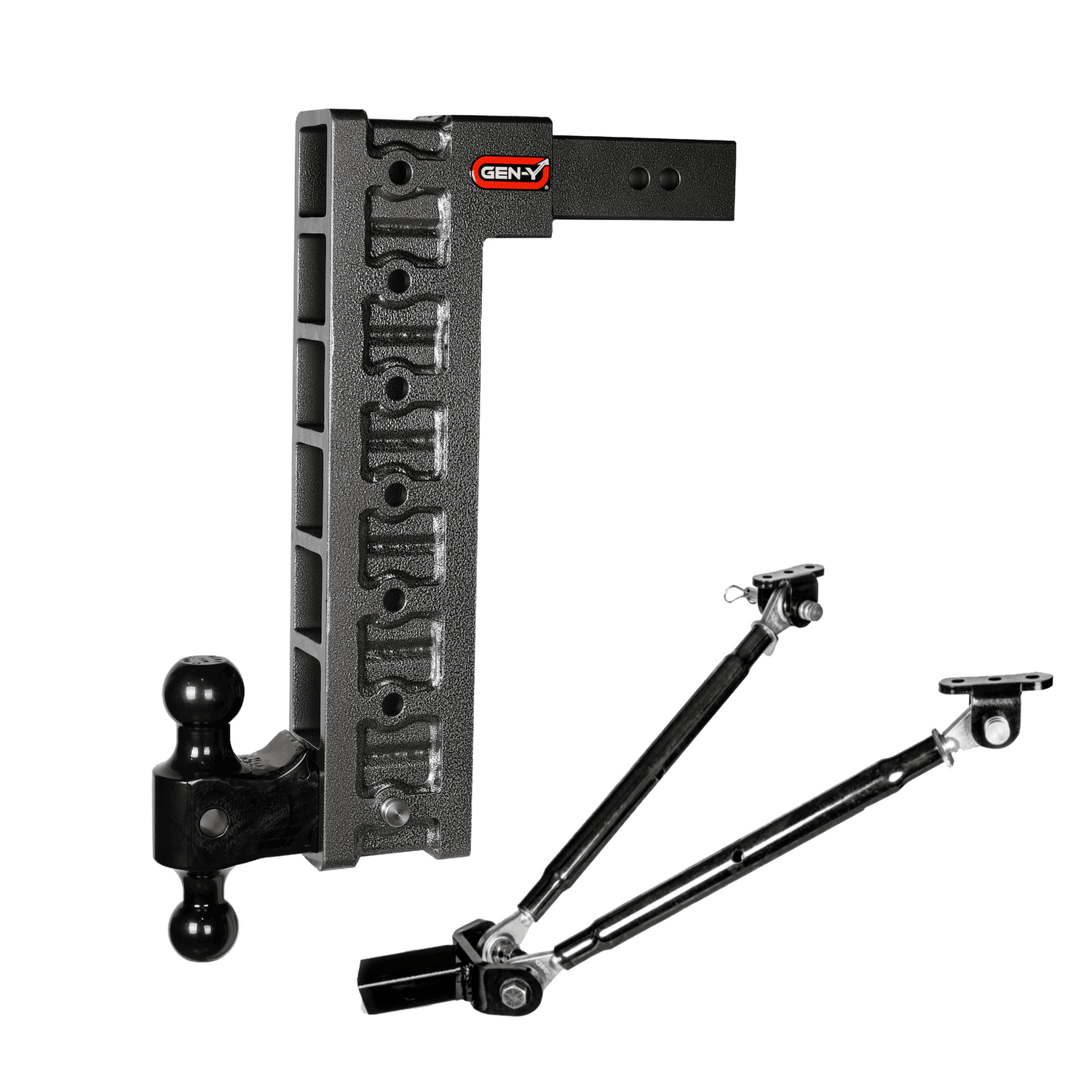

• 15" & 18" Drop Hitches Include the Stabilizer Kit (GH-0100)

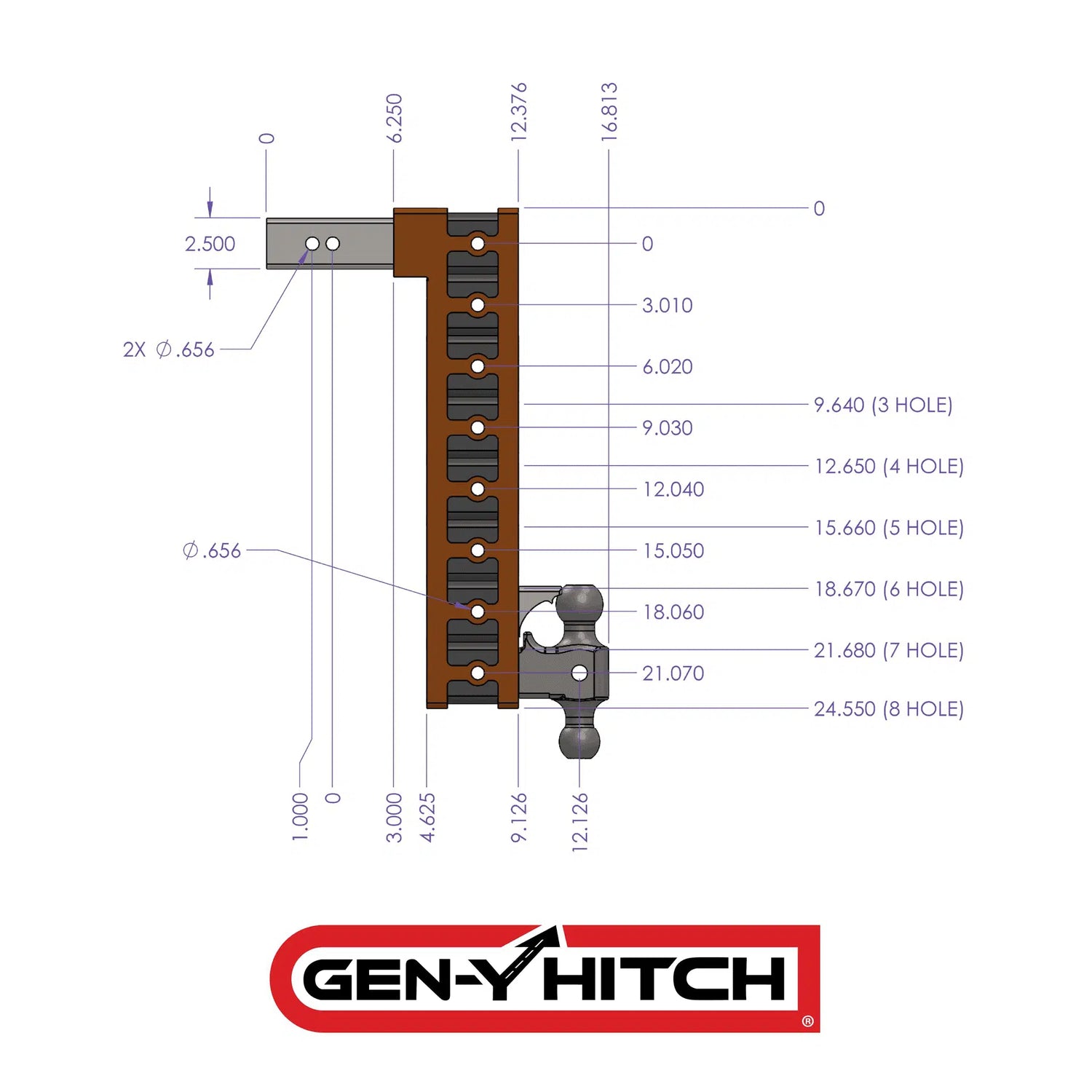

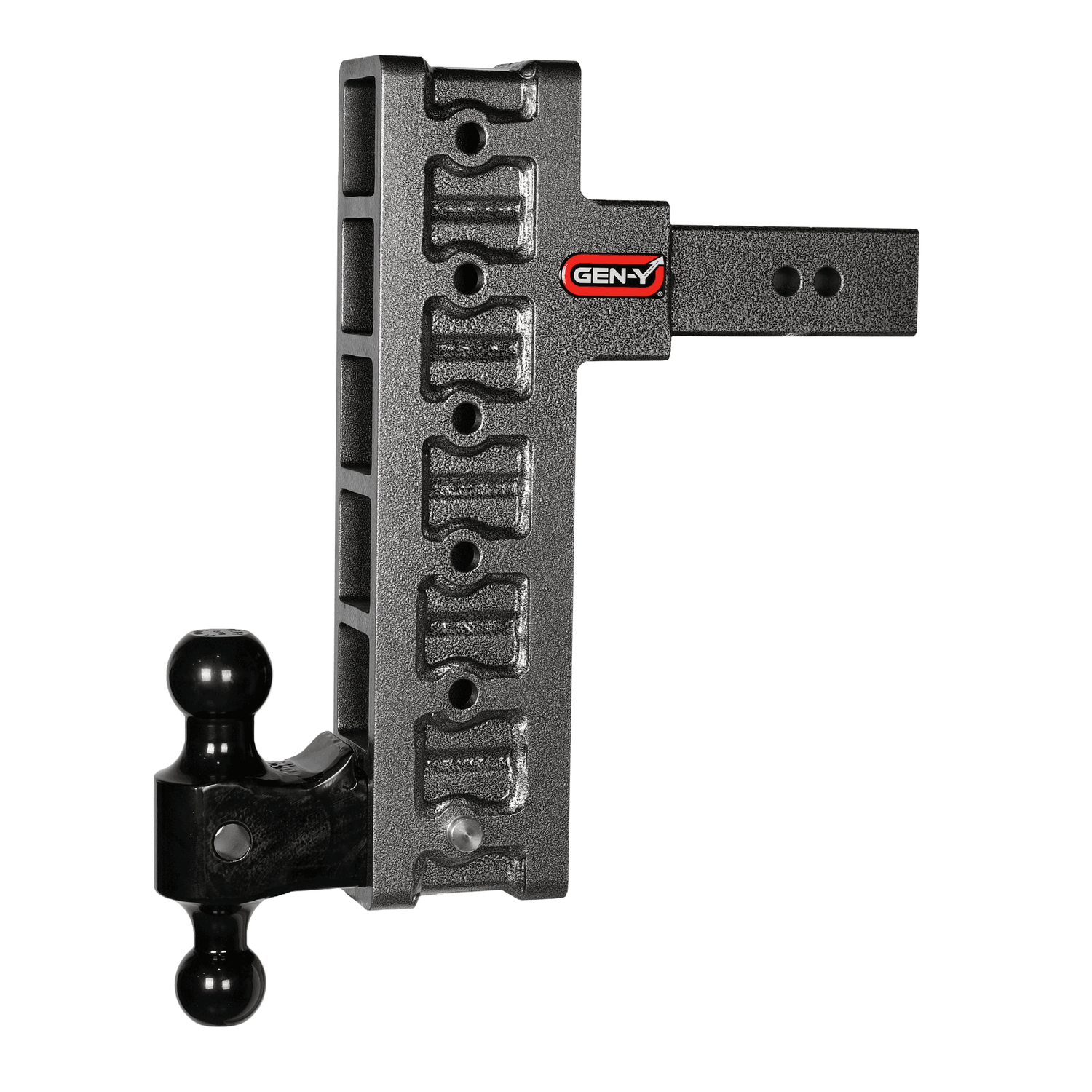

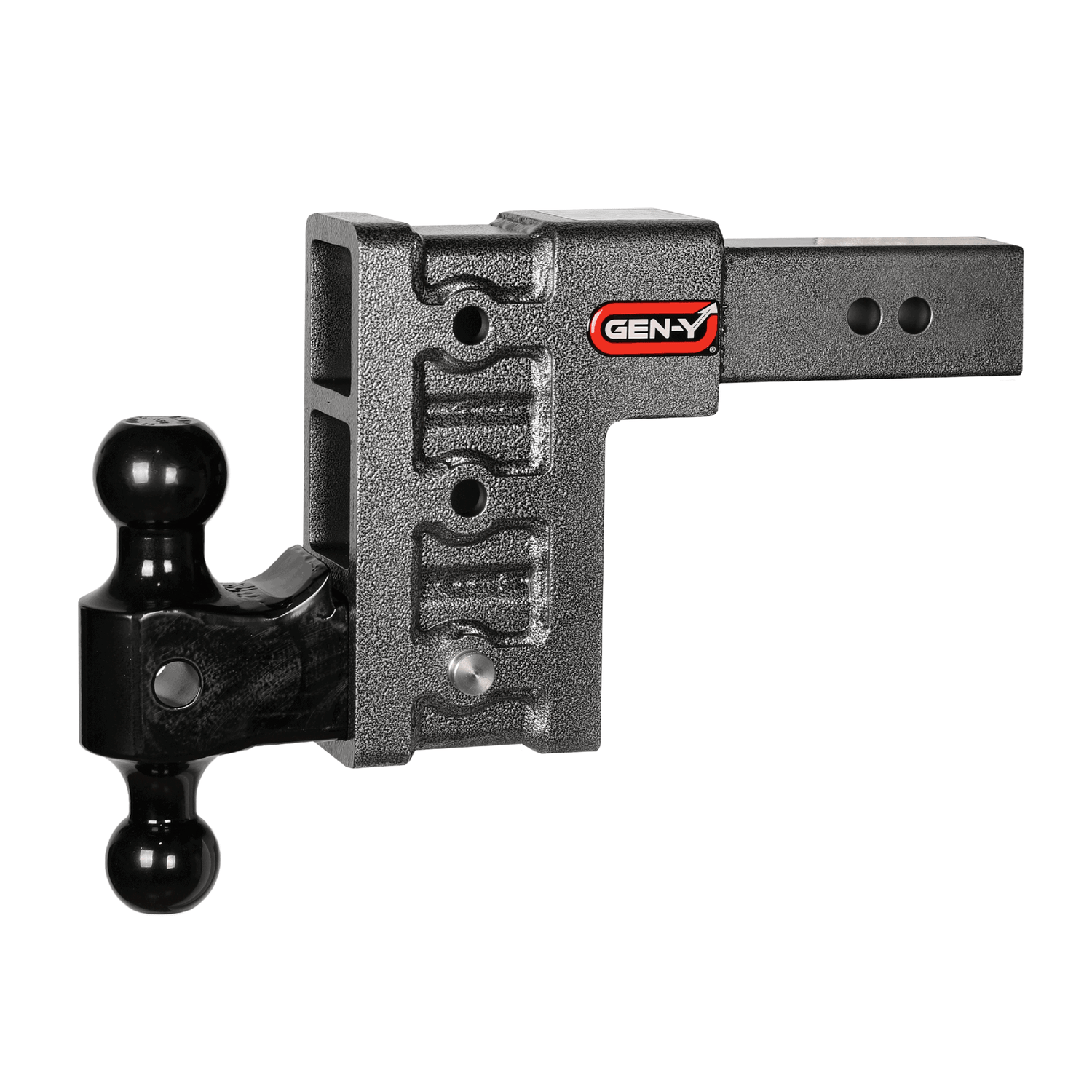

• Available in a 6", 9", 12", 15", or 18" drop and/or rise

• If you are towing with a pintle ring trailer, use 2 5/16″ ball, NOT  2″ ball when towing.
• Got a lift, no problem! Even if you have a lift kit, this hitch can still be of use! However, there are a few things to think about when towing with a lifted vehicle.
• Long drop hitches (12″ or more) will put additional leverage on the vehicle receiver. Therefore, in some cases, receiver hitch manufacturers will reduce ratings by as much as 50%.

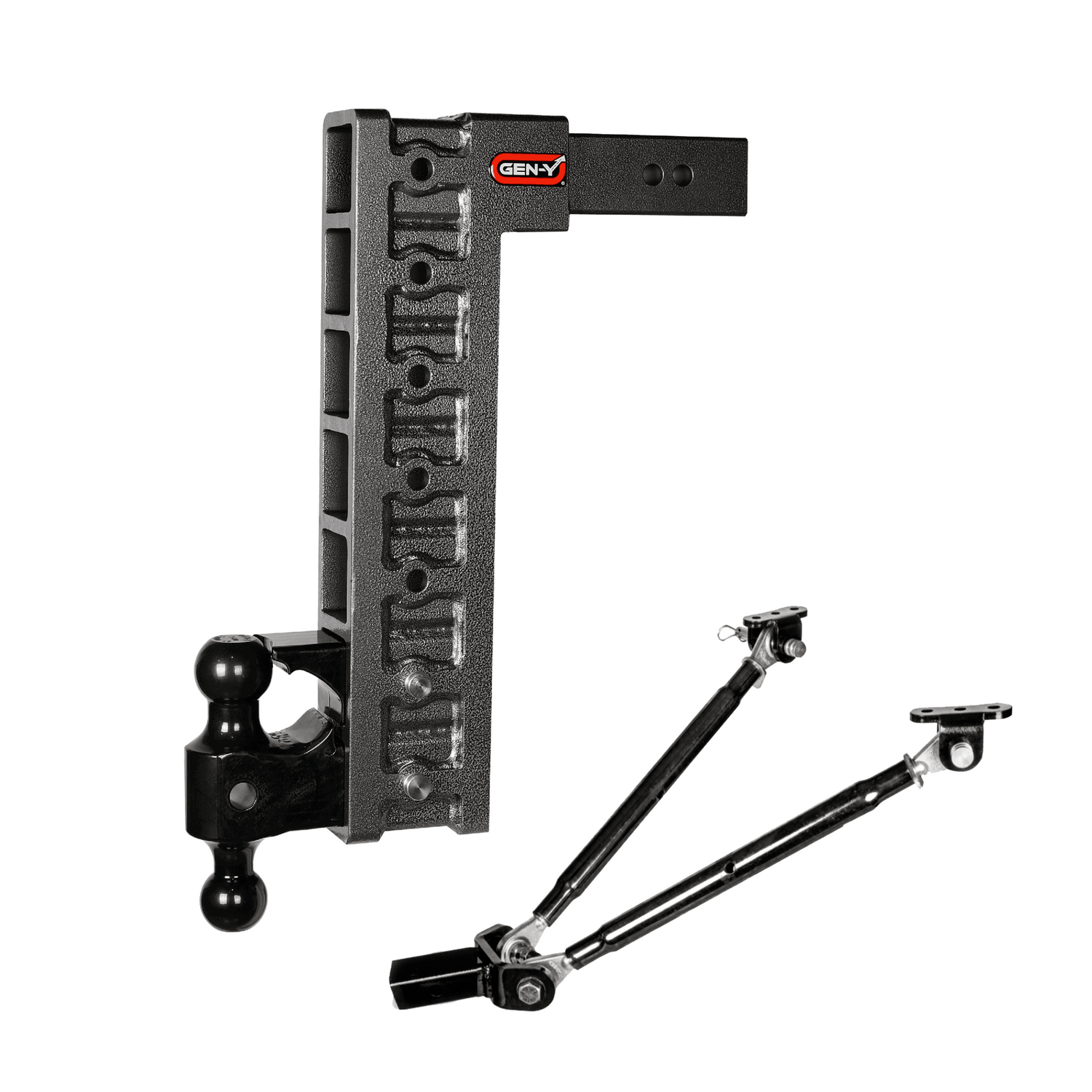

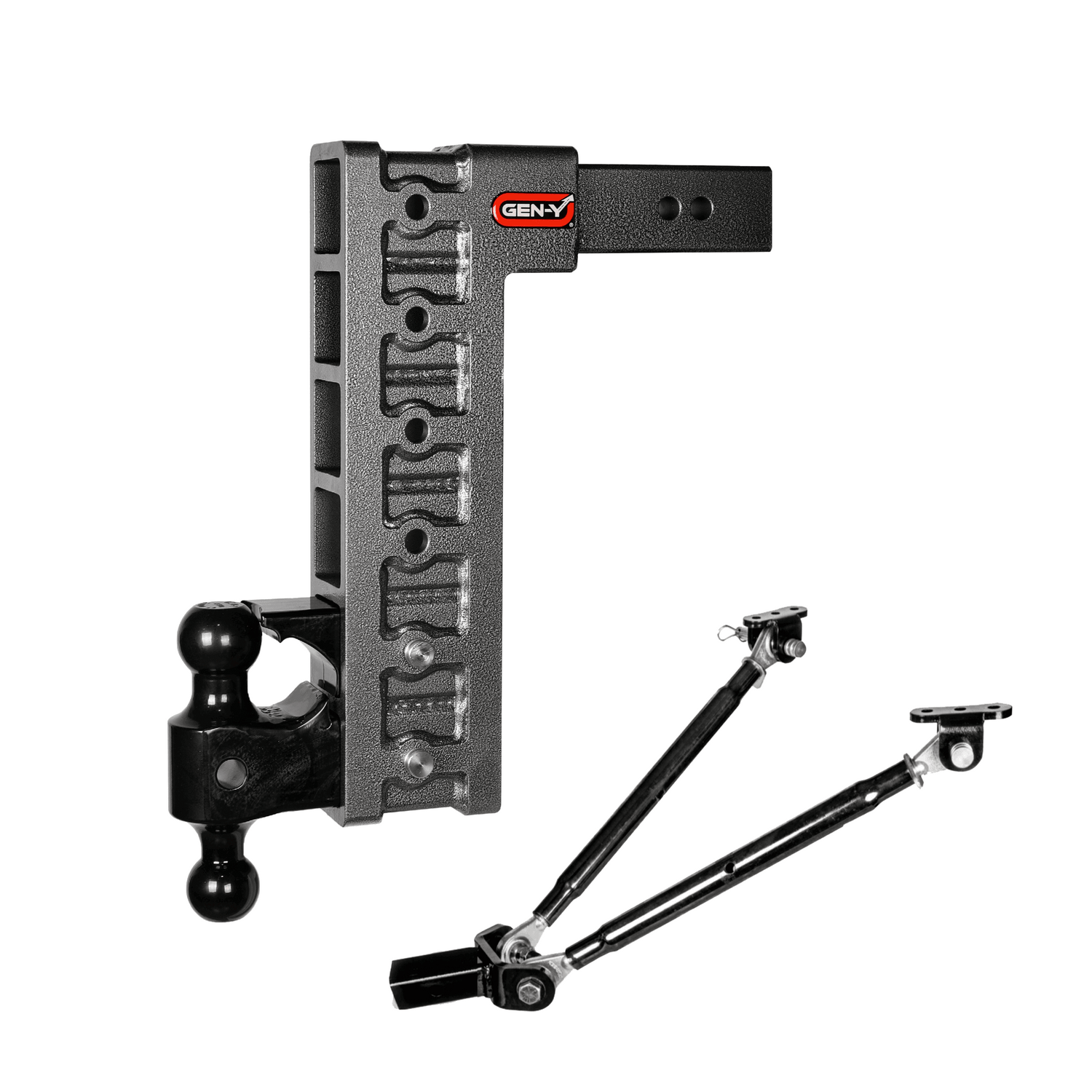

• A long drop hitch will also typically create a lot more movement due to the added length and drop of the ball mount. Using the Stabilizer Kit (GH-0100) will tie the bottom of the GEN-Y adjustable drop hitch into the frame of the truck which will take the stress off of the receiver as well as keeping the bottom of the ball mount from moving, ensuring a safe towing experience.

Parts Only

• Limited Lifetime Warranty

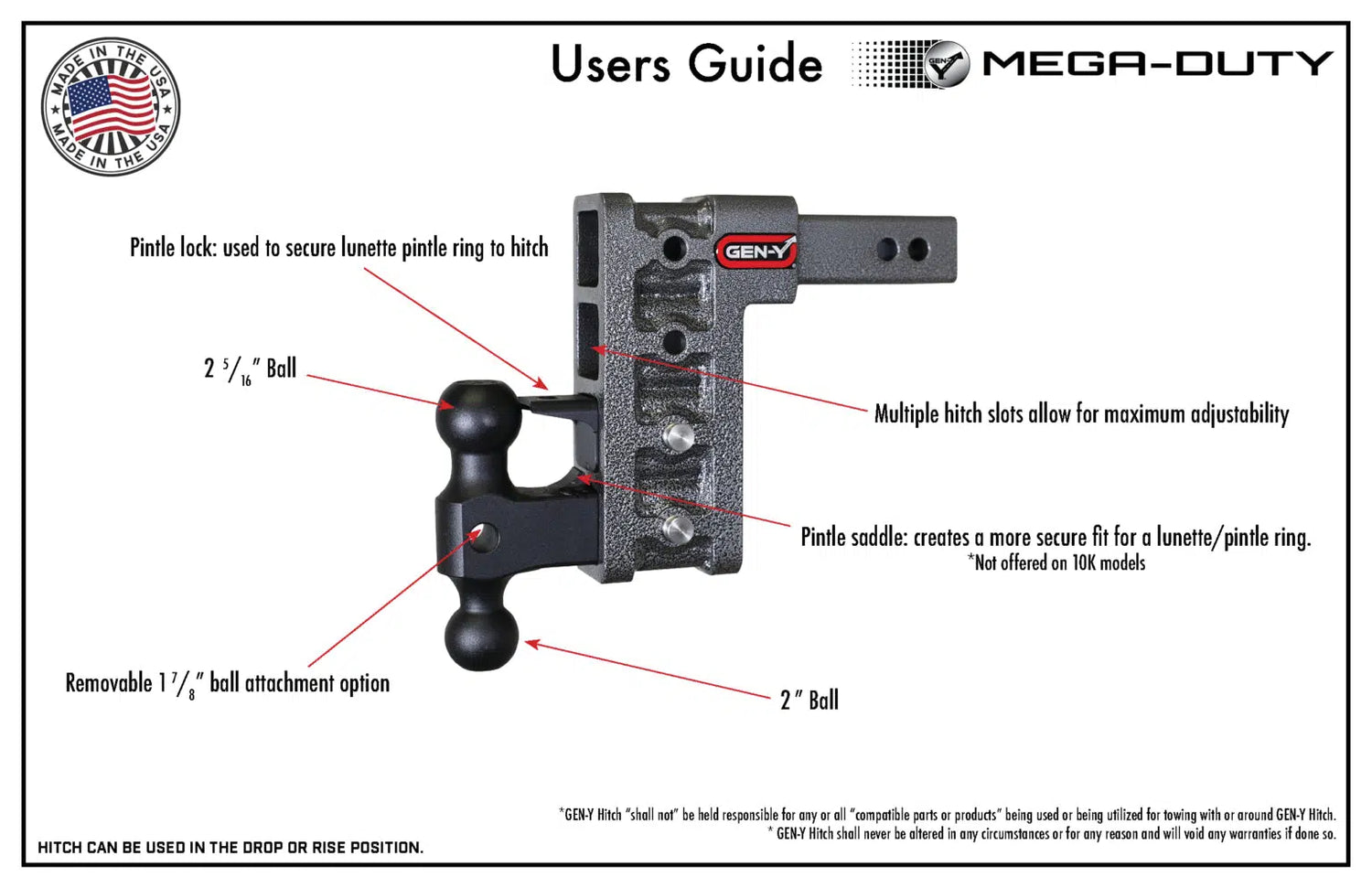

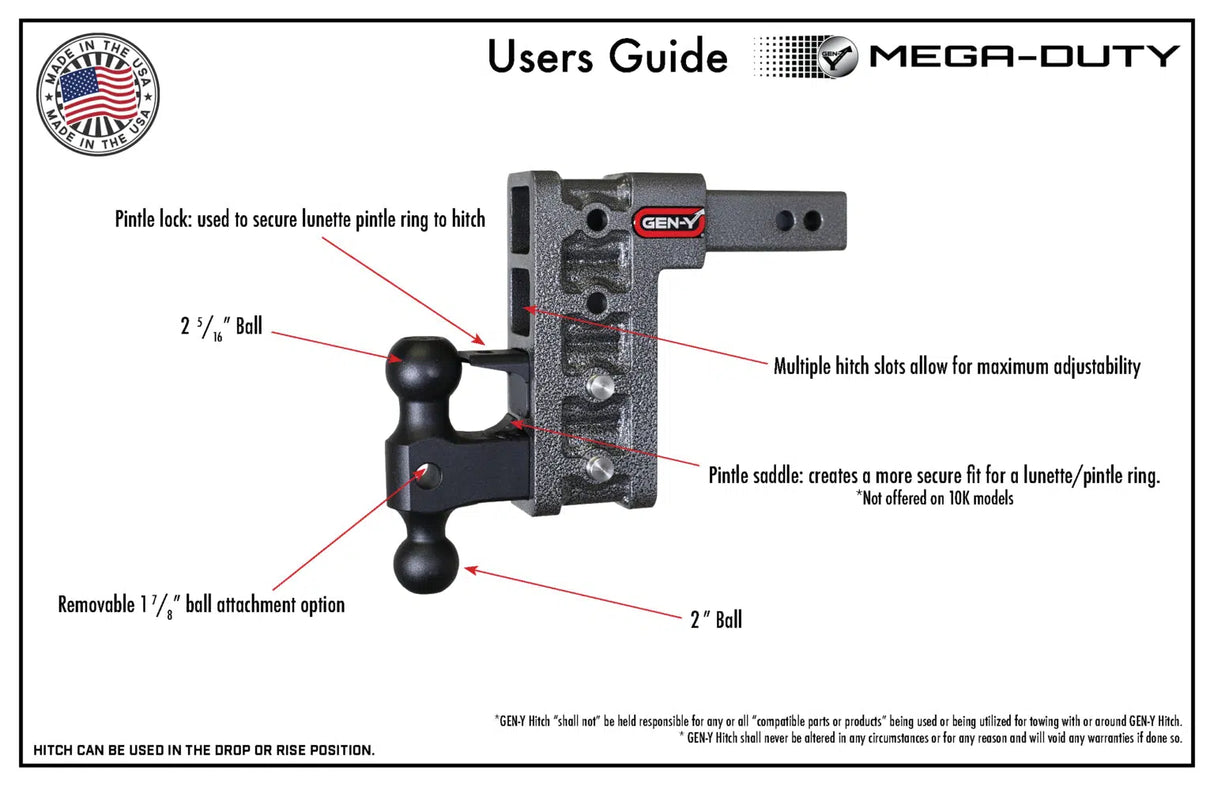

The original quick-adjust GEN-Y pintle hitch system uses the standard GH-061 2.5″ Versa-Ball in addition to the GH-062 pintle lock to quickly and safely connect to any size or height pintle coupling. By simply pulling the pin in the pintle lock and sliding it back into the adjustable GEN-Y hitch system, the lunette eye (pintle ring) of the pintle trailer can then be lowered down over the 2 5/16″ side of the Versa-Ball. The last step is to slide the pintle lock back out across the lunette eye and pin it in place securely.

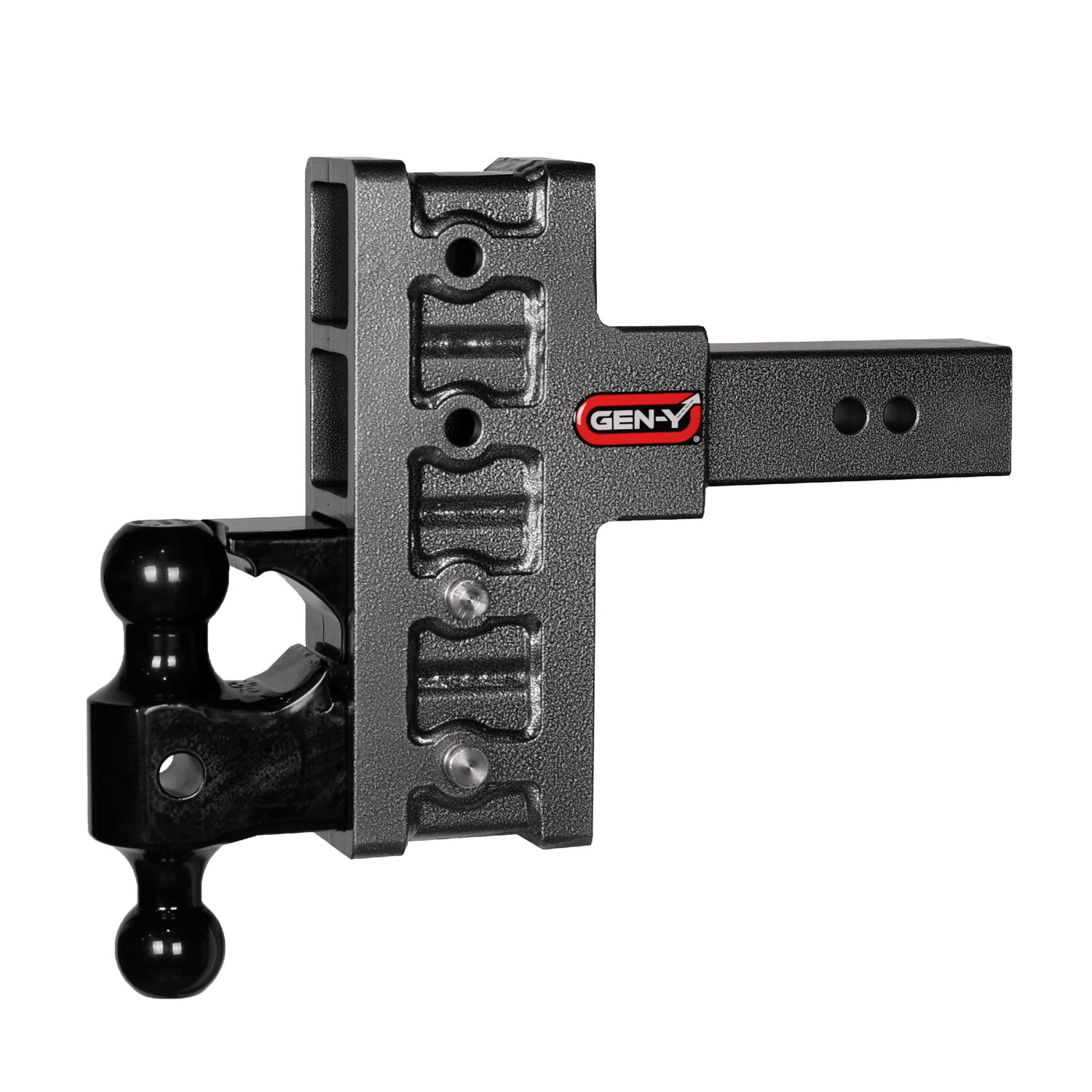

The offset drop hitches are even more versatile. The different offset drop hitches include the 6″ Offset Drop Hitch which raises the hitch 3″ and lowers it 6″ and the 12″ Offset Drop Hitch which raises it 3″ and lowers it 12″. Offset hitches allow for raised and lowered positions at the same time, giving more options for any dual-purpose jobs. For example, pulling a car dolly and attaching a bike rack or using tow bars and a luggage rack at the same time. This means a much easier and safer way of getting multiple applications connected to 2.5″ receivers.
