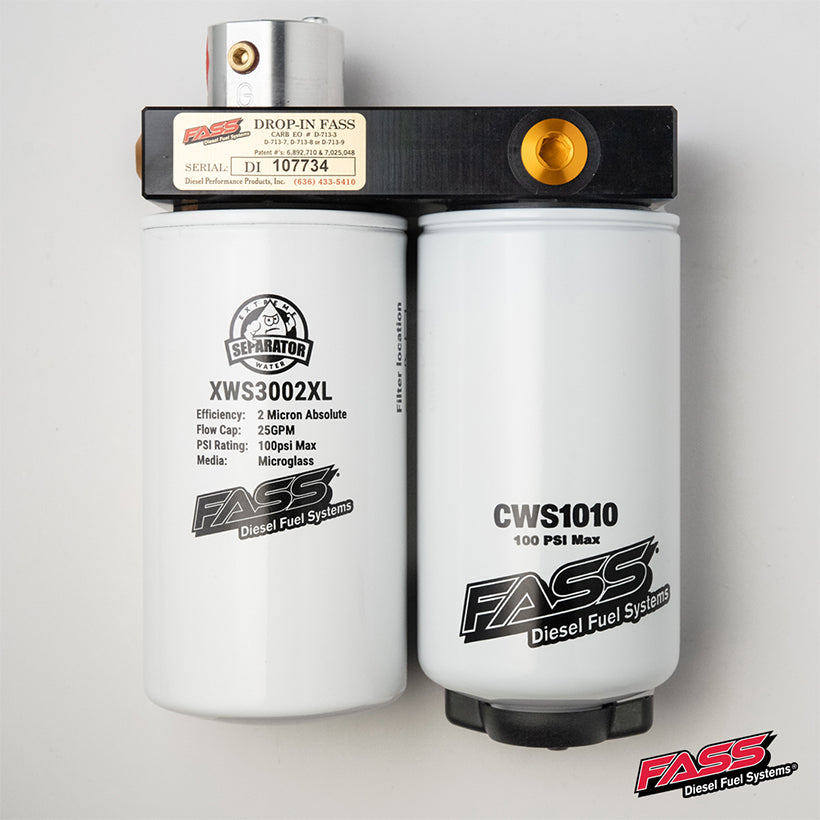

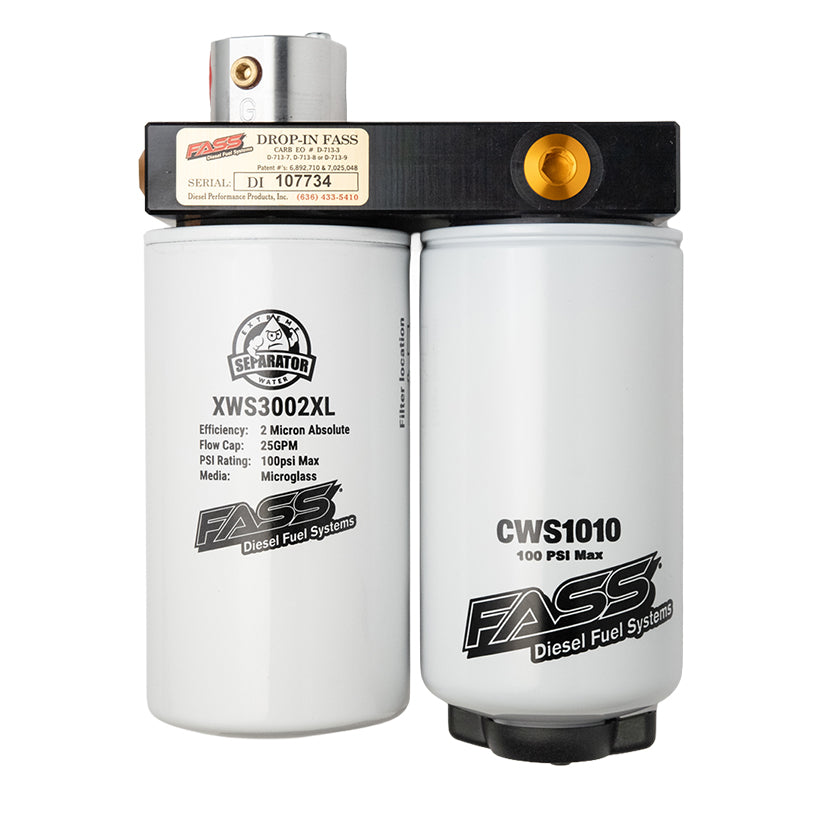

2025-2027 Cummins Drop-In Series Diesel Fuel System (DIFSRAM5001)

The FASS Drop-In Series Diesel Fuel System brings air separation and 2 micron filtration to the 2025-2027 Ram 2500/3500 6.7L Cummins. It mounts in the factory filter location and works with the Ram's OEM in-tank lift pump.

Entrained air and vapor are compressible, so they delay fuel delivery and throw off injection timing. The Drop-In separates them out of the fuel, while the FASS Extreme Water Separator (XWS3002XL) removes over 99% of free and emulsified water and filters to 2 microns absolute with a microglass element. Cleaner, air-free fuel improves lubricity at the injectors, smooths out engine operation and protects the fuel injection system.

Fuel the engine does not use returns to the tank already filtered, so the fuel in the tank keeps getting cleaner with every pass.

*This is not a lift pump. It is an air separation and filtration system that uses the factory in-tank pump.

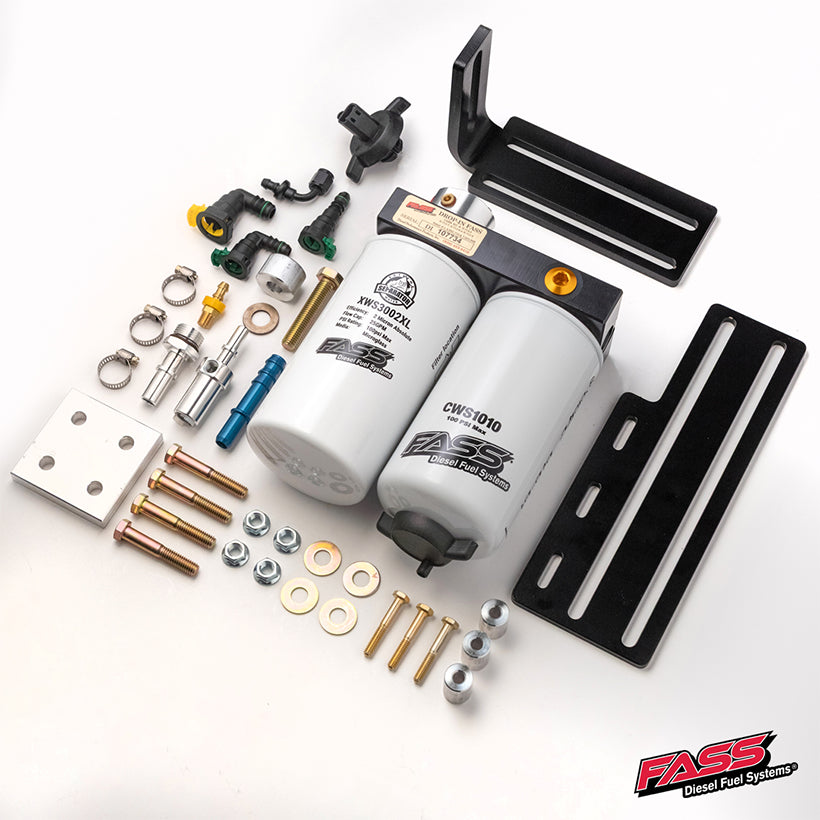

Includes:

• (1) FASS Drop-In Series Air Separation/Filtration System
• (1) FASS XWS3002XL Extreme Water Separator
• (1) FASS CWS1010 Coalescing Water Separator
• (1) Installation kit with fittings, bracketry and hardware

Part Number: DIFSRAM5001

• Patented air and vapor separation
• Over 99% free and emulsified water separation with the FASS Extreme Water Separator
• 2 micron absolute microglass filtration, rated at 1,500 GPH
• Increases fuel lubricity by removing entrained air and vapor

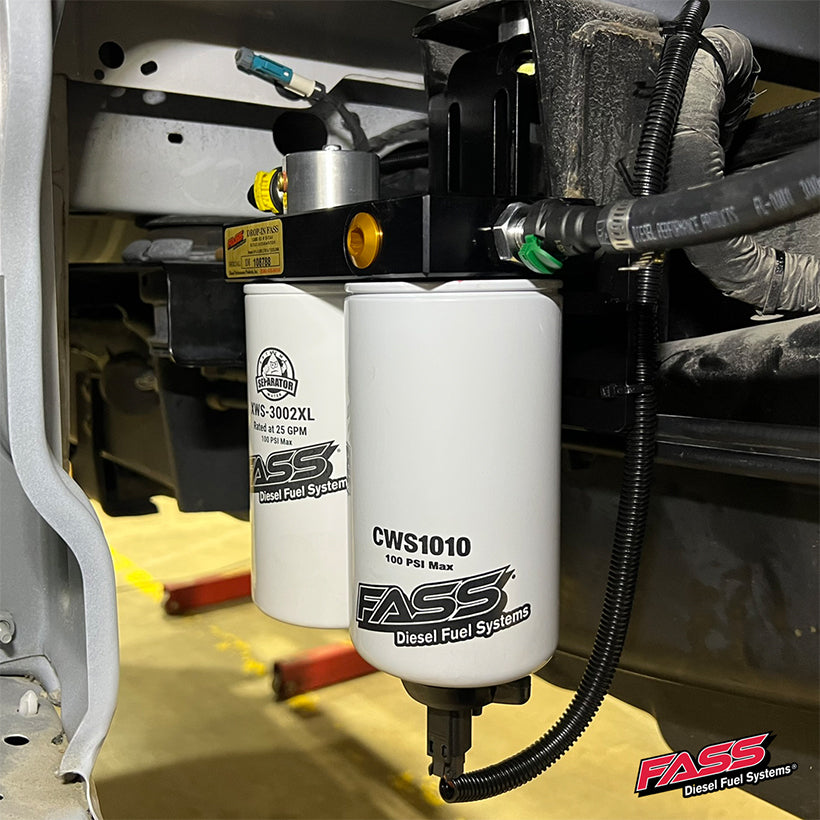

• Mounts in the factory location and retains the OEM in-tank lift pump
• Filtered return fuel keeps the fuel in the tank clean
• Works with the FASS Drop-In electric heater kit for cold-weather operation
• Limited lifetime warranty when registered with FASS

• Installation on a cab and chassis may require modifications.
• Mounts in the factory location and may not fit aftermarket high-capacity fuel tanks. Verify clearance before ordering.
• Not compatible with the FASS Fuel Sump Kit.

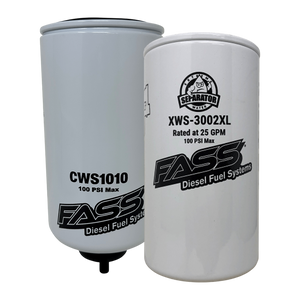

• Replacement filters are the XWS3002XL and CWS1010. FASS rates the filter life at about 30,000 miles or 5,000 gallons.
• For 2019-2024 trucks, see the 2019-2024 Cummins Drop-In Series (DIFSRAM4001).

• FASS Drop-In Series Installation Manuals
