2020-2025 Duramax Alpha XD Pro S Air Suspension Kit (HP10585-X-J-S)

Fits

 Note: For all trucks including those with (OEM) 5th wheel hitches / Will not fit Chassis Cab models or vehicles with (aftermarket) Curt 5th wheel packages / Will not fit on vehicles where the distance from the bottom of the metal jounce cup to the top of the strike plate is greater than 7.5”/ ALPHA XD kits (-X / -X-J) are not compatible with Pacbrake’s 2” / 4” / 6” Air Spring Spacers.

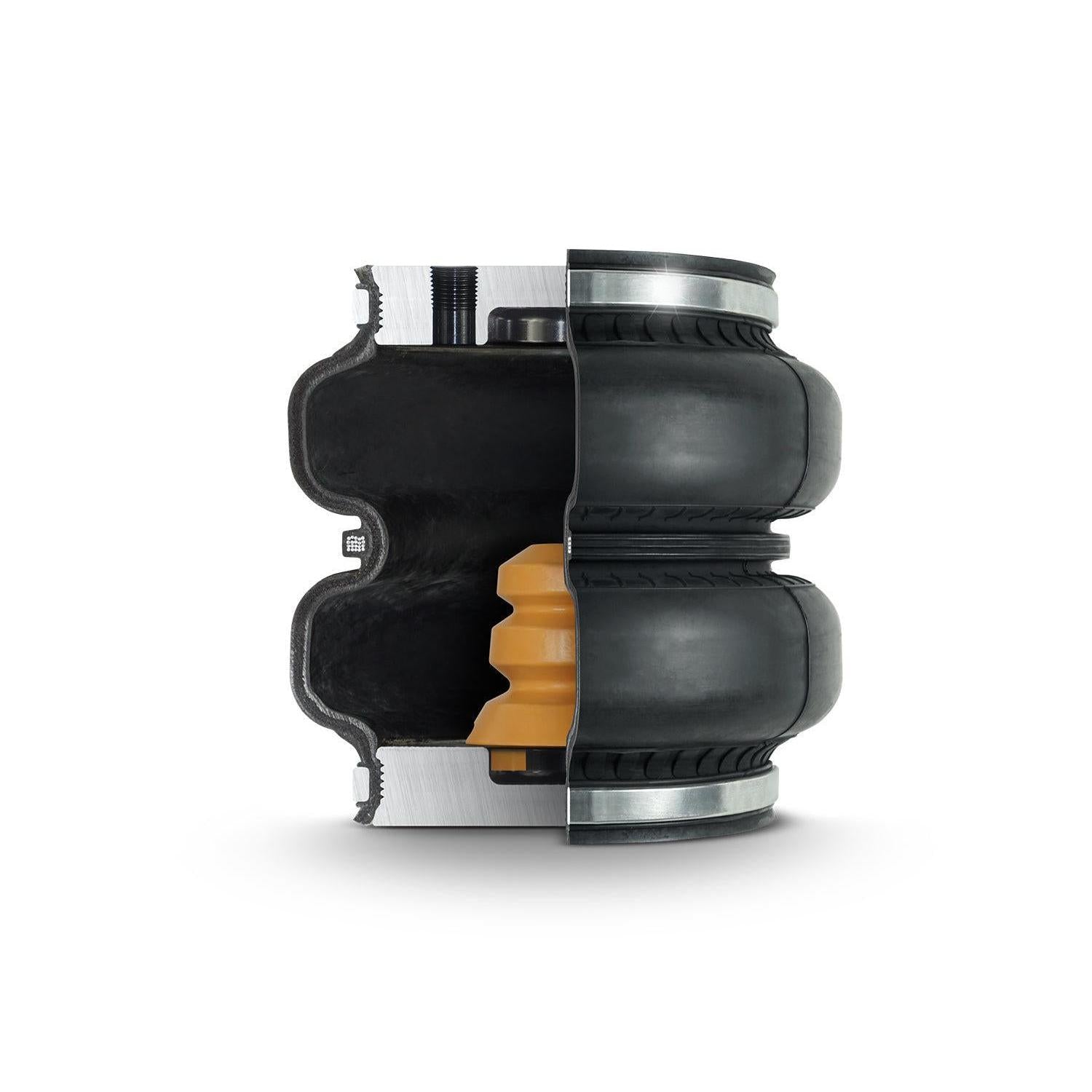

The 2020-2025 Duramax Alpha XD Pro Air Suspension Kit eliminates truck sag, sway, and bottoming out. Featuring corrosion-resistant end caps, 20 support wires, Stainless Steele Hardware and a polyurethane internal bumper, this kit ensures durability and ride comfort. Choose between available versions with or without the in-bag bump stop for towing peace of mind.

Part Number: HP10585-X-J-S

• 7,500 lbs of load leveling capacity
• 2-hour install time
• Lifetime warranty
• Can be run at 0 psi

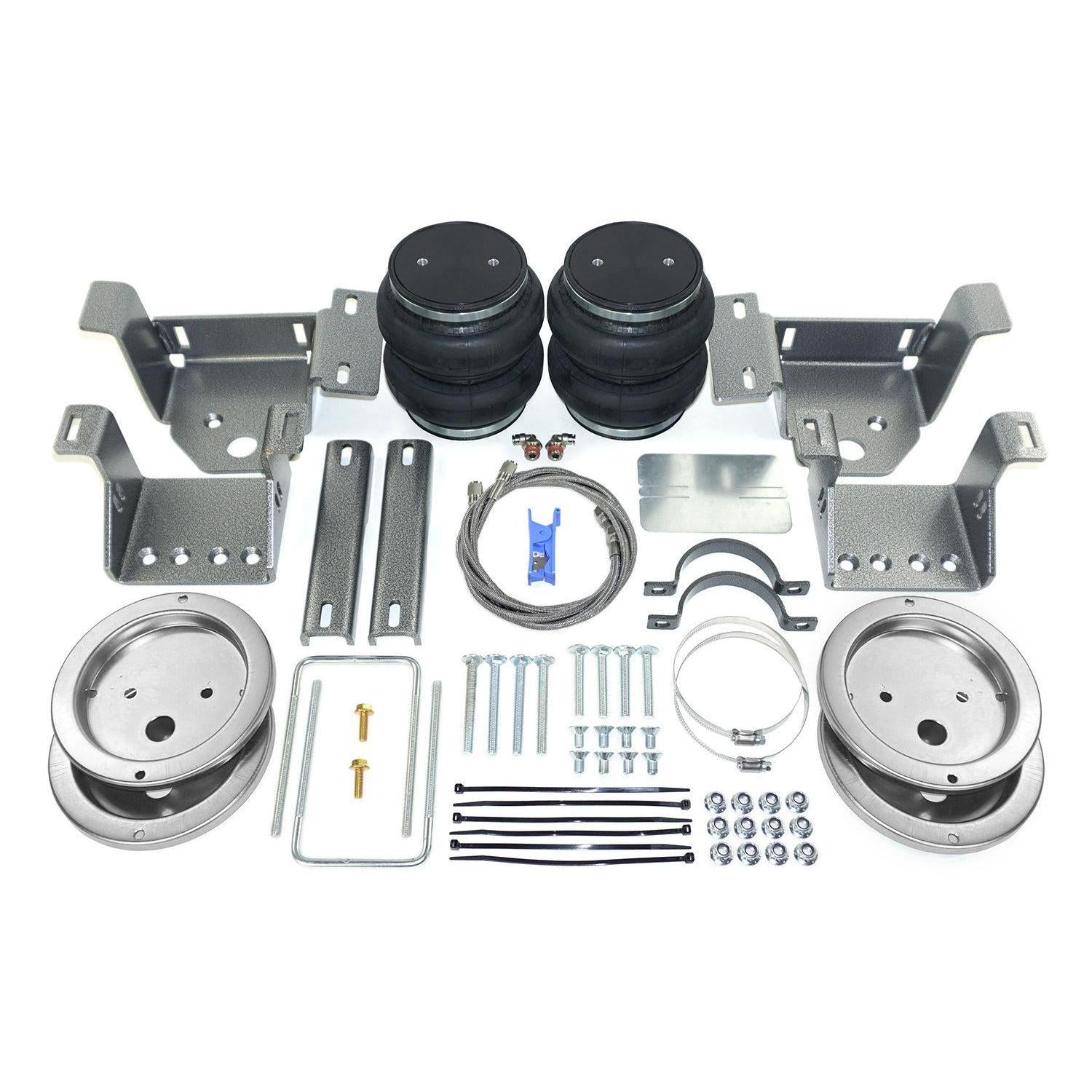

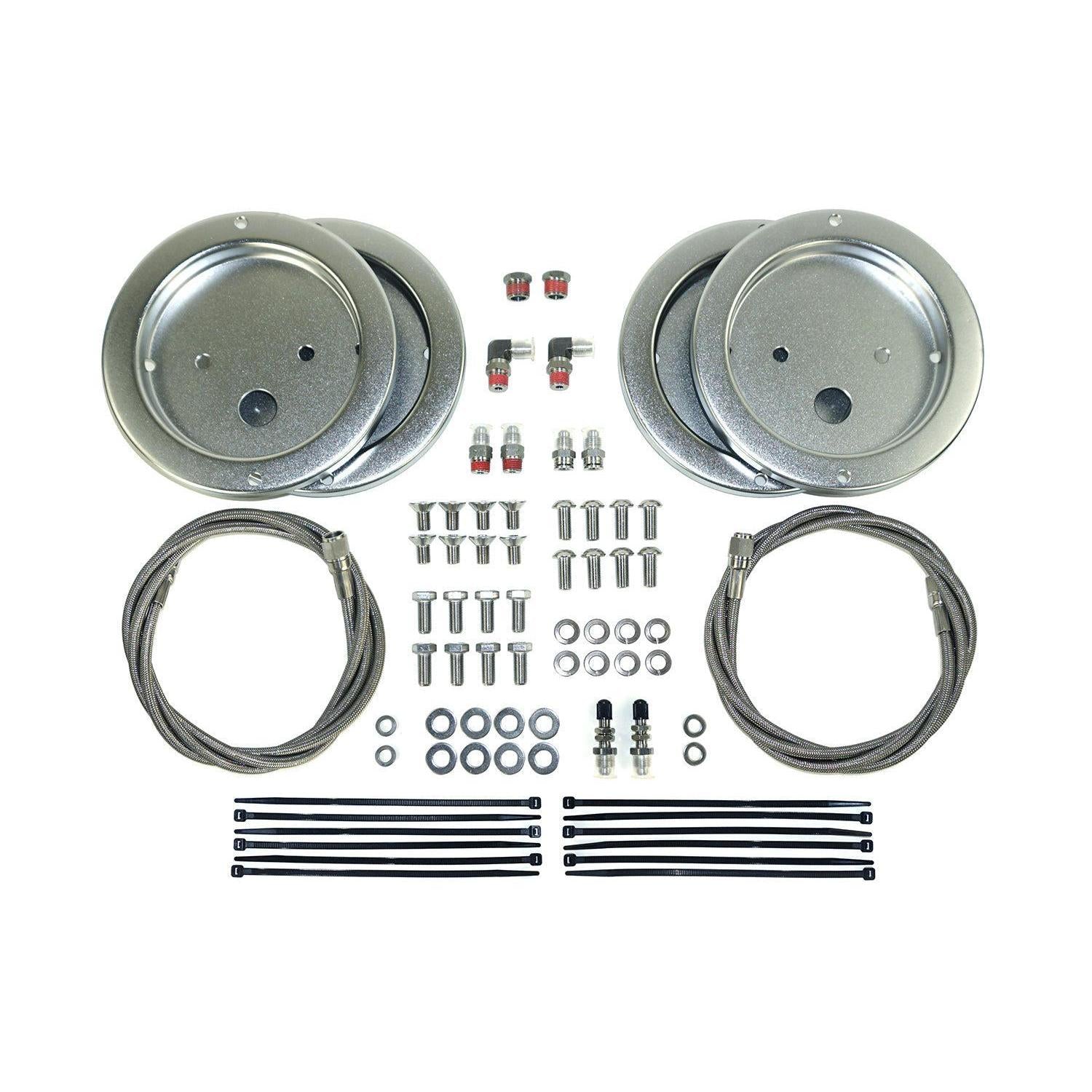

Includes:

• 6ft Braided Stainless Steel Air Lines
• Stainless Steel Air Spring Fittings
• Stainless Steel Air Spring Mounting Hardware
• Stainless Steel Schrader Valves
• Stainless Steel Roll Plates
• Two Air Springs
• Everything required for install

• 2-Hours
• Stainless Steel Hardware
• Click Here
• Application Guide

• Never exceed the manufacturer's recommended Gross Vehicle Weight Rating.

Why did Pacbrake add a bump stop to their bags?

Peace of mind. Customers want a bump stop to prevent bottoming out from loss of air bag pressure, an extremely rare event that could damage the airbags or potentially the frame of the truck. Think of it as an "insurance policy" against bottoming out.

An additional benefit is that you can run these airbags at 0 psi when unloaded for superior ride comfort.

Are bump stops necessary?

No! For those that require max travel in their air bags, to raise and lower their rear end to pickup trailers or boats, or for those that take their trucks off-roading, air bags without bump stops are recommended. Consider the HP10585-X ALPHA XD air bag.

Parts Only

• Click Here
