2019-2026 Cummins DRW 3" Coil Spring Lift Kit w/ Falcon 2.1 Shocks (49-19333)

Lift and level your Ram 3500 dually with ReadyLIFT's 3" coil spring lift kit. ReadyLIFT-engineered front coil springs deliver 3 inches of front lift, while rear blocks and U-bolts bring the back end up to a neutral, lifted stance. Four corner Falcon 2.1 monotube shocks carry larger 2.3 inch aluminum bodies and heavy-duty 3/4 inch chrome-plated shafts for better heat management and chassis control without giving up factory ride quality. The kit clears up to 35x12.50 tires.

Part Number: 49-19333

• Provides up to 3 inches of front coil spring lift
• Four corner Falcon 2.1 monotube shocks
• Large 2.3 inch aluminum shock bodies for increased oil capacity and heat dissipation
• Heavy-duty 3/4 inch induction-hardened, chrome-plated shafts
• 6061-T6 aluminum-alloy billet piston
• Rear lift blocks and U-bolts included
• Clears up to 35x12.50 tires
• Maintains factory geometry and ride quality
• 100% bolt-on

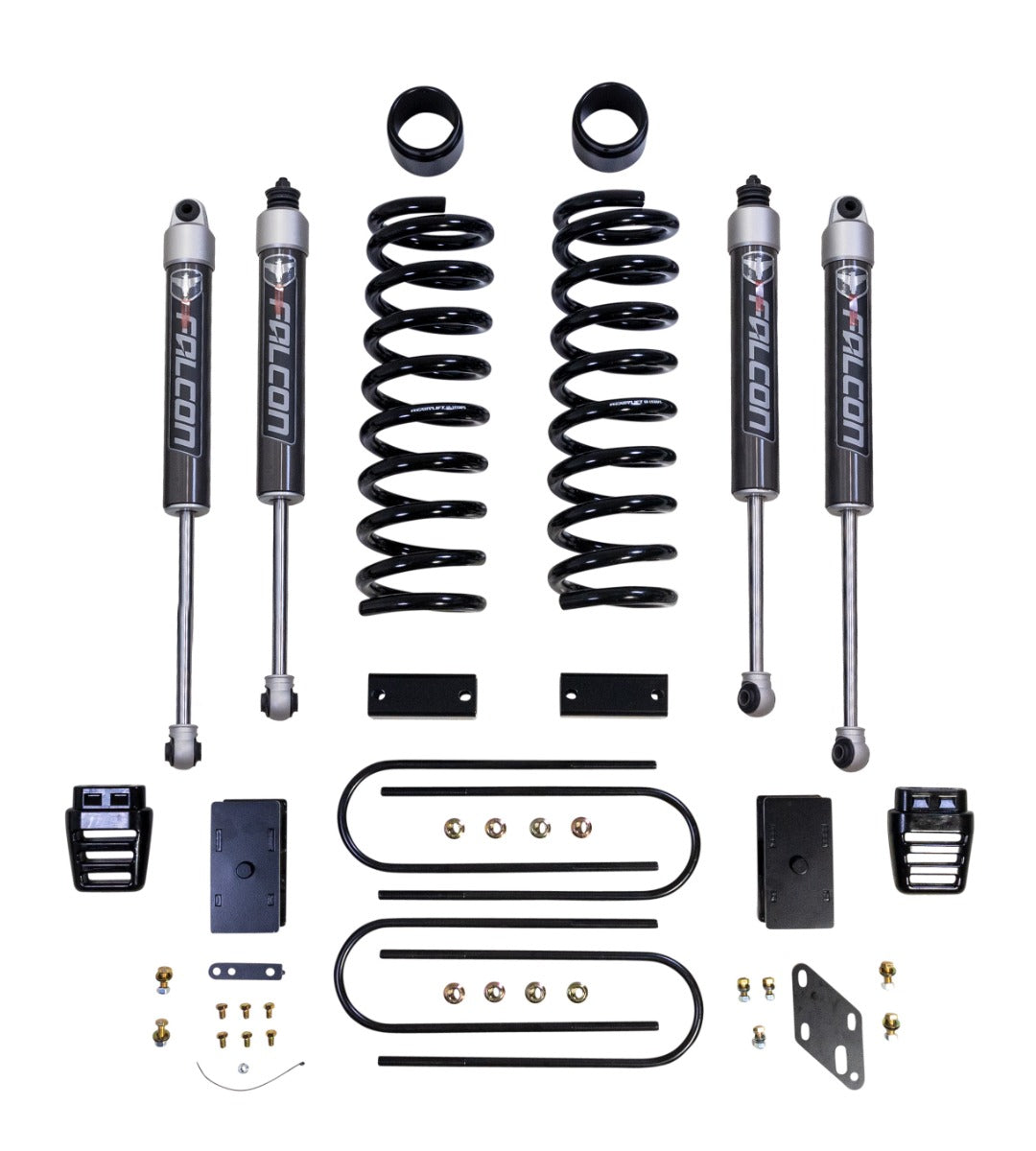

Includes:

• 3" Front Lift Springs
• 3" Rear Block Kit w/ U-bolts
• 3" Rear Bump Stop Extension
• Front Falcon 2.1 Shocks
• Rear Falcon 2.1 Shocks
• 3" Front Bump Stop
• Hardware Pack

Tire Fitment:

• Tire size 35x12.50 on a 20" x 8.25" wheel with -145/+145 offset
• Recommended wheel 20x8.5 with -145/+145 offset and 5" backspacing
• 37" maximum tire size with trimming

• For 3500 diesel dually (DRW) models only.
• Trucks equipped with rear air require additional spacers, PN 26-19332.
• Not compatible with Power Wagon, single cab trucks, or the Snow Prep/Ambulance Package.
• 37" tires will require trimming.

• Estimated installation time is 4 hours.
• Vehicle alignment, headlamp aim, and Advanced Driver Assistance Systems (ADAS) should be checked and adjusted after installation.
• Click here for installation instructions
• ReadyLIFT Suspension Inc. and/or Dirty Diesel Customs are NOT responsible for any damage or failure resulting from improper installation.
