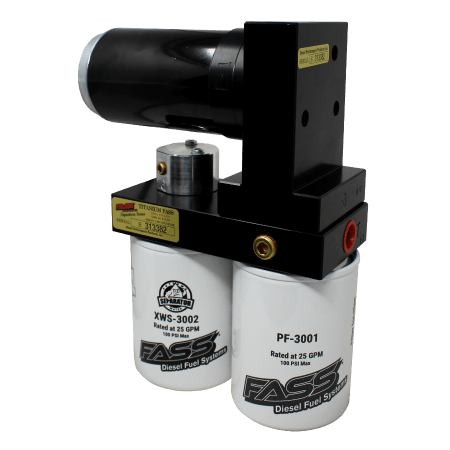

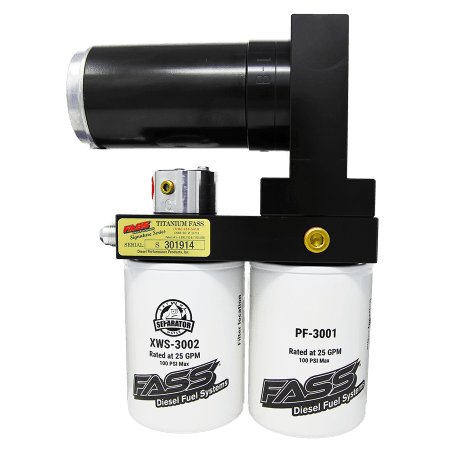

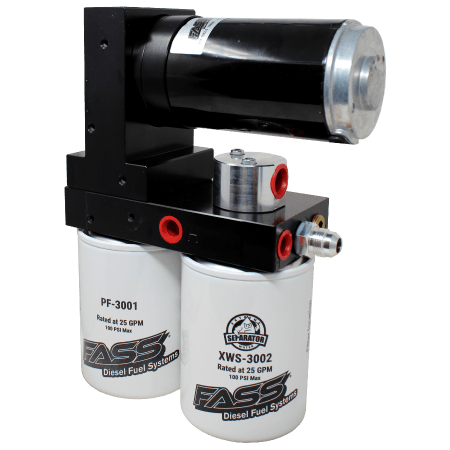

2018-2020 F-150 3.0L Titanium Signature Series 110GPH Lift Pump (TSF19140F110G)

Fits

Power Rating: Stock - 700hp

Flow Rating: 110 Gallons Per Hour

Preset Fuel Pressure: 65 PSI

Filter Life Expectancy: 30,000 Mile

Filtration Rating: 2 Micron

Warranty: Limited Lifetime Warranty

This Titanium Signature Series diesel fuel lift pump was engineered by FASS Fuel Systems to be the top-performing, longest lasting and most reliable aftermarket filtration system in the diesel industry. Rated at 110 gallons per hour and backed by a limited lifetime warranty this Titanium Signature Series lift pump is capable of supporting your Ford F-150 with enough fuel to support up to 700hp!

ThisTitanium Signature Series lift pump also offers advanced filtration benefits that will help protect your injection systems, effectively extending the life of both your Injection Pump and Injectors. These Benefits include an improved filtration rating of 2 Microns, a built-in water separation filter, and FASS Fuel Systems patented air/vapor removal process. Aftermarket lift pumps are important for both daily drivers and high-performance F-150 when looking to improve either fuel economy or increase horsepower/torque.

Part No: TSF19140F110G

Superseded Part Number: TSF19110G
Previously Superseded Part Number: TS F19 110G

• New Whisper Technology
• New Bolt-on Bracket Installation
• Protects & Extends Injector Life
• Improved Cold Weather Starts
• Quietest Motor on the Market
• Decreases Emissions
• Smoother Idle
• Extends Fuel System Life
• Improved Fuel Mileage & Volume Delivery
• 1/2" Fuel Lines & Ports
• Fuel Mileage Improvement
• Limited Lifetime Warranty
• 1,000,000 Mile Motor
• 30,000 Mile Filter Life Expectancy

FASS Whisper Technology (FWT) was engineered to meet the stringent demands of today’s quiet diesel engines. FASS Whisper Technology was in development and testing for over two and a half years to meet FASS Fuel System’s high quality and durability standards. FASS Whisper Technology effectively and drastically reduces the sound levels of the Signature Series FASS Diesel Fuel System to a “whisper” while at the same time increasing fuel flow rates. Our competition reduces noise levels by reducing flow rates.

Performance Radius Cuts (PRC) are an advanced machining technique used to improve the flow of fuel through the FASS System by creating smooth-flowing cuts within the aluminum housing.  This prevents the reintroduction of air and vapor back into the fuel and prevents eddy currents from forming within the corner of a 90° sharp angle. FASS Titanium Signature Fuel Systems are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90° fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.

Mass Flow Return (MFR) technology is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine to prevent cavitation along with galling and scoring. Then returning the fuel, that’s not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapor, and water. This means your fuel is being constantly “Polished” (cleaned), guaranteeing that your diesel truck always has the cleanest fuel possible. The MFR in combination with the optional FASS Fuel Heater options will help insure “EXTREME” cold weather operations!
