2017-2024 Powerstroke RCLB/CCSB/SCSB 60" Traction Bar Kit, Cat Yellow (WCF100388-CAT)

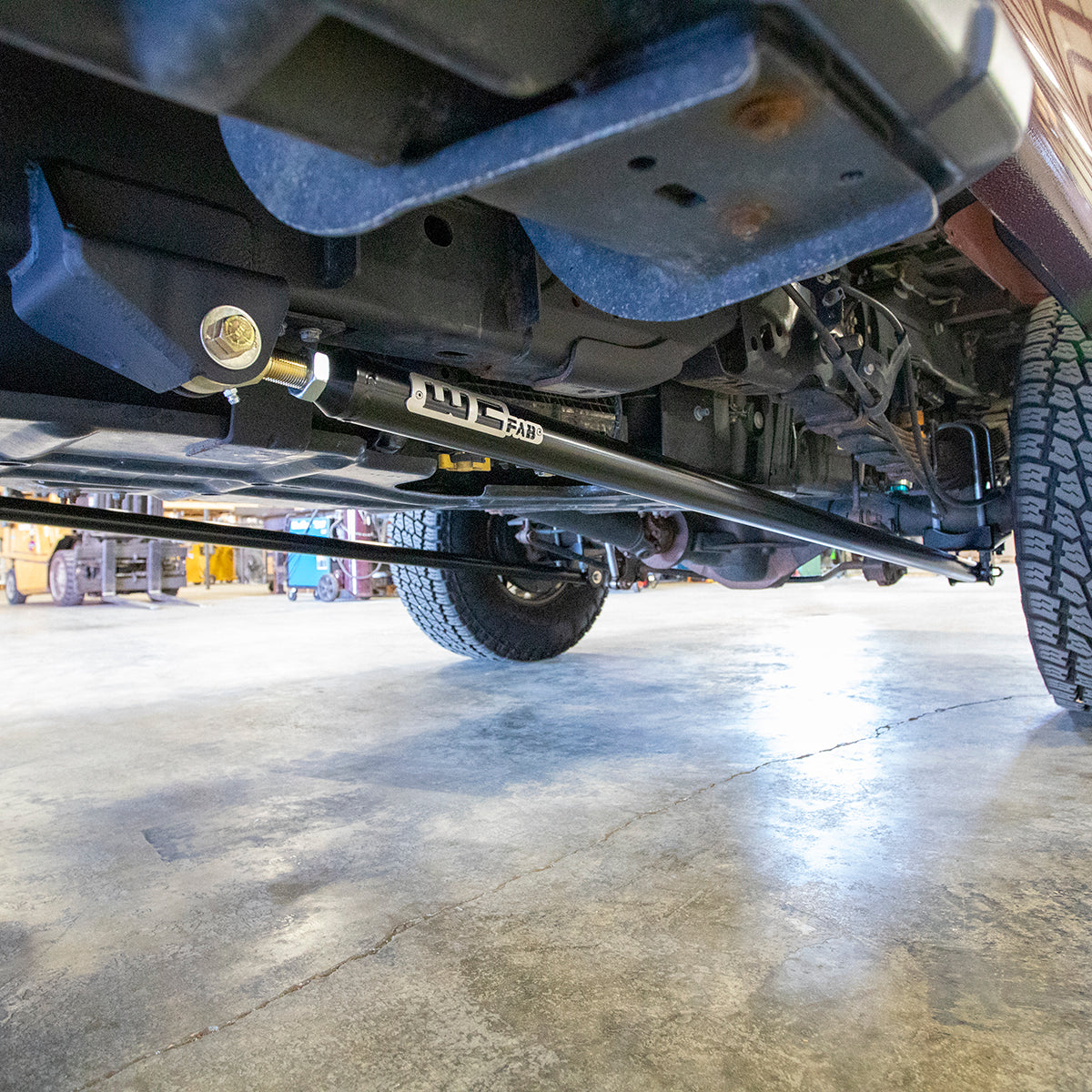

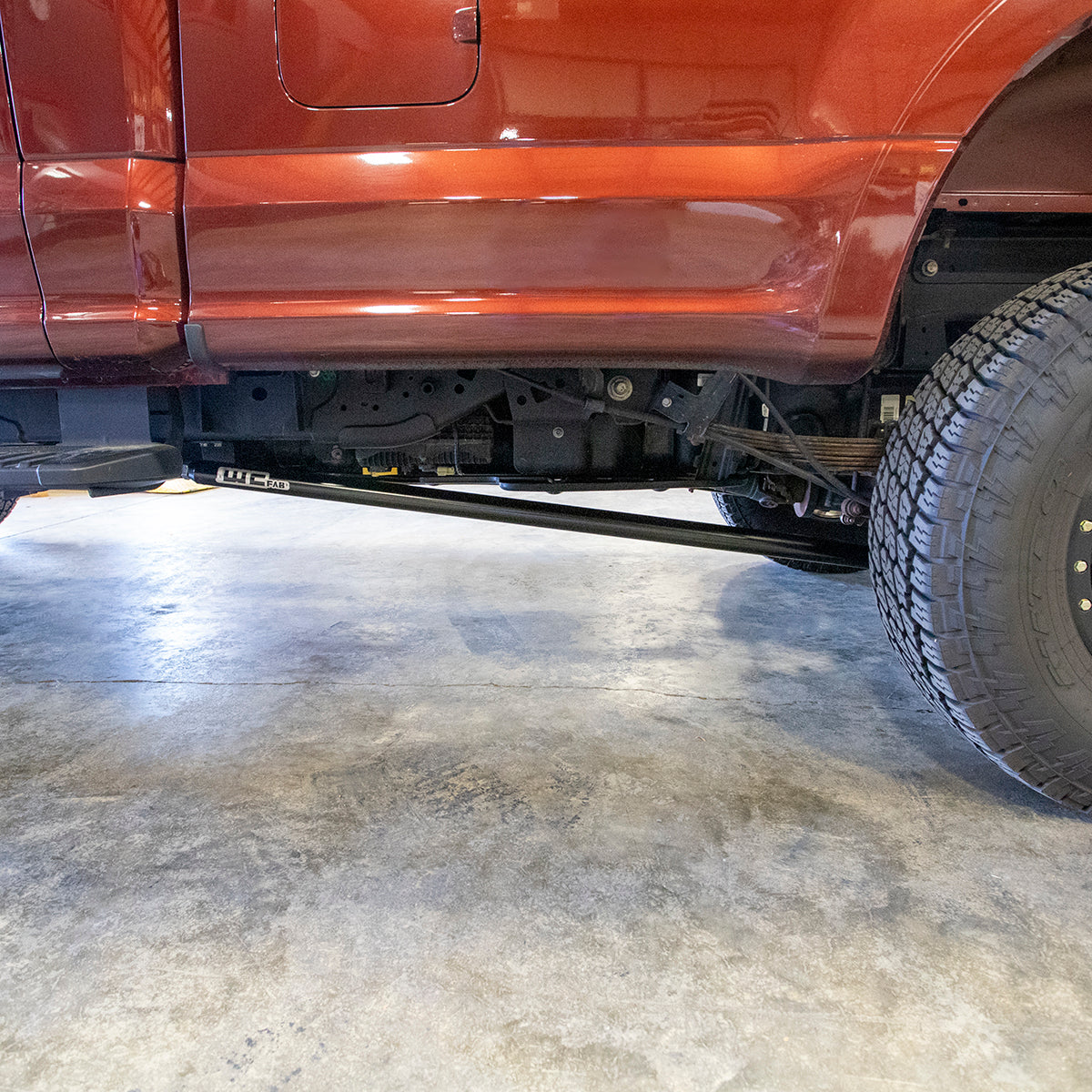

60" traction bars for 2017-2024 F-250 and F-350 crew cab short bed trucks with the 4" axle tube Sterling 10.5" or Dana M275 rear axle. Adding power to a leaf-sprung truck twists the axle under load, which breaks U-joints and driveshafts and can wrap the housing. These bars bolt to the axle through the U-bolts and weld to the frame up front, and they carry Wehrli's lifetime warranty against bending or breaking.

The frame end rides on a rebuildable, greasable RockJock Johnny Joint for adjustment and articulation; the axle end uses poly bushings. Grade 8 hardware, epoxy primer under the powder coat in your choice of colour. Built in-house at Wehrli.

Part Number: WCF100388-CAT

• Fits 2017-2024 F-250 and F-350 crew cab short bed
• For 4" axle tube Sterling 10.5" and Dana M275 rear axles
• 60" heavy-duty bars
• RockJock Johnny Joints at the frame
• Poly bushings at the axle
• Frame side weld-on mounts, axle side bolt-on mounts
• Grade 8 hardware
• Lifetime warranty against bending or breaking (original purchaser)
• Epoxy primer base coat with custom powder coat finish
• Finish: Cat Yellow powder coat
• Made in USA

• Frame mounts are welded on.
• Long bed trucks use the 68" kit WCF100399.
• Bracket-only kits for the Dana M275: WCF100407 (4" axle) and WCF100501 (4.5" Dana M300).
