2017-2024 Powerstroke Ford Dana M275 14 Bolt Rear Differential Cover, Gloss Black (WCF100184-GB)

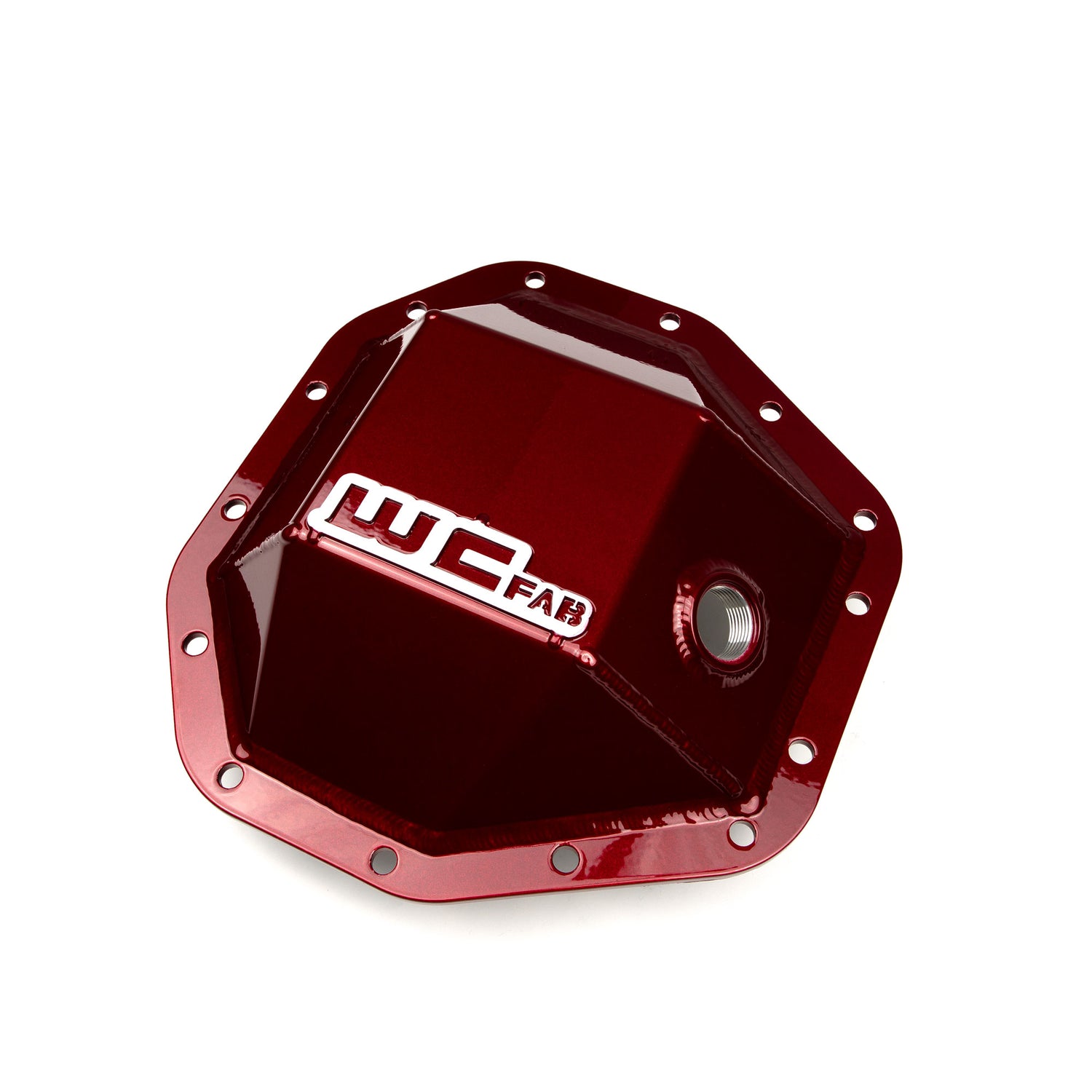

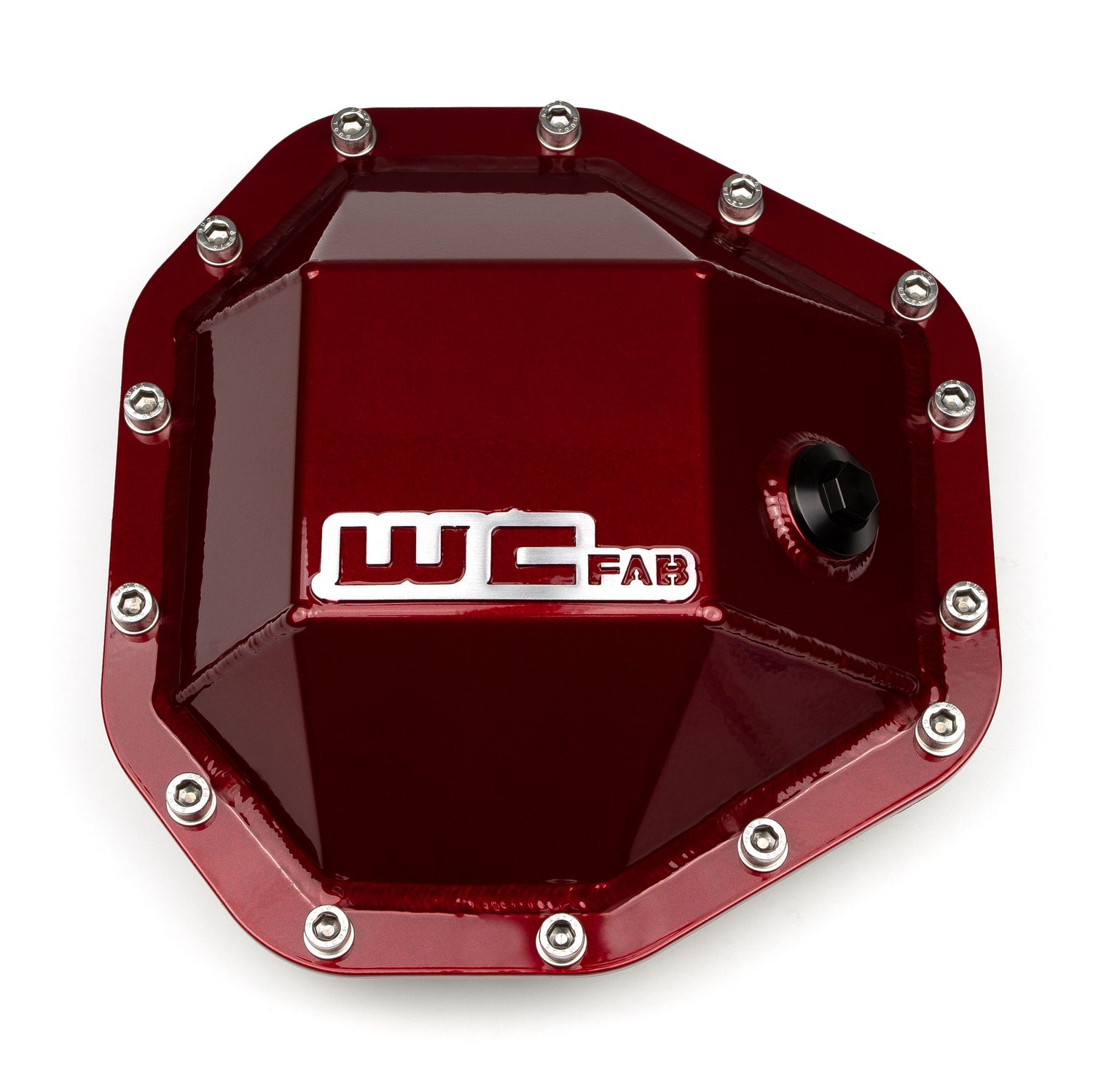

Fabricated aluminum rear differential cover for 2017-2024 F-250 and F-350 trucks with the Dana M275 14-bolt rear axle. It replaces the stamped factory cover with a stronger, better-looking piece that seals on an O-ring, and it comes powder coated in your choice of Wehrli colours.

Count your cover bolts before ordering. The Dana M275 has a 14-bolt cover, a 4" OD axle tube and a 10.8" ring gear. F-350 single rear wheel trucks use it standard; F-250 trucks get it with the HD Towing Package, otherwise they carry the 12-bolt Sterling (WCF100172). Ships with stainless hardware and a fill plug.

Part Number: WCF100184-GB

• Fabricated aluminum cover
• O-ring seal
• Stainless steel hardware
• Fill plug
• Fits Dana M275 14-bolt axles (4" OD tube, 10.8" ring gear)
• Custom powder coat finish
• Finish: Gloss Black powder coat
• Made in USA

• Count the bolts on your existing cover: this is the 14-bolt cover. 12-bolt Sterling 10.5" axles use WCF100172.
• Not compatible with dually (DRW) or High Output trucks.
• Optional ARP stainless bolt kit: WCF100154.
