Description
Fits
| Year |
Make |
Model |
| 2017-2019 |
GMC/ Chevrolet HD |
6.6L Duramax |

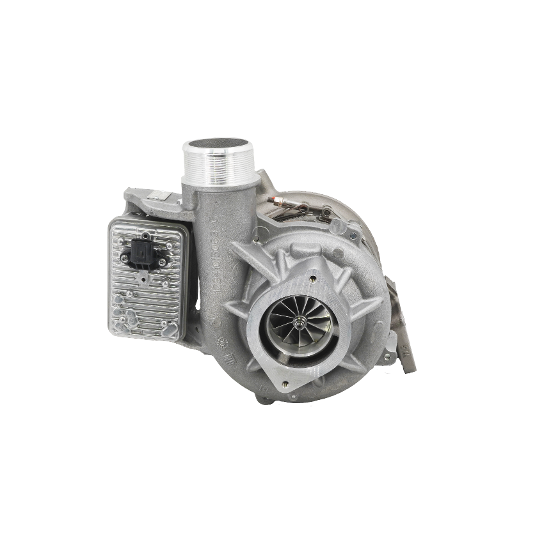

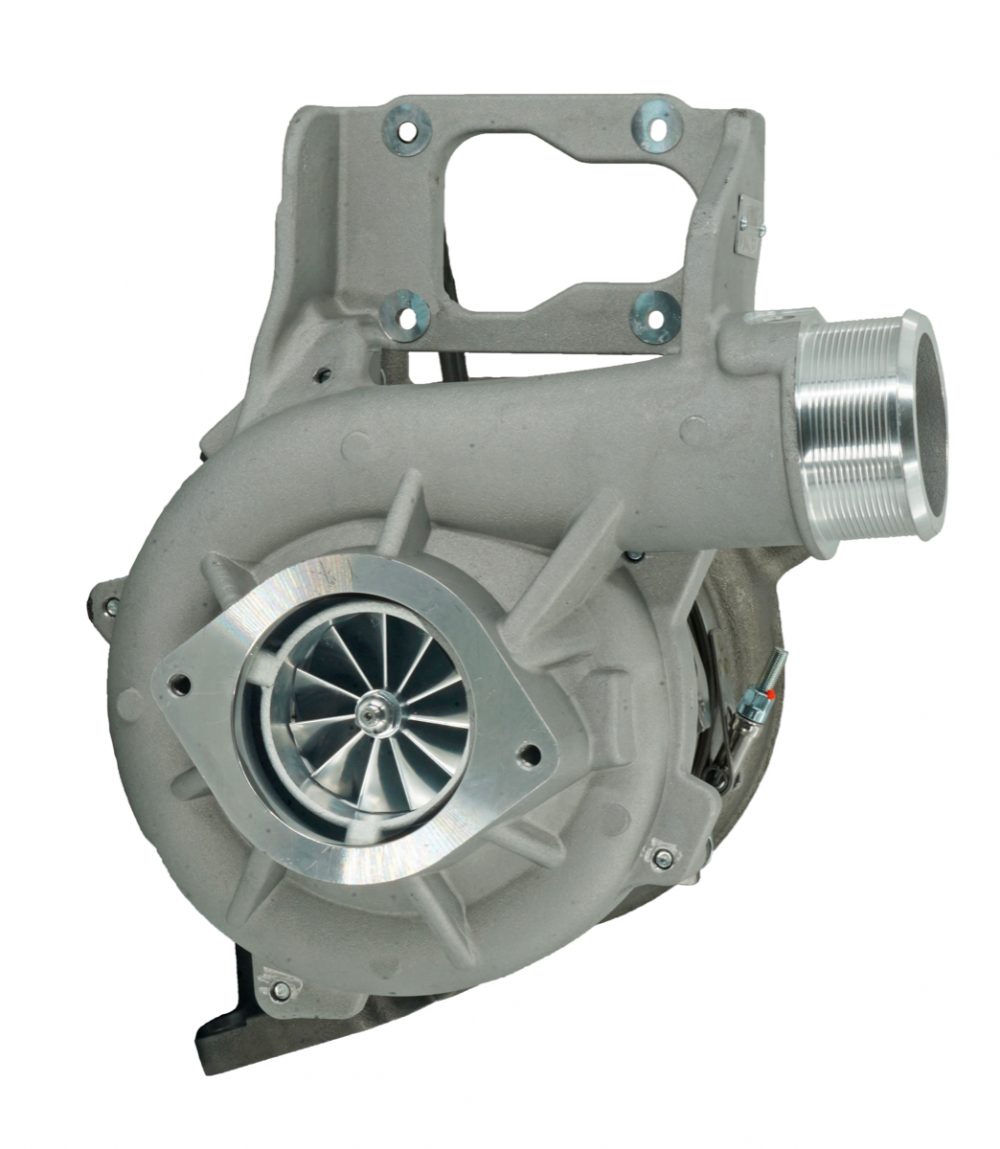

High Flow Vane technology is Calibrated Power's proprietary customization of the variable vane cage and nozzle ring assembly. This advancement allows the use of a larger turbine wheel for maximum high-load efficiency. Stealth turbos featuring HFV upgrades are capable of producing more power, spooling up quicker, and managing EGTs better than those limited with factory nozzle rings.
Part Number: DM1JK1070303000
Features
- Fits both L5P & L5D
-
Airflow to support 800HP
- Up to 650 RWHP with stock emissions equipment and basic supporting mods
- Tested in competition setups with extensive supporting mods to make 800+ RWHP
- No core charge
- Improved Efficiency to lower EGTs

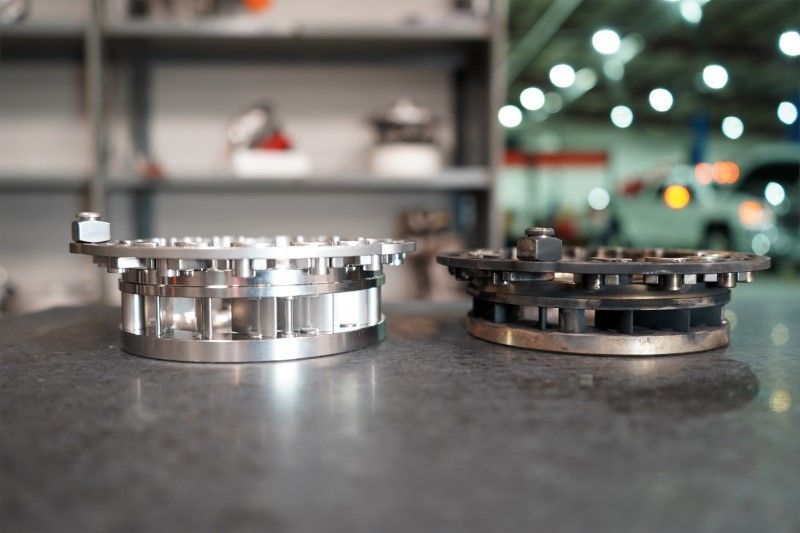

- HFV (High Flow Vane) Technology
- Custom Vane/Nozzle Ring Assembly
- Exclusive design produced in-house specific to this application
- Taller and wider vanes match larger turbine to provide superior high-load efficiency
- Retain factory exhaust brake and quicker throttle response
Additional Info

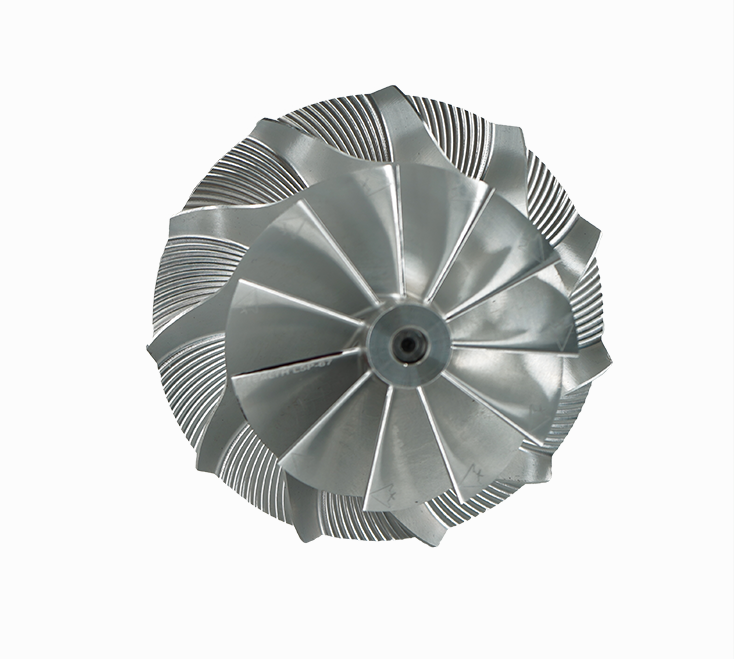

Custom Billet Compressor Wheel
- 67mm 11-Blade custom wheel
- Provides a wide efficiency range
- Lightweight and high strength
- Provides 81 lbs/min mass airflow compared to 60lbs/min stock
Beast Wheel Turbine Wheel
- Exclusive design and casting (Only available in Stealth Turbos)
- Increased durability at higher temperatures
- 10-blade design produces a distinctive Stealth turbo exhaust sound
-
Made from high strength Super Alloy material
- 200 F higher heat tolerance than traditional Inconel
- Utilized in turbo's designed for endurance racing
- Sized to maximize throttle response (quick spool up)
- Optimized to work with Custom Billet Compressor Wheel
- Designed with larger inducers in order to utilize HFV technology
-
Lowers drive pressures at high load
Notes
- This turbo uses a customized nozzle ring and/or shroud plate. It’s been engineered to provide amazing response and performance.
- This turbo must only be operated with tuning that uses stock Minimum and Maximum Vane Position tables. Failure to do so can lead to excessive exhaust pressure and boost which may shorten the life of the turbo or engine and may void the turbo warranty.
