2011+ Powerstroke SPE Oil Pan (SPE-S100180)
Purchase to earn 385 Dirty Dollars Learn More
Description
Description
Fits
| Year | Make | Model |
| 2011+ | Ford F-Series | 6.7L Powerstroke |
Note: Fits cab & chassis models

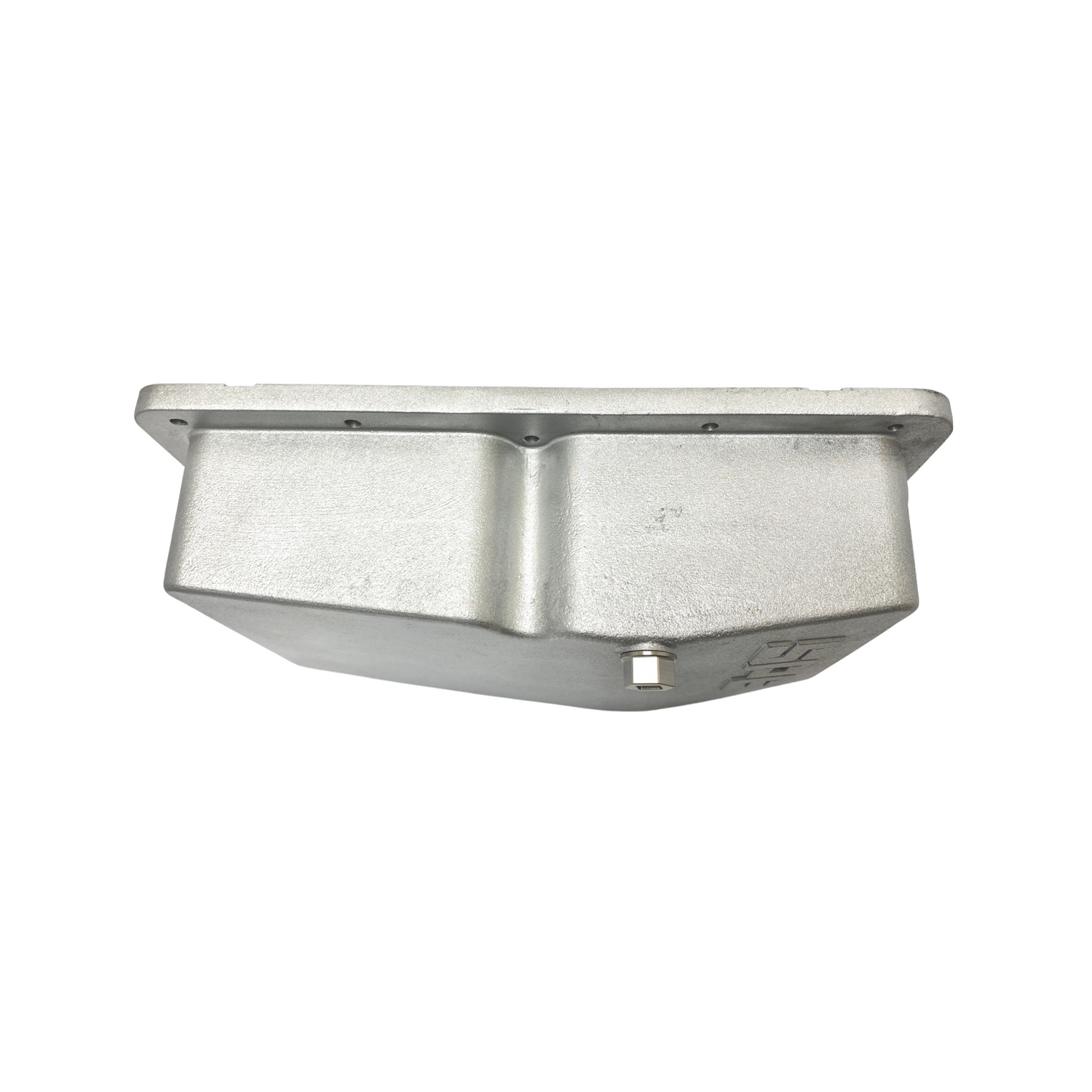

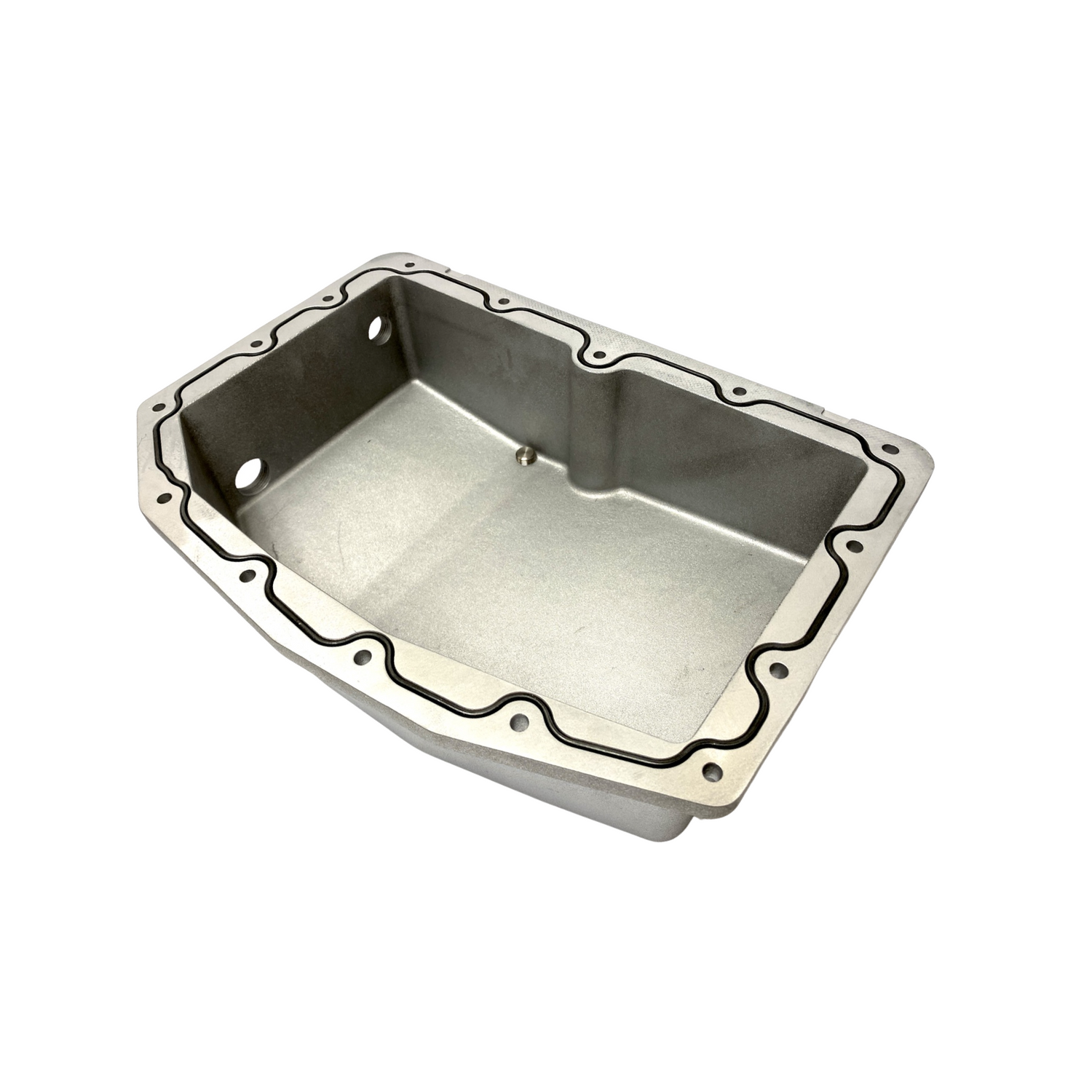

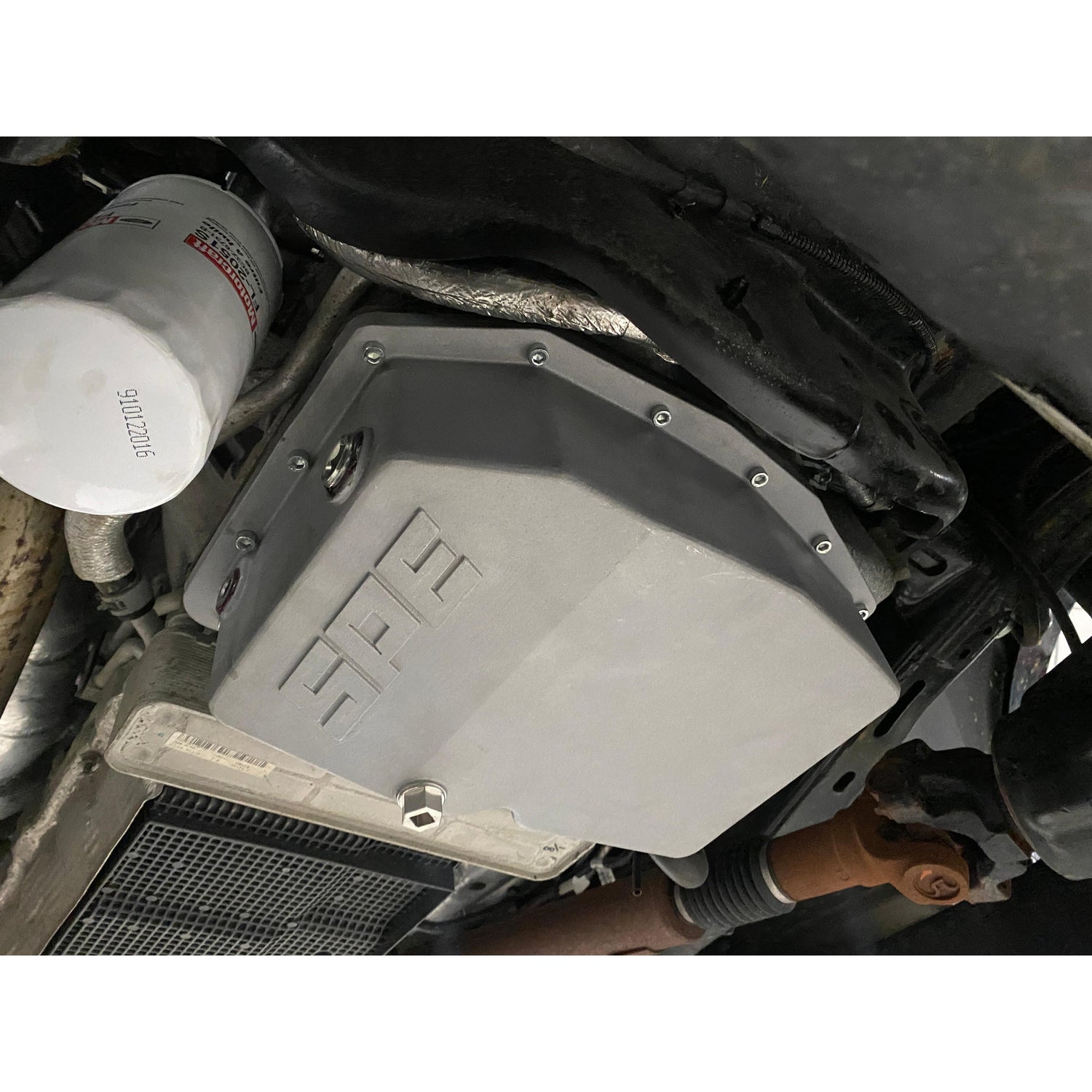

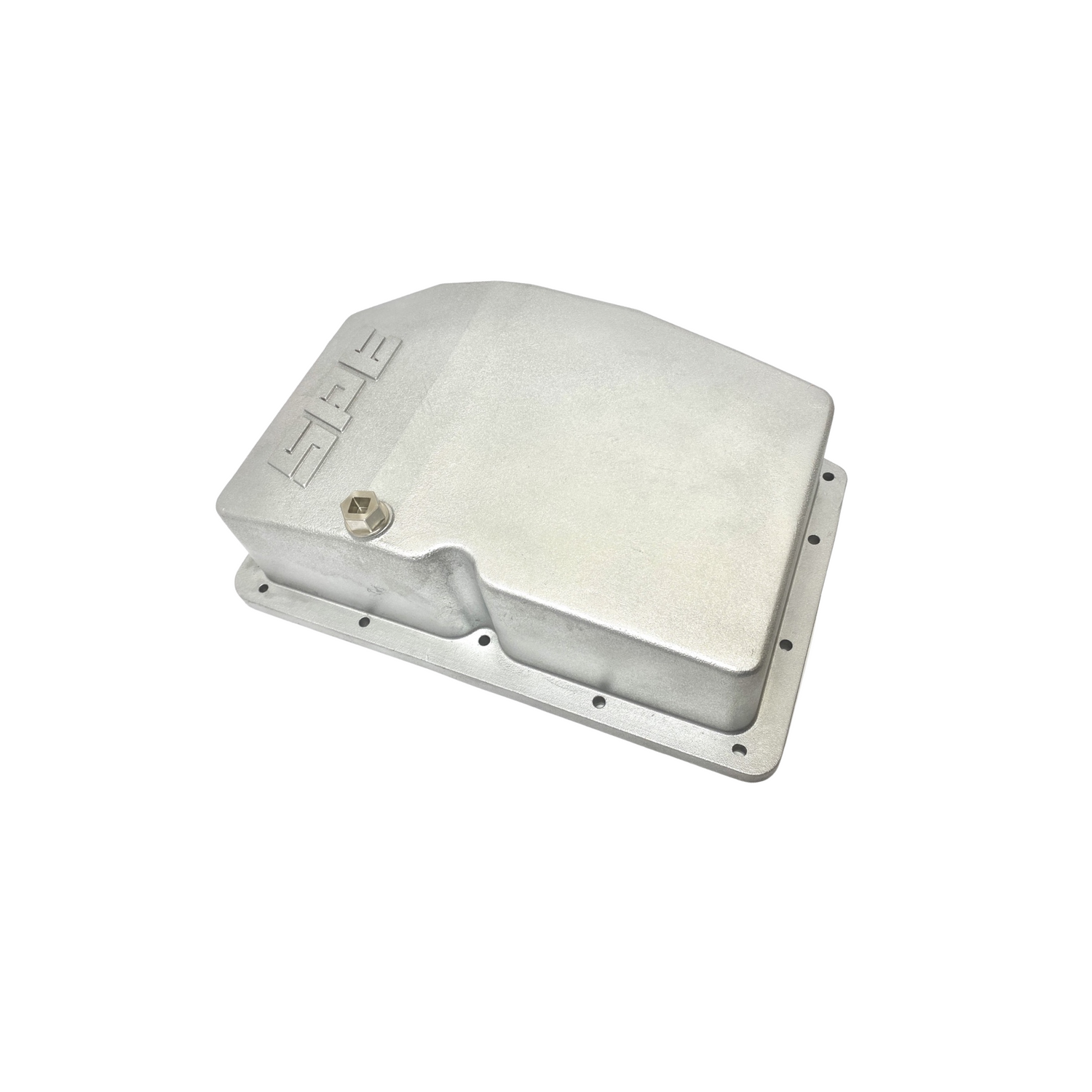

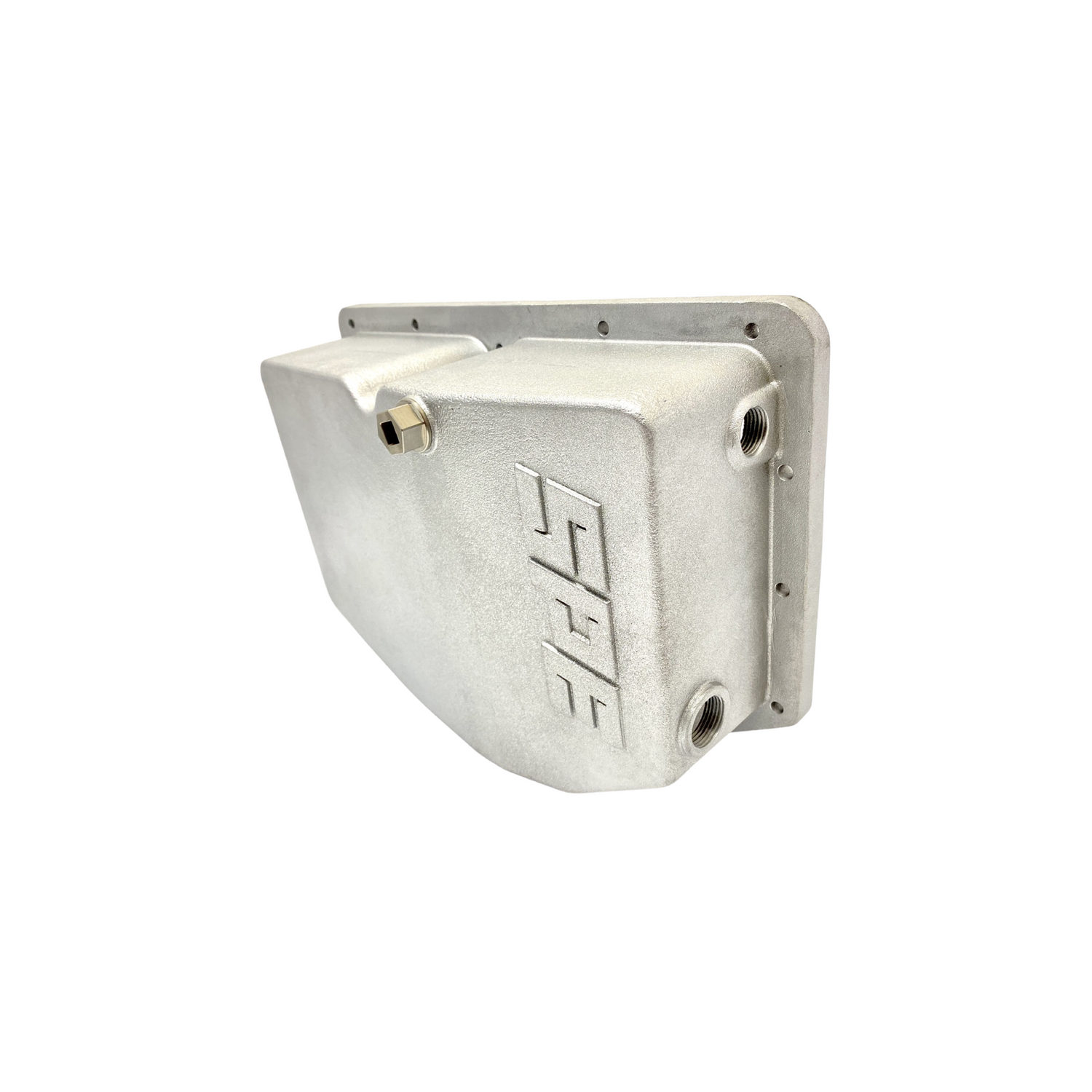

The SPE Powerstroke Oil Pan is a cast aluminum pan that is designed as a direct factory replacement and features a vast amount of improvements & upgrades. Featuring a built-in o-ring, a machined pry provision slot for easy removal, and a sumped/tapered drain to allow for complete emptying of the oil. It also has a factory drain plug thread, so you can use whatever drain plug you prefer
An added provision for an optional heater upgrade should you be in a climate where freezing temperatures can create issues with oil viscosity and decreased oil circulation and lubricity.
This product does not include the Oil Drain Plug and requires a steel oil plan.
Part Number: SPE-S100180
Features
Features
- Made from high-grade 356-T6 Cast Aluminum

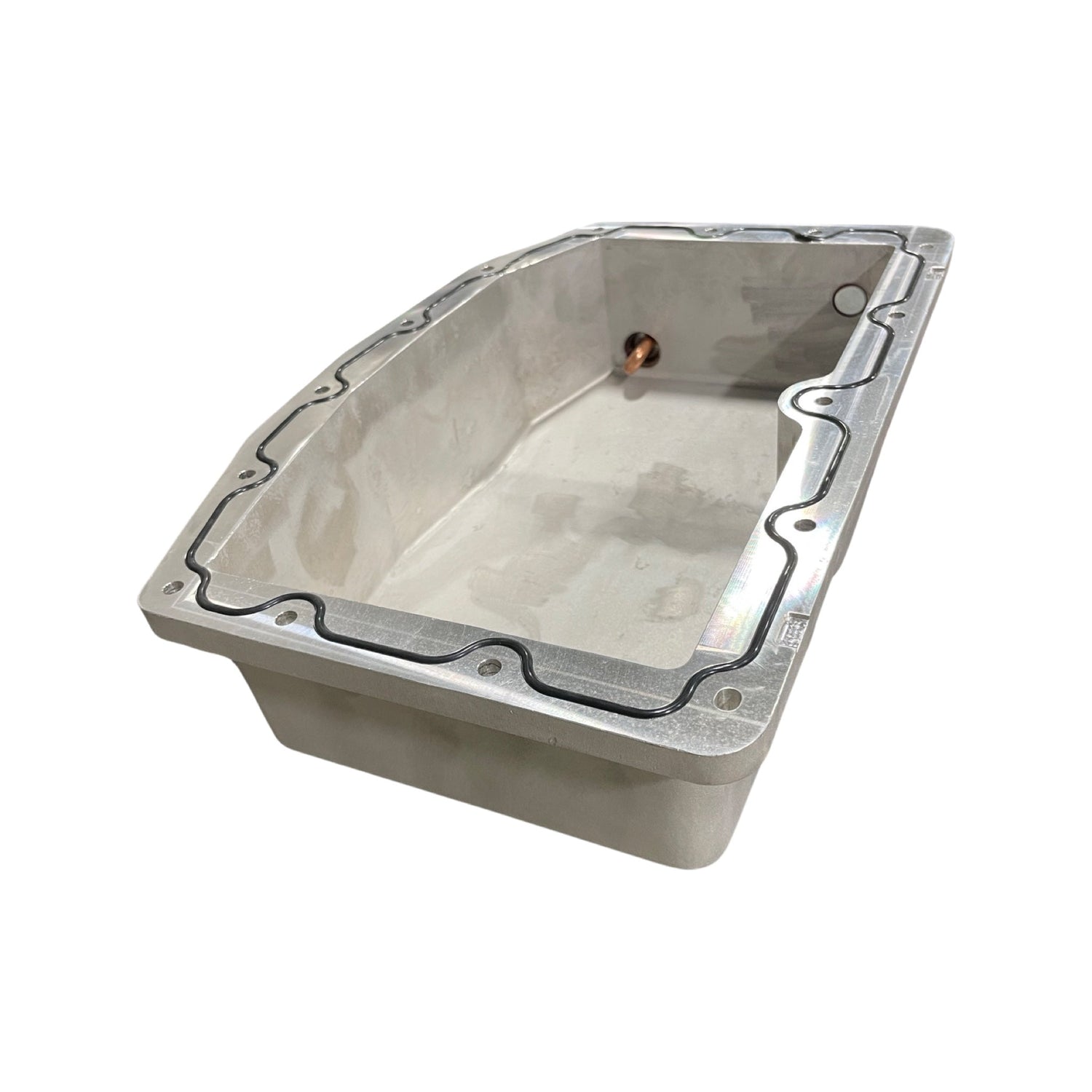

- Built-in O-ring Seal no silicone or factory gasket used

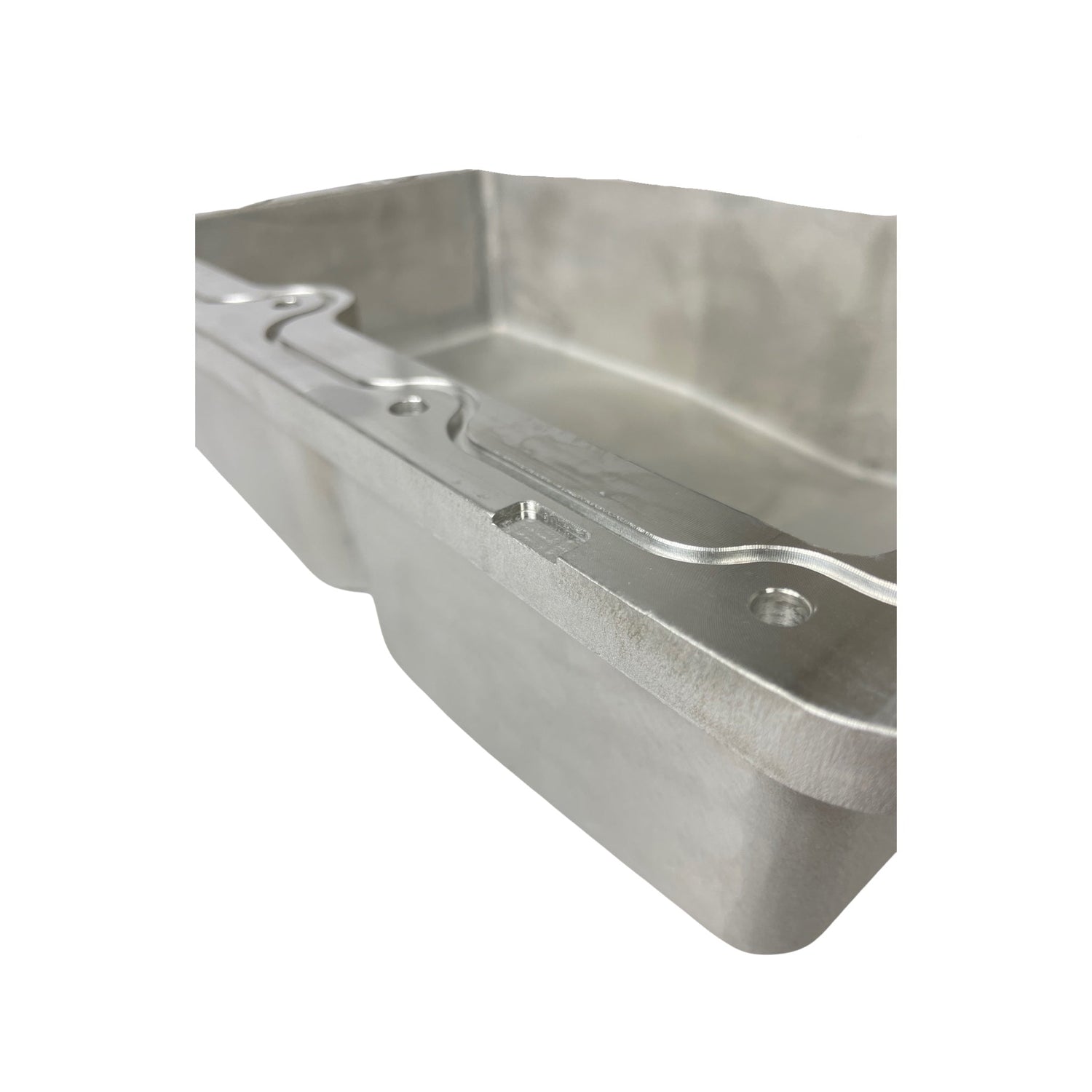

- Pry tab allows for easier removal

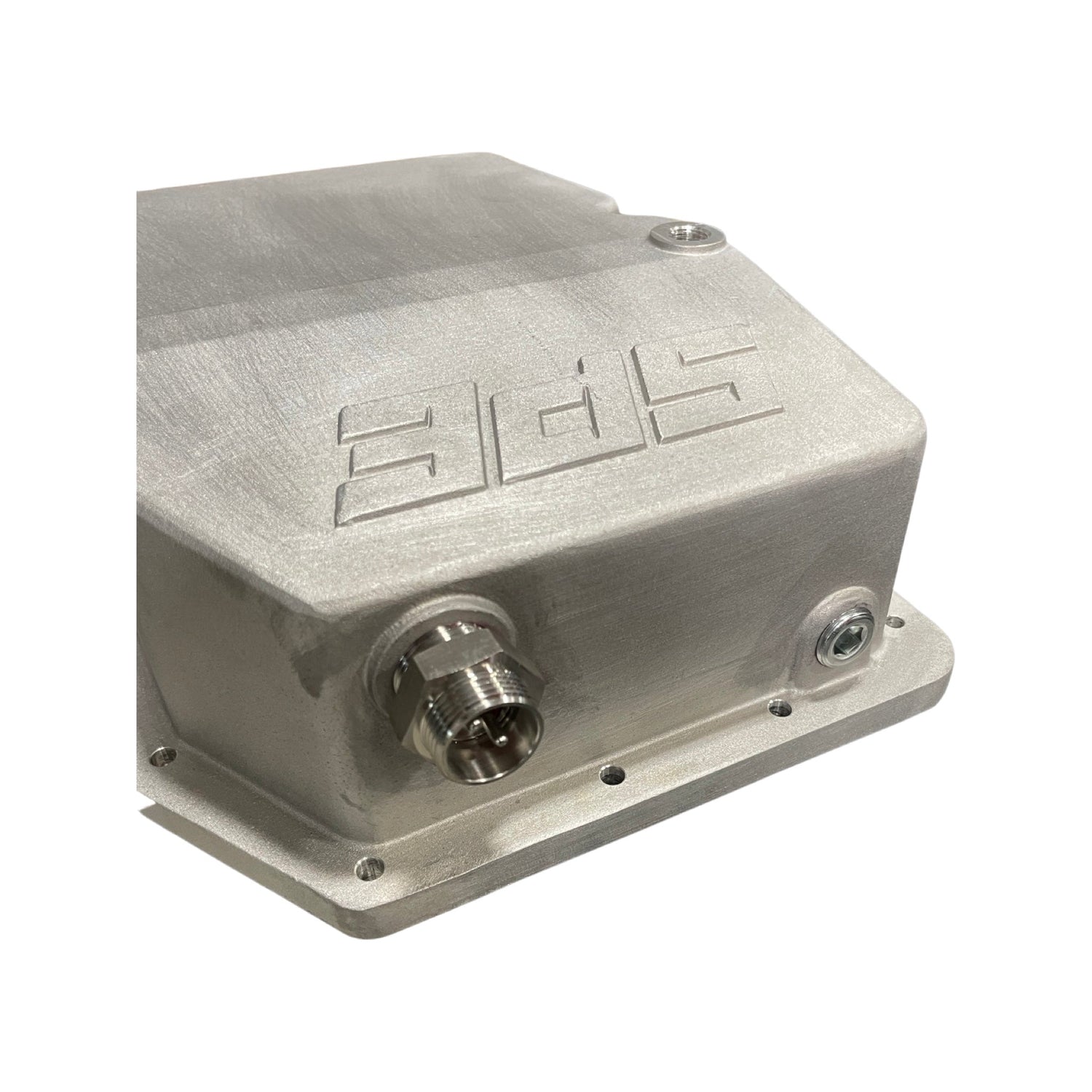

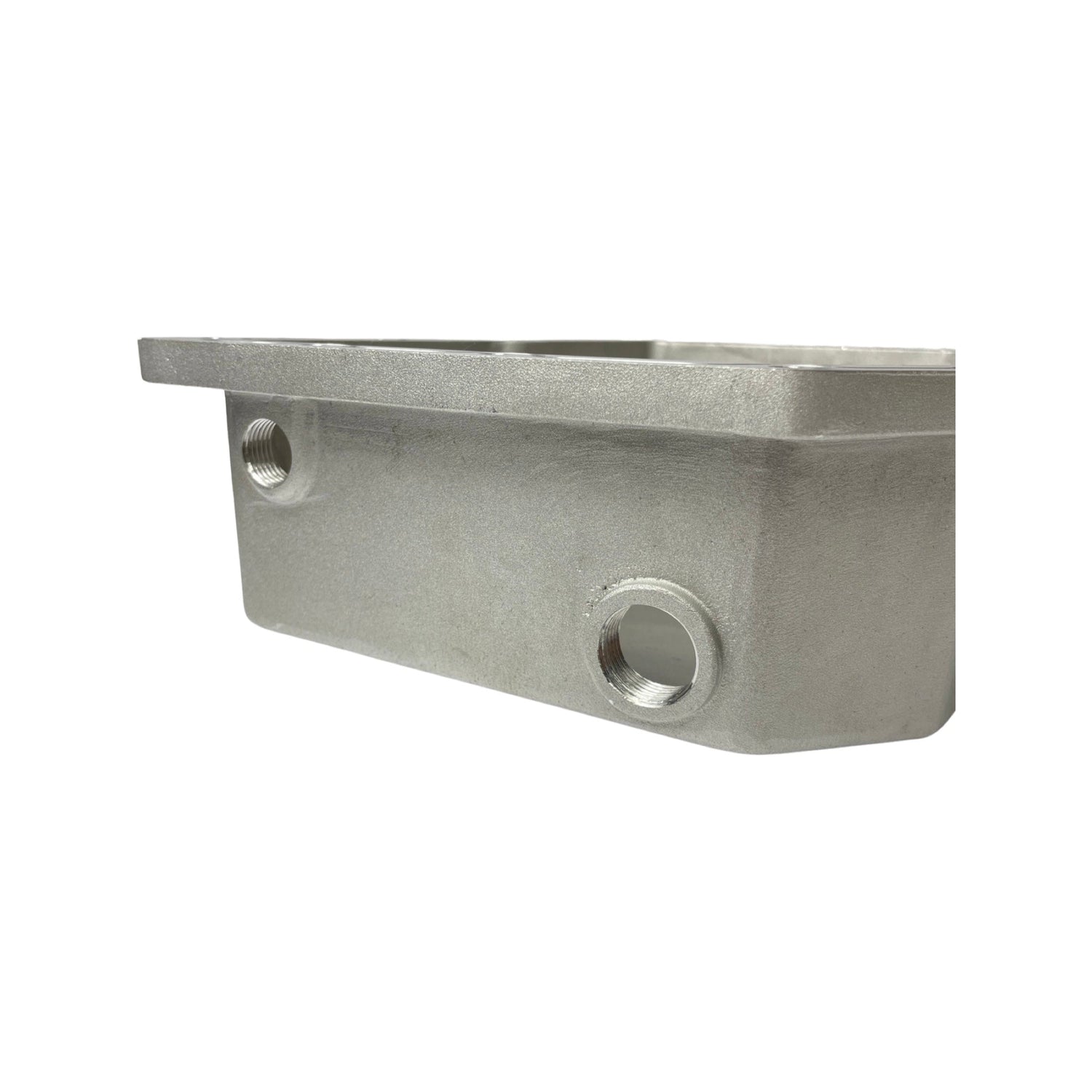

- Drain back for add-on turbocharger upgrades plugged when not in use

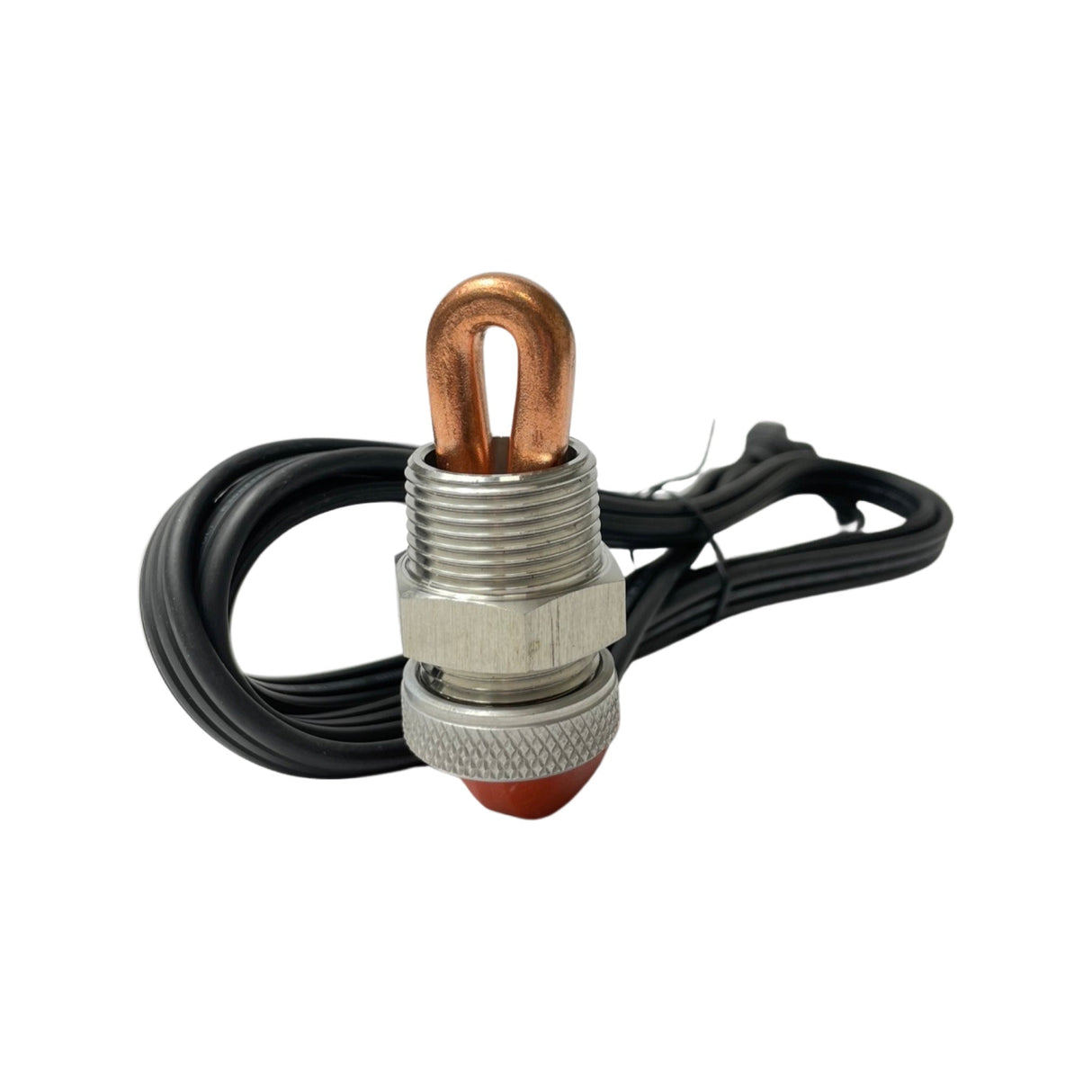

- Optional heater upgrade kit— Great for cold climates*

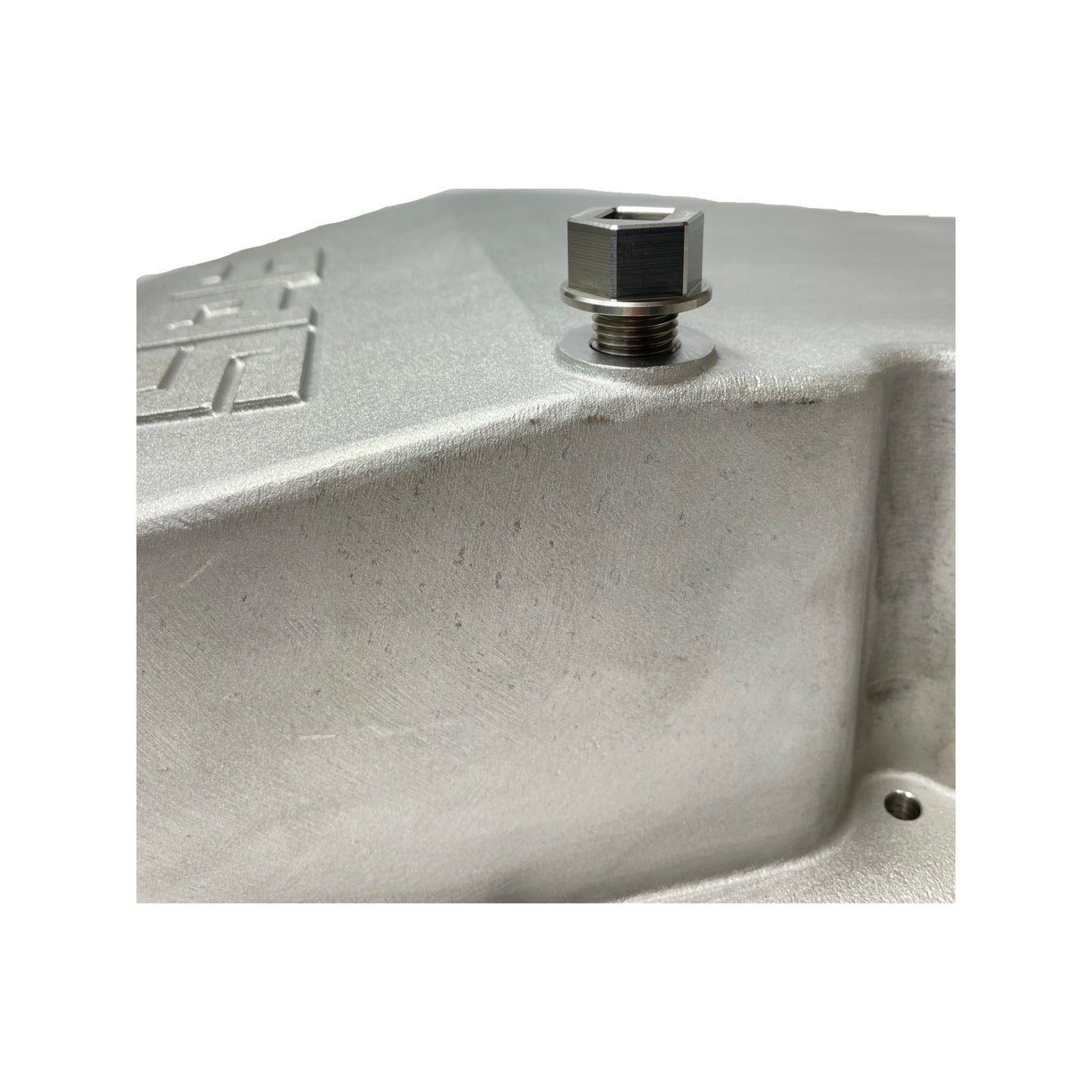

- Factory drain plug thread
- The pan is sumped/tapered no residual oil is left in the pan after an oil change
- Increases capacity to 16qt an additional 3 qts over the factory

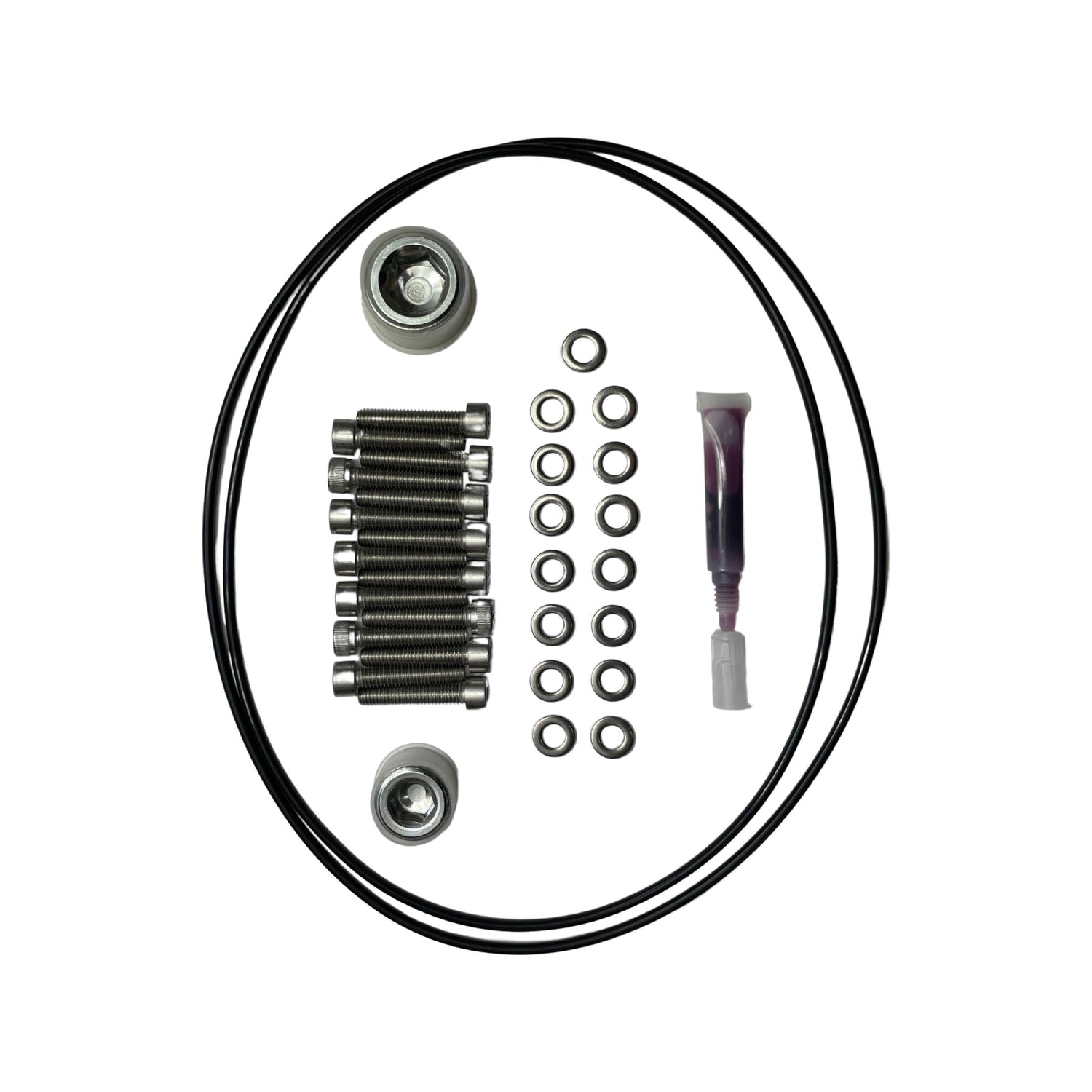

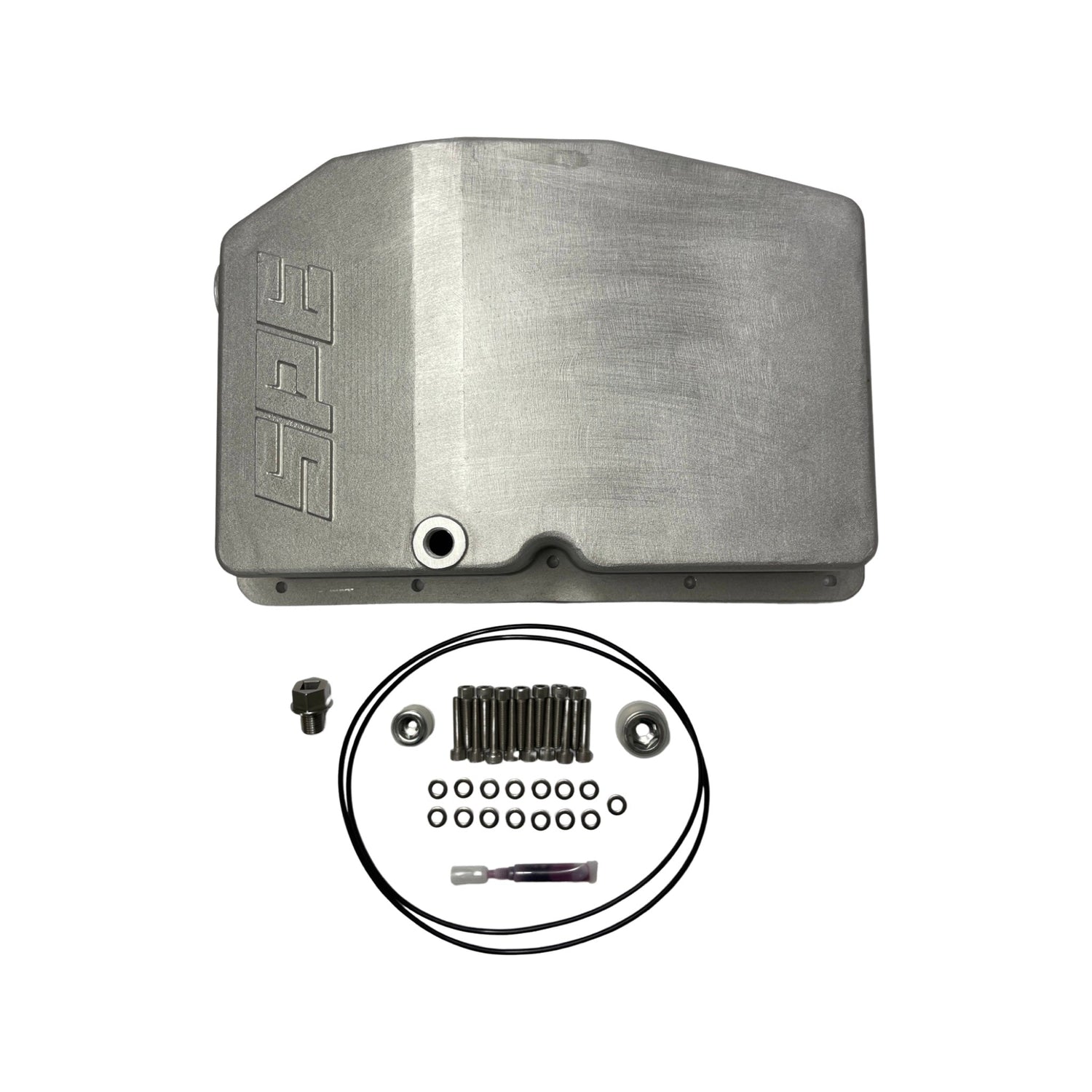

- Includes plugs & thread sealant
NOTES
NOTES
- SPE recommends this upgrade for those who live in a cold climate or anywhere you may see temperatures consistently below 15°F

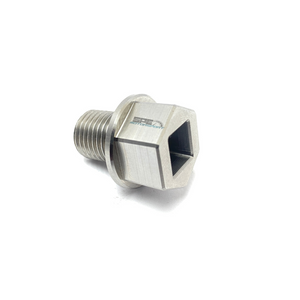

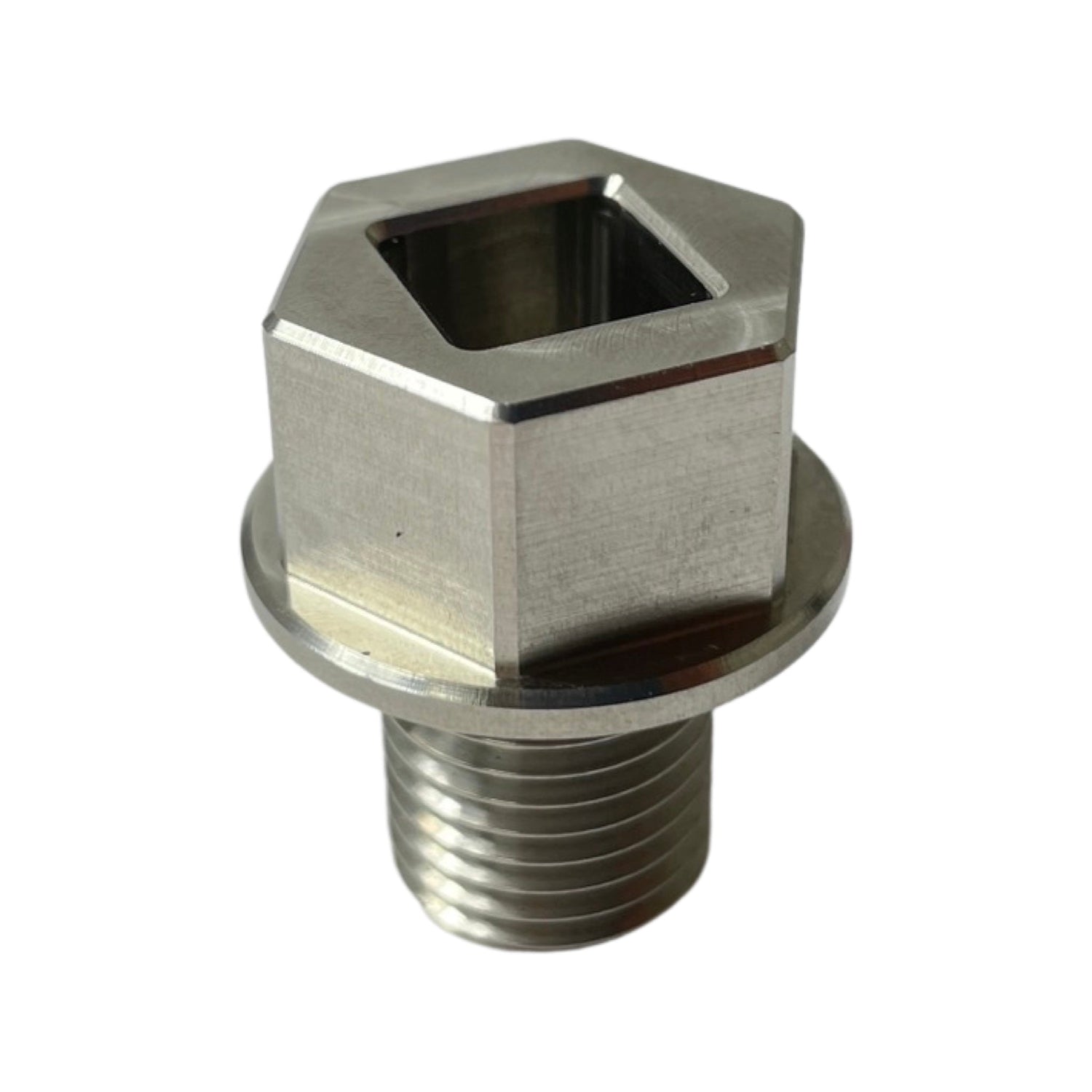

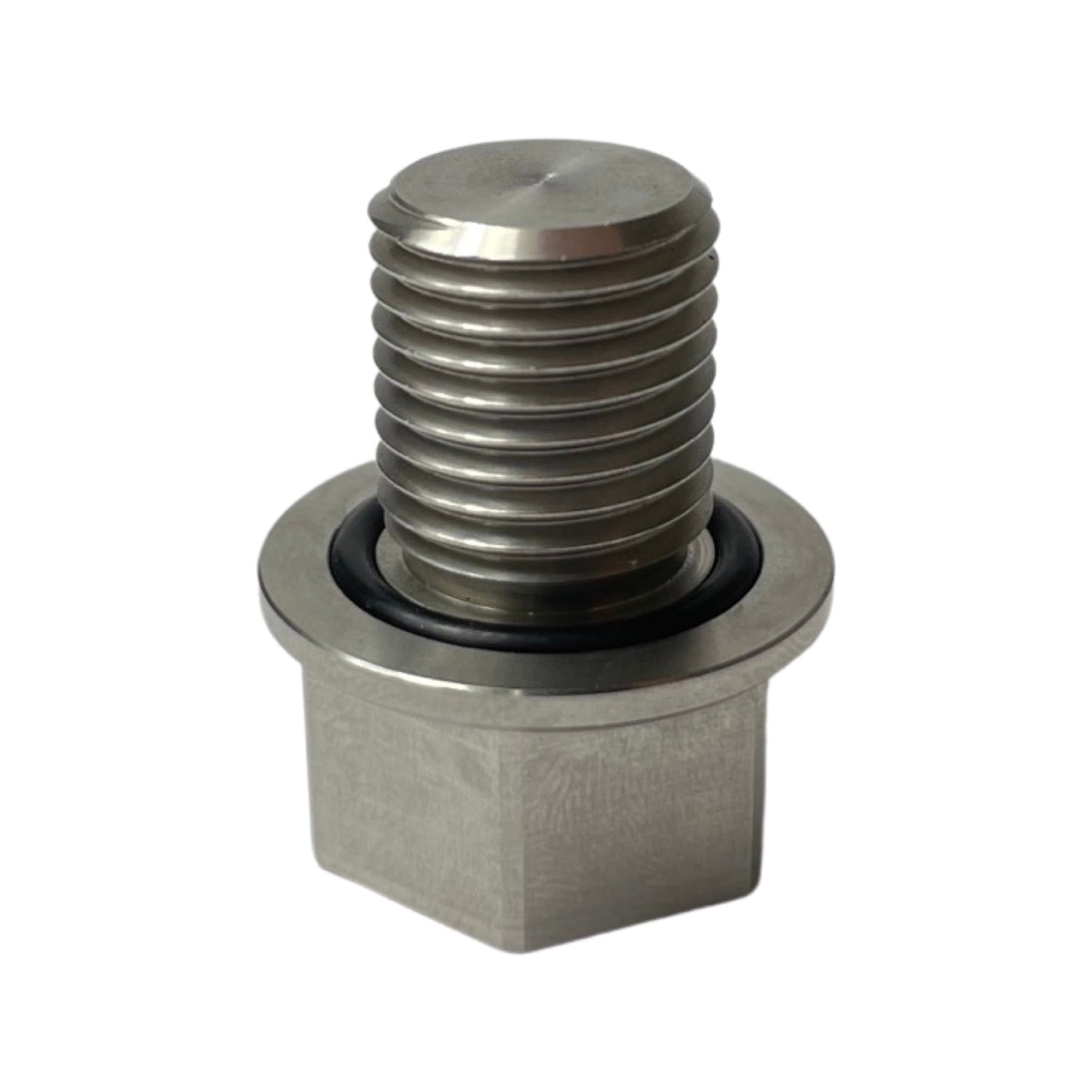

- Does not include Oil Drain Plug
- MUST HAVE STEEL OIL PAN
- Will fit 2011 Powerstrokes with retrofitted OEM metal oil pans
Videos
Videos
Questions and Answers
Questions and Answers
Previously asked questions
We've compiled a list of questions and answers below.
Don't see your question? Ask us anything about this product.
Ask a Question-
Does this fit a 2022 F350 6.7 power stroke.
Yes, This pan is for 2011-2024 models.
-

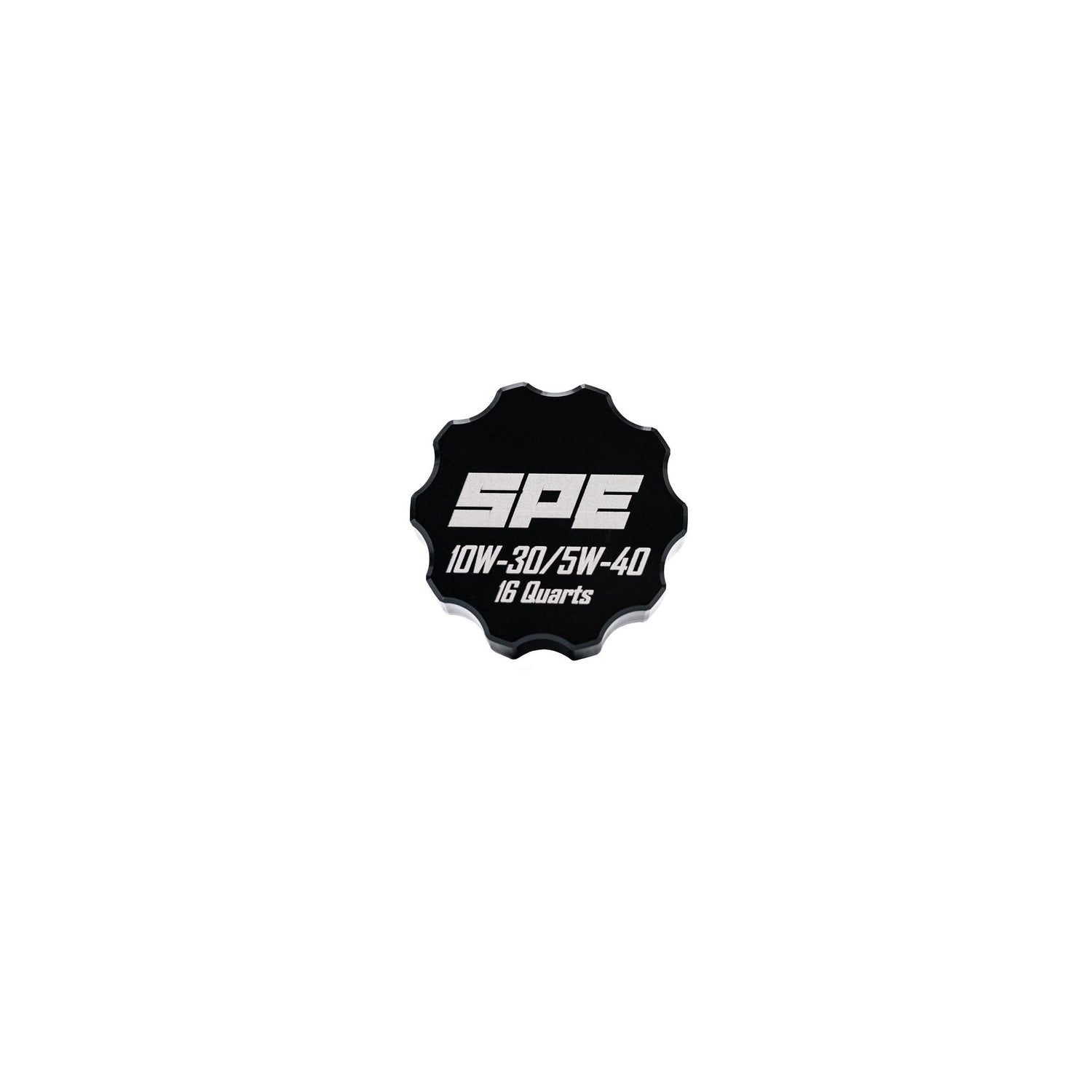

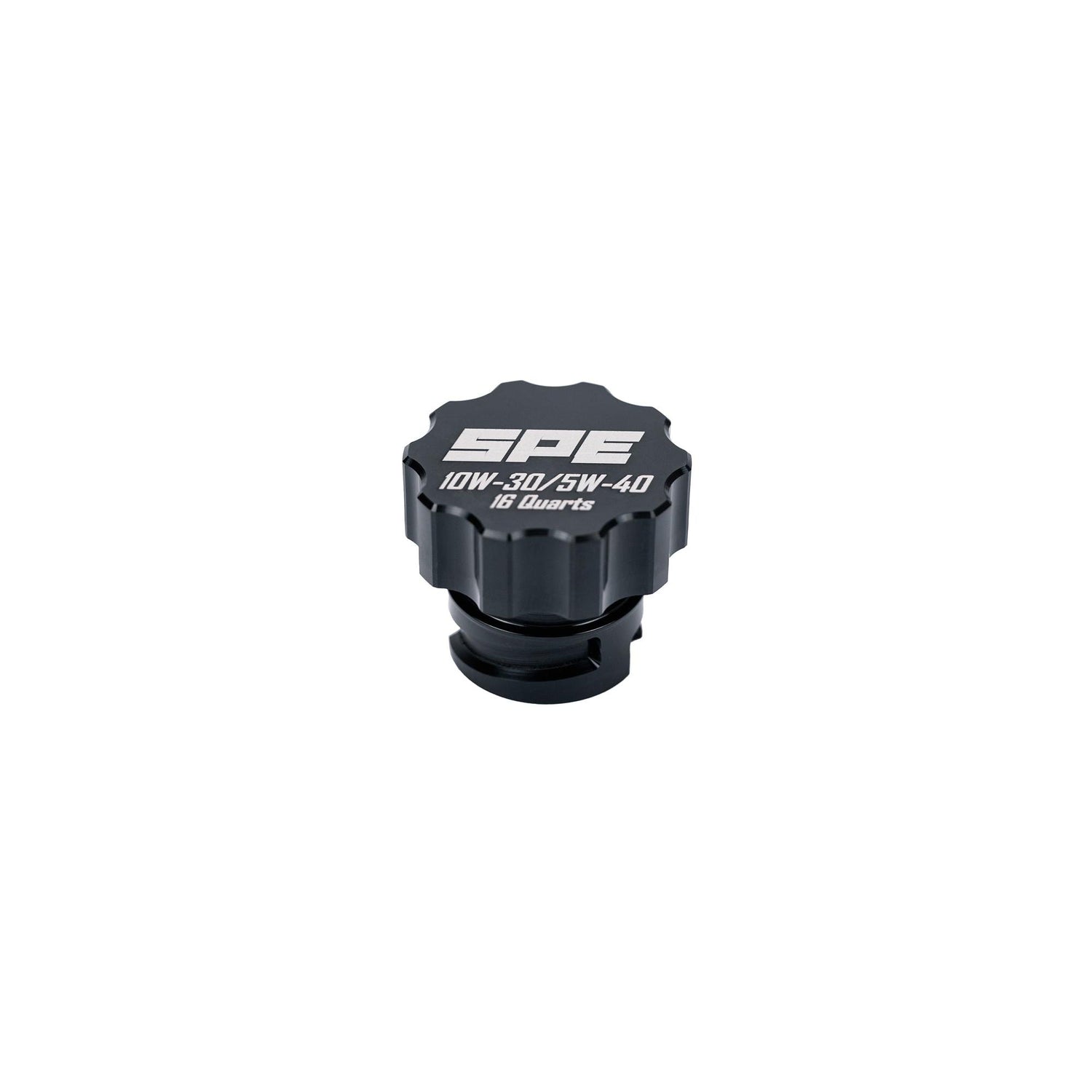

Does this come with the heater element and engine oil cap like it shows in pictures? Or do I need to order separately like the drain plug
No, the SPE-S100180 oil pan does not include the heating element or the engine oil cap.
-
Will this work on my 2012? I have the factory plastic oil pan. Not sure what is ment when its saying needs to have retrofitted steel oil pan to work.
No, it will not bolt directly onto your truck because it doesn't accept thee early 2011-2012 factory plastic pan design. To make this work on your 2012 you need to upgrade to a steel pan and shorter, factory Ford bolts used on 2013+ trucks to mount this pan.
