2011+ Powerstroke F650/ F750 Oil Filter Housing (SPE-S100214)

Fits

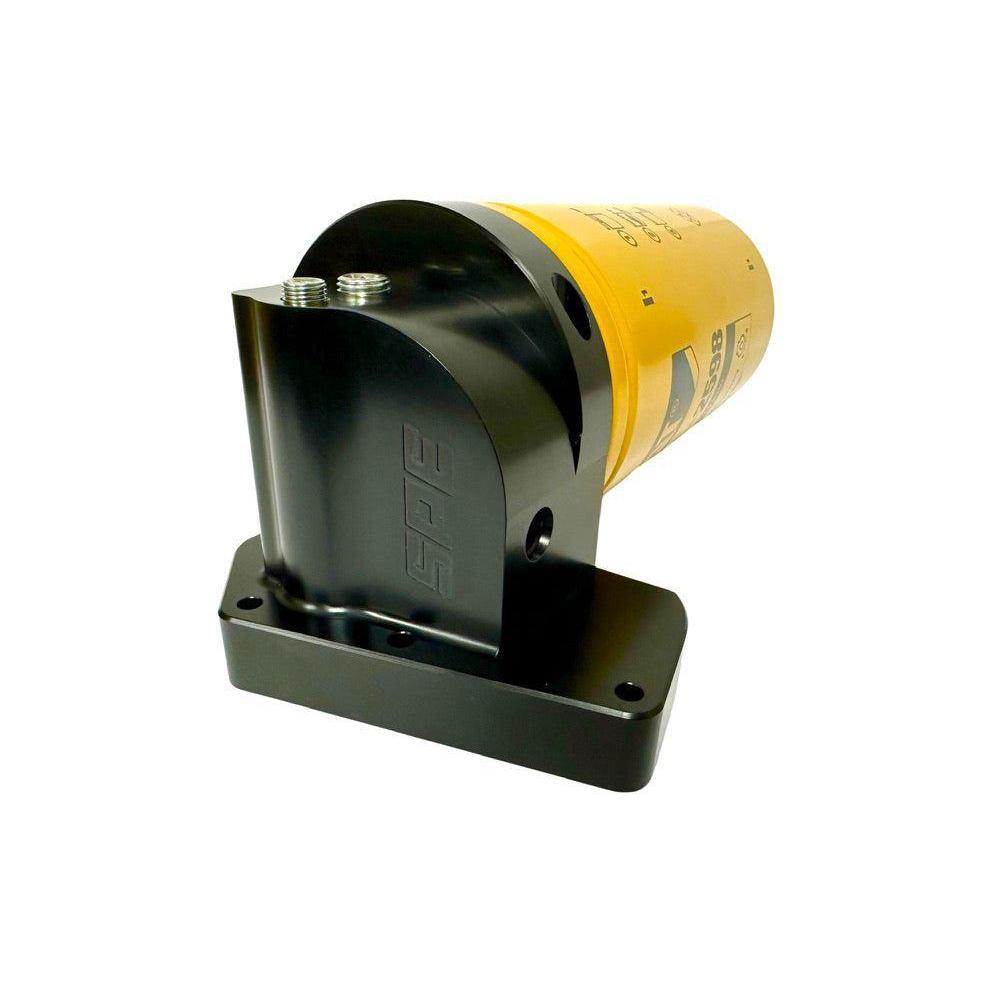

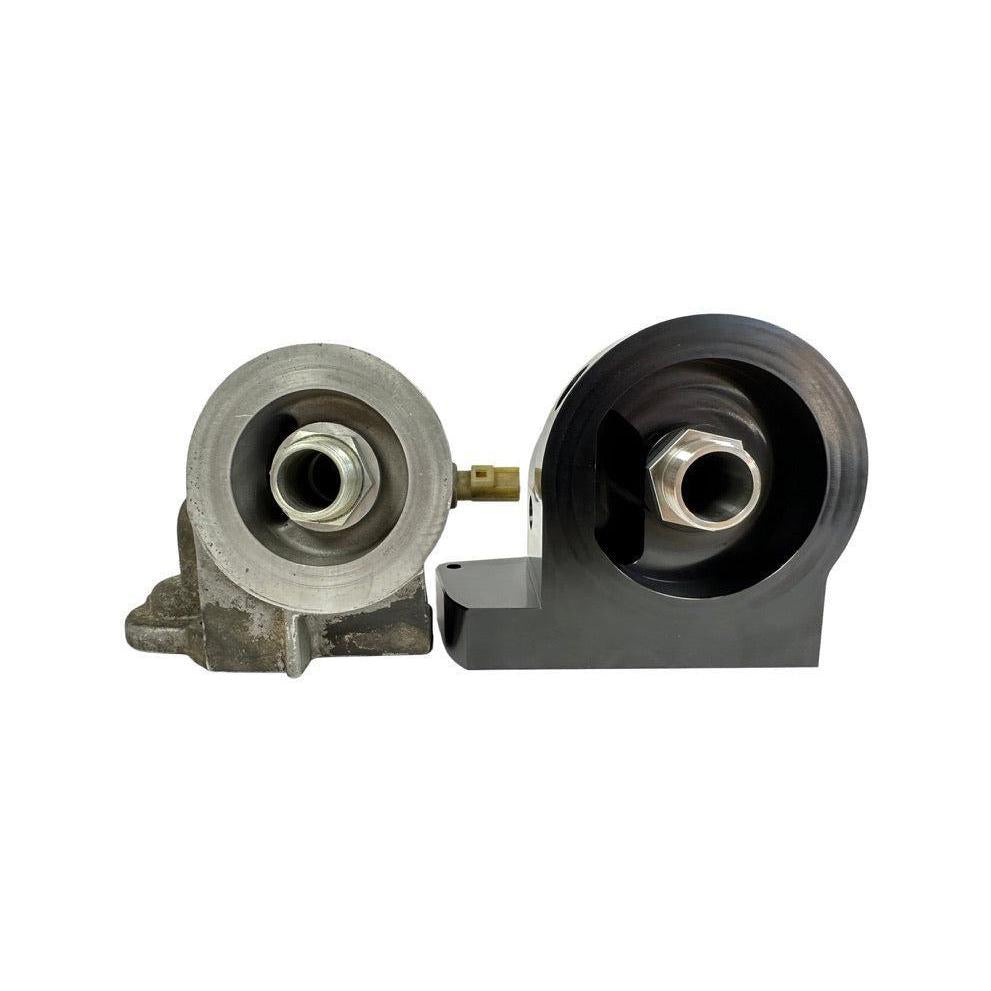

One of the best options for oil filtration and flow for your 6.7L Powerstroke is now available. This SPE housing utilizes CAT filtration but also adds the huge flow needed to keep these engines alive under extreme conditions. You have the choice of CAT 1R-1807 or CAT 324-2598 filters. Both filter options are 100% efficient at 20 microns and 20% efficient at 4 microns, with 1R-1807 having the most oil capacity. And this housing aids in flow by 30% even in lower temperatures.

Part Number: SPE-S100214

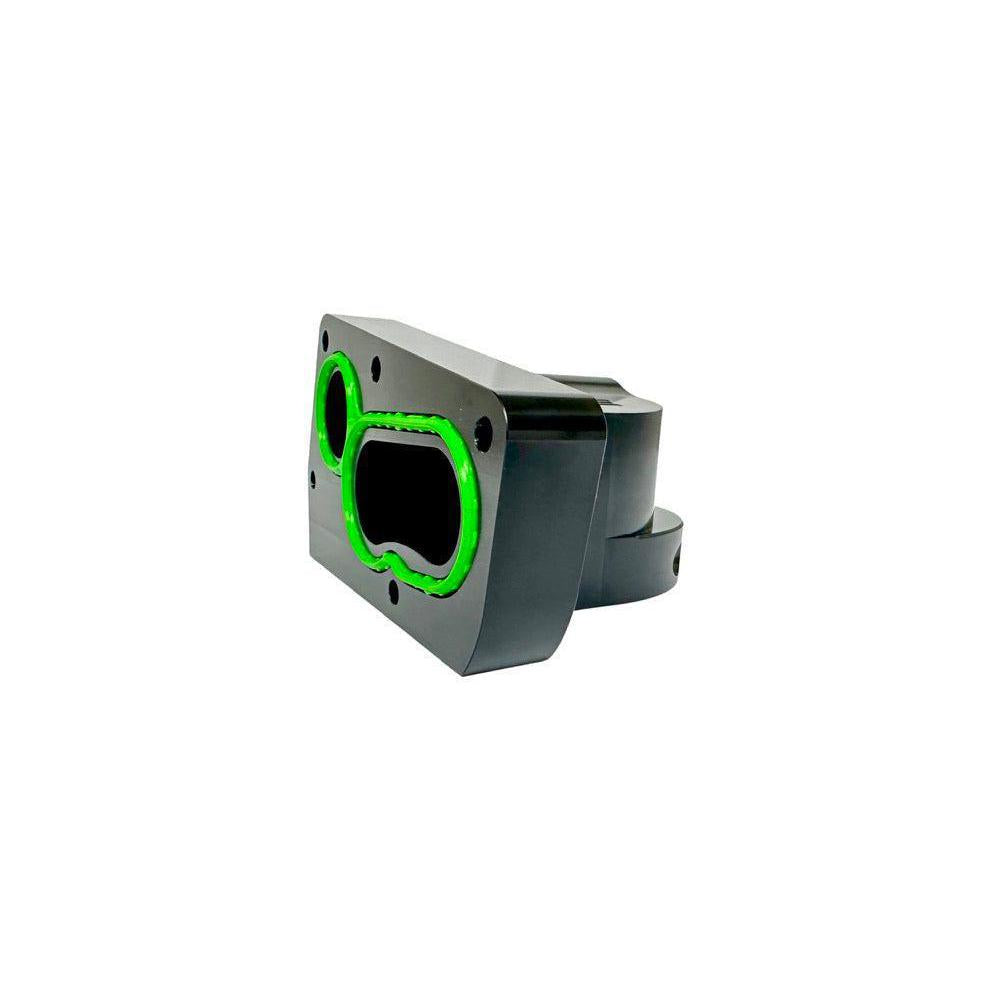

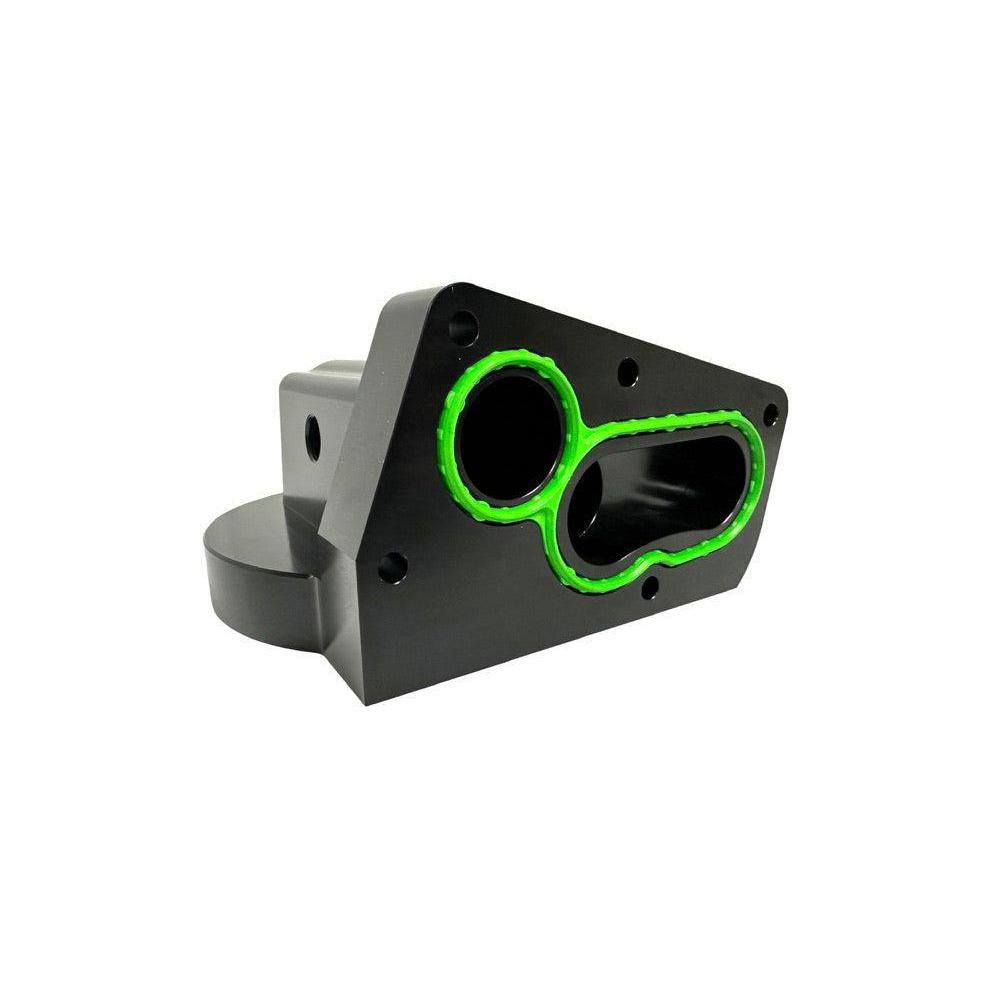

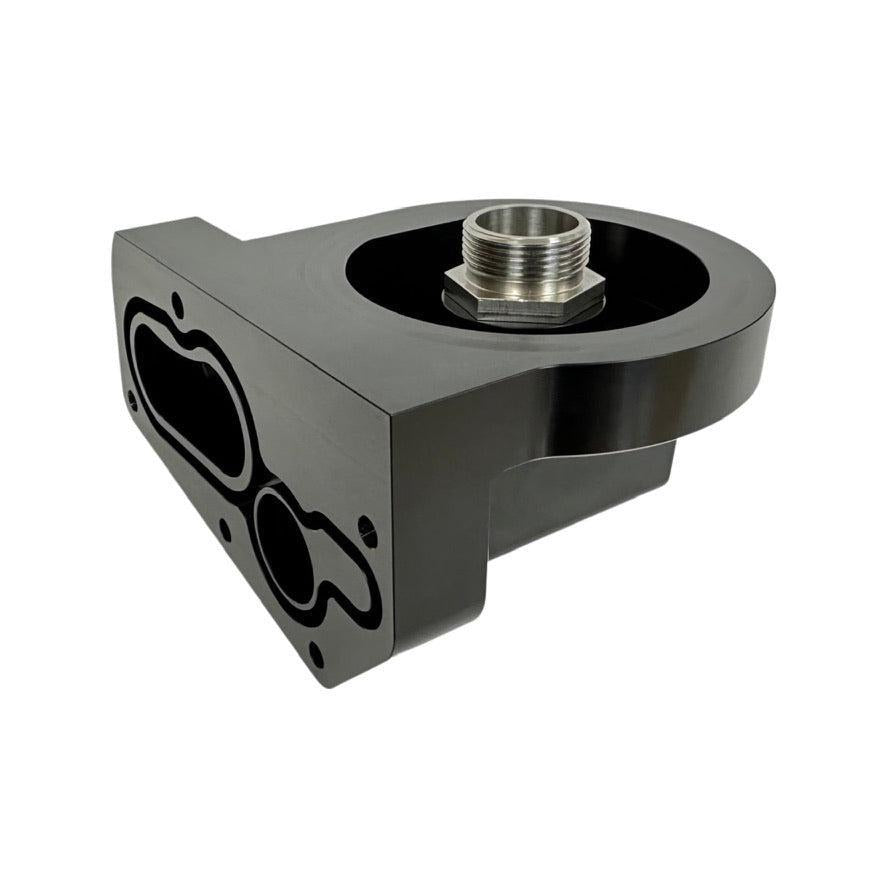

• Black anodized CNC machined billet aluminum housing

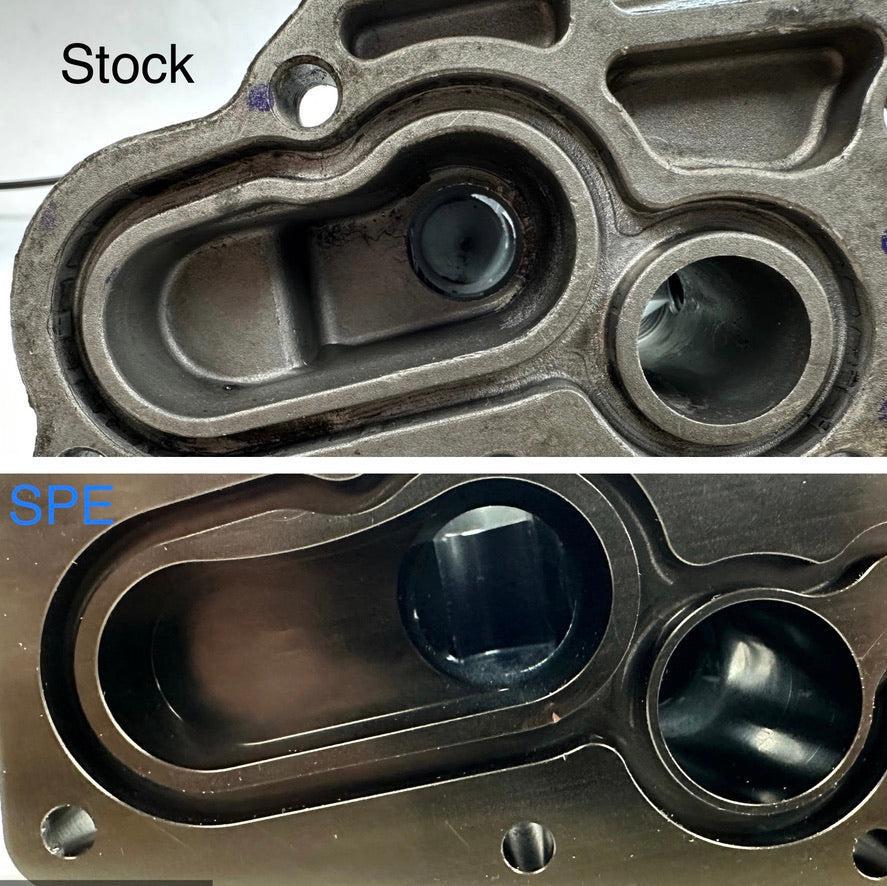

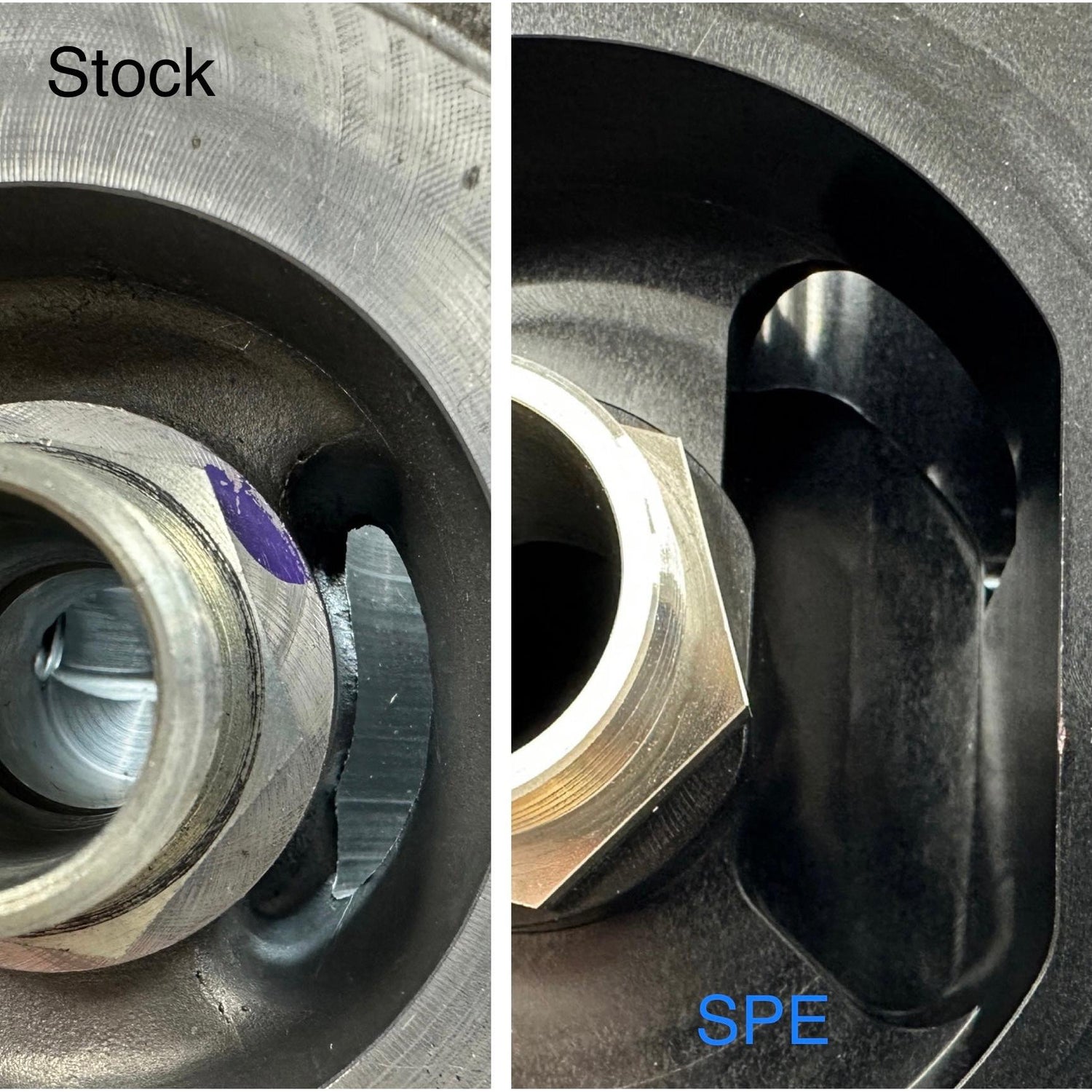

• 30% overall flow increase
• Stainless steel hardware

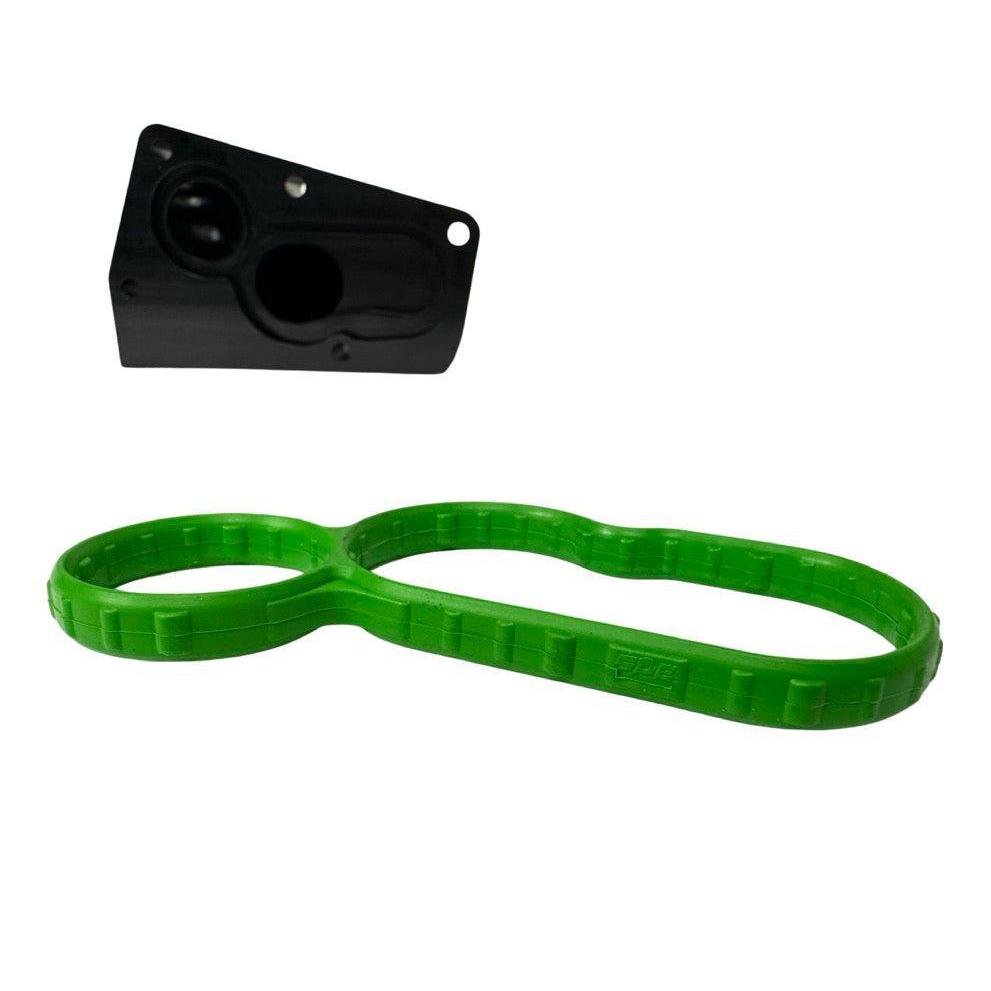

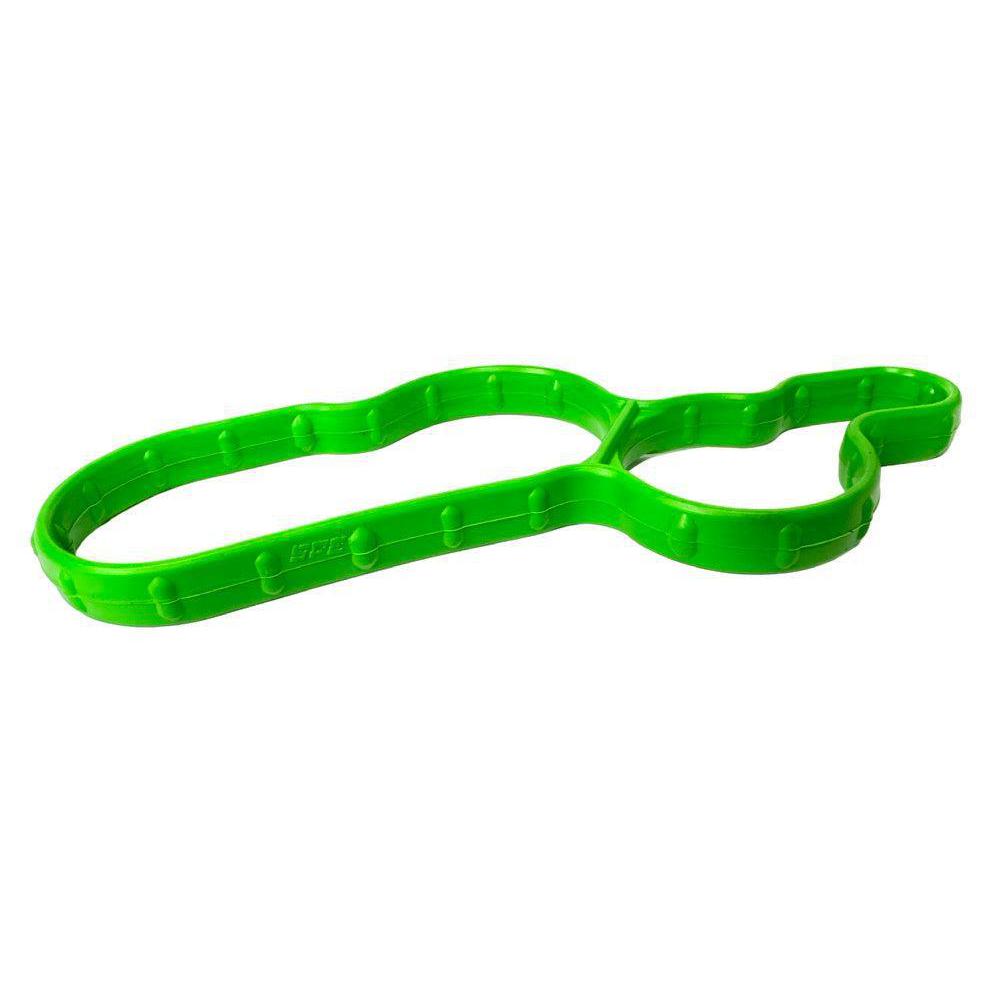

• Factory-style SPE green injection molded gasket
• Retains factory sensor locations

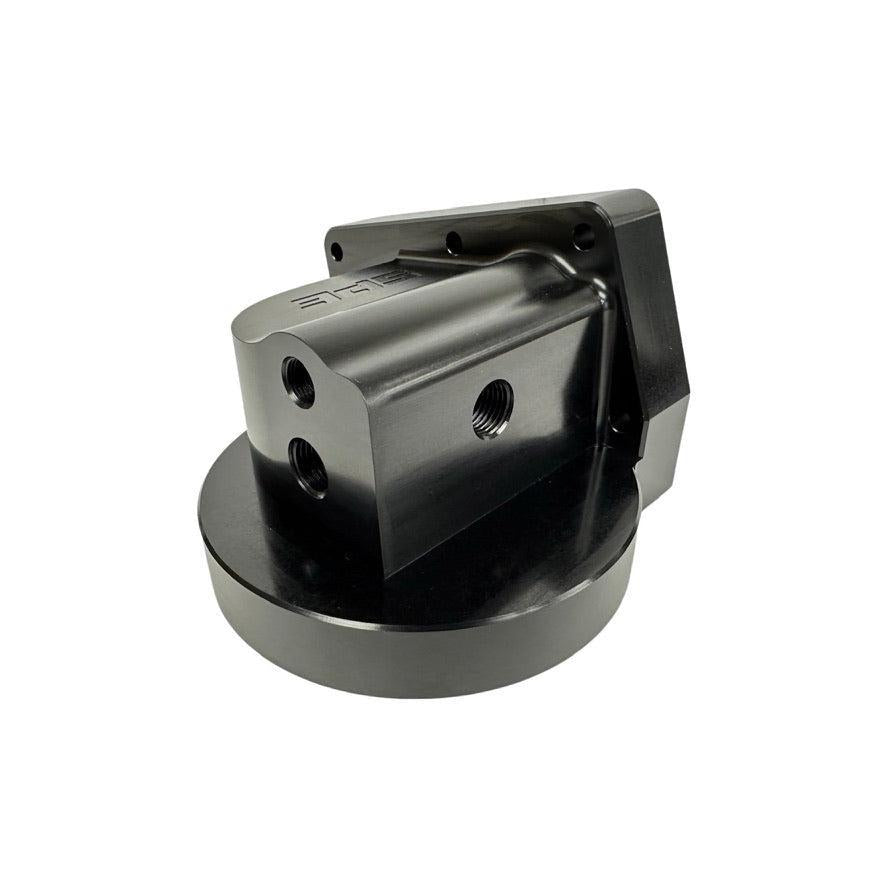

• 2 auxiliary oil ports in  ⅛ NPT and ¼ NPT (plugs include)
• Works with the SPE cast lower oil pan (heater and drain back bungs are accessible)
• Extends service intervals
• Increases flow and filtration
• Two CAT filter options

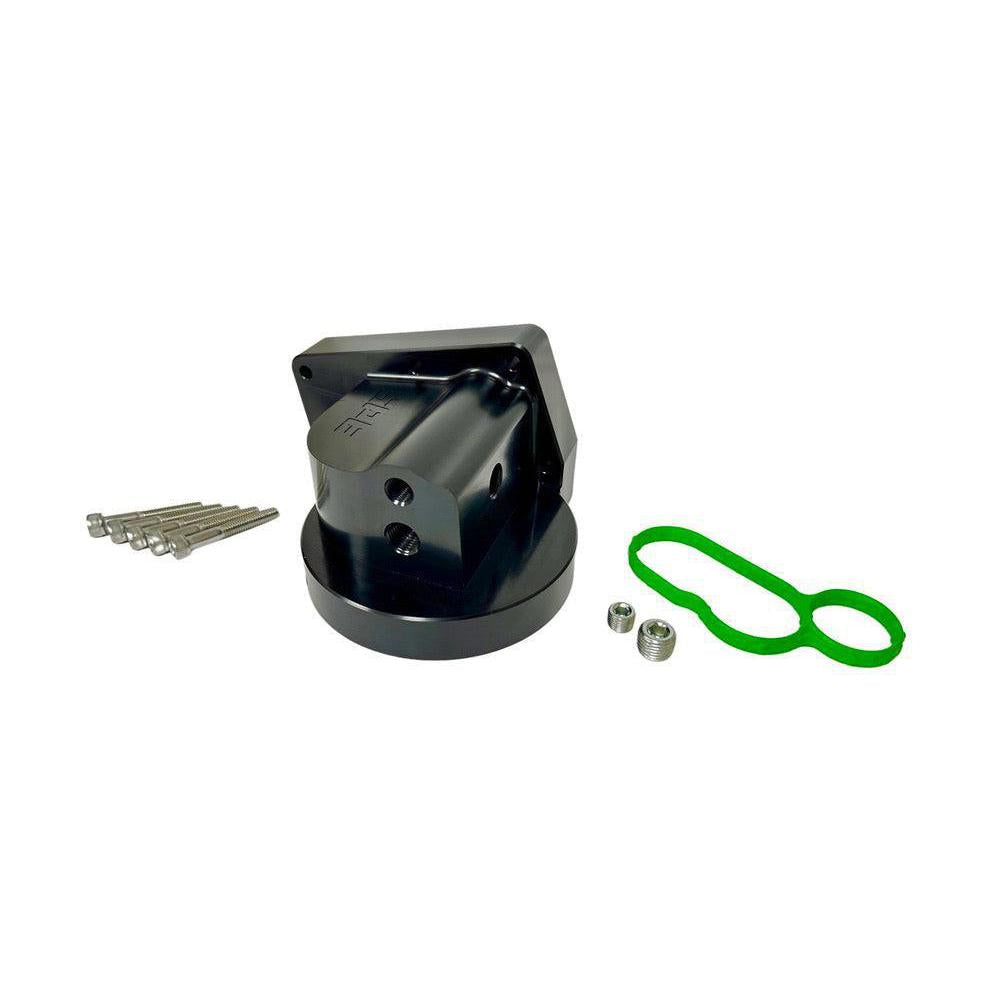

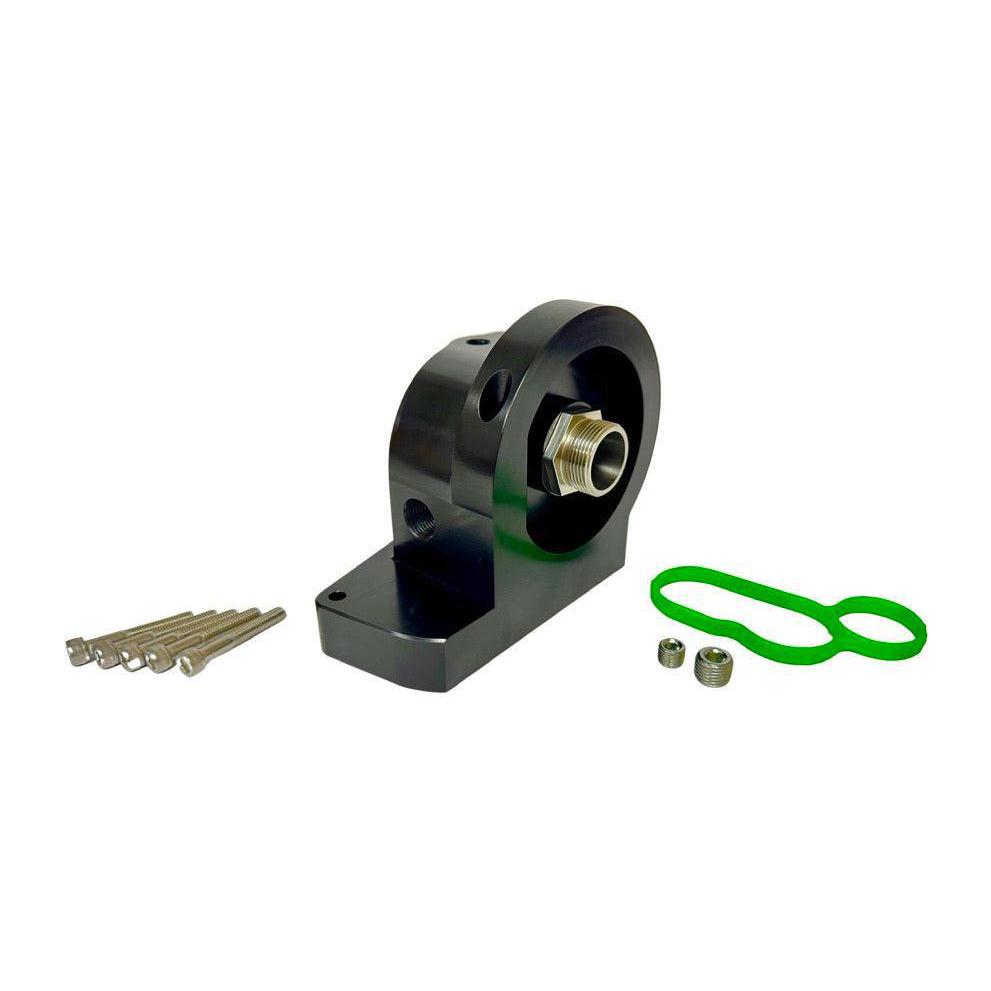

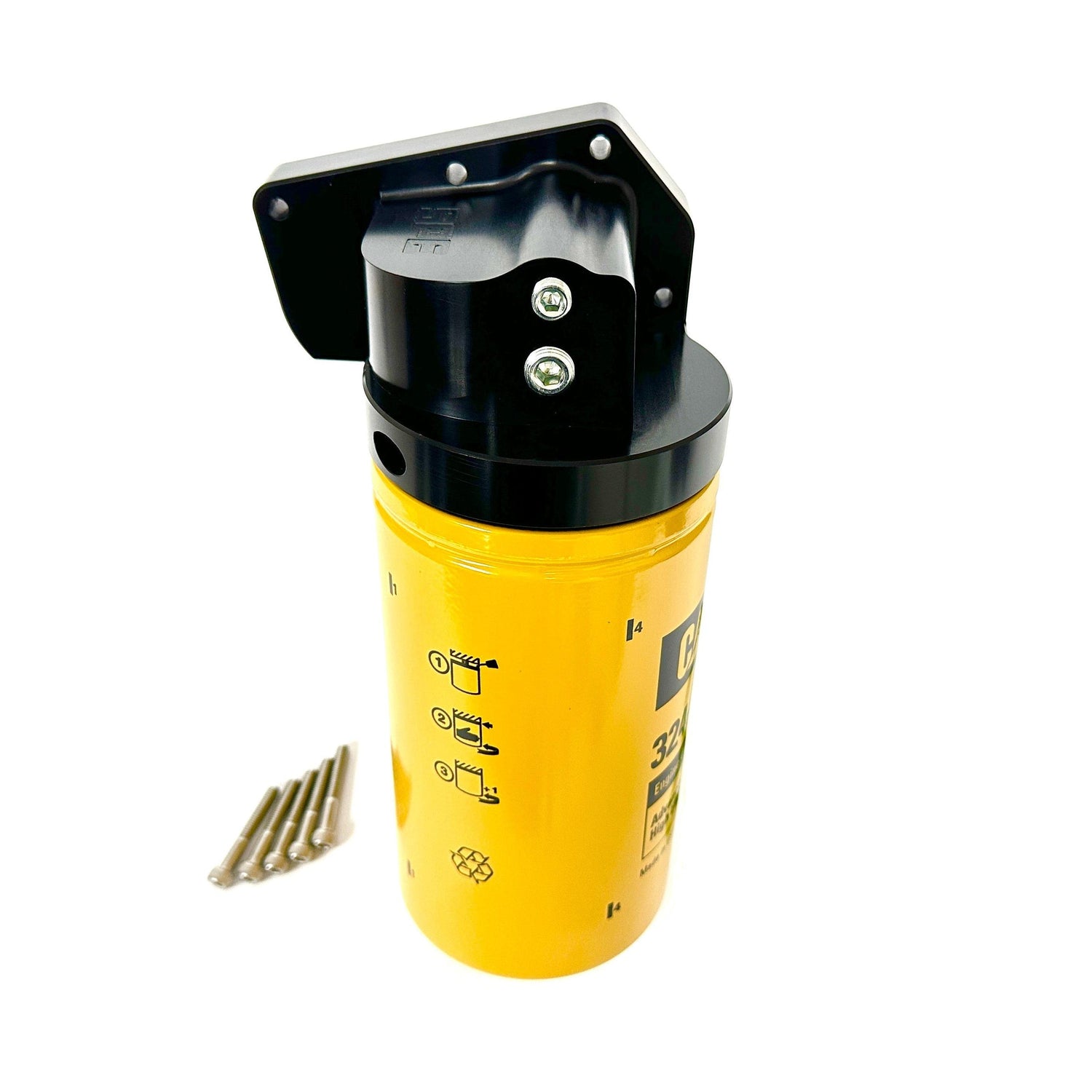

Includes:

• Billet oil filter housing
• Factory-style SPE green injection molded gasket
• Billet stainless oil adapter bung
• CAT Filter (1R-1807 OR 324-2598- based on customer selection)
• ¼” NPT plug
• ⅛” NPT plug
• Installation hardware

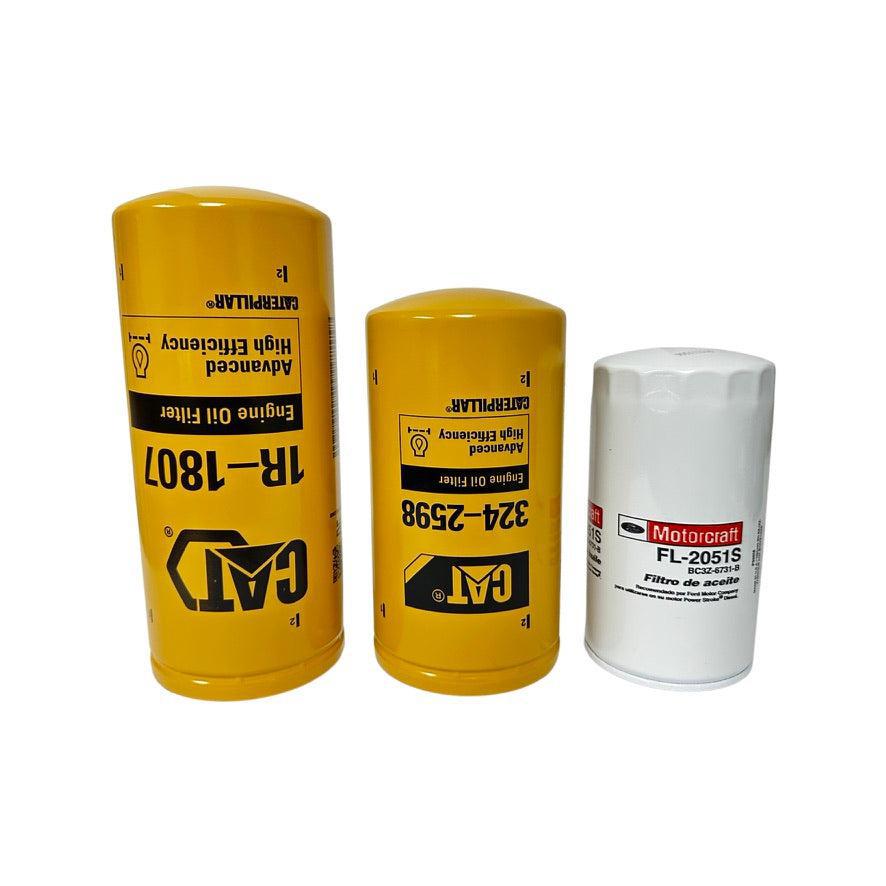

WHICH FILTER DO I CHOOSE?

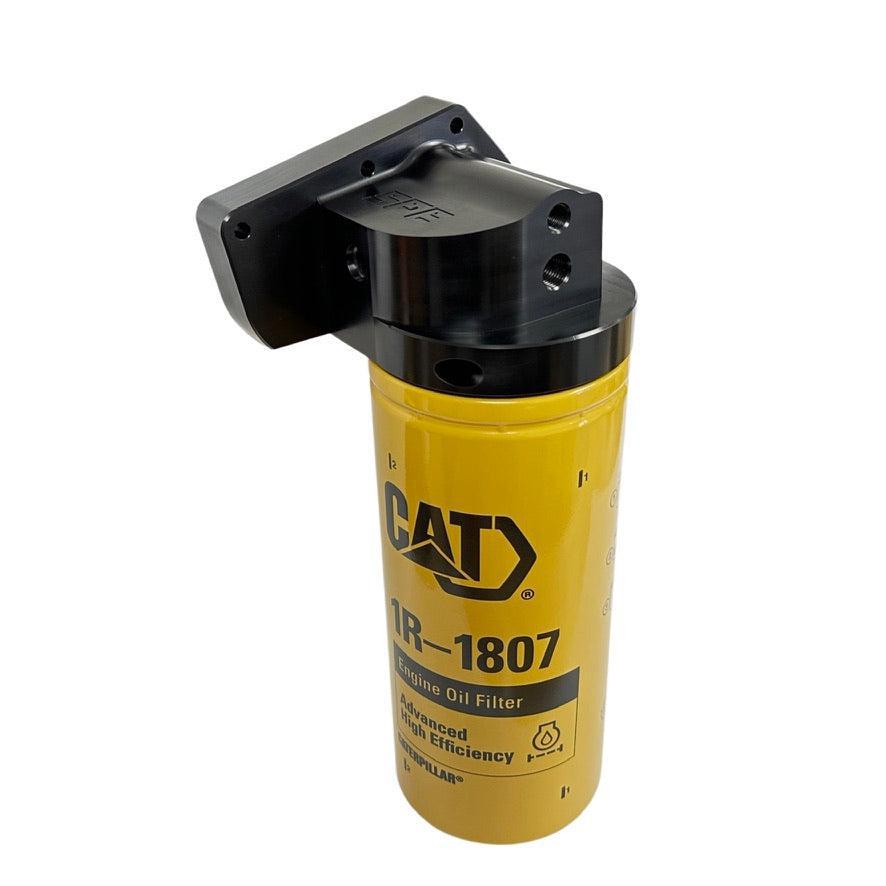

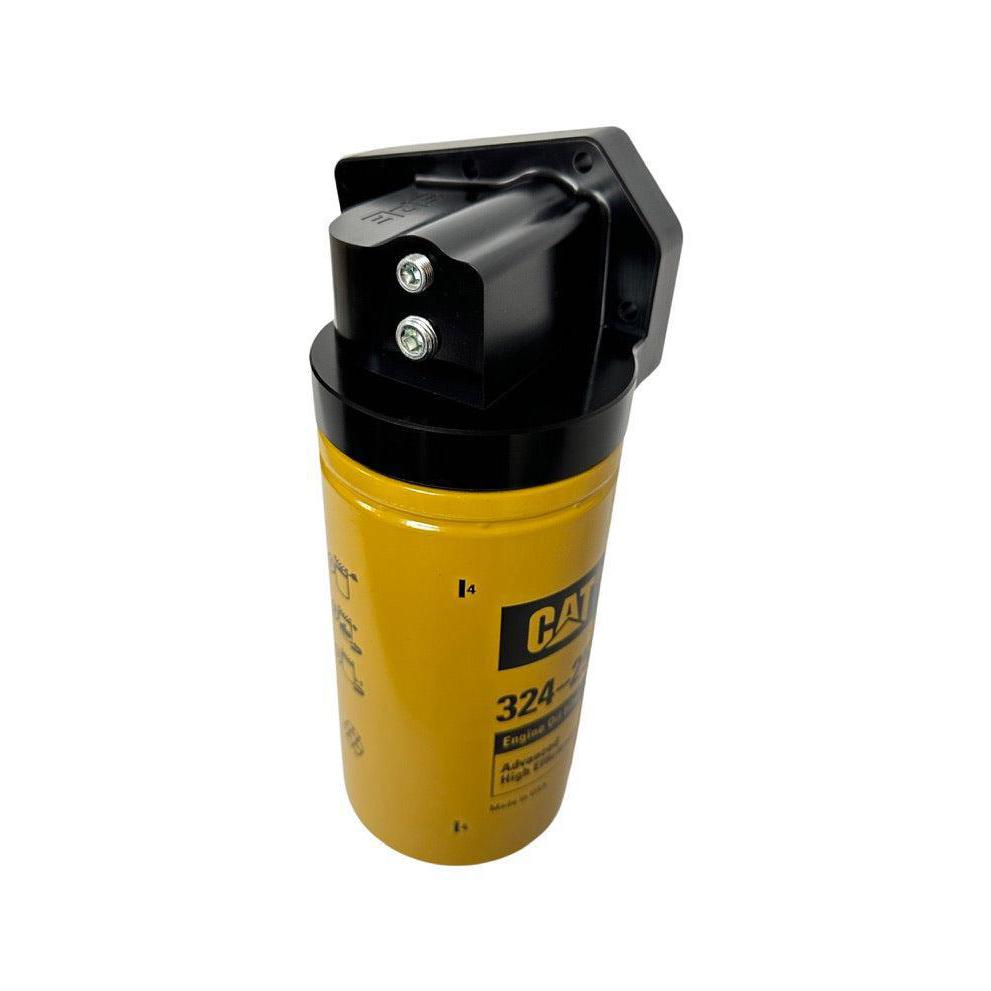

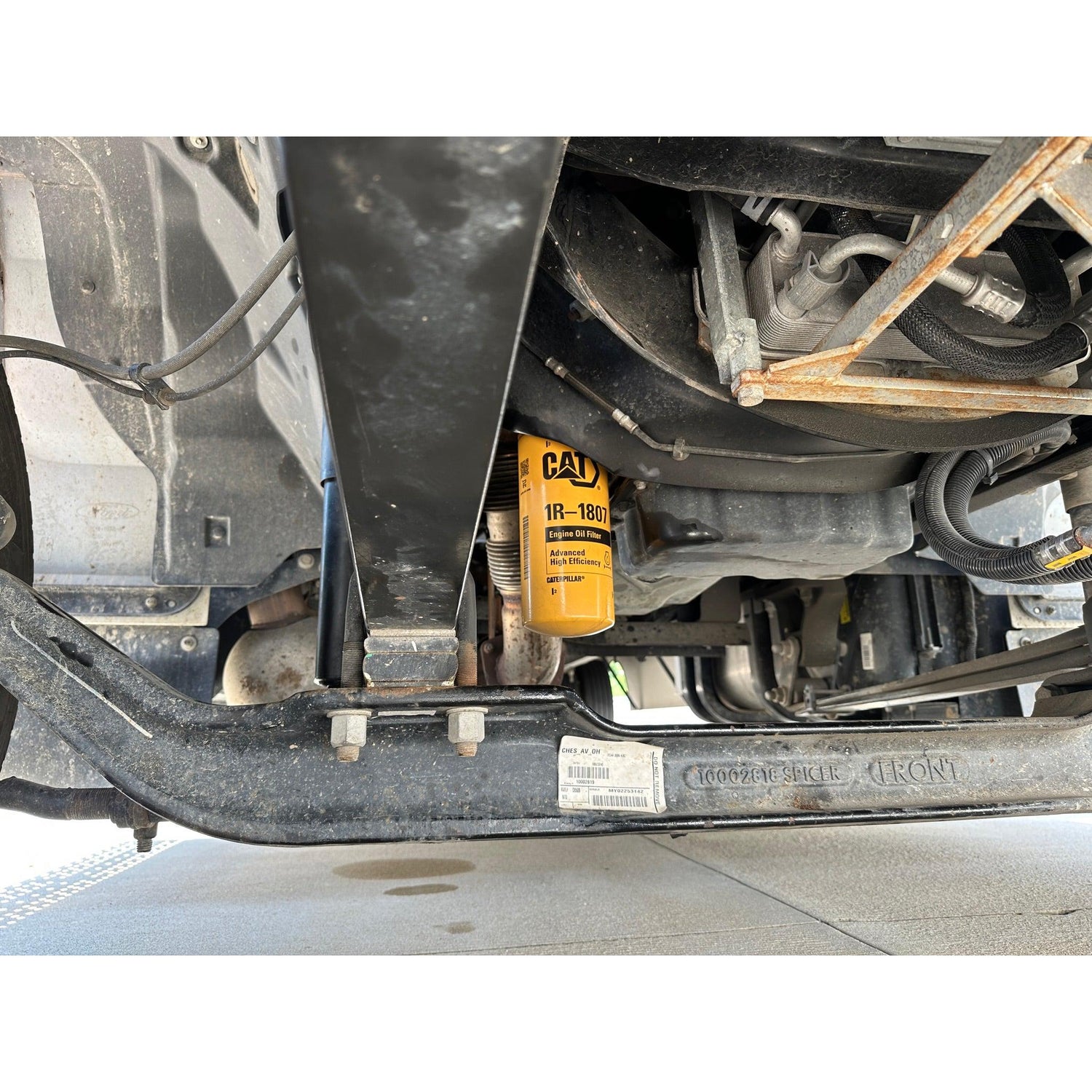

The CAT 1R-1807 is the ideal option for longer oil change intervals due to the customer using better oils etc.  The advantage to the CAT 324-2598 is the shorter length for off-road or lowered applications. Even though it's the shorter of the two it is still much larger than the FoMoCo factory FL2051s in terms of capacity.  Running either CAT filter option is a huge upgrade from the factory one.
