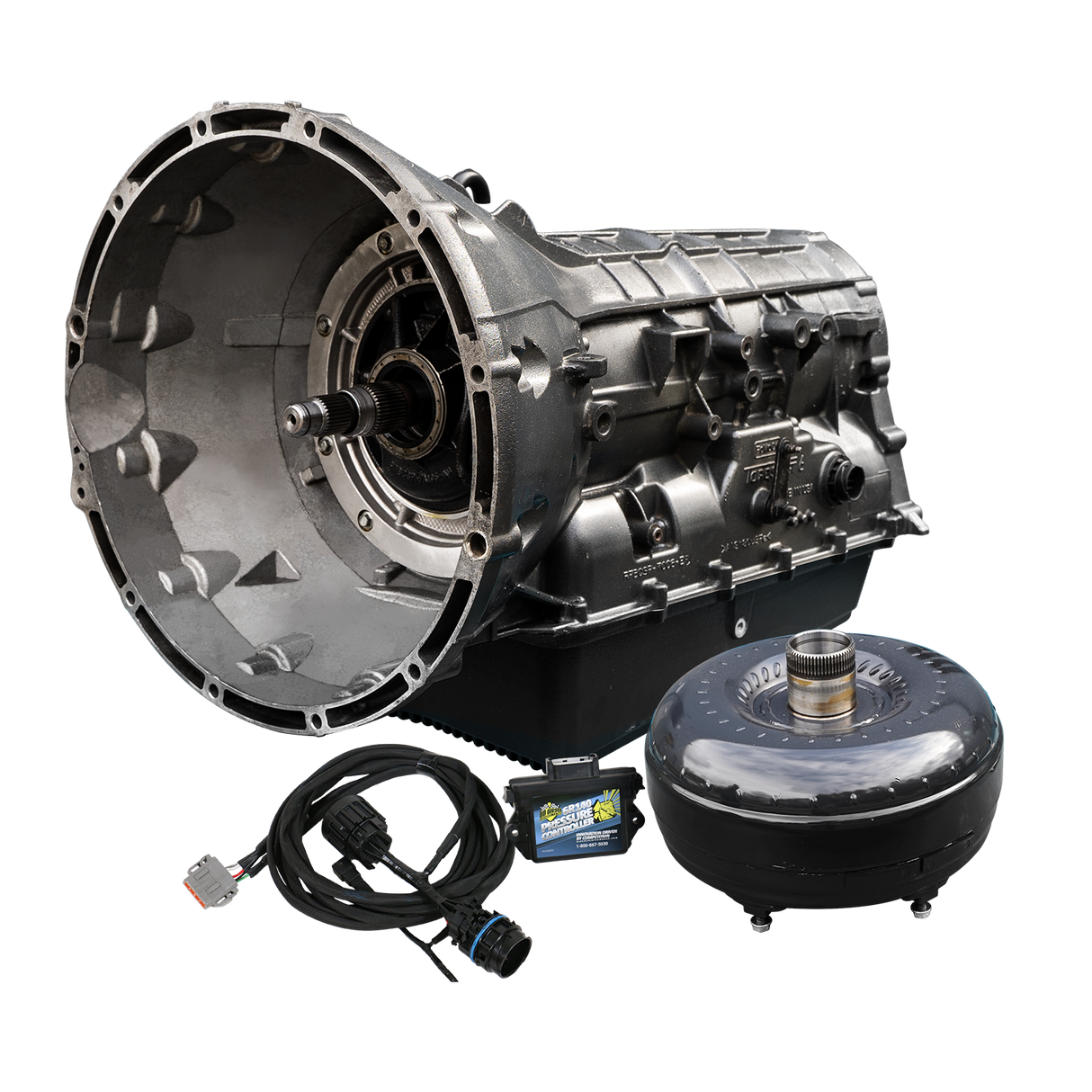

2011-2016 Powerstroke Roadmaster 6R140 Transmission & Converter Package 2WD/4WD (1064524SS)

BD Diesel Part Number: 1064524SS
$8,579.00 CAD


Total w/ Addons:

Additional Refundable Core Deposit Required of $2,000.00 CAD.

Notices
This item may have additional freight costs. Learn more

Purchase to earn 8579 Dirty Dollars Learn More

Description

Fits

 Year Make Model Engine
2011-2016 Ford F-Series Superduty 2WD/4WD 6.7L Powerstroke

The Roadmaster 6R140 transmission is BD's base transmission for stock, non-modified trucks that are looking to increase reliability and longevity. This transmission comes with OEM clutch counts, an OEM valve body, and BD's Deep Transmission Pan. This package includes a ProForce Torque Converter and a BD Pressure Controller.

Part Number: 1064524SS

Features

Transmission:

  • Brand new OEM valve body
  • BD Deep Sump Pan
  • Stock Clutch Counts

Pressure Controller:

  • 76% more clutch holding power
  • Delivers up to 300psi line pressure at WOT
  • Only active when boost over 15psi, unlike solenoid foolers or plugs which are active all the time
  • Does not create parasitic load or extra heat when inactive

Torque Converter:

  • Ideal replacement for tired stock torque converter
  • Great for street and towing applications
  • Dual surface clutch assembly
  • Machined steel reaction ring replaces flexible factory stamping
  • Furnace-brazed pump and turbine fins
  • Fully remanufactured for long service life

Notes

  • Ford scanner required to update the TCM with the new solenoid code and initiate a relearn - very critical component to make sure the transmission works properly
  • Early 2011 model years will require 6 bolt flexplate (Approx. Pre Jan 2012 build date) See BD #1041245 or contact Ford
  • Transmission is compatible with both 2wd and 4wd applications
  • 2WD applications require the yoke adapter and rear mount bracket must be transferred over during installation.

Installation

Warranty

Parts Only - No Race or Sled Pull use covered

  • 24-Months
