2011-2016 Powerstroke 2.5" Front Coil Spring Lift Kit w/ Falcon 2.1 Shocks (46-27291)

ReadyLIFT's 2.5" coil spring front lift kit levels a 2011-2016 Ford F-250 or F-350 Super Duty and refreshes the suspension at all four corners. New vehicle specific front coil springs take out the factory nose down rake, four Falcon 2.1 monotube shocks handle damping front and rear, and a front track bar relocation bracket keeps the axle centered and the steering geometry where it belongs. There is room for 35" tires, or 37s with trimming.

This kit replaces the Falcon 1.1 version (46-27290). The springs and brackets carry over, and the shocks step up to Falcon 2.1 monotubes with a larger 2.3" body for more oil capacity and more consistent damping when the truck is working.

Part Number: 46-27291 (supersedes 46-27290)

• Up to 2.5" of front lift from vehicle specific coil springs
• Four Falcon 2.1 monotube shocks, front and rear
• 2.3" shock body for more oil capacity, better heat dissipation and consistent damping
• 6061-T6 aluminum billet piston
• 3/4" induction hardened, chrome plated shaft resists rock damage, corrosion and shaft buckling
• Microcellular foam progressive bump stops
• Front track bar relocation bracket helps keep the axle centered and the suspension geometry correct
• Model specific brake line extension brackets and bump stop extensions
• Front sway bar drops keep the factory sway bar in position
• Made in the USA

Wheel & Tire Fitment:

• Recommended: 35x12.50 tires on a 9" or 10" wide wheel with +25mm to 0mm offset
• Up to 37" tires may fit with trimming, depending on wheel and tire selection
• Factory wheels can be used but are not recommended with tires over 11.5" wide

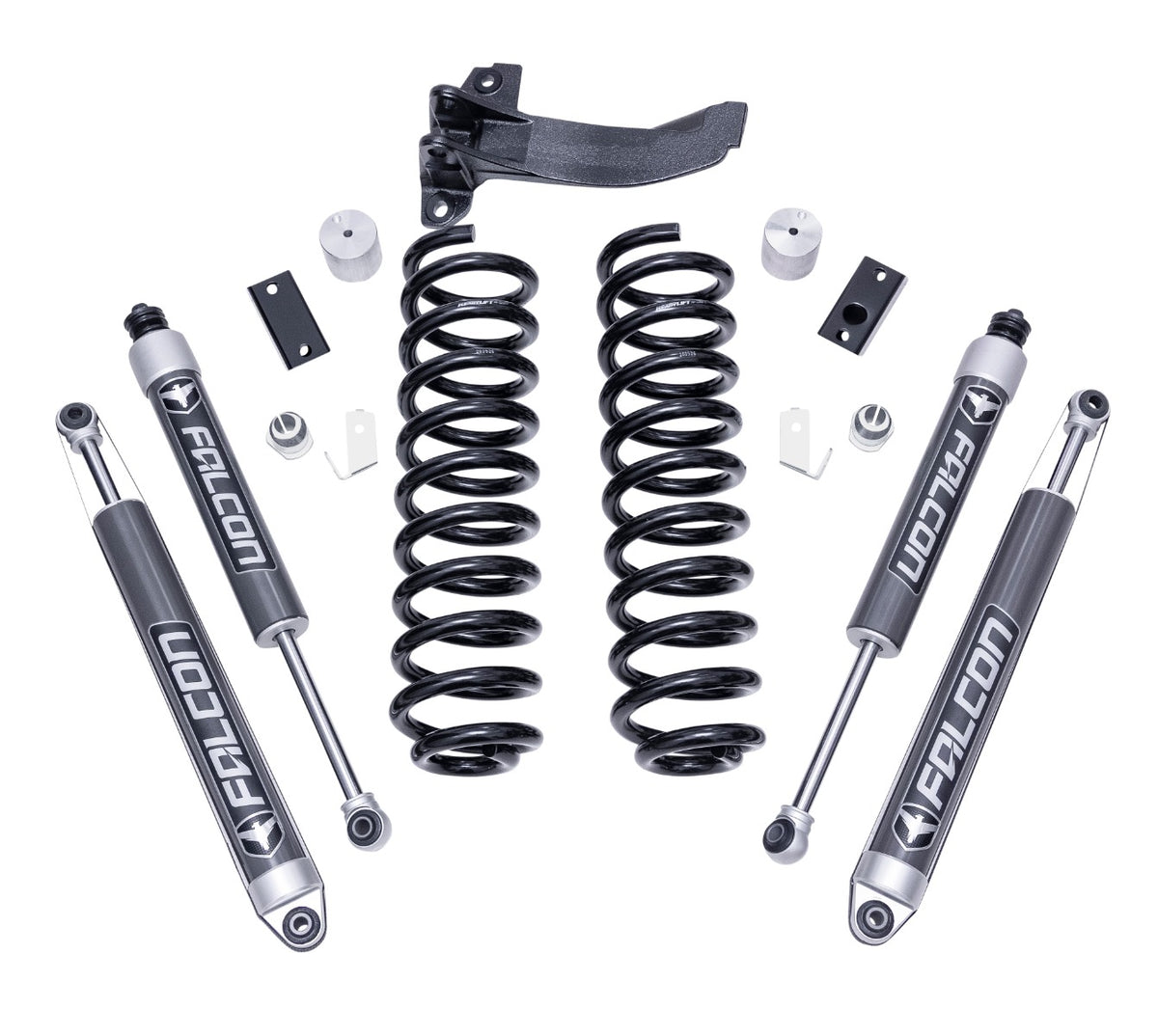

• 2.5" lift front coil springs (2)
• Falcon 2.1 monotube front shocks (2)
• Falcon 2.1 monotube rear shocks (2)
• Front track bar relocation bracket
• Sway bar drops (2)
• Brake line brackets, driver and passenger
• Bump stop extensions (2)
• Caster bushing kit
• Installation hardware

• Fits 2011-2016 Ford F-250 and F-350 Super Duty 4WD with the 6.7L Powerstroke. Diesel applications only.
• Actual front lift is about 1.5" to 2.5", depending on the factory spring rate.
• Trucks with the snow plow prep or ambulance package front end will not achieve the full 2.5" of lift.
• Some 2011-2016 F-250 trucks may need a rear block kit to sit level.
• Estimated installation time is 6 hours, give or take an hour, excluding alignment and wheel and tire assembly. Installation by a certified mechanic is recommended.
• An alignment is required after installation. Headlamp aim and any ADAS cameras or sensors should also be checked and adjusted.
• Tire and wheel fitment recommendations are based on Wheel Pros wheels and Nitto tires. Sizes vary between manufacturers, so always test fit before installing.

• ReadyLIFT Suspension Inc. and/or Dirty Diesel Customs are NOT responsible for any damage or failure resulting from improper installation.
• Click here to view installation instructions
