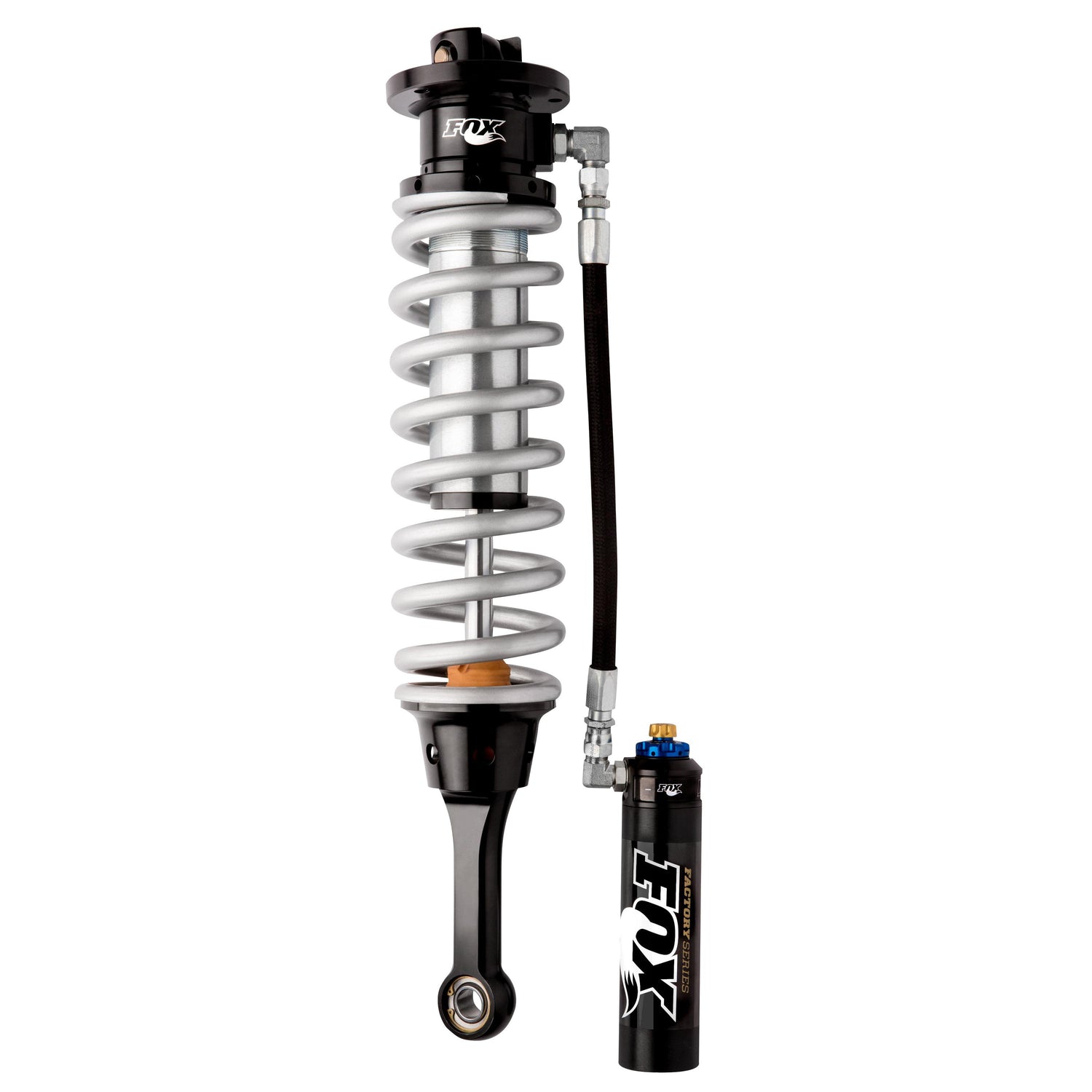

2010-2014 Raptor 3.0 Factory Race 0-2" Lift Internal Bypass Front Coilover w/ DSC (883-06-046)

FOX Part Number: 883-06-046
$4,889.43 CAD

Purchase to earn 4889 Dirty Dollars Learn More

This product ships for free to most Canadian locations! Learn more

Description

Fits

Year Make Model
2010 - 2014 Ford F-150 SVT Raptor



These 3.0 Factory Race Series Coil-over Internal Bypass, position-sensitive shocks maximize the entire wheel Travel, increase oil capacity, and add 60% more damping area over the stock FOX SVT shocks. This allows for a plush predictable ride over normal off-road driving conditions and can ramp up damping force for extreme use.

They are designed to bolt right on to your factory mounts. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box.

Part Number: 883-06-046

Features

  • Durable Zinc Plated Seamless Alloy Body
  • External Reservoir System Dissipates Heat Fast
  • 2.5" Smooth bore and honed seamless alloy Reservoir
  • Black-anodized CNC-machined 6061-T6 billet aluminum
  • Application-specific, adjustable 3.625 Eibach racing springs
  • 7/8" 17-4 H900 stainless steel hard-chrome plated
  • 6061-T6 hard-anodized, high flow aluminum Piston
  • Application specific Valving to maximize performance
  • Redundant sealing pack system main seal, wiper seal, scraper seal Optional high-temperature Viton Seals
  • PTFE-lined, heat-treated, alloy steel spherical

Specs:

  • Extended Length: 27.97"
  • Compressed Length: 20.44"
  • Top Mount: TM
  • Bottom Mount: Eyelet
  • Travel: 7.53"
  • Front Lift Height: 0-2"
