2008-2010 Powerstroke KC Fusion Stage Low Pressure Turbocharger (302082)

Fits

Supports: Up to 100% injectors w/twin pumps

Are you searching for a top-of-the-line drop-in low-pressure turbocharger for your 6.4L Powerstroke? Look no further! This turbo boasts a whopping 4" larger inlet with a ported anti-surge cover, larger 360 thrust bearing, and a bigger S400 Turbine Wheel. This means more power, faster spooling, and less Exhaust Back Pressure than any other option out there. Of course, your power output will depend on your injector size and ability to maintain rail pressure. Keep in mind, stock pumps may struggle to keep up at higher RPM, so it is recommended to upgrade your high-pressure fuel pump or go with twin pumps.

Part Number: 302069

• 75mm Billet Compressor wheel
• 80mm s400 turbine wheel
• Larger 4" inlet
• Ported anti-surge compressor cover
• Larger upgraded 360 thrust bearing on the market
• Drop-in turbo (no mods except air filter)
• DOES NOT REQUIRE upgrades to the high-pressure turbo
• NO CORE REQUIRED
• Install kid included

Parts Only

• 1-Year Unlimited Miles Limited Warranty

• REQUIRES 4" inlet air filter upgrade

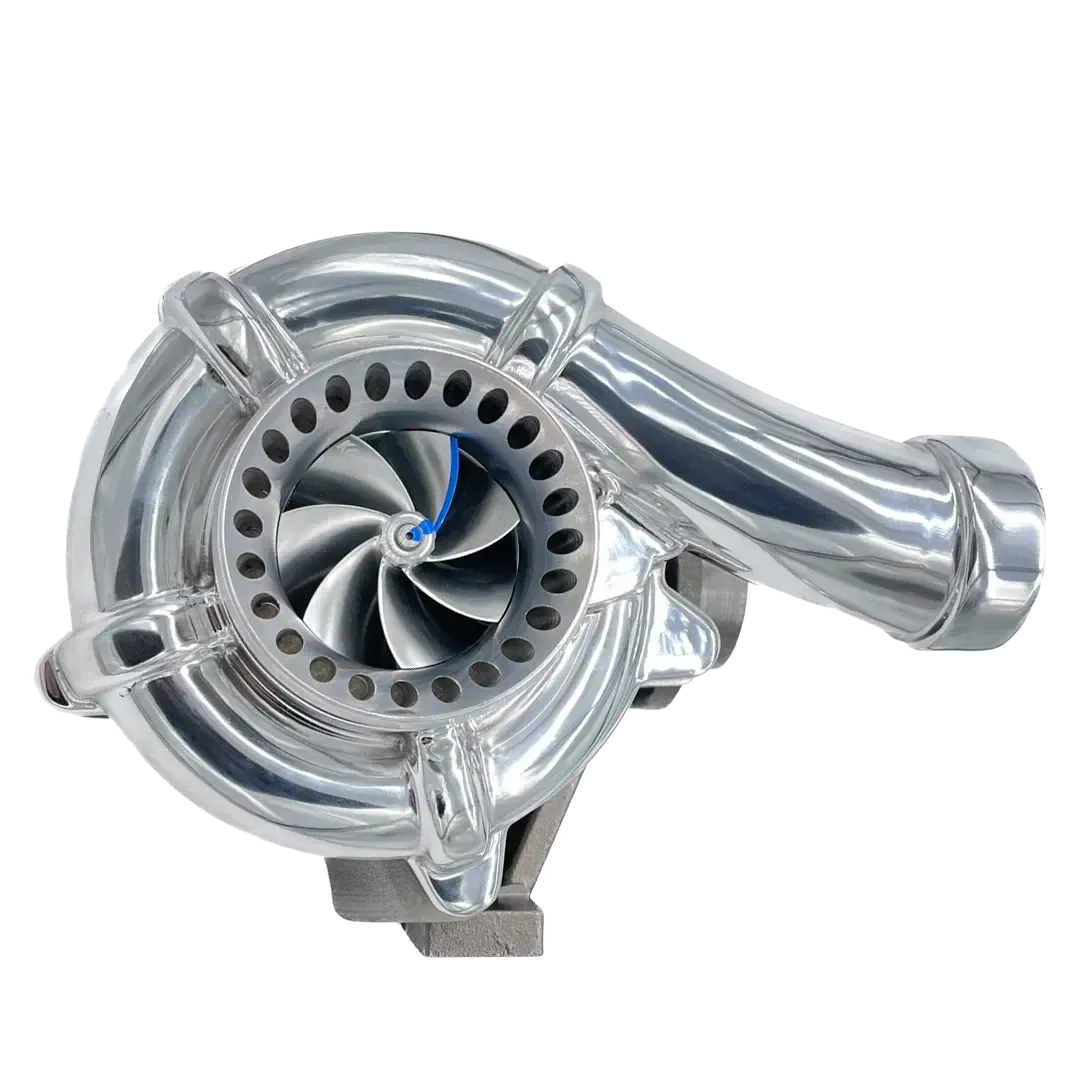

• These turbos come with a standard finish unless specifically requested. You can add a polished/custom color cover for an additional fee.

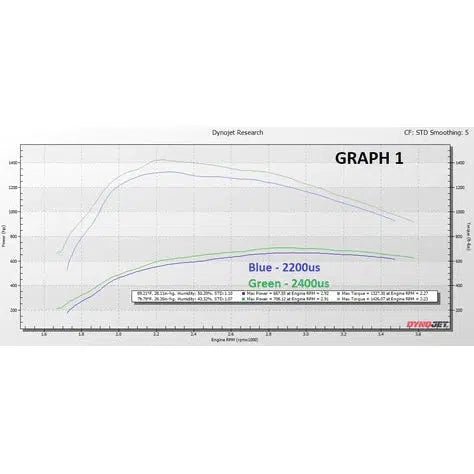

Stock injectors: GRAPH 1

• 2200us - 667hp 1327tq BLUE LINES
• 2400us - 708hp 1426tq GREEN LINES

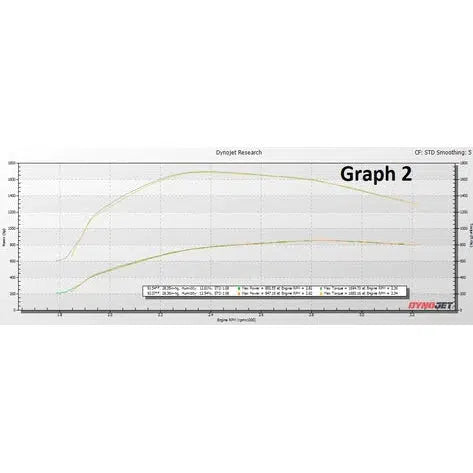

30% nozzles: GRAPH 2

• 2150us - 850hp 1694tq

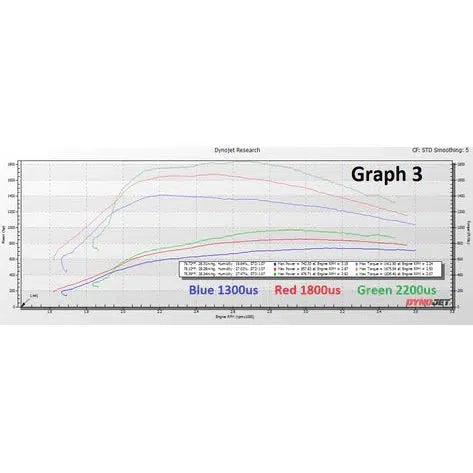

100% nozzles: GRAPH 3

• 1300us: 742hp 1411tq  BLUE LINES
• 1800us: 857hp 1675tq RED LINES
• 2200us: 946hp 1787tq GREEN LINES
