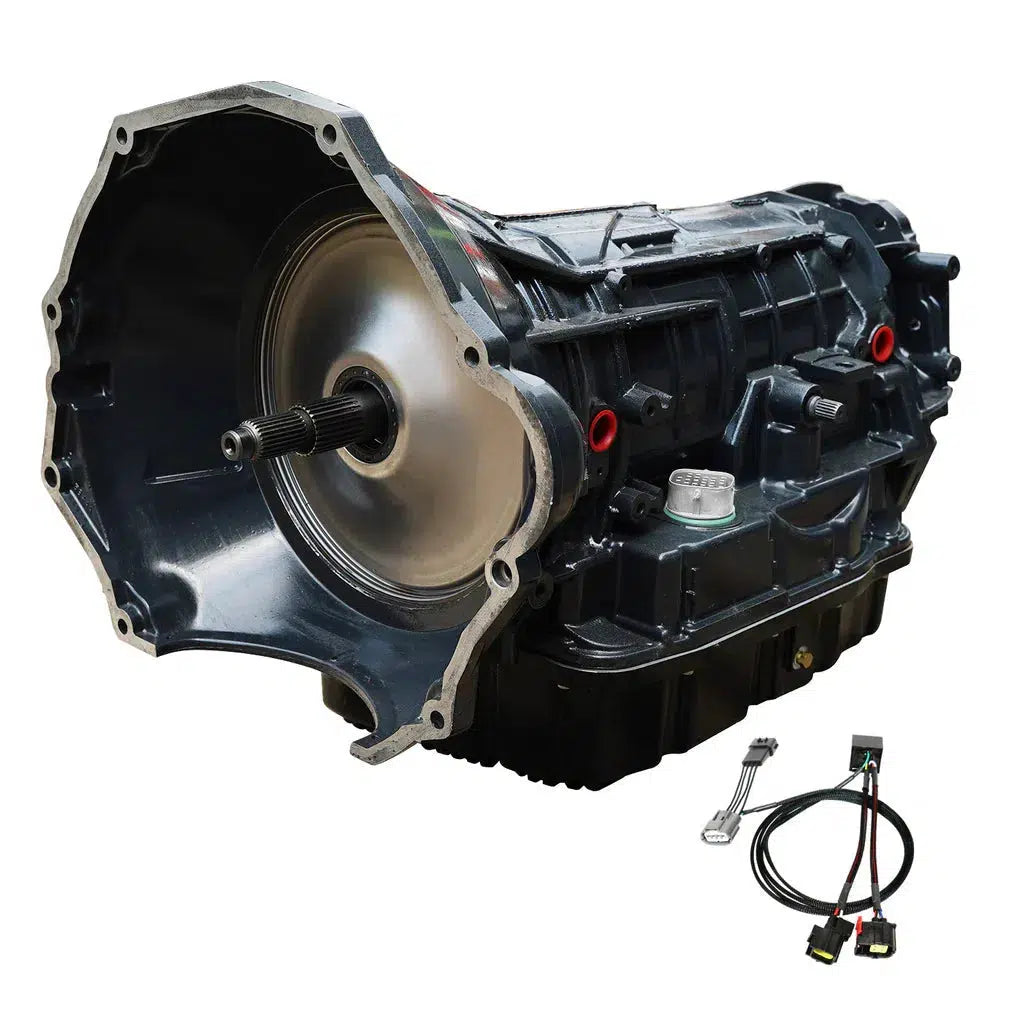

2007.5-2018 Cummins Torquemaster 68RFE Transmission W/ Billet Input Shaft (4WD) (1064264B)
Purchase to earn 9744 Dirty Dollars Learn More
Description
Description

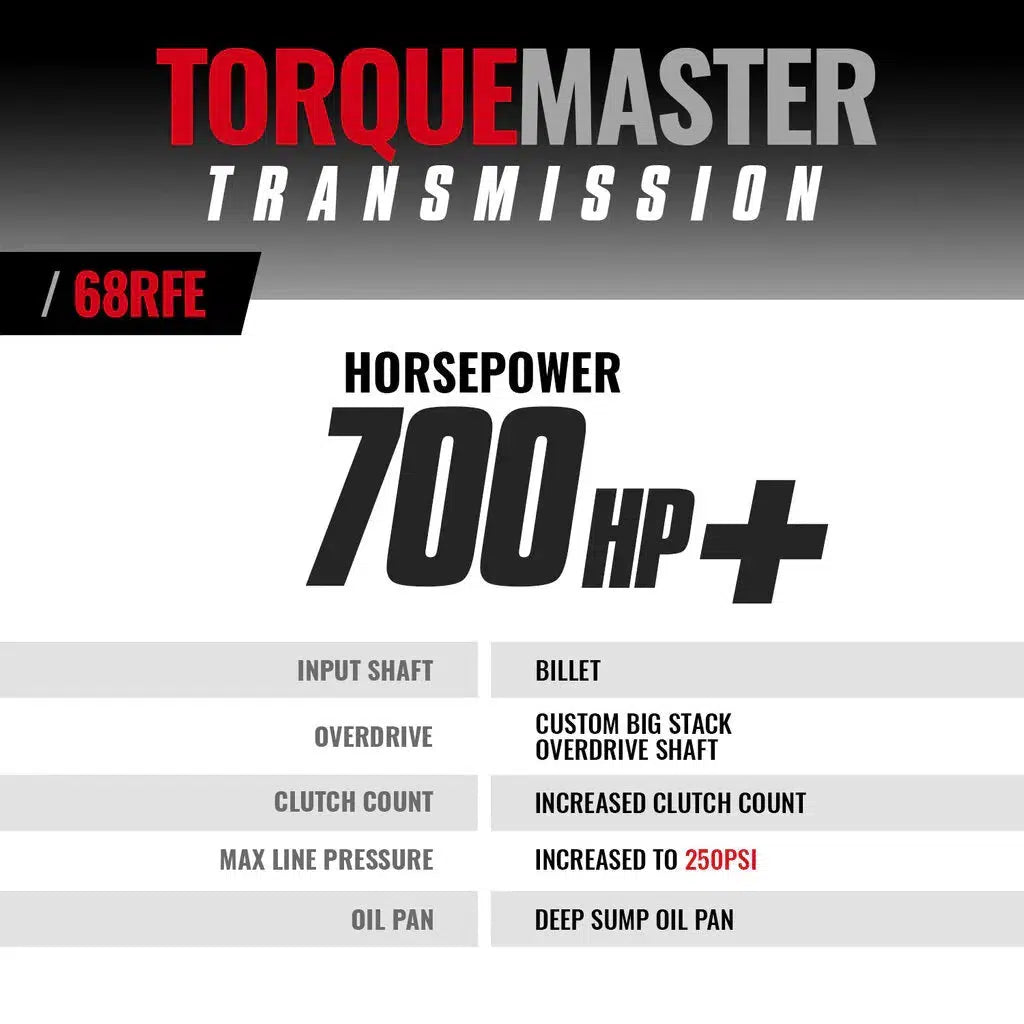

BD's 68RFE sets the standard for transmissions in the industry. They've tackled the typical setbacks that come with the stock 68RFE. No more worrying about burnt overdrive clutches - thanks to customized billet QT100 reaction plates, a longer "Big Stack" spline OD shaft, and 16 frictional surfaces. Each BD 68RFE can handle up to 250psi of line pressure for unbeatable torque strength. And the cherry on top? A Billet Input Shaft built to withstand intense acceleration and high torque.
Part Number: 1064264B
Features
Features
- Hard anodized valve body and new solenoid pack installed in every unit
- Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
- Heavy duty cam & roller design low reverse one way clutch
- New 4C billet spring retainer
- Steel girdle added to 2C piston to allow for more clutches and broader apply area
- BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
- Over Drive clutches 33% increase & 2C clutches 33% increase

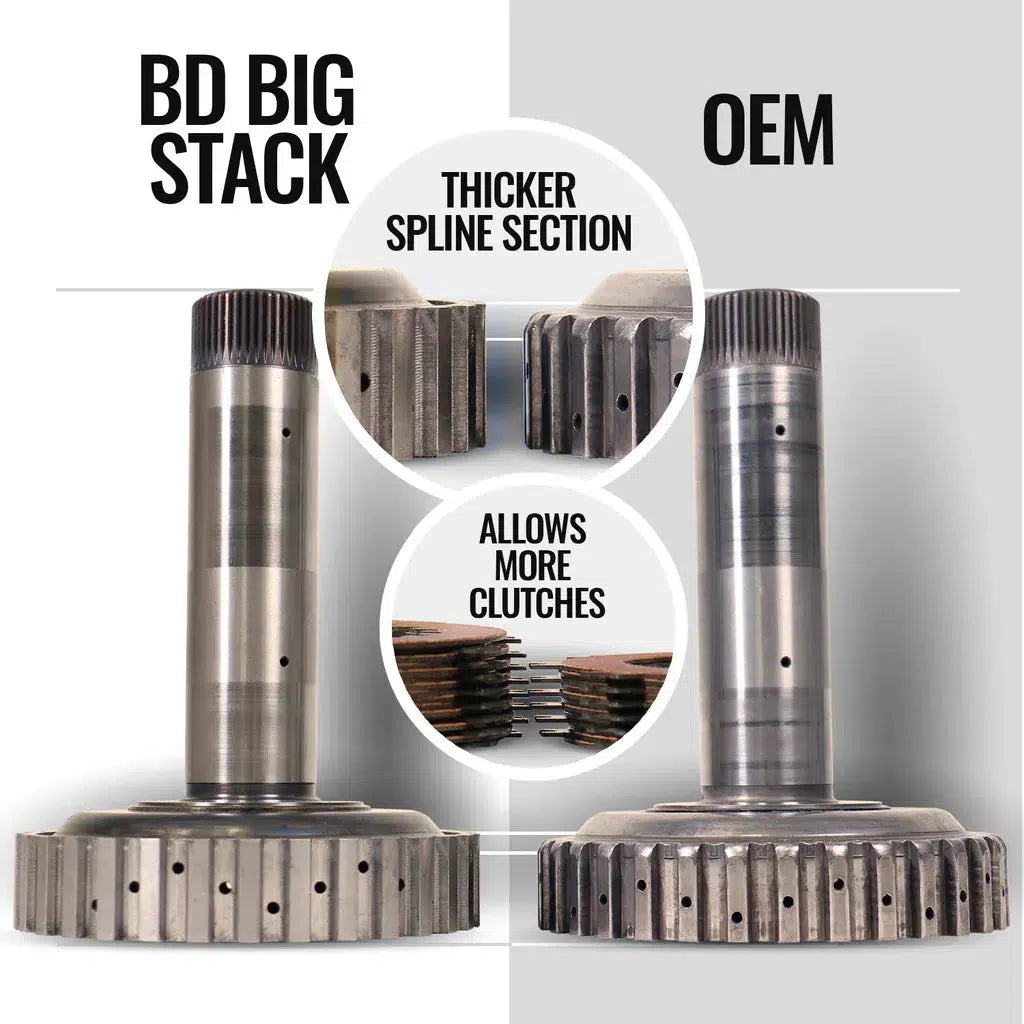

- Custom Big Stack overdrive shaft
- BD reinforced accumulator plate
- TCC limit valve machined and sleeved to address high wear area with in pump
- BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
- BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required
- Performance Transmission but with the added touch of a Billet Input Shaft to take the "snap" from rapid throttle and high horsepower
Installation
Installation
Warranty
Warranty
Parts Only - No Race abuse is covered.
- 36-Months
- 150,000 Miles
- Warranty Form Click Here
