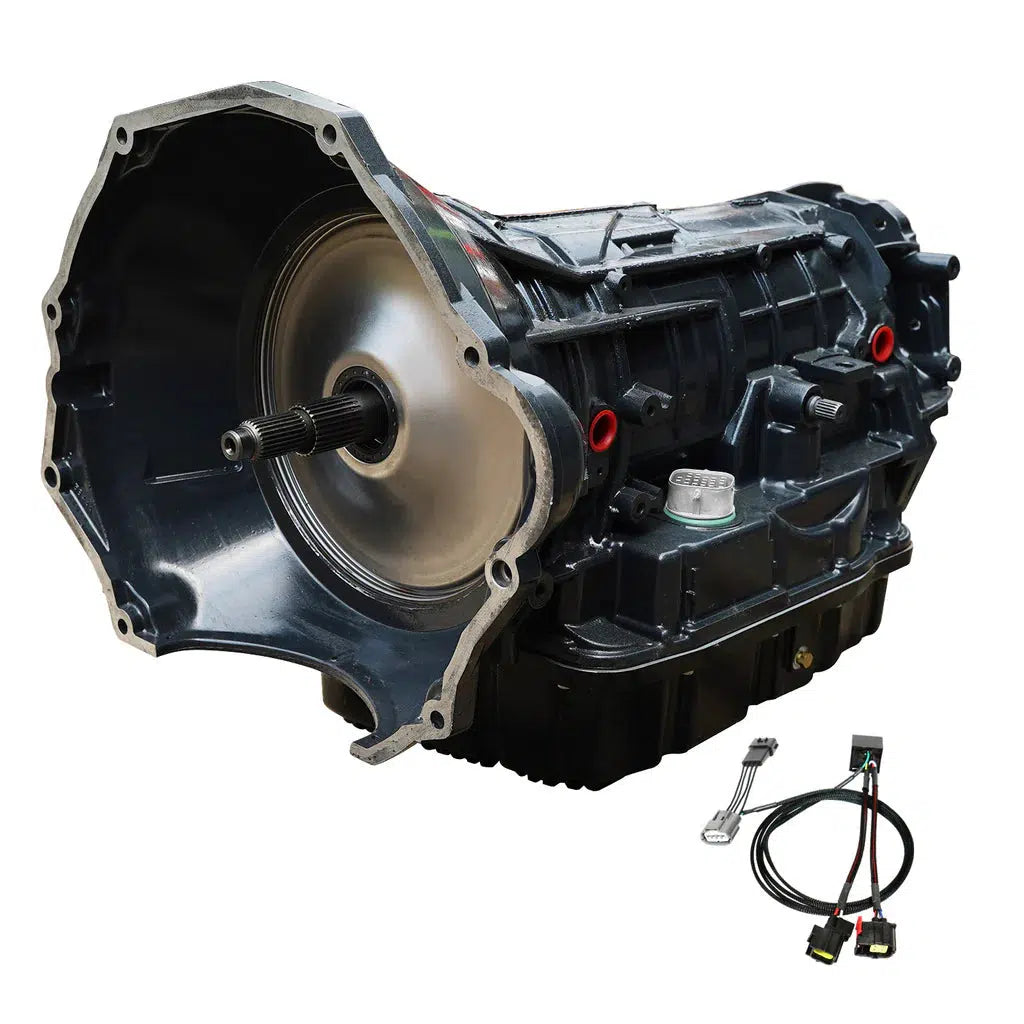

2007.5-2018 Cummins Towmaster 68RFE Transmission (4WD) (1064264)

BD Diesel Part Number: 1064264
$8,066.00 CAD

Additional Refundable Core Deposit Required of $2,500.00 CAD.

Purchase to earn 8066 Dirty Dollars Learn More

Description

Fits

 Year Make Model Engine
2007.5-2018 Dodge Ram
2500/3500 4WD 6.7L Cummins & 68RFE

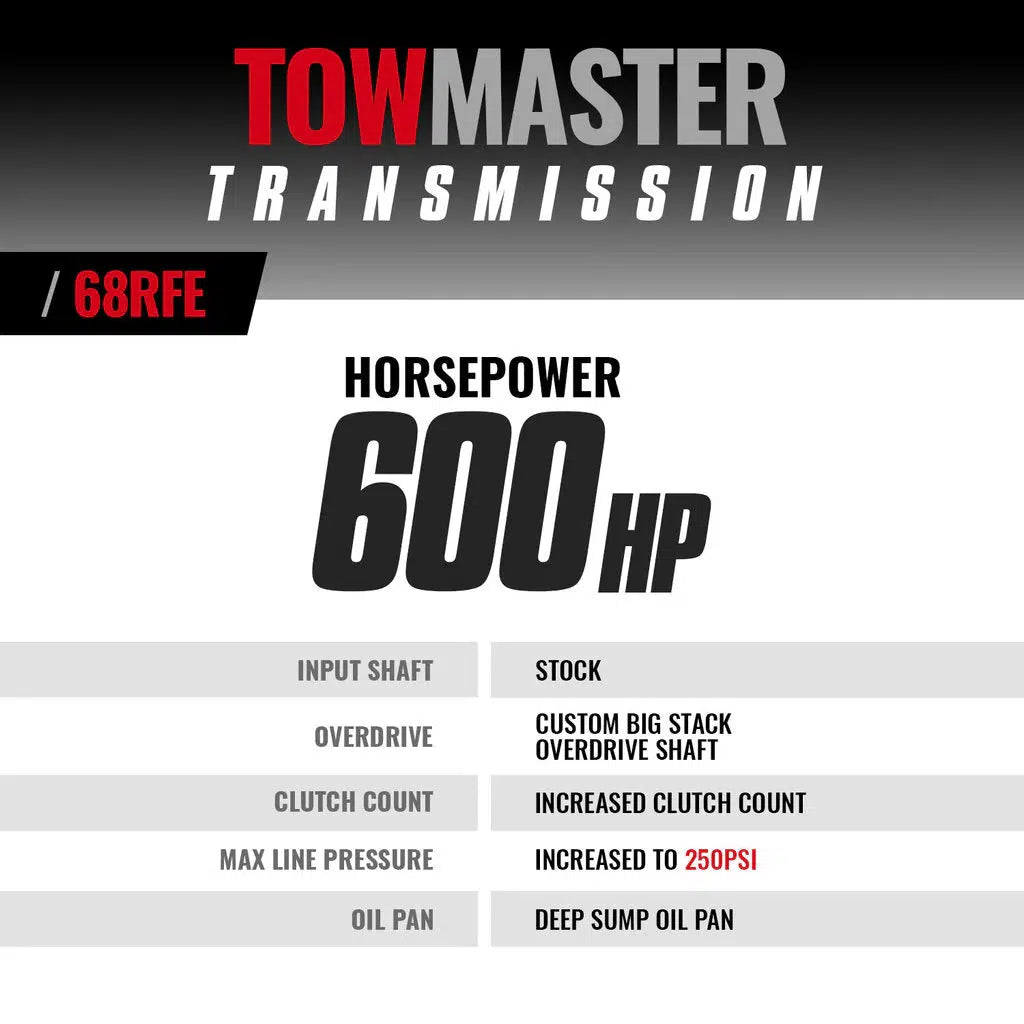

BD's 68RFE is the industry leading transmission. BD has addressed the common failures associated with the stock 68RFE. Burnt overdrive clutches are a thing of the past, utilizing custom billet QT100 reaction plates, longer "Big Stack" spline OD shaft, and 16 frictional surfaces. Every BD 68RFE is also build to withstand 250psi of line pressure for unrivaled torque holding capacity.

Part Number: 1064264

Features

  • Hard anodized valve body and new solenoid pack installed in every unit
  • Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
  • Heavy duty cam & roller design low reverse one way clutch
  • New 4C billet spring retainer
  • Steel girdle added to 2C piston to allow for more clutches and broader apply area
  • BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
  • Over Drive clutches 33% increase & 2C clutches 33% increase

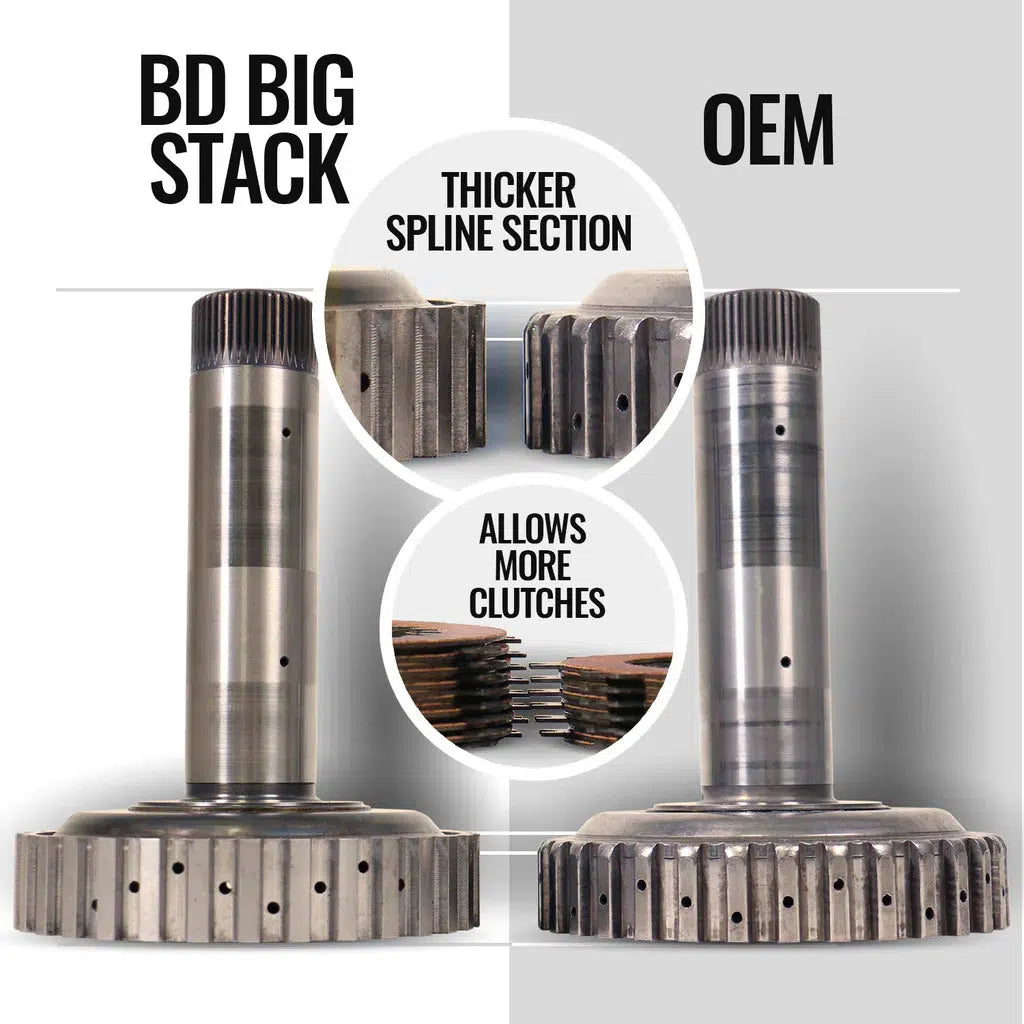

  • Custom Big Stack overdrive shaft
  • BD reinforced accumulator plate
  • TCC limit valve machined and sleeved to address high wear area with in pump

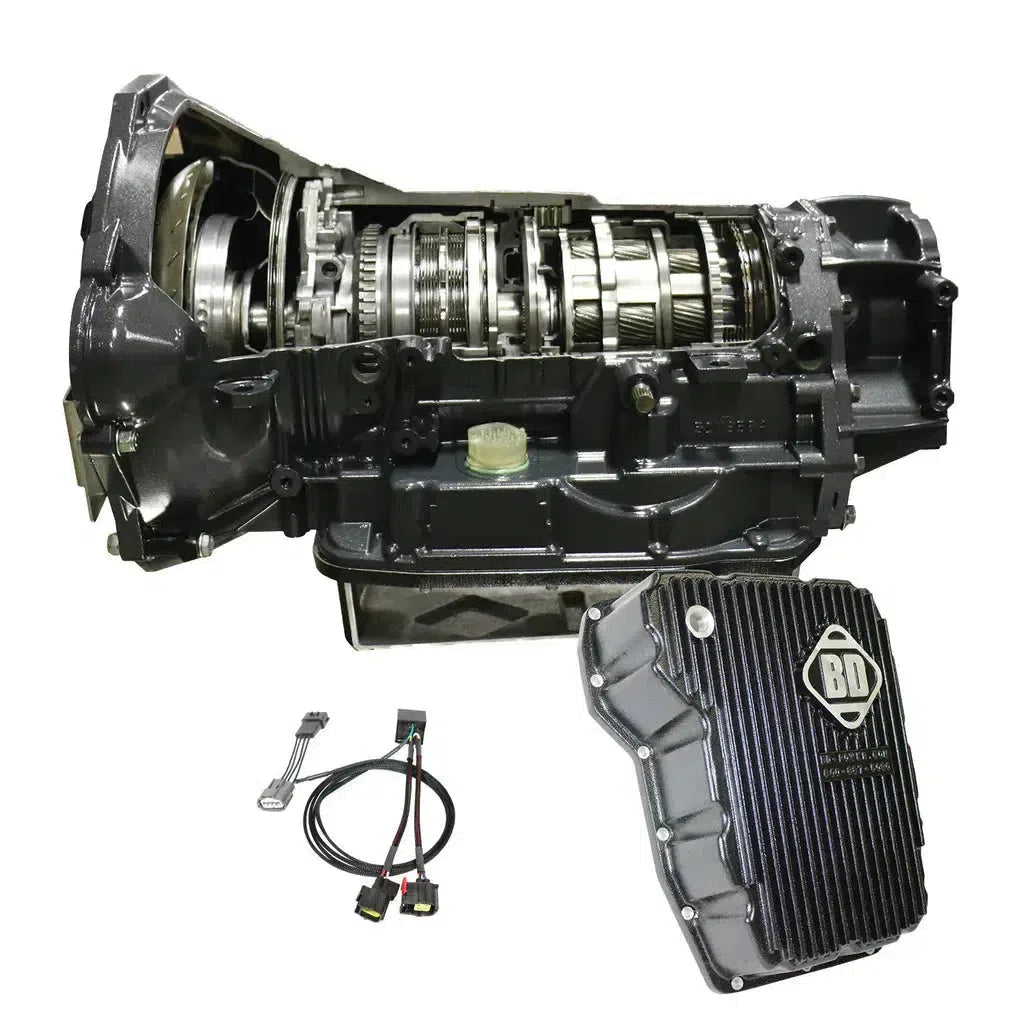

  • BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
  • BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required

Installation

Warranty

Parts Only - No Race abuse is covered.

  • 36-Months
  • 150,000 Miles
  • Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
  • BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty.
  • Warranty Form

Questions and Answers

Previously asked questions

We've compiled a list of questions and answers below.

Don't see your question? Ask us anything about this product.

Ask a Question
  • What hp rating is this for

    Rated for 500-700HP under typical driving and towing conditions.
