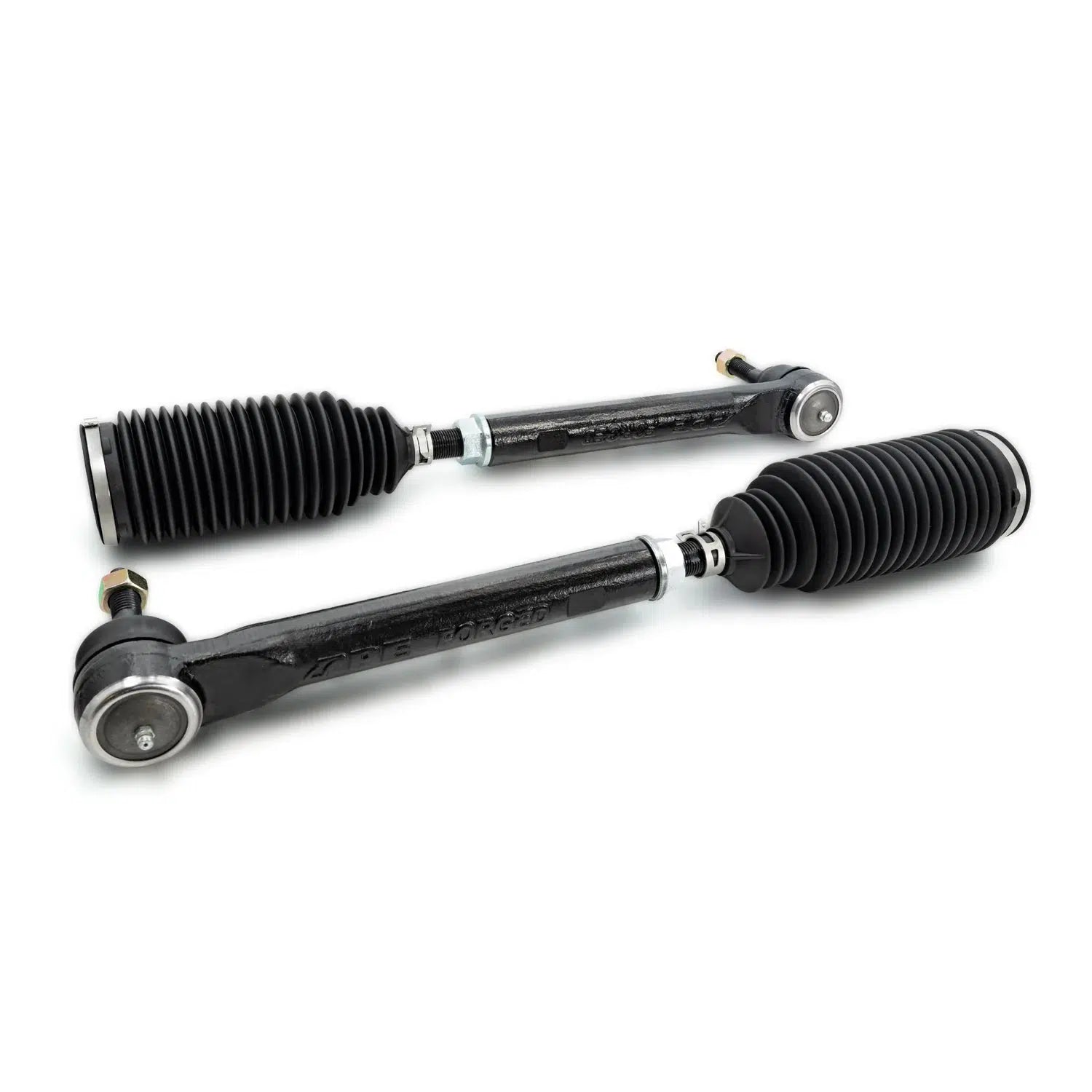

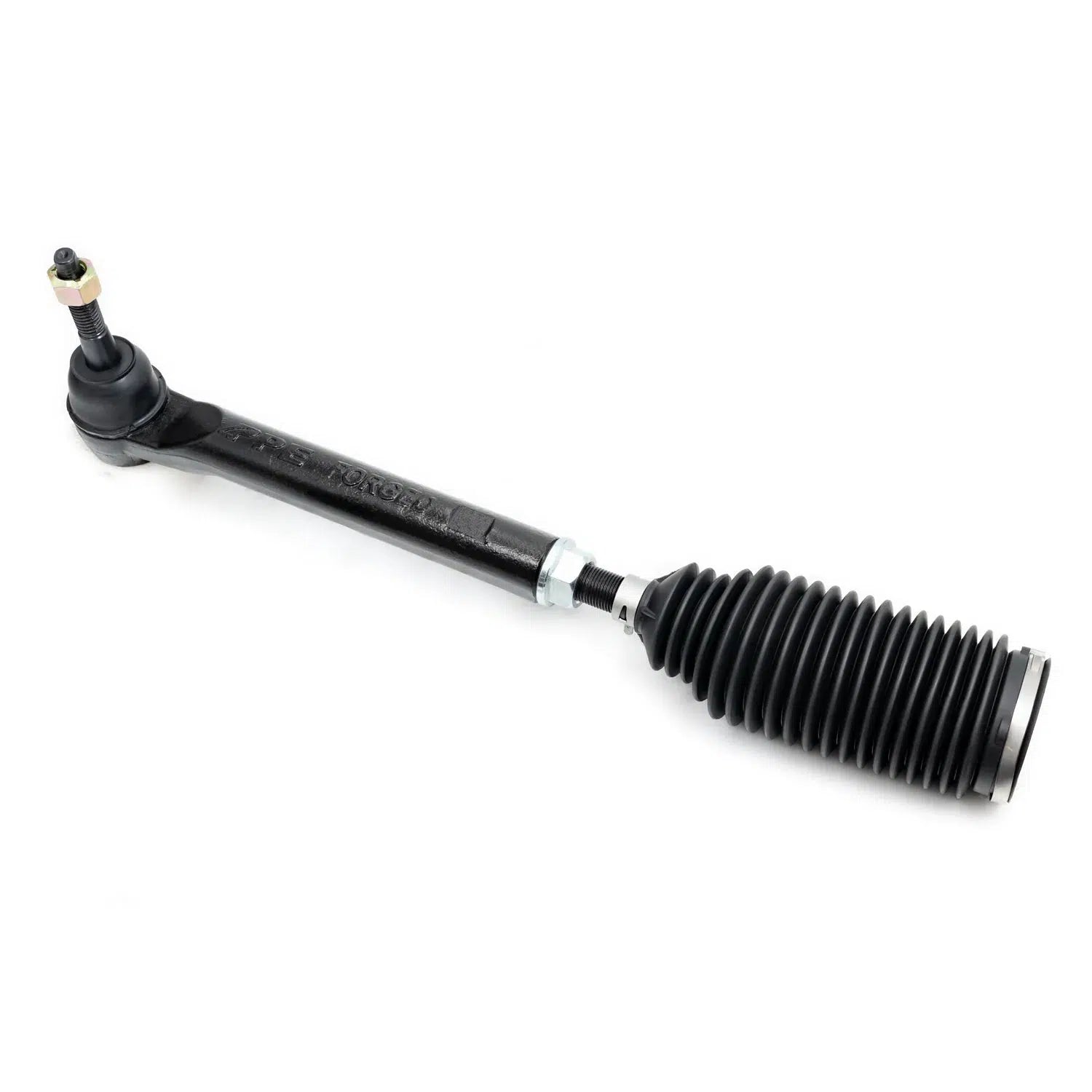

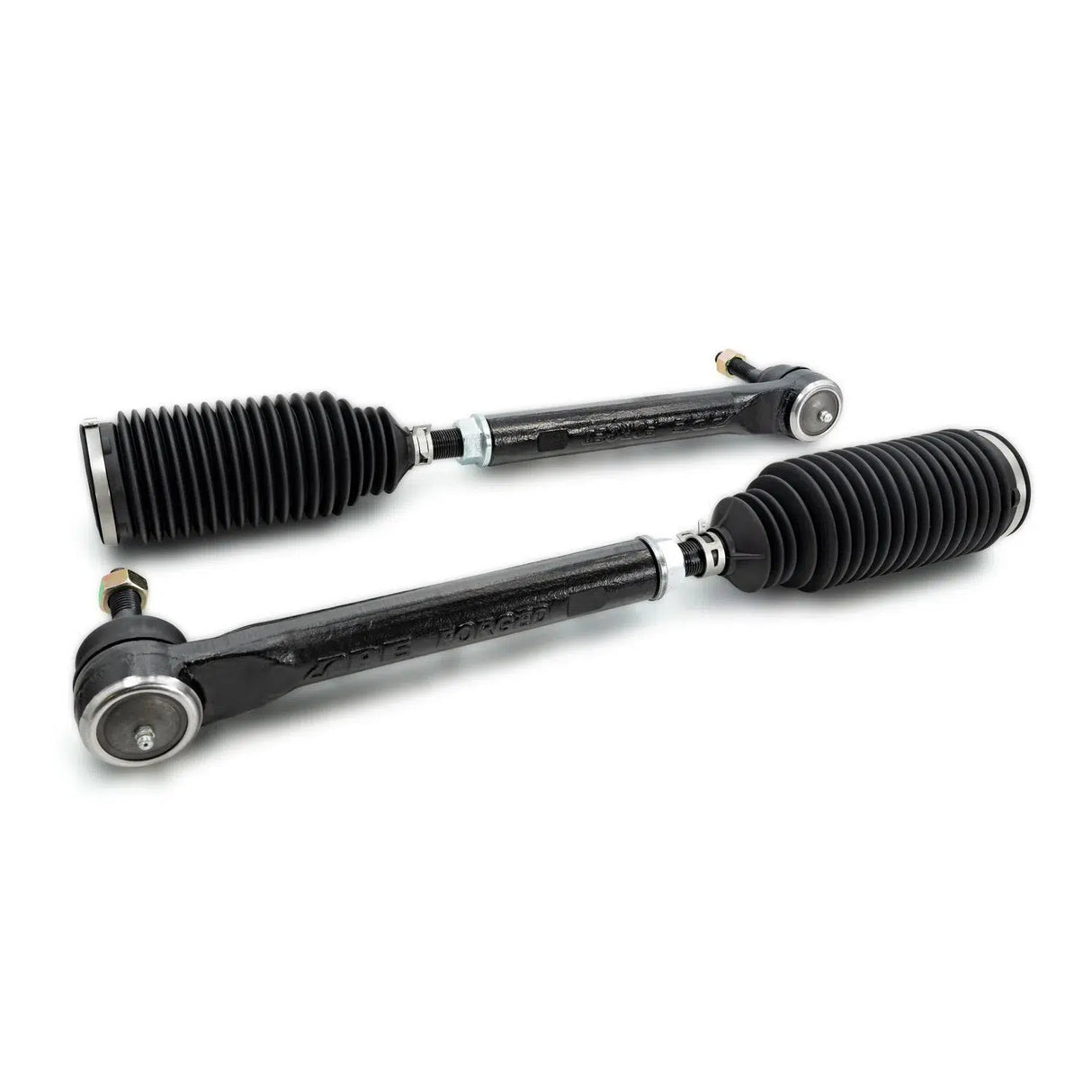

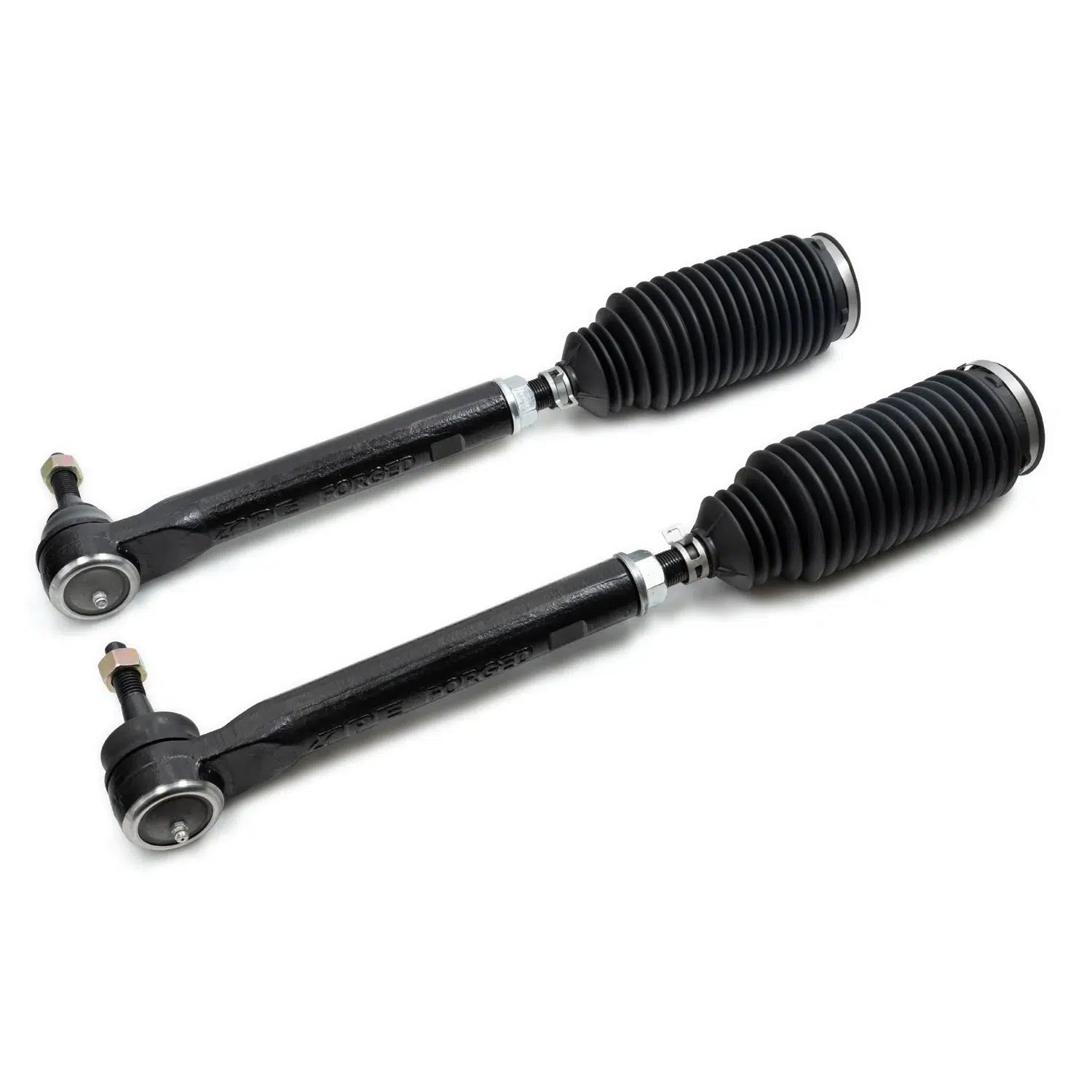

2007-2013 GM 1500 Tie Rod Kit (158207000)

Fits

Upgrade your steering system with this tie-rod kit, boasting unmatched strength and toughness. This kit includes a 32% larger forged sleeve, 27% larger toe adjusting shaft, and 14% larger ball studs for maximum durability. The outer tie rod end even has a spring-loaded ball-stud seat for constant pressure and OEM steering knuckle taper. And don't worry about clearance, thanks to the adjustable inner tie rod end with rubber shim.

Part Number: 158207000

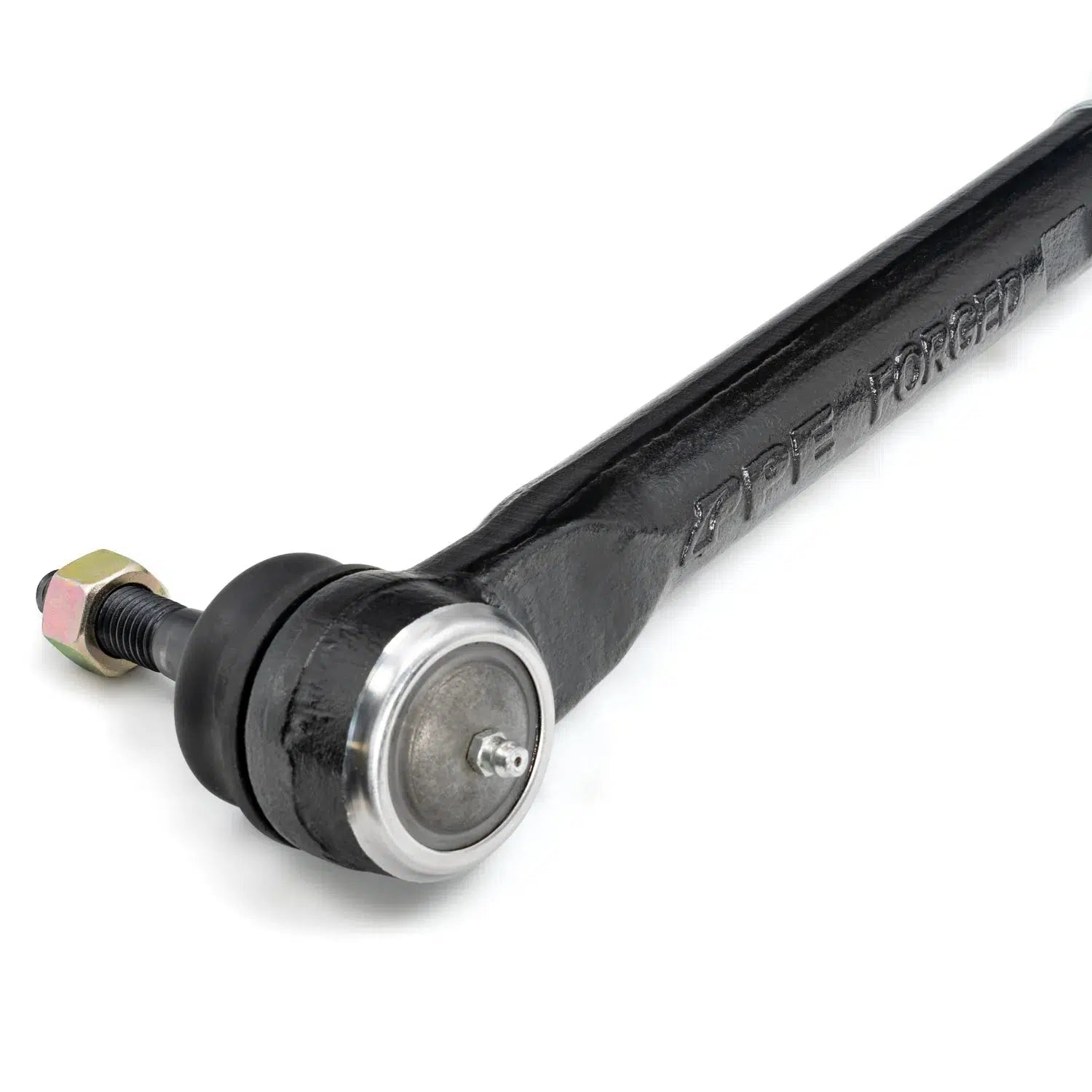

• Extreme-duty forged steel outer tie rod body
• Larger ball studs with lubrication grooves
• Durable powder metal inner bearing
• Dual grease fittings, fully serviceable inner and outer joints

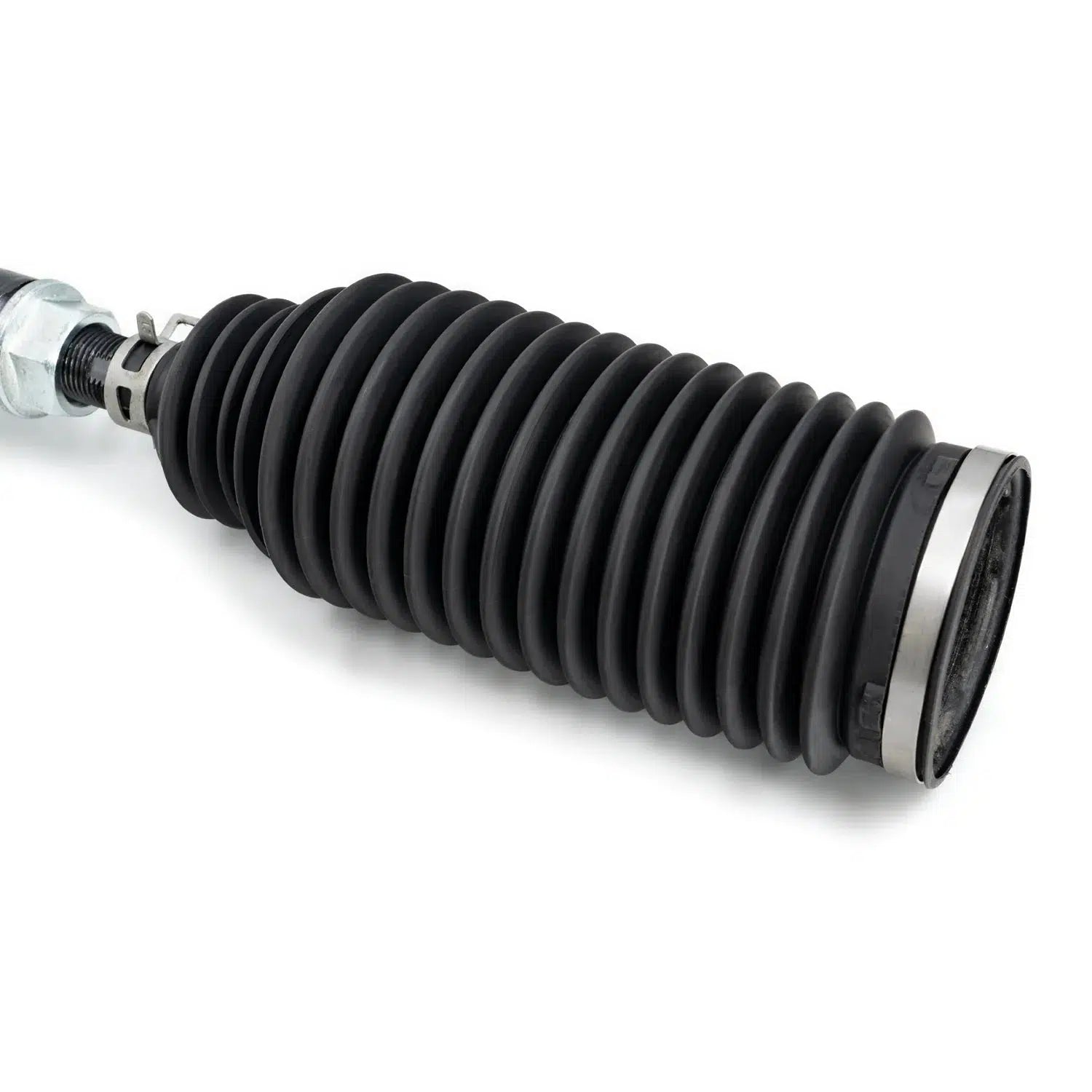

• Weather and abrasion resistant TPV steering rack boot


• Click Here

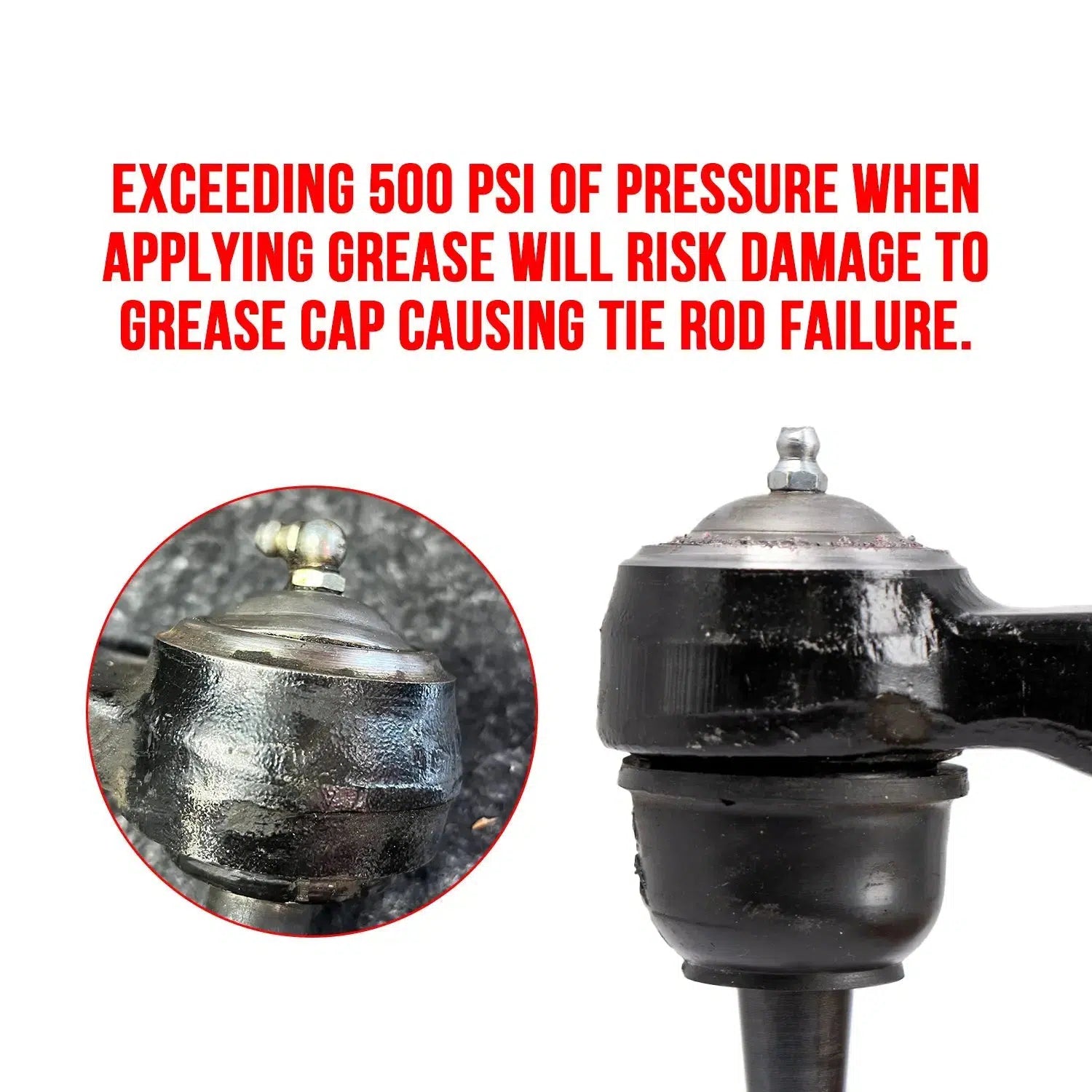

• Do not exceed 500 PSI of pressure when applying grease will risk damage to grease caps causing tie rod failure and will result in voiding your warranty.
• Overextending the tie rod angle might cause damage to the inner tie rod or outer ball stud retaining assembly. Common causes include steep tie rod–steering rack angles, and overextension of modified suspensions.
• OEM equivalent part numbers: 158207000 – 15254061 and 19178561

Parts Only

• Limited Lifetime Warranty
