Description
Fits
| Year |
Make |
Model |
Engine |
| 2005+ |
Ford |
F-450 & F-550 |
6.0L, 6.4L, 6.7L Powerstroke |

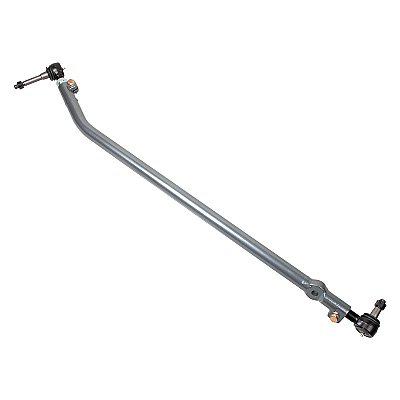

Built specifically for the F-Series platform, this direct bolt-in drag link replacement gives you an immediate upgrade in steering feel & strength. Designed with a slight bend to make sure there are no clearance issues, knocking, and drag link flop with its single plane tie rod end, & also allows you to retain your factory steering stabilizer.
Part Number: 7602-01
Features
- Max extended length: 48"
- Min collapsed length: 45.25"
- Bolts to factory mounts
- No factory drag link components need to be reused

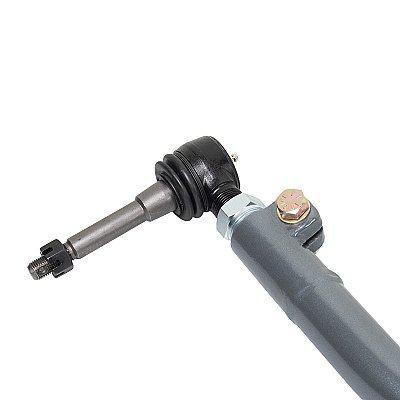

- HD Metal on Metal Tie Rod Ends with oversized 1" shank
- Single Plane tie rod end used on the axle side to prevent unwanted drag link flop
- CNC formed from 1.50 inch x .250 wall DOM tubing
- Powder coat finish

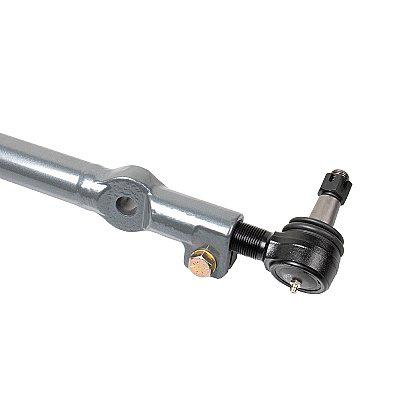

- Use of pinch bolts instead of jam nuts to simplify installation and adjustment
Includes:
- (1) HD Drag Link
- (1) 4152-L Pitman arm tie rod end
- (1) 4153-L Single plane tie rod end
- (1) 3622-10-14-PL Adjuster sleeve
- (2) Pinch bolts & hardware
Additional Info
- Drag link retains the stock steering stabilizer
- Compatible with stock wheels & tires with correct tie rod end adjustment
- Drag Link is bent for suspension articulation clearance
- Fully adjustable without needing to be removed
Notes
- Replacement Tie Rod Ends:
- Compatible on vehicles with up to 3" ride height
- Backwards compatible with the stock tie rod
- Synergy Premium Copper Infused Anti-Seize 4118 to be used with all threaded components (TRE's and Adjuster Sleeve)
- Synergy tie rod (7602-01) is recommended with Ford F-450 / F-550, but not required
