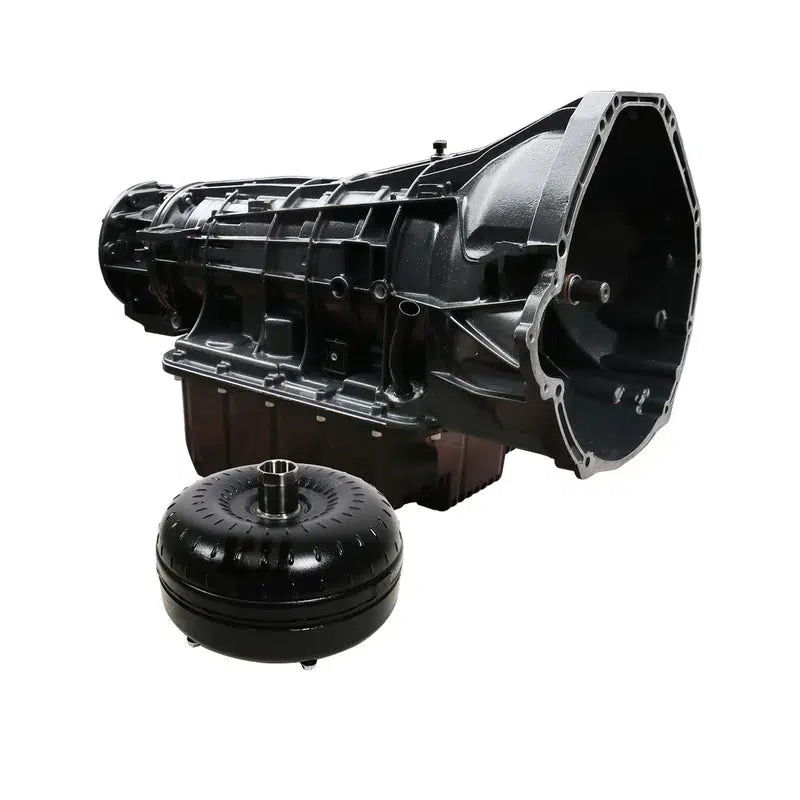

2005-2007 Powerstroke TowMaster 5R110 Transmission & Converter W/ Slip Yoke Drive Shaft Mount Package (2WD) (1064482SM)
Purchase to earn 7224 Dirty Dollars Learn More
Description
Description
Dyno tested together to guarantee performance and reliability that will meet your Powerstrokes power & torque demands whether you're on the street, track, or towing, BD is an ideal choice; and every BD Diesel transmission includes an HD pan for increased fluid capacity
Part Number: 1064482SM
Features
Features
Transmission:
- Increase the durability of your drivetrain
- BD aluminum HD deep pan, increases oil capacity by 6qt
- Upgraded sump filter
- Replace plastic pressure plugs in valve body with aluminum
- HD snap ring and blow-off valve to prevent runaway pressure from damaging the case
- Reworked front pump
- Clutch Count: COAST CLUTCH 3
- Clutch Count: FORWARD 4
- Clutch Count: LOW REVERSE 6
- Clutch Count: INTERMEDIATE 5 (67% increase over stock)
- Clutch Count: DIRECT 6 (20% increase over stock)
- Clutch Count: OVERDRIVE 5 (67% increase over stock)
- Each transmission is dyno tested
Torque Converter:
- Enhanced Stall - Street/Towing applications
- Torque multiplying cast aluminum stators
- Lower rpm response than the stock converter
- More efficient operation
- Less heat and better fuel economy
- Stamp-forged steel front cover
- Furnace-brazed fins
- Up to triple the amount of lock-up clutch material
Installation
Installation
- 5 Hours
- Install Click Here
Notes
Notes
- 2WD 5R110 models have two different output shafts, slip yoke and flanged - please determine your output shaft before ordering
Warranty
Warranty
Parts Only - No Race or Sled Pull abuse covered.
- 36-Months
- 150,000 Miles
-
Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
