2004.5-2006 Duramax Towmaster Allison 1000 5-Speed (2WD) (1064724)
Purchase to earn 6705 Dirty Dollars Learn More
Description
Description

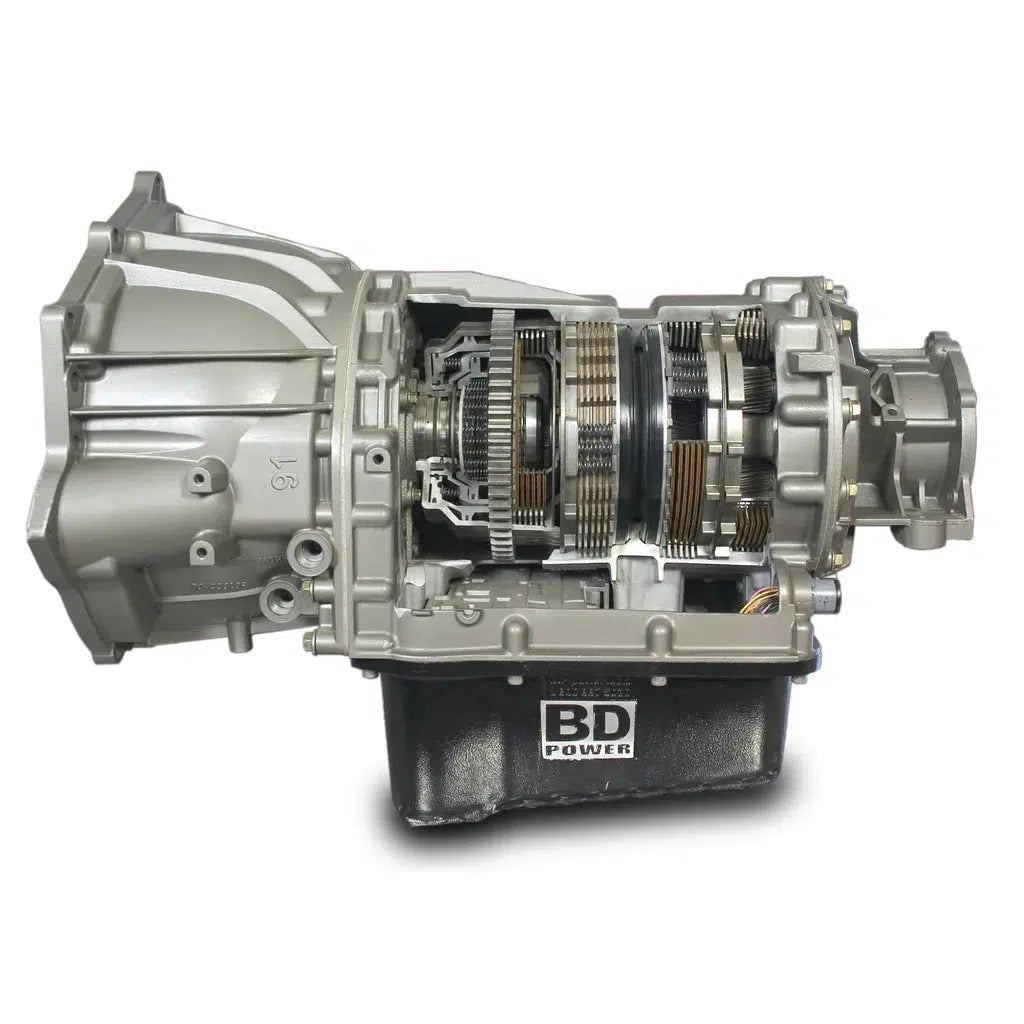

The stock transmission is designed to handle the output of the stock engine, but not much more. Increase the durability of your drivetrain with a BD transmission. All transmissions come with BD's HD transmission pan.
Part Number: 1064724
Features
Features
- Increase the durability of your drivetrain
- BD Aluminum HD deep transmission pan increases oil capacity by 3.5qt
- High-energy clutch material
- Revised oil circuits
- New converter lock-up valve to boost lock-up pressures
- New A & B trim valves deliver full line pressure to the clutches
- Increased clutch count
- Clutch Count: C1 8 clutches (14% increase over stock)
- Clutch Count: C2 7 clutches (17% increase over stock)
- Clutch Count: C3 6 clutches (50% increase over stock)
- Clutch Count: C4 6 clutches (0% increase over stock)
- Clutch Count: C5 7 clutches (17% increase over stock)
- Each transmission is dyno-tested
Installation
Installation
- 9 Hours
- Install Click Here
Warranty
Warranty
Parts Only - No Race abuse is covered.
- 36 Months
- 150,000 Miles
- Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
- BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty
