2003-2007 Cummins Stage 4 48RE Transmission & Converter Rebuild Kit (1063014)
Purchase to earn 3694 Dirty Dollars Learn More
Core Deposit
After you have made your purchase, please follow the steps listed below to receive your refundable Core charge. This process must be completed within 60 days of receiving your product(s). Failure to send us the core(s) within the 60 day timeframe will result in you only receiving a partial refund amount of the core deposit.
1) Reply to this email or give us a quick call (778-754-7090) and let us know that you will be shipping us a Core, please include your Original Invoice/Order Number so we can link up your file.
2) On the outside of the ORIGINAL box, please write "Core Return" and your Original Invoice Number/Order Number.
3) Ship your core with tracking to:
Unit 6 - 1060 Stevens Road, West Kelowna BC Canada V1Z1A3
4) Once we receive the Core here at the shop, it will be inspected to ensure that it is rebuildable. After the inspection is passed, your core charge will then be refunded (giving you more money for truck parts!).
Note:
- If you have purchased a BD Diesel product, please follow their core-return program which can be found here.
- If you have purchased a Fleece Performance product that has a core charge, please follow the Fleece Performance Core Return instructions found here.
- If you have purchased a Randys Transmission product, we must receive the core no later than 30 Days after the product delivery date.
- Failure to follow these steps may result in a delay/denial of your core refund.
- Failure to send us the core(s) within the 60-day timeframe will result in you only receiving a partial refund amount of the core deposit.
- 0-60 Days: Full Deposit if the core passes the inspection.
- 61-120 Days: 25% of your eligible core refund amount will be deducted.
- 121+ Days: 50% of your eligible core refund amount will be deducted.
Let us know if you have any questions or concerns. We can be reached at 778-754-7090 or feel free to email sales@dirtydieselcustoms.com.
Learn more.
Description
Description
Fits
| Year | Make | Engine |
| 2003-2007 |
Dodge Ram |
5.9L Cummins w/ 48RE |

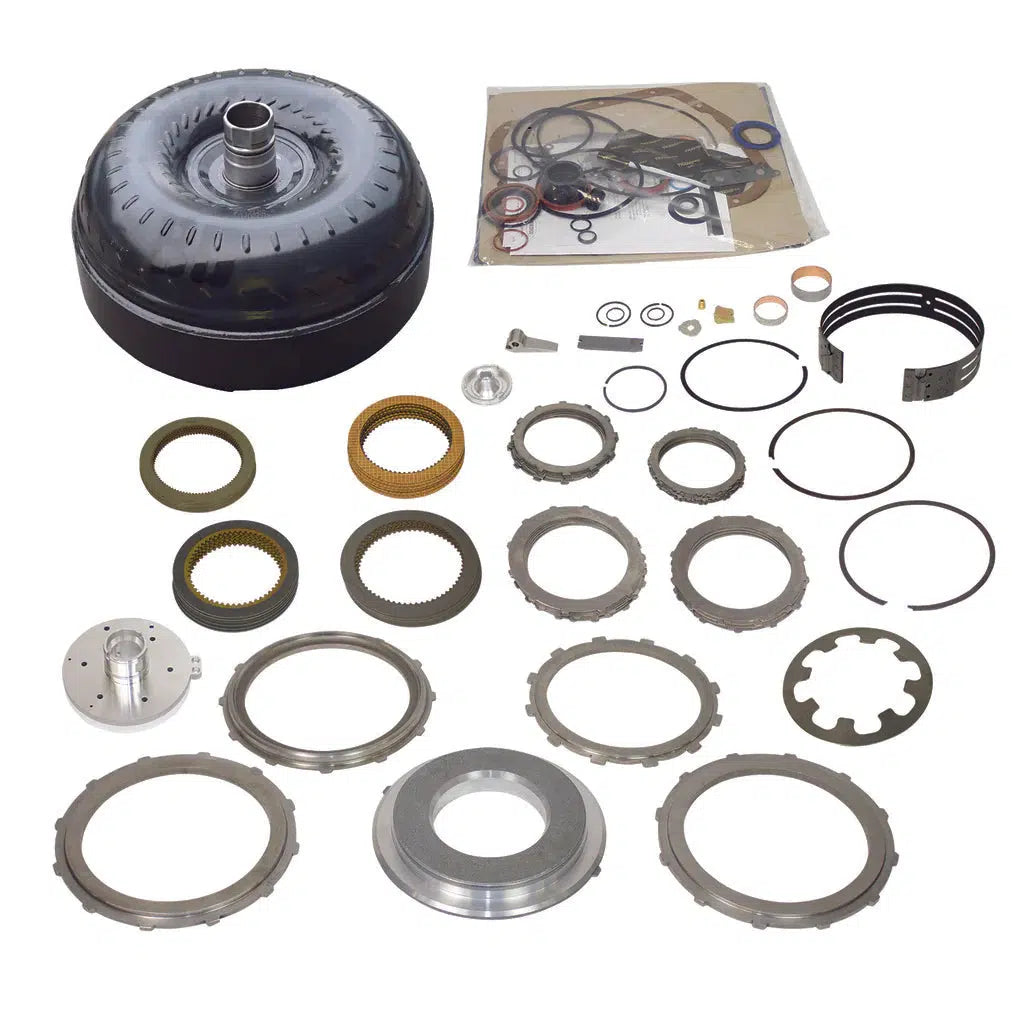

The perfect all-in-one kit for your 48RE, whether your truck is stock or modified these kits include all the basic parts and gaskets you need to competently rebuild your transmission. Featuring BD's ProForce 3D multi-disc converter, CNC machined billet cover to prevent warping, improper balancing & increased strength, retains a smooth & reliable vibration damping.
Part Number: 1063014
Transmission
Transmission
- Same parts used in our own performance transmissions
- All kits include the basic rebuild parts and gaskets
- Band - High Temp/Energy - Raybestos
- Band Anchor - Billet
- Accumulator Piston - Billet Dual Ring
- Bushing - Front Clutch Drum 0.85, Pump - Bronze W/Dimples
- Clutch Disc
- Friction - Front (Dir/Hi/Rev) Allomatic, O/D Allomatic, O/D Direct Borg Warner, Rear (Fwd) Borg Warner
- Shifter Bracket & Lever Kit - 4.2 Ratio
- Gasket Kit - Overhaul
- Pressure Plate - Dir/Fwd (Frt) .145", Dir/Fwd (Frt) .185"
- BD Pressure Plate Forward (Rr) Beveled Machined, O/D Brake F&R Machined
- BD Piston - Dir. Clutch (Frt) Machined
- Piston Retainer Kit
- Servo Cover Ring, Piston Cover
- Snap Ring - Direct Clutch .062, Direct Clutch .074, Direct Clutch .088
- Rear Clutch Piston Spring
- Steel - Fwd (Dir/Hi/Rev), O/D Brake, O/D Dir .525", Frt (Dir/Hi/Rev) Oversize
- Strut - Front Band
- Washer - Int. Shaft Thrust .052
Converter
Converter
- Enhanced Stall - Street/Towing applications
- HD springs absorb shock of engagement
- Increased clutch count
- Stamp forged 1-piece cover
- Eliminates warpage from clutch heat
- Taller cover can be rebuilt more often
- Trapezoid teeth design
- Engineered tighter tolerances
- Self-centering trapezoid teeth design increases contact decreases wear and chatter
- Thrust bearings - not plastic thrust washers
- Riveted piston ensures alignment & eliminates vibration or embrittlement from welding
- Cast stator designs maximizes torque
- New sprag components ensure long term durability
- Furnace brazed turbine fins for improved fluid coupling efficiency
- Reduced overall weight by 12lbs compared to competitors
Notes
Notes
- No Race abuse covered
- Billet input shaft strongly recommended for use with ProForce 3D Torque Converter
Warranty
Warranty
-
Parts
- Converter: 36-Months / Build It: 12-Month
- Converter: 150,000-Miles / Build It: 12,000-Miles
- Converter: 12-Months / Build It: NA
- Converter: 12,000-Miles / Build It: NA
