Edge's Competition version of the tried and true Juice with Attitude takes all of the great features you have come to appreciate from the standard version, but taken up a few notches for those looking to maximize the performance of their VP44 equipped Cummins. How about seven power levels with 150 additional horsepower and full fueling up to 3600 RPM? You can also expect a more aggressive fueling curve on the bottom end coupled with the ability to adjust timing within each power level to finitely tune your engine.

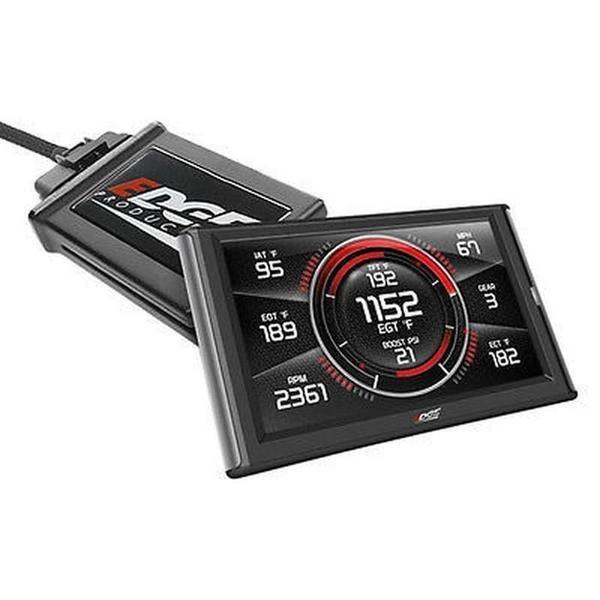

Featuring a sleek and compact design, the CTS2 displays a variety of live engine PIDs on it's 5" extremely hi-res, touch screen display, is compatible with Edge's Accessory Systems (EAS), and much more. You'll be hard pressed to find a better inline tuner and digital monitor combo that gives your Cummins this much attitude!
- In-Cab Monitoring
- Color Touch Screen
- Custom Background / MyStyle
- Screen Auto-Dim
- Compatible with EAS
- Alerts and Records
- Performance Tests
- Display True Speed on Monitor
- Data Acquisition
- DTC Rear Clear
- Internet Updates
- Full Fueling Through 3600 RPM
- Performance Tunes
- Tow Tune
- Economy Tune
- Level 1: 40 HP | 150 Lb-Ft
- Level 2: 60 HP | 200 Lb-Ft
- Level 3: 80 HP | 250 Lb-Ft
- Level 4: 100 HP | 300 Lb-Ft
- Level 5: 120 HP | 350 Lb-Ft
- Level 6: 120 HP | 350 Lb-Ft (Hot Unlock)
- Level 7: 150 HP | 380 Lb-Ft (Competition)
GAUGES AND MONITORING:
The Juice with Attitude CTS2 features a sleek, easy to read 5" Color Touch Screen which makes it a complete, comprehensive gauge package that stays mounted in the cab of the truck and displays numerous parameters at a time! Monitor vital engine data, such as EGT's, engine RPM, transmission fluid temperature and engine oil temperature to name a few.
VEHICLE SPECIFIC PARAMETERS:
- Backdown %
- EGT (Exhaust Gas Temperature)
- Engine Coolant Temperature
- Fuel Pressure
- Fuel Temperature (measured in the VP44 injector pump)
- Intake Air Temp
- Engine Load % (only on later models)
- Module Temperature (internal temperature of the module)
- Speed MPH
- Throttle %
- Transmission Temp
- Turbo Boost Pressure
- Oil Pressure
Included with this kit is a Turbo Timer that will allow you to select a temperature at which you prefer the engine to shut down to avoid causing premature failure to the turbo. Once the temperature is set up, you can turn the key off, walk away, lock the truck, and it will turn off once the temperature has been set. Further, its a good way to surprise people that wonder how the truck turns itself off!
Each Edge Products Juice with Attitude CTS2 includes a heavy-duty universal suction cup mount for easy installation. Also available separately, are custom molded dash pods that provide an enhanced factory-like look. For those that prefer pillar mounting, you can also use the Gauge Pillar Adapter to mount the CTS2 Monitor in a pillar-mounted gauge pod of your choice (adapters, dash pods and pillar pods sold separately).
PERFORMANCE TESTING | ALERTS | RECORDING:
Performance and records such as HP & Torque, 0-60 and quarter-mile times; quarter-mile MPH; peak engine temperature, RPM, speed and transmission temperature values. Sounds audible alerts when user-defined values are reached and automatically records the highest value of key parameters.
Compatible with optional Edge Accessory System (EAS) to allow users to connect to multiple, additional accessories. Expandable options include turbo timer, universal pressure and temperature sensors. (EAS system and sensors sold separately)
The Juice with Attitude CTS2 includes automatic defueling to prevent excessive EGT & Boost levels. Along with user-adjustable audible alert settings, you can drive safely with confidence while knowing the Juice with Attitude is actively monitoring the parameters on your truck.
MyStyle™software allows you the ability to choose from a variety of Edge custom backgrounds, or simply upload an image of your choice. Size, crop and save to your CTS2 unit for the ultimate in customizability. Internet updates require Windows PC.
Part # 31701
