2001-2010 Duramax WCFab X PPE High Capacity Aluminum Oil Pan, Bronze Chrome (WCF100131-BC)

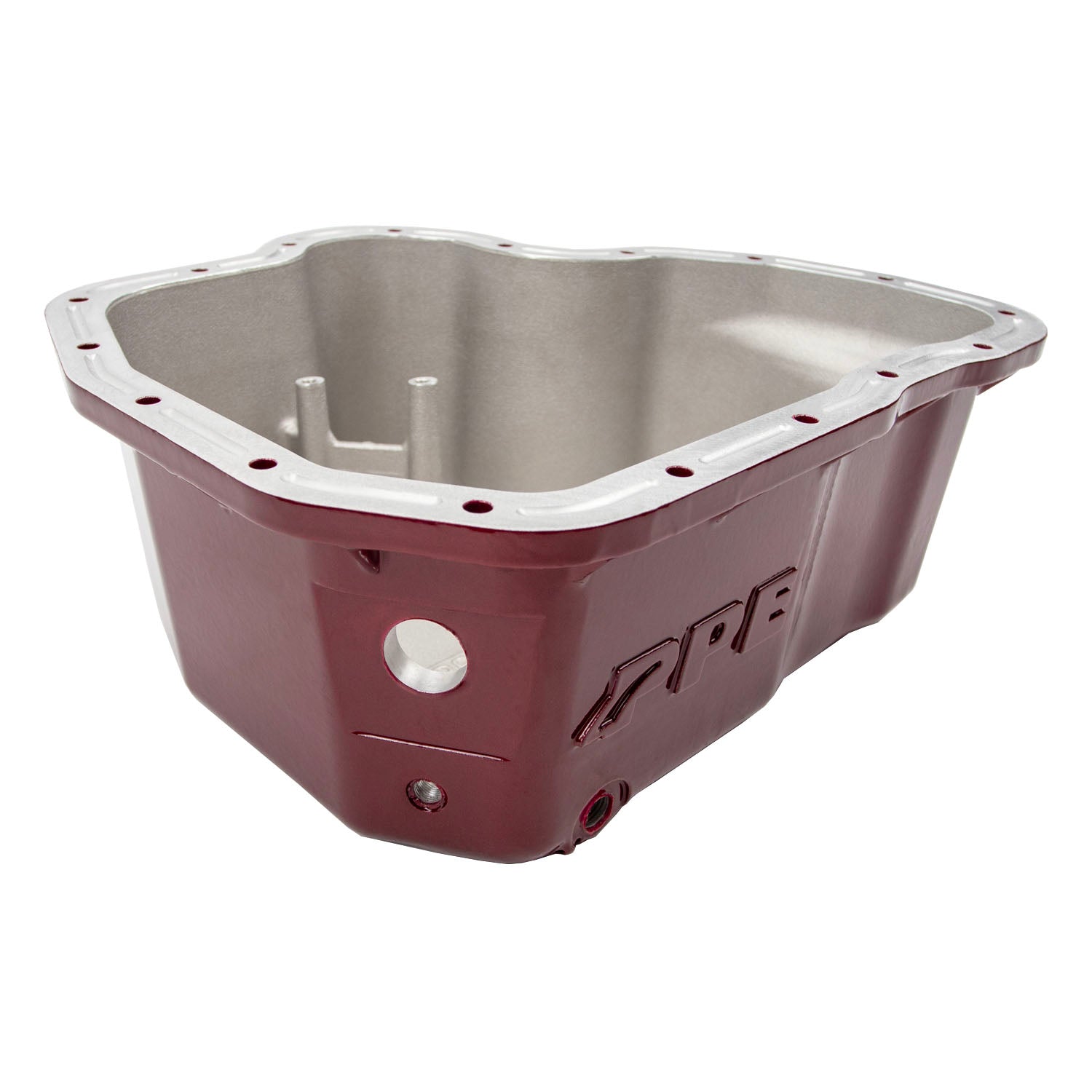

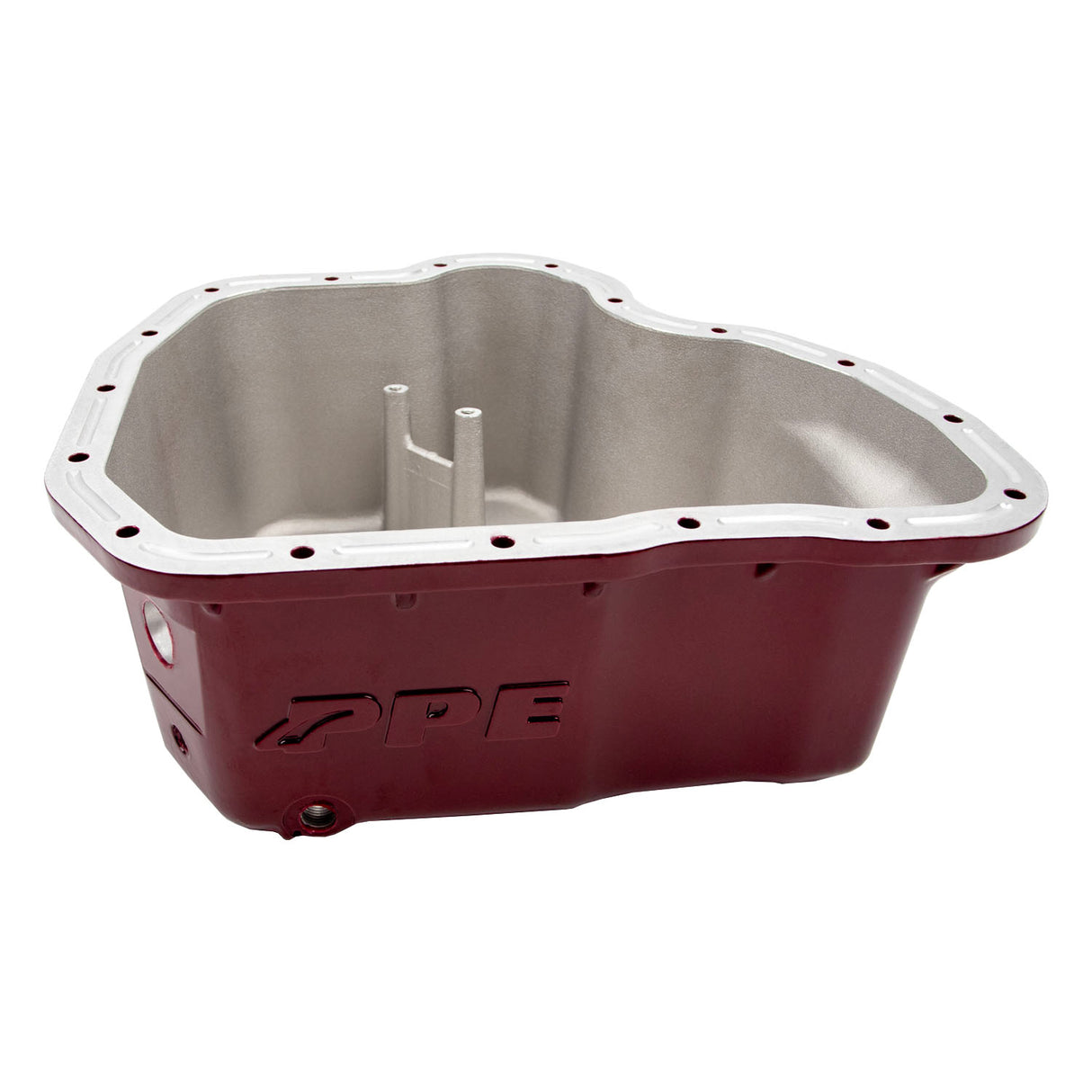

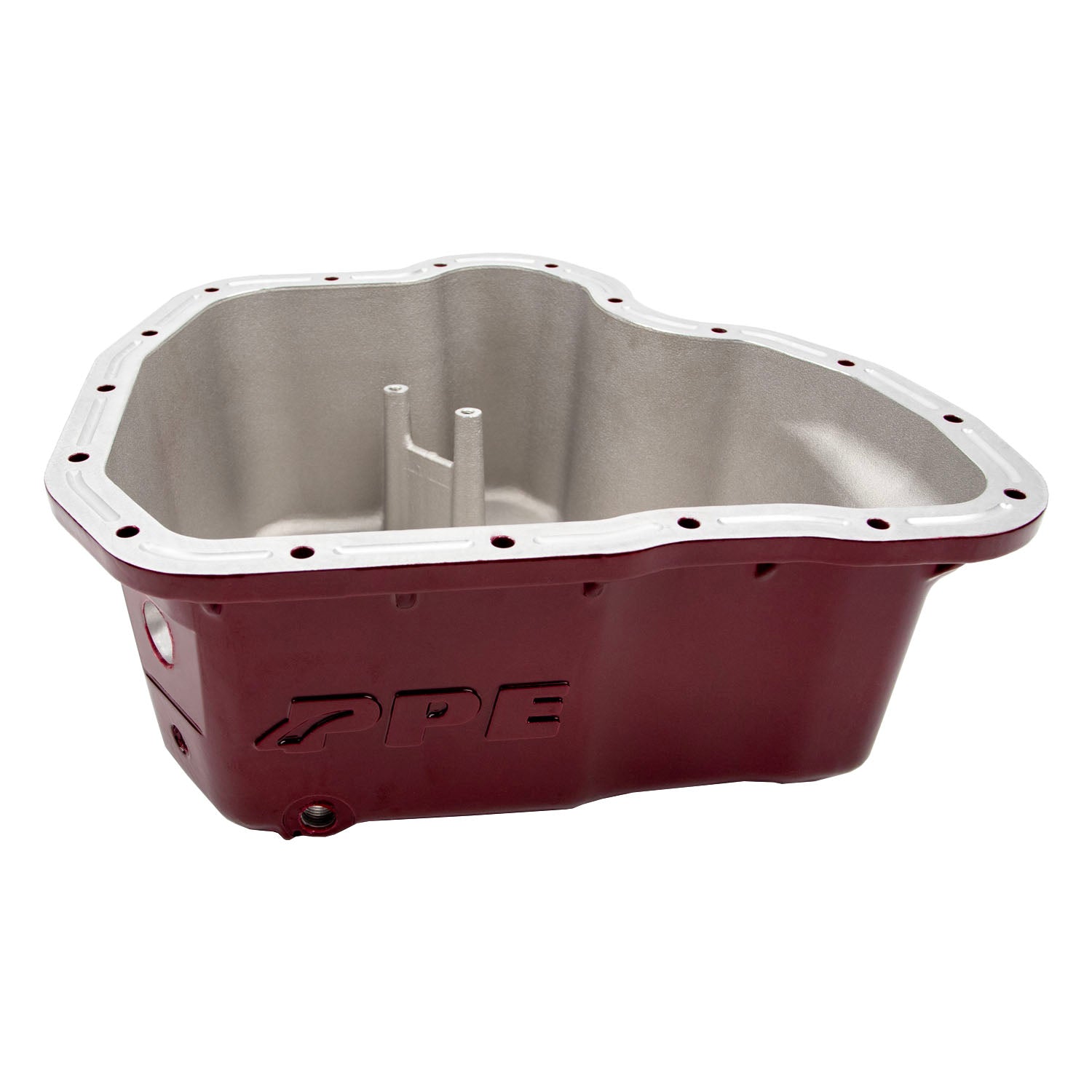

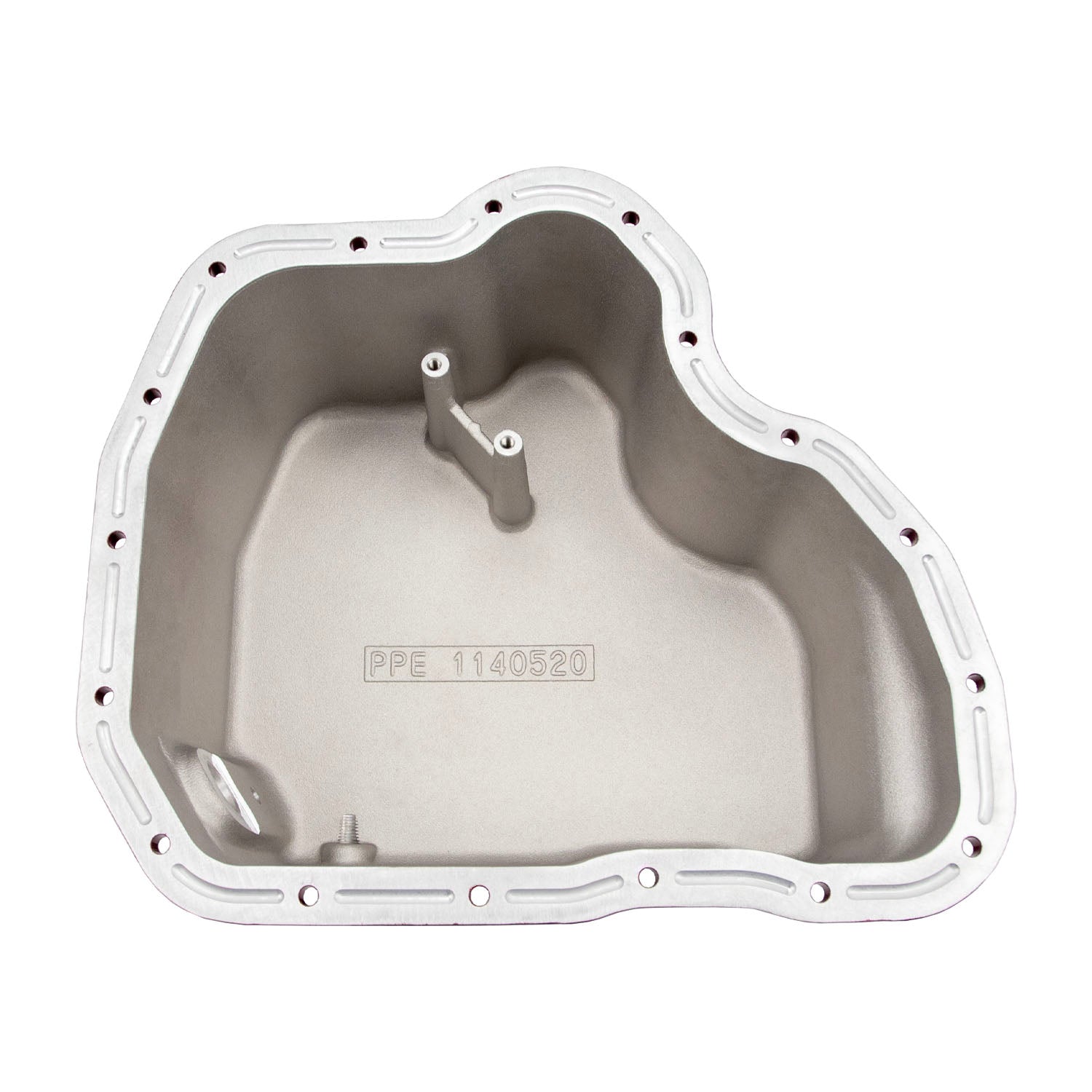

A cast aluminum high-capacity oil pan for the 2001-2010 LB7, LLY, LBZ and LMM Duramax, built by Wehrli with PPE. The factory stamped steel pan has a valley below the drain hole that traps more than half a quart of dirty oil every change. This pan has a flat bottom that drains completely, holds an extra quart, and gives you a magnetic drain plug and an NPT port for a temp sensor.

Cast from A356.0-T6 aluminum with thick walls you can drill and tap for an aftermarket turbo oil drain. The pickup area is unshrouded to keep oil pressure steady at high RPM. Ships with fasteners, NPT plug and a billet stainless neodymium magnet drain plug, powder coated in your choice of colour.

Part Number: WCF100131-BC

• Cast A356.0-T6 aluminum, flat bottom design that drains fully
• One extra quart of capacity over stock
• Magnetic billet stainless drain plug catches metal debris
• Unshrouded oil pickup holds oil pressure at high RPM
• 1/8" NPT port for a temperature sensor or accessory
• Thick walls can be drilled and tapped for a turbo oil drain
• Includes fasteners, pan, NPT plug and magnetic drain plug
• Custom powder coat finish
• Finish: Bronze Chrome powder coat

• Fits 2001-2010 LB7/LLY/LBZ/LMM. LML uses WCF100132, 2017-2019 L5P uses WCF100133, 2020+ L5P uses WCF100134.
