2001-2010 Duramax Stage 3 Leveling Kit w/ Bilstein Shocks (KR10STAGE3BIL)

Fits

Note: Trucks w/8 lug ONLY

The Kryptonite Stage 3 leveling kits are the easiest, safest, least expensive way to bring the front of your truck 2" closer to the rear. The forged torsion keys are fully adjustable, designed to grab the “FLAT” of the torsion bar for a tighter, sturdier fit, effectively increasing strength by 25% over OEM. Engineered to keep the factory ride quality, increase articulation, maintain geometry, and never add pressure on other suspension components.

There's an old saying in the automotive world: "Buy once, cry once." You'll never have to worry about replacing control arms again; even if you plan on running your truck into the ground, Kryptonite UCAs will never fail you. They are the heaviest-duty suspension components on the market. They are stiffer at low-speed articulation, however, you get unparalleled control and travel over any terrain, which is extremely beneficial for those who have larger wheels and tires.

Part Number: KR10STAGE3BIL

• Corrects the upper ball joint angle
• Corrects Front end alignment
• Forged Torsion Keys ( not cast)
• Uses factory-length shocks
• Provides up to 2" of lift
• Gives clearance to add up to 33" tires

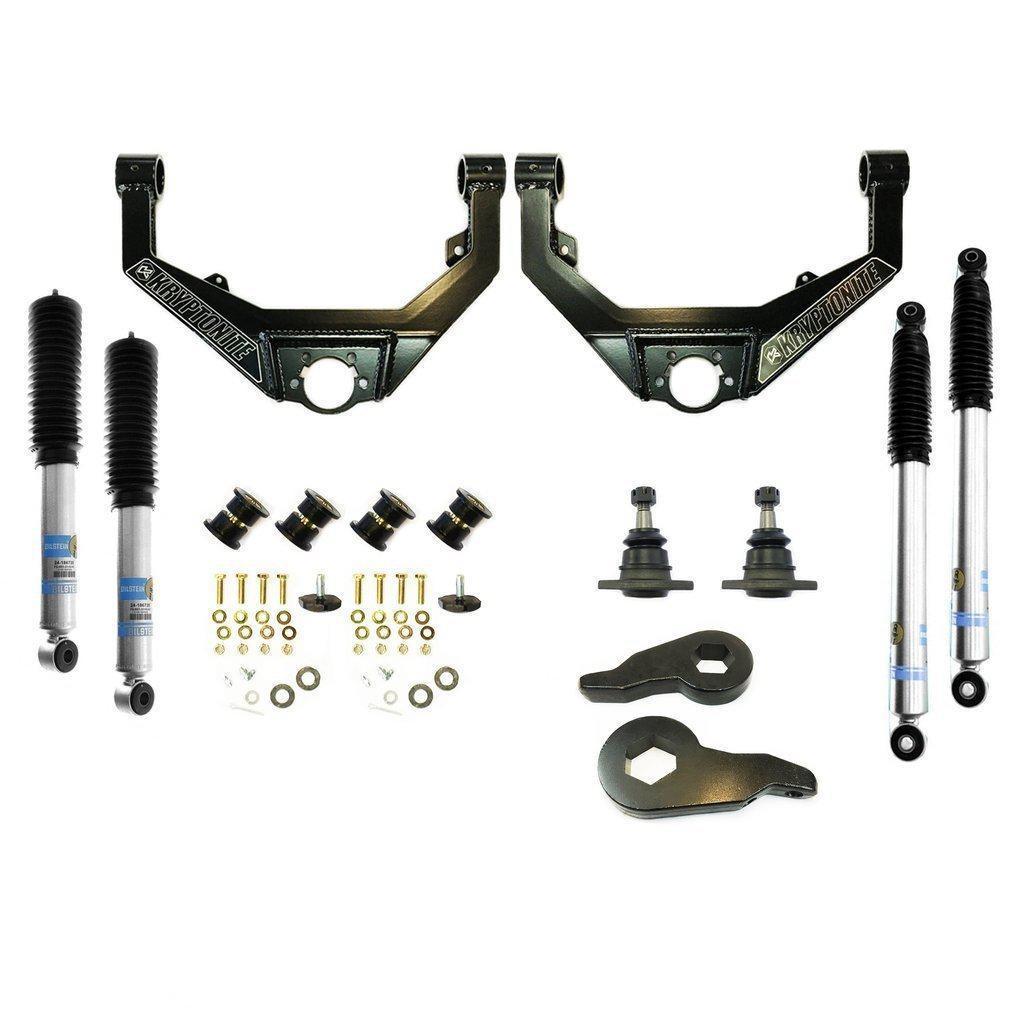

Includes:

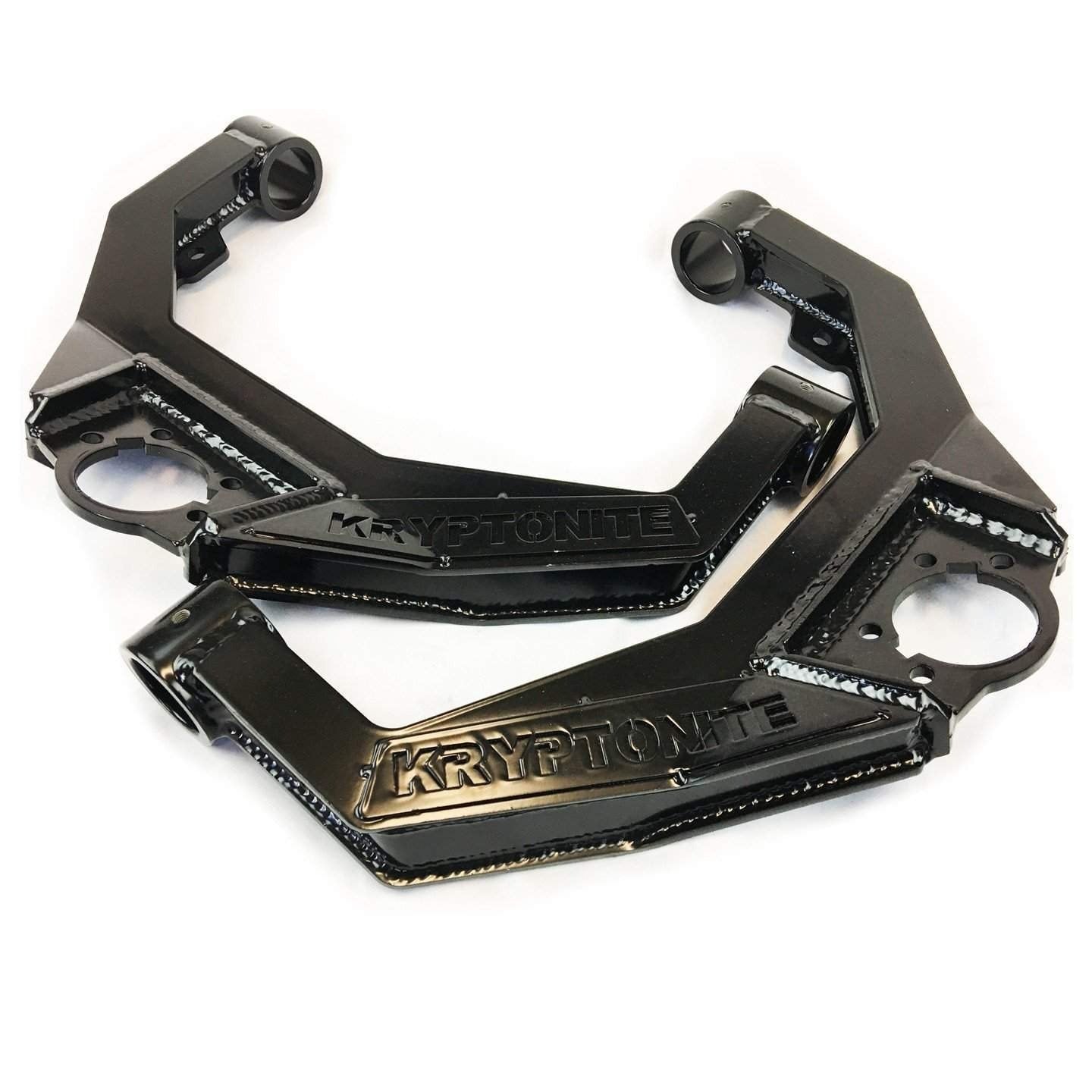

• 1 x Kryptonite Upper Control Arm Pair (KRUCA10)

• 4 x Control arm sleeves (KRUCA10)
• 8 x Control Arm Bushings (KRUCA10)
• 2 x Upper Bump Stops (KRUCA10)
• 2 x Kryptonite Bolt on Upper Ball Joints (KRUCA10)
• 1 x Hardware package (KRUCA10)

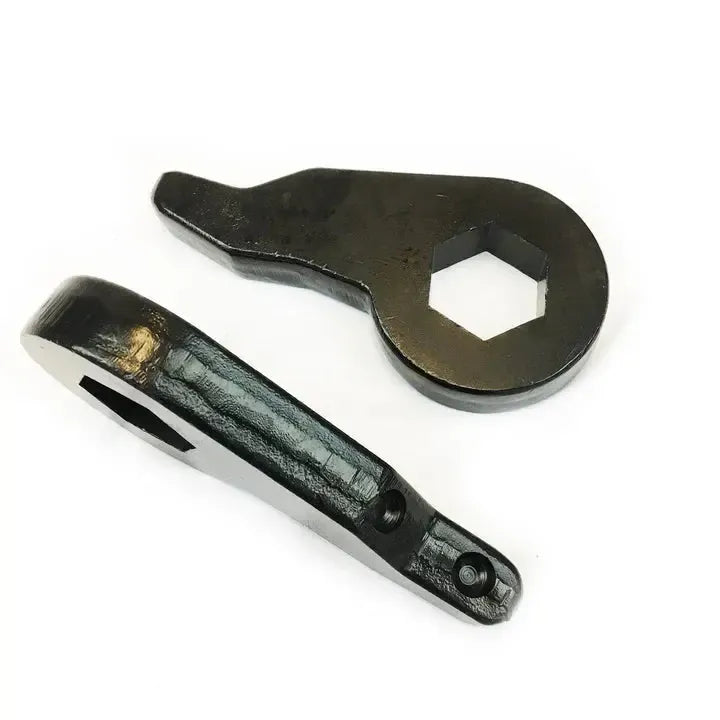

• 2 x Kryptonite Forged Leveling Keys (KRKEY10)
• 2 x Bilstein 5100 Part# 24-186735 (24-186735)
• 2 x Bilstein 5100 Part# 24-186742 (24-186742)

Optional Parts:

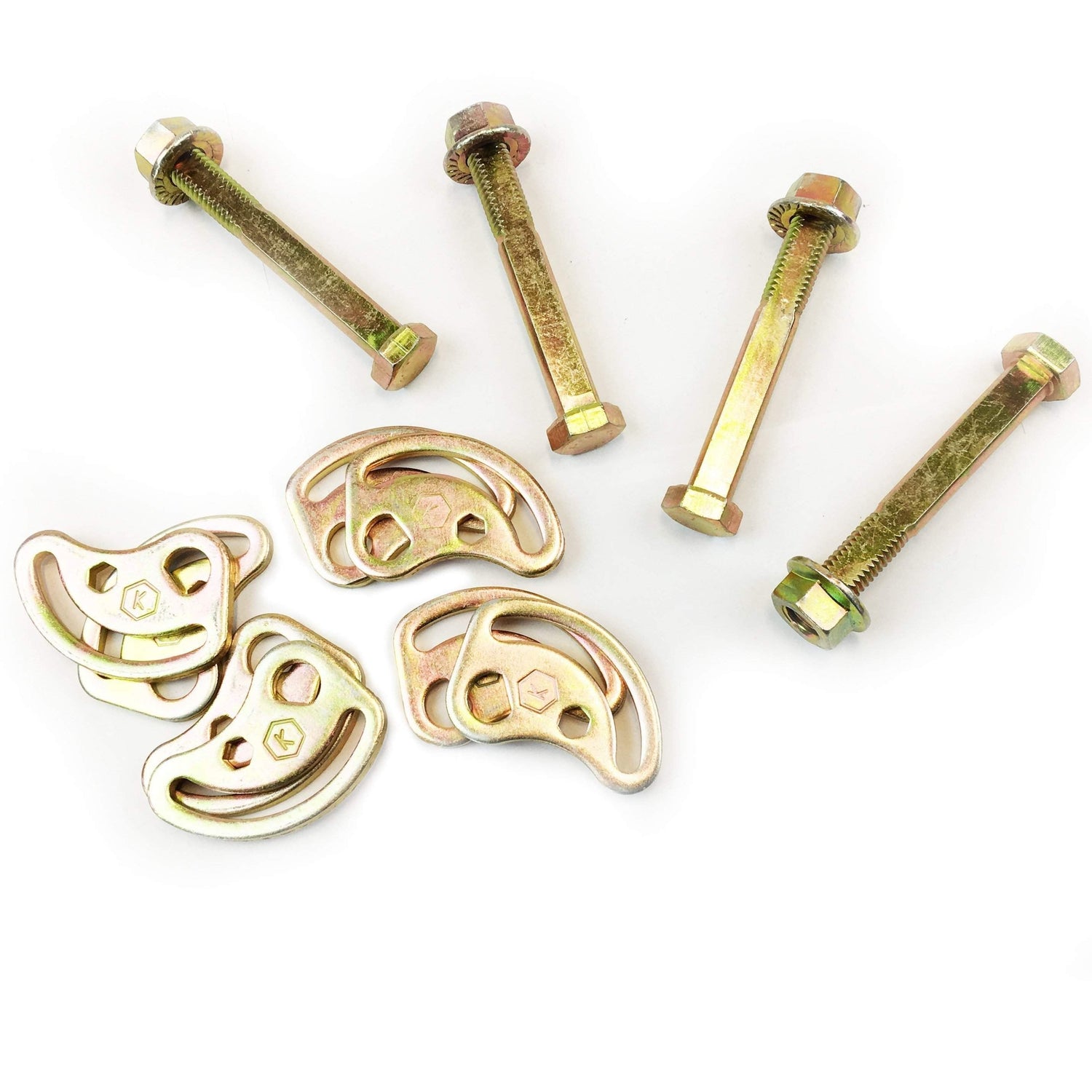

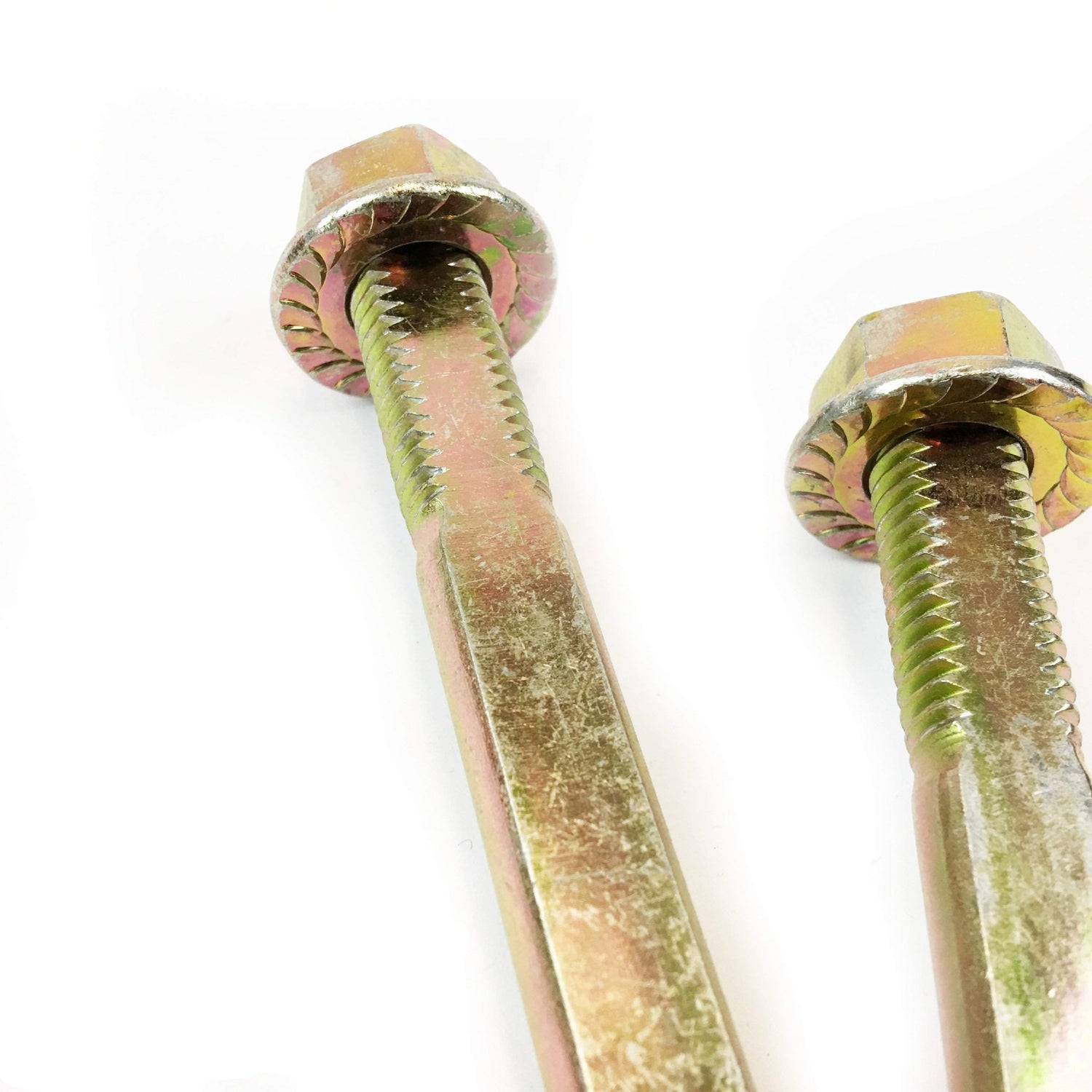

• 1 x Kryptonite Cam Bolt Kit Part Number: KRY-0026
  • The Kryptonite cam bolt kit is recommended to be replaced on trucks located in a harsh climate or on any truck with high miles. The easiest time to replace the cam bolt kit is when replacing the upper control arms. The kryptonite cam bolt kit will allow for an additional 1.5º to +1.5º of additional camber adjustment.

• The Cam Bolt Kit will Not Work with an Upper Control Arm drop lift kit. They will only fit if your Upper Control arms remain in the stock location.

• Click Here to view installation instructions
