2001-2004 Duramax 3" Y-Bridge S300/S400 Only, Gloss Black (WCF100615-GB)

3" high-flow Y-bridge for the 2001-2004 LB7 Duramax, built for custom S300 or S400 single turbo installs rather than as a factory replacement. It bolts to the OEM intake runners with a 3" bead-roll inlet, a 14-gauge aluminum neck and a TIG-welded billet center section and flanges, and comes gloss black powder coated.

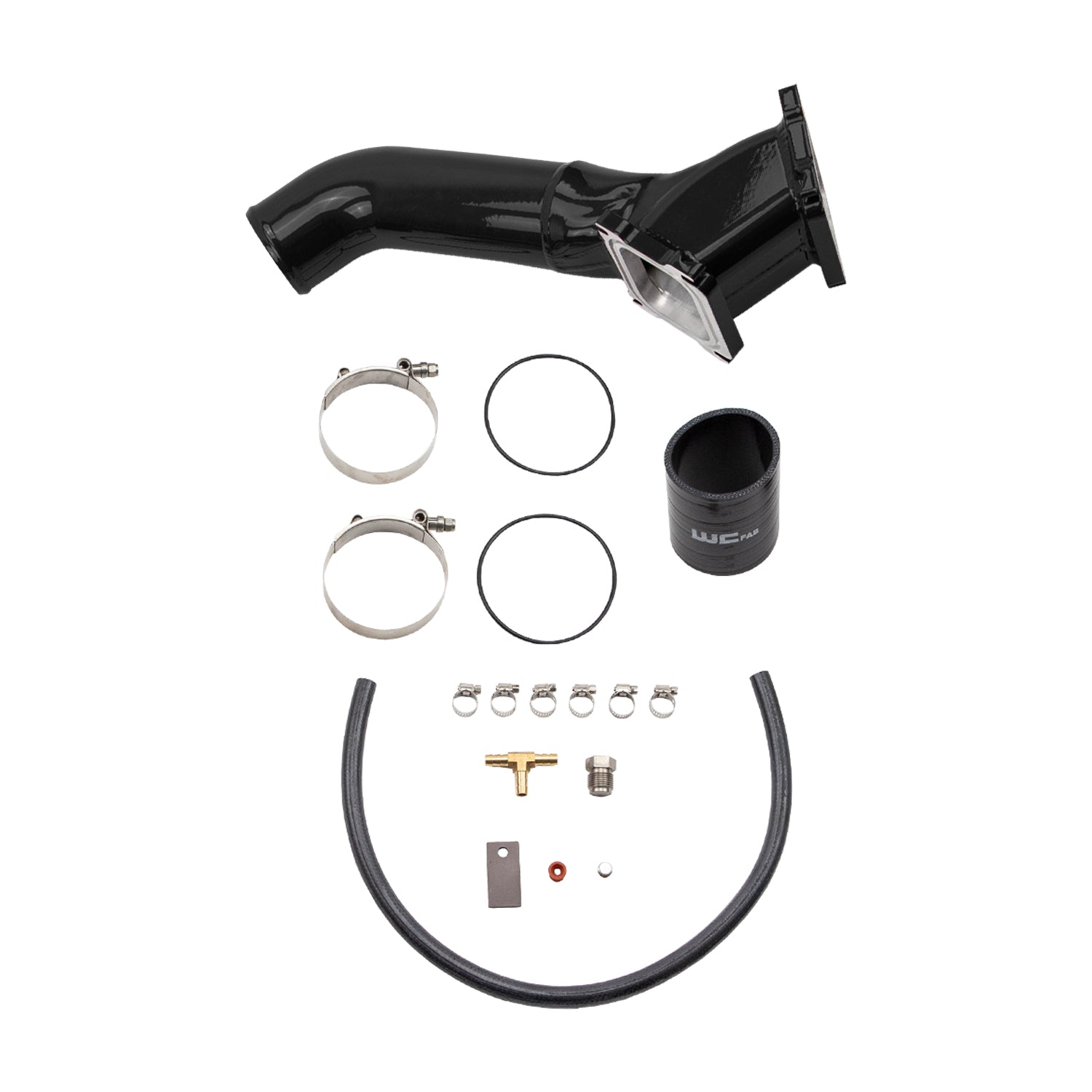

Includes the MAP sensor bung, bracket and seal, a 1/8" NPT accessory port, 3" silicone boot and stainless T-bolt clamps, new O-ring flange seals and an FPRV block-off kit for clearance to the fuel distribution block. Minimum T4 pedestal height is 5" with an S300 and 6" with an S400. Bridge only; the cold side pipe is not included.

Part Number: WCF100615-GB

• 3" high-flow Y-bridge for S300/S400 single turbo builds
• CNC machined billet aluminum center section and flanges, TIG welded
• 14-gauge aluminum neck with 3" bead-roll inlet
• Bolts to the OEM intake runners
• MAP sensor bung, bracket and seal, plus 1/8" NPT accessory port
• 3" silicone boot, stainless steel T-bolt clamps and new O-ring flange seals
• FPRV block-off kit included
• Gloss black powder coat
• Made in USA
• Finish: Gloss Black powder coat

• Bridge assembly only. Cold side intercooler pipe not included.
• Requires a minimum T4 pedestal height of 5" (S300) or 6" (S400) for clearance.
