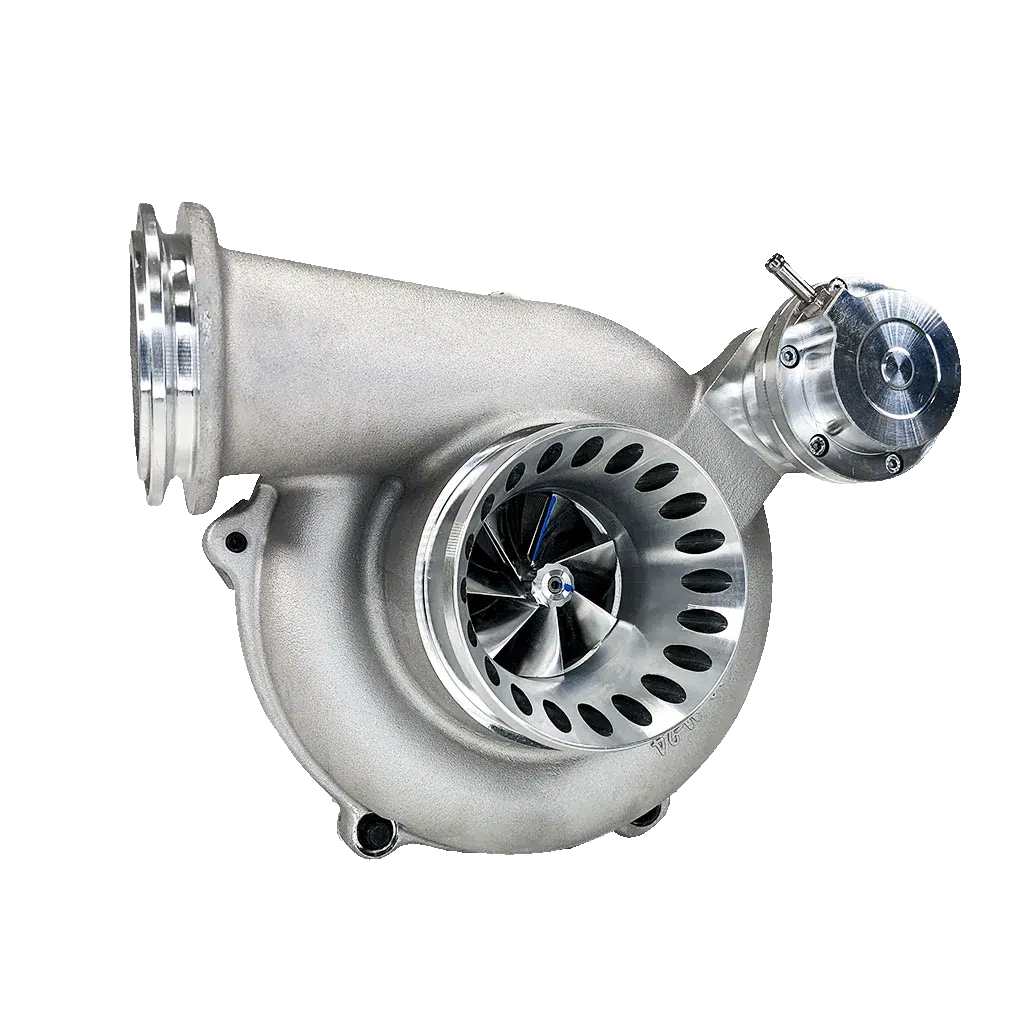

1999 Powerstroke Stage 2 KC38R Dual Ball Bearing Tiger Turbocharger (300393)

Fits

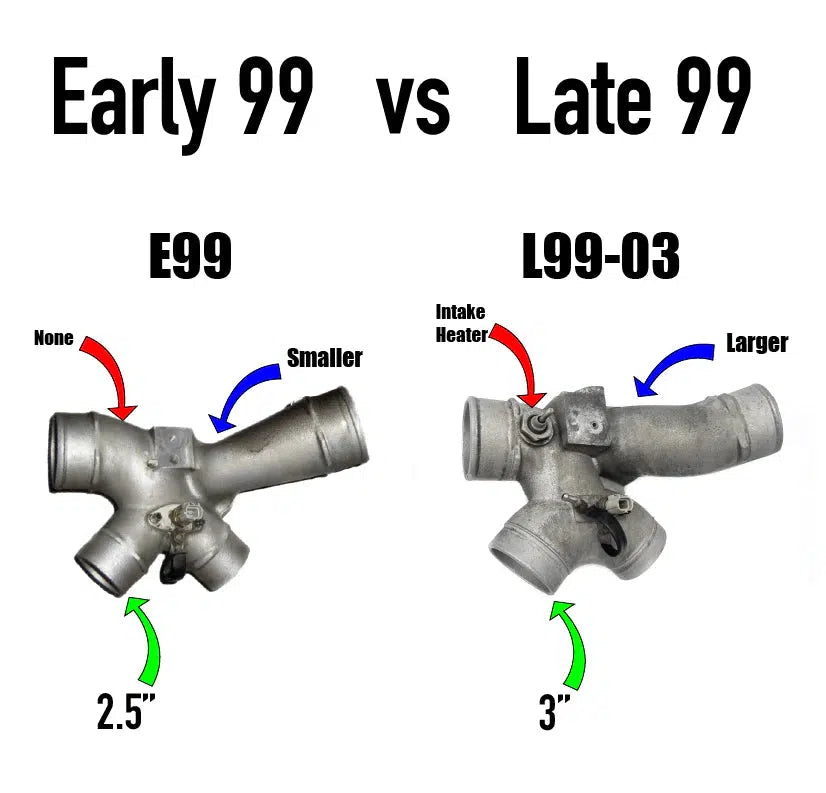

Note: Will NOT fit on Late 1999-2003 trucks

Supports: Up to 205cc/30% injectors

Due to the popularity of the KC38r Tiger Turbo for the 7.3L, KC Turbos has made a smaller version of the turbo for those running average-size injectors. The 63mm compressor wheel has been modelled after the 366SXE compressor wheel and maintains the same profile, shape, and blade style; however, it is drastically different. This 63mm wheel utilizes a larger, 7x7 wheel with extended tip technology, has thicker blades, a thicker hub, thicker backing, and is reverse rotation. Combine these features and you receive a bigger, stronger wheel, making it much less prone to fatigue and wheel burst. The turbine wheel has also increased in size from the old 70mm to a whopping 74mm. While they were at it, KC turbos also increased the shaft thickness from 6.4mm to 7.5mm.

Part Number: 300393 / 300384

• 0.84 Turbine housing
• 4" ported housing with drilled hole anti-surge for high flow
• 63mm 7x7 SXE style compressor wheel with extended tip technology
• 73mm SXE style turbine wheel
• Big Head Waste-gate Actuator for elevated boost control
• High Flow deleted EBPV outlet flange
• Dual Ball Bearing turbo (rebuildable in the factory)
• 100% drop in turbo (no mods required)
• Comes with all gaskets and o-rings to install

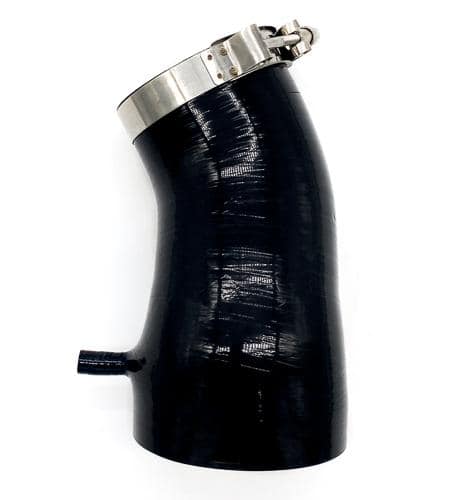

• Comes with new 4" intake boot

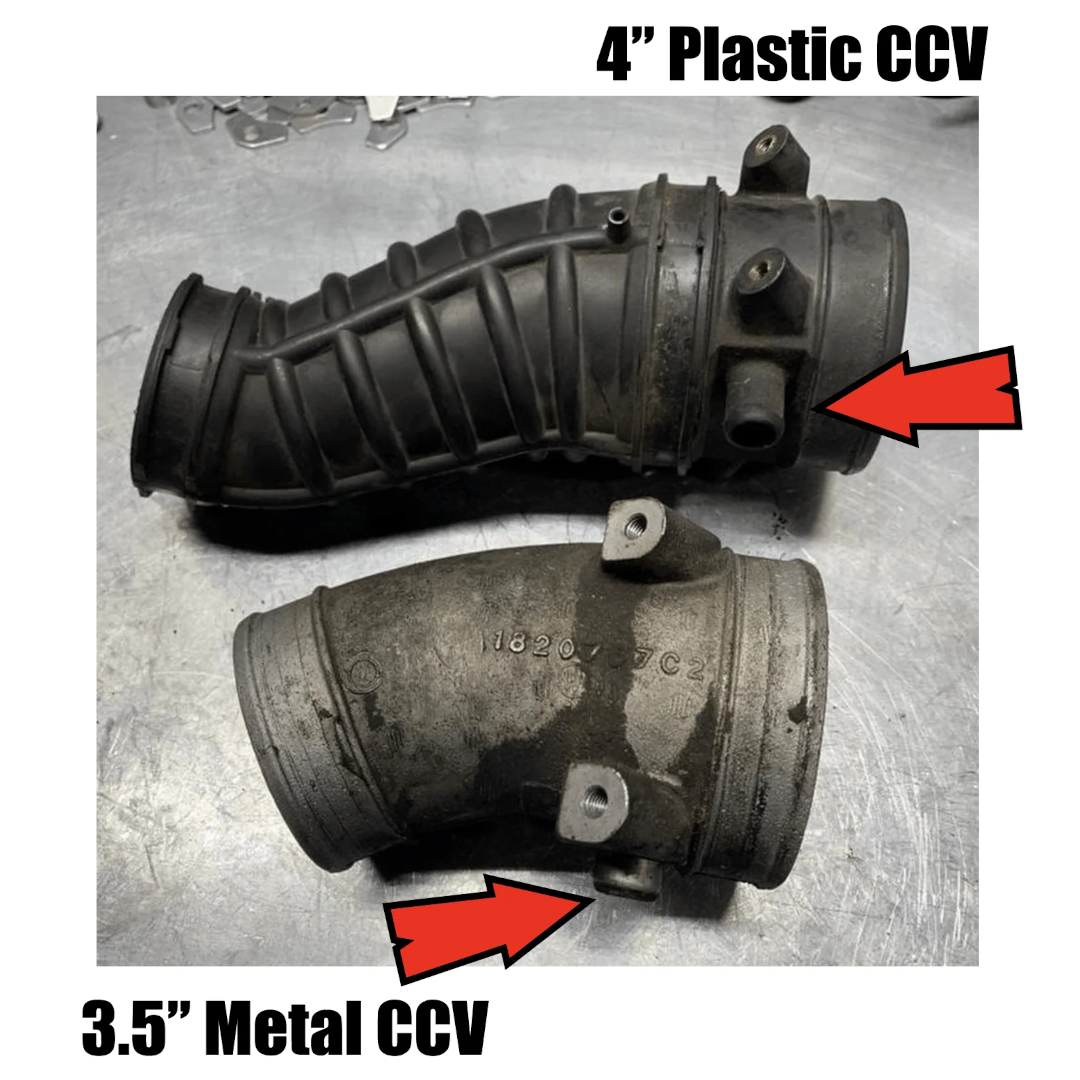

• If you have a Plastic CCV OR CCV Mod, Please E-mail us your order number as well as the type of CCV you have. This will affect the type of boot sent with the turbo.
• These turbos come with a standard finish unless specifically requested. You can add a polished/custom color cover for an additional fee.
• Recommend adding these products for best results
• Upgrading your Up-Pipes
• Upgrading EBPV Pedestal
• Running custom tuning
• EXHAUST BRAKES: Do exhaust brakes work with KC turbos? KC Turbos has found that some brands have clearance issues and might cause the brake to hinder performance, rub the turbine wheel, or cause other issues.  These brakes typically use some sort of flapper to close which causes extreme exhaust back pressure to aid in braking.  This can be hard on a turbo and motor and is not recommended.  It will be up to the customer to verify fitment and functionality.
• KC turbos are designed to fit directly in 7.3 equipped pick-up trucks. Although KC turbos can drop into 7.3 equipped Vans, you will need to modify the turbo intake boot and down-pipe for proper fitment.
