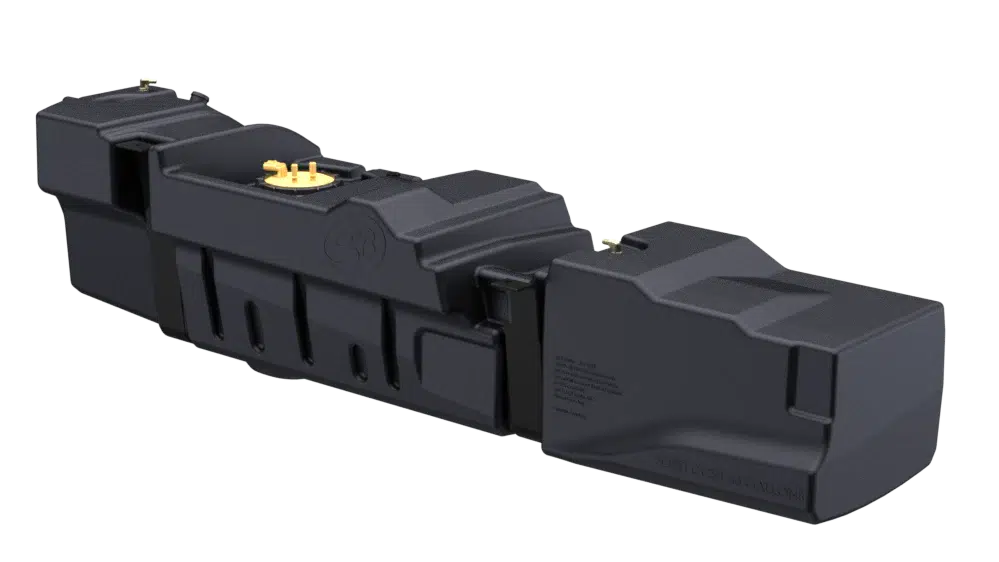

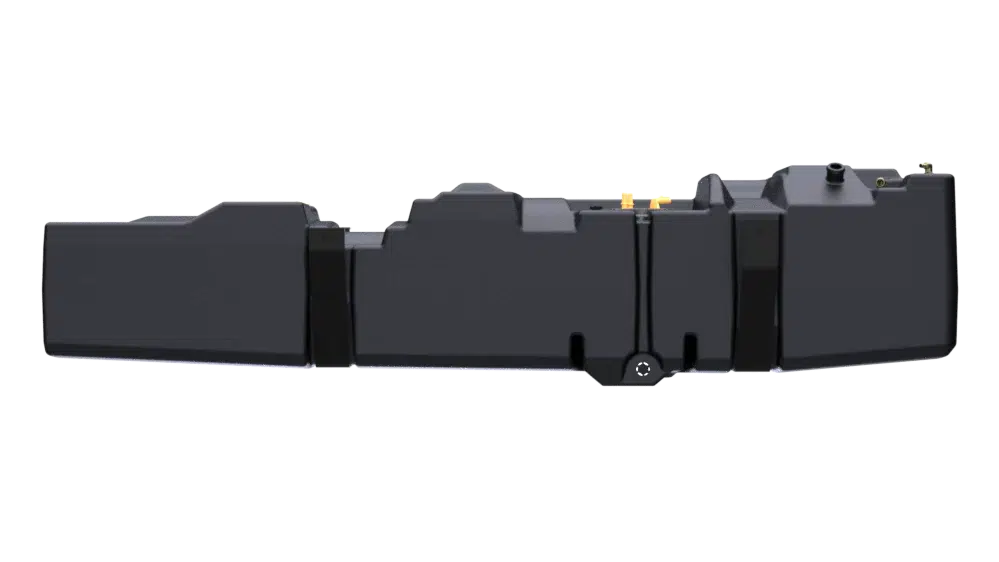

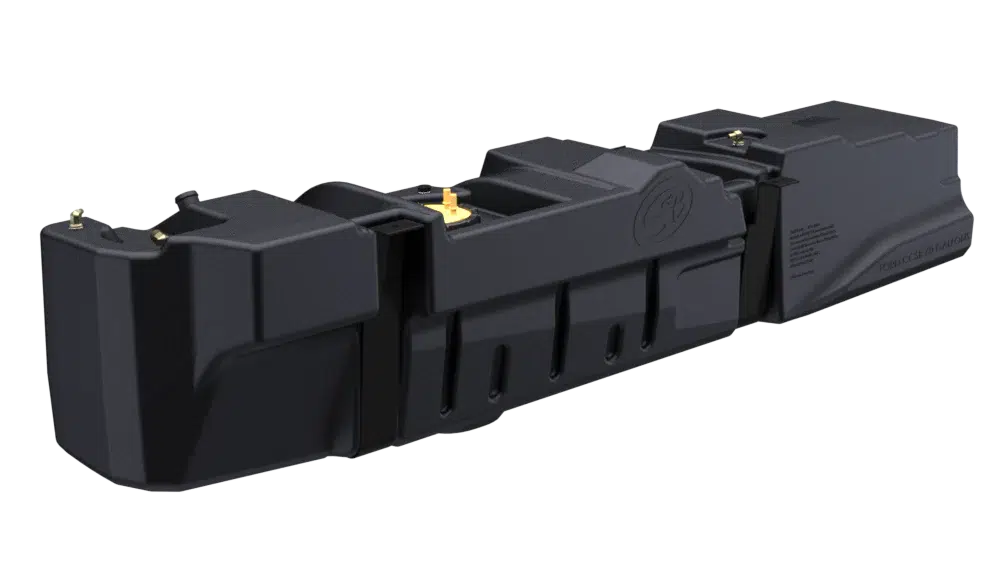

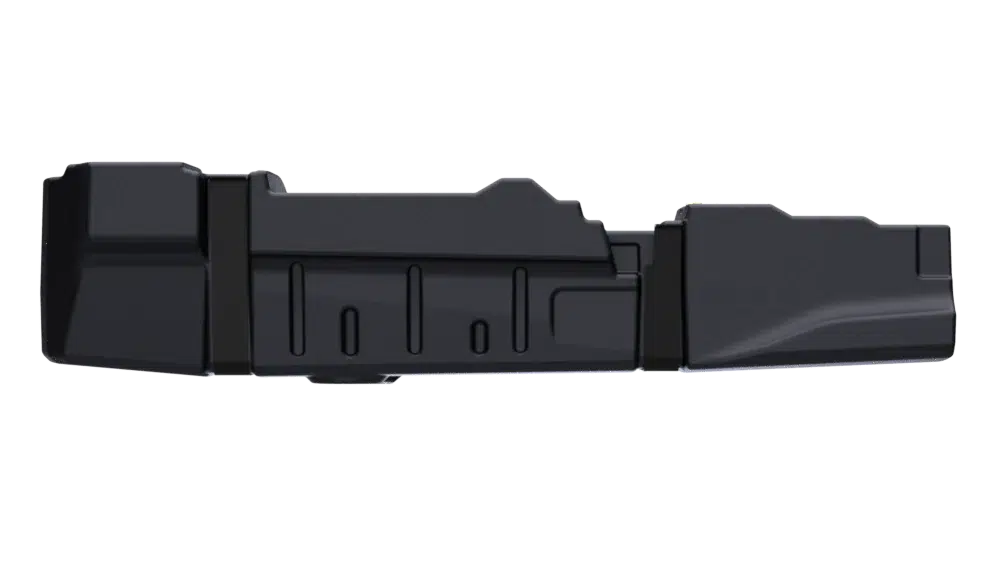

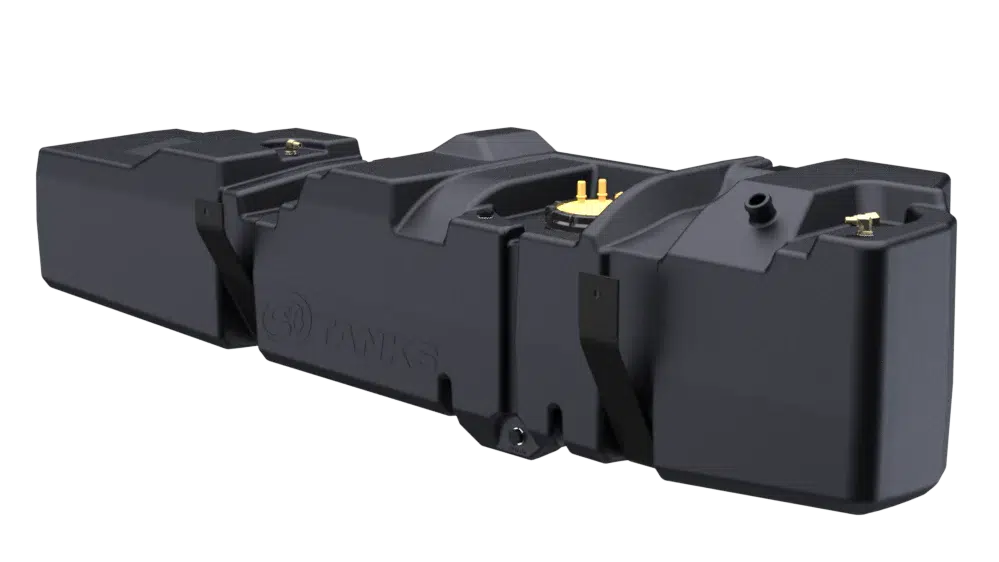

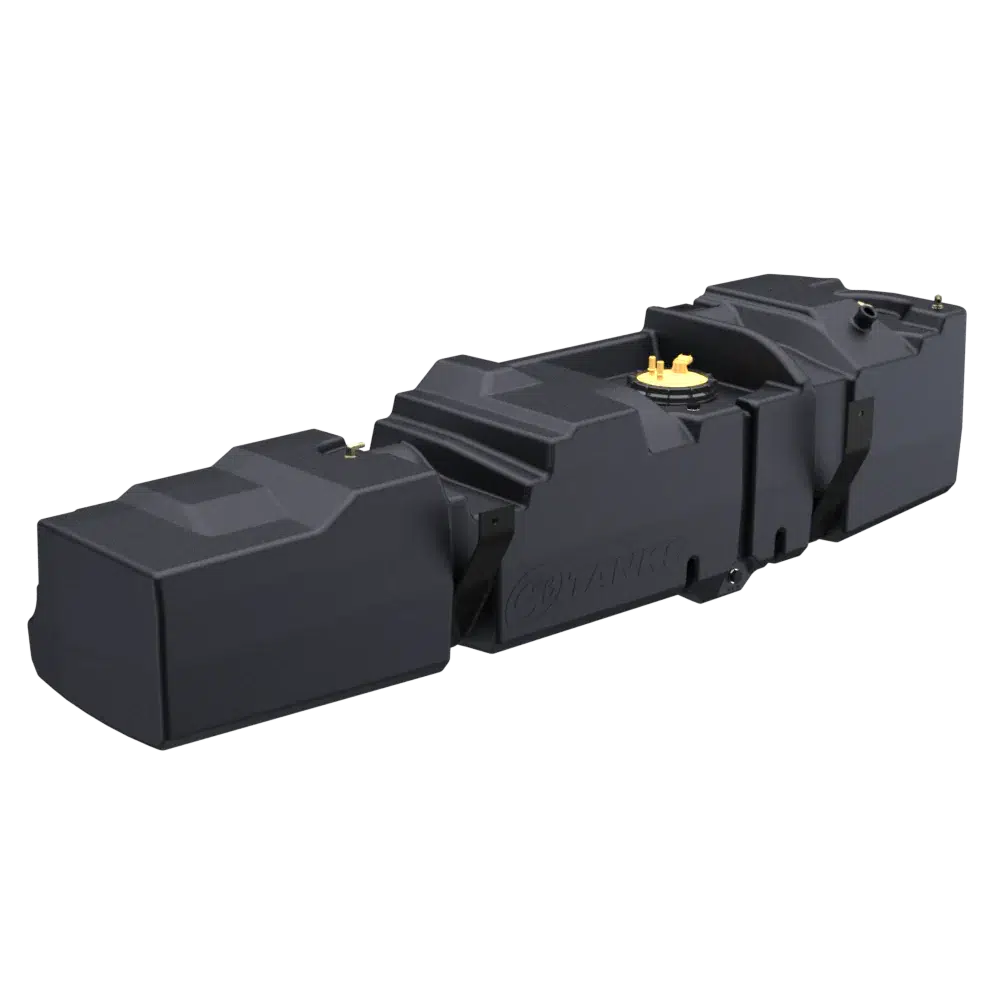

1999-2007 Powerstroke S&B 60 Gallon Replacment Fuel Tank (CC-SB) (10-1011)
Purchase to earn 1673 Dirty Dollars Learn More
Description
Description
Fits
| Year | Make | Model | Engine |
| 1999-2007 | Ford |
F-250/F-350 Crew Cab Short Box |
7.3L/6.0L Powerstroke |
This tank holds approximately 60 gallons of fuel, that's 9 more gallons than competitor tanks and 29 more than OEM! The float's empty position in the S&B Tank is the same as the OEM tank. Since the bottom surface area on the S&B Tank is larger, the 60-gallon tank has a greater fuel reserve.
This tank features a built-in sump which can be used for aftermarket lift pump installation if desired. S&B recommends aftermarket lift pumps be installed according to the pump manufacturer's instructions only. The S&B sump will not cure typical "1/4 tank issues" common with aftermarket lift pumps.
Part Number: 10-1011
Features
Features
- 60 gallons capacity (approx.) compared to 29 gallons OEM capacity
- Ground clearance compared to OE tank 2.9" lower than stock
- Dry weight 45lbs
- Sump
- Drain
- OE sending unit
- Straps included
- Compatible with gooseneck and 5th wheel

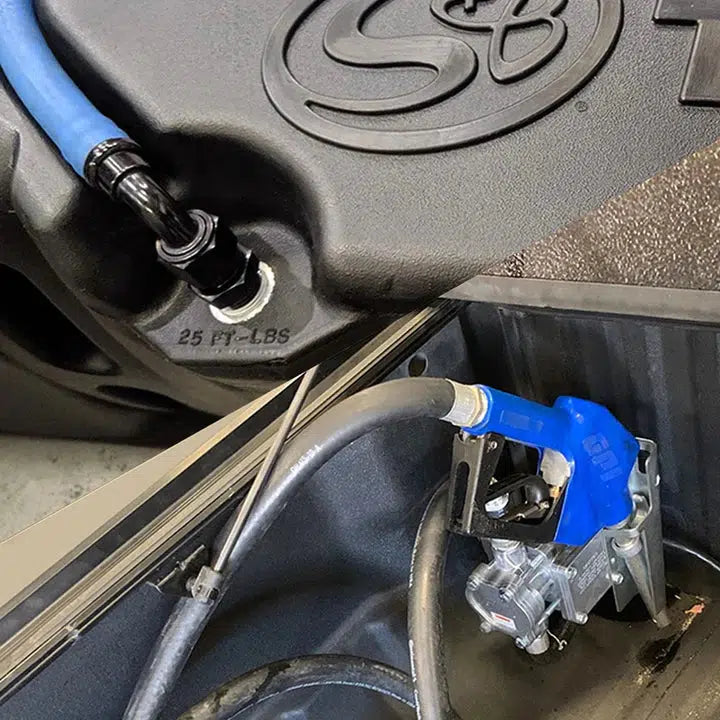

- Transfer pump ready
- Embedded fitting thread size 1/2" NPT
- Dimensions 79:x17.37"x19.37"
Notes
Notes
-
The nozzle at high-flow fuel stations(truck stops) will not be able to fill automatically. This tank holds approximately 60 gallons of fuel. The float's empty position in the S&B Tank is the same as the OEM tank. Since the bottom surface area on the S&B Tank is larger, the 60 Gallon tank with have a greater fuel reserve.
-
If your truck has the V shaped crossmember connected to the carrier-bearing crossmember(see important note in instructions), the S&B Tank will not fit with this in place.
-
S&B Sump Fittings/Drain Plug fittings are required when using our sump feed/return port or after drilling out the bottom port to use as a drain. Fittings are under related products.
Warranty
Warranty
Diesel Fuel Tanks
S&B replacement fuel tanks have a lifetime limited warranty for the original purchaser. If there is a problem with an S&B tank related to defect, materials or workmanship, S&B will replace it. All terms of the S&B Million Mile Limited Warranty also apply to S&B fuel tanks. Damage to an S&B fuel tank resulting from improper installation or use will not be covered by this warranty.
Videos
Videos
Questions and Answers
Questions and Answers
Previously asked questions
We've compiled a list of questions and answers below.
Don't see your question? Ask us anything about this product.
Ask a Question-
What is the "sump" ? Is the whole 60 gallons going to get used by the truck or does the sump hold some from being used? What all is needed to complete the install. I own a 2000 f250 crew cab short bed 7.3
The sump helps prevent fuel starvation by keeping fuel at the pickup point, especially when running at low fuel levels. The sump design allows for nearly all of the 60 gallons to be used, but there may be a small amount that remains (typically 1-2 gallons). OEM sending unit is reused, fuel tank straps (included in kit), and then standard tools to do the job.
