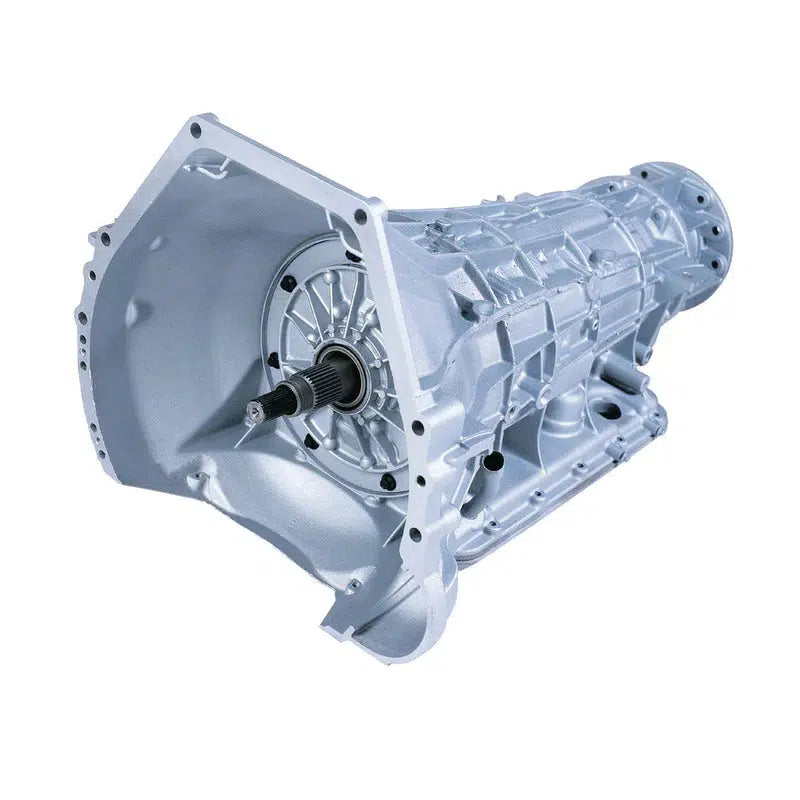

1999-2003 Powerstroke Towmaster 4R100 Transmission (2WD, PTO) (1064442FPTO)
Purchase to earn 6362 Dirty Dollars Learn More
Description
Description
BD's stock 4R100 is built to handle stock engine output, featuring an HD transmission pan & most packages come bundled with BD's auxiliary transmission filter kit for added protection!
Part Number: 1064442FPTO
Features
Features
- Increase the durability of your drivetrain
- BD aluminum HD deep pan, increases oil capacity by 6qt
- Re-calibrated accumulator body
- Quicker, firmer shifts
- Full shift kit with line mod valve to increase pressures
- Increased pressure to converter
- Added lube circuits to OD planet
- Added lube and support to output and intermediate shafts
- Drilled and tapped direct and intermediate feeds to prevent leaks at case
- Upgraded OD snap ring
- Machined center support
- Reworked front pump
- Fully rollerized geartrain
- Clutch Count: COAST CLUTCH 2
- Clutch Count: FORWARD 5 (25% increase over stock)
- Clutch Count: DIRECT 5
- Clutch Count: LOW REVERSE 7 (17% increase over stock)
- Clutch Count: INTERMEDIATE 4 (33% increase over stock)
- Clutch Count: OVERDRIVE 4 (33% increase over stock)
- Each transmission is dyno tested

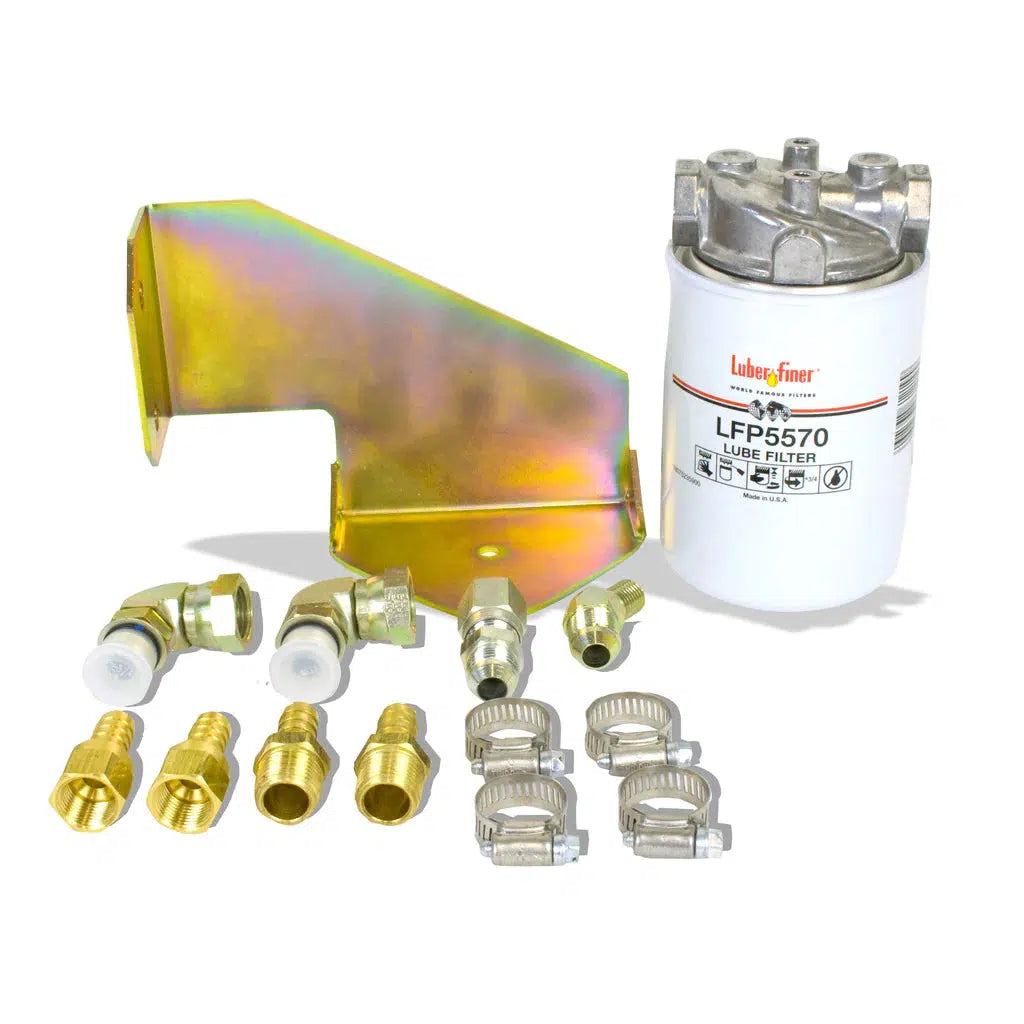

- 1990-2003 include auxiliary frame mounted full flow filter kit
- OEM equipt transmission mounted PTO
Notes
Notes
- NOT FOR USE WITH 4:88 OR HIGHER GEAR RATIO
- Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
Installation
Installation
Warranty
Warranty
Parts Only - No race abuse covered
- 36-Months
- 150,000
- BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty.
