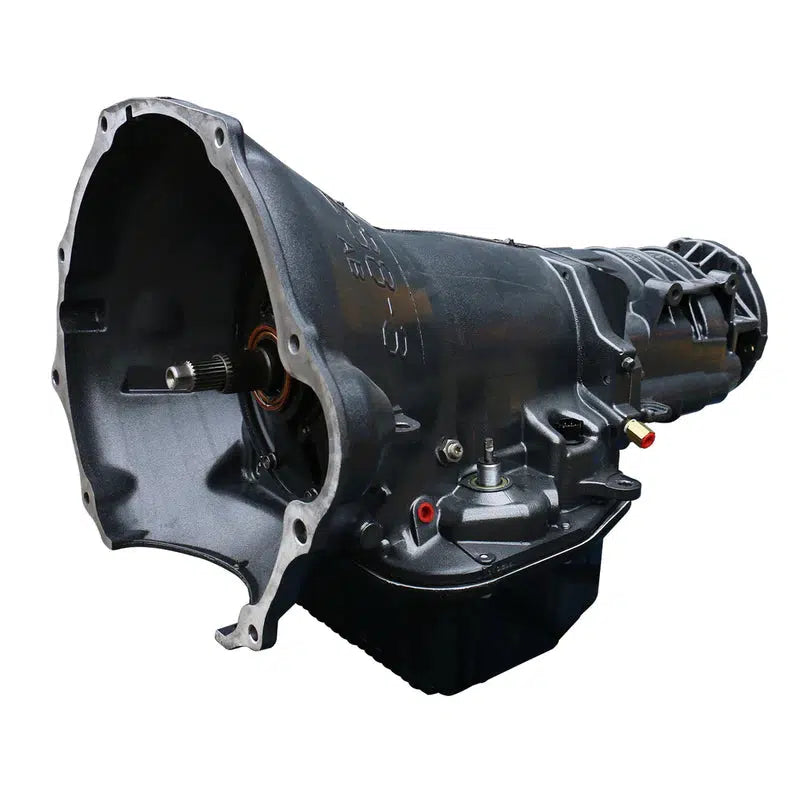

1998.5-1999 Cummins 47RE Towmaster Transmission (4WD) (1064174F)

BD Diesel Part Number: 1064174F
$5,899.00 CAD

Additional Refundable Core Deposit Required of $2,400.00 CAD.

Purchase to earn 5899 Dirty Dollars Learn More

Description

Fits

 Year Make Model Engine
1998.5-1999 Dodge Ram 2500/3500 4WD 24V 5.9L Cummins

Upgrade your drivetrain's durability with a BD transmission - because the stock transmission can only handle so much. Get a boost from BD's heavy-duty transmission pan and auxiliary filter kit for added protection!

Part Number: 1064174F

Features

  • Increase the durability of your drivetrain
  • Stock thrust bushings replaced with roller Torrington bearings
  • Every transmission is tested on a dyno
  • Upgraded Valvebody

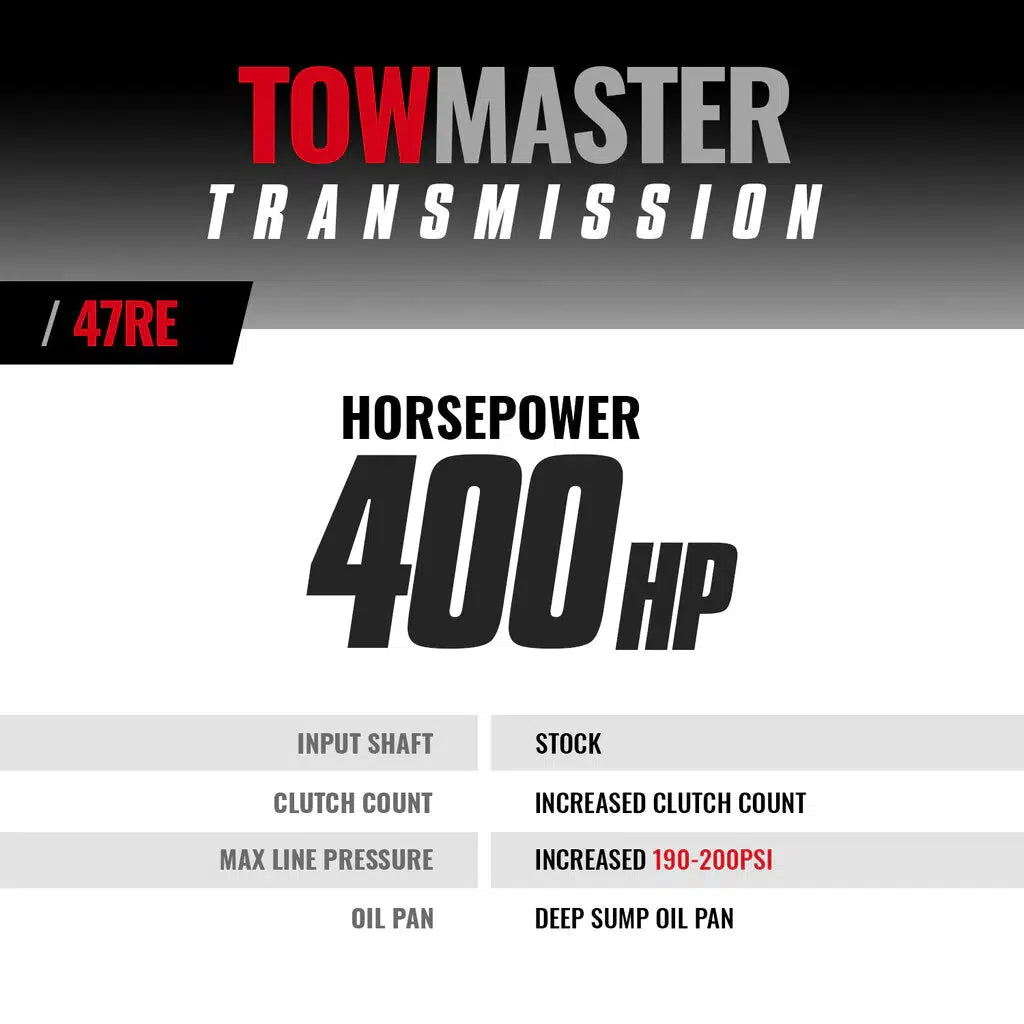

  • Increased line pressure to 190-200psi
  • No shuttle shifting problems
  • Drilled intermediate shaft for increased lubrication
  • Modified manual valve for lube in all positions
  • Billet barrel strut
  • Billet band lever
  • Clutch Count: OD 6
  • Clutch Count: OD DIRECT 10
  • Clutch Count: DIRECT 6
  • Clutch Count: FORWARD 5
  • High temp/energy Raybestos band
  • Upgraded governor pressure transducer (47RE/48RE)
  • Upgraded governor solenoid - Twice the burst pressure than stock
  • Upgraded 48RE sunshell
  • Cooler line case saver in every transmission

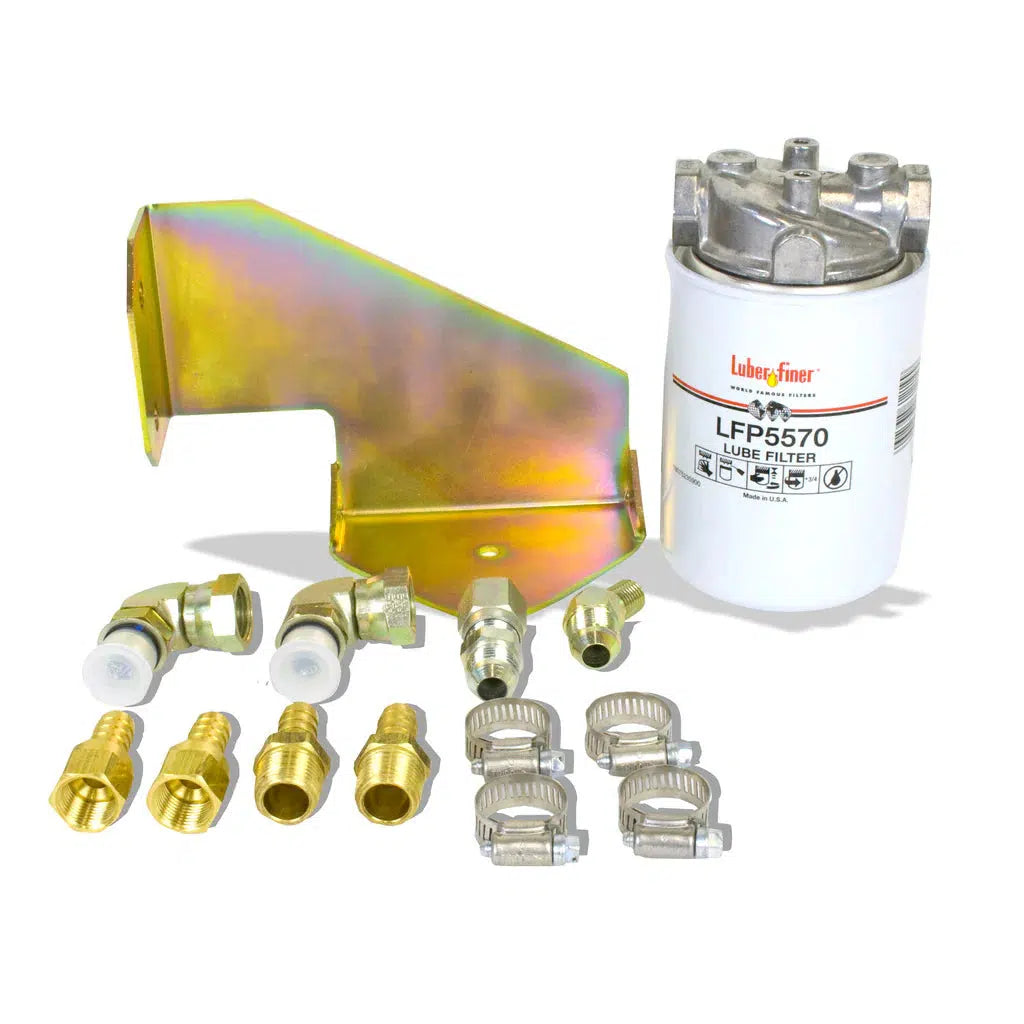

  • BD auxiliary full flow filter kit for extra protection
  • BD rigid aluminum heavy duty transmission pan
  • Pan heat-dissipating fins keep temperature down
  • Magnetic drain plug
  • Pan adds 2qt extra oil capacity
  • Not warranted for Race or Sled Pull use

Installation

Notes

  • Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.

Warranty

Parts Only - No Race abuse or Sled Pull covered

  • BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty.
  • 36-Months
  • 150,000 Miles
