1994-1998 Powerstroke KC Stage 3 TP38R Tiger Turbocharger (300277)
Purchase to earn 3205 Dirty Dollars Learn More
Description
Description
Fits
| Year | Make | Model | Engine |
| 1994-1998 |
Ford |
F-Series | 7.3L Powerstroke |
Supports: Up to 238cc/80% injectors

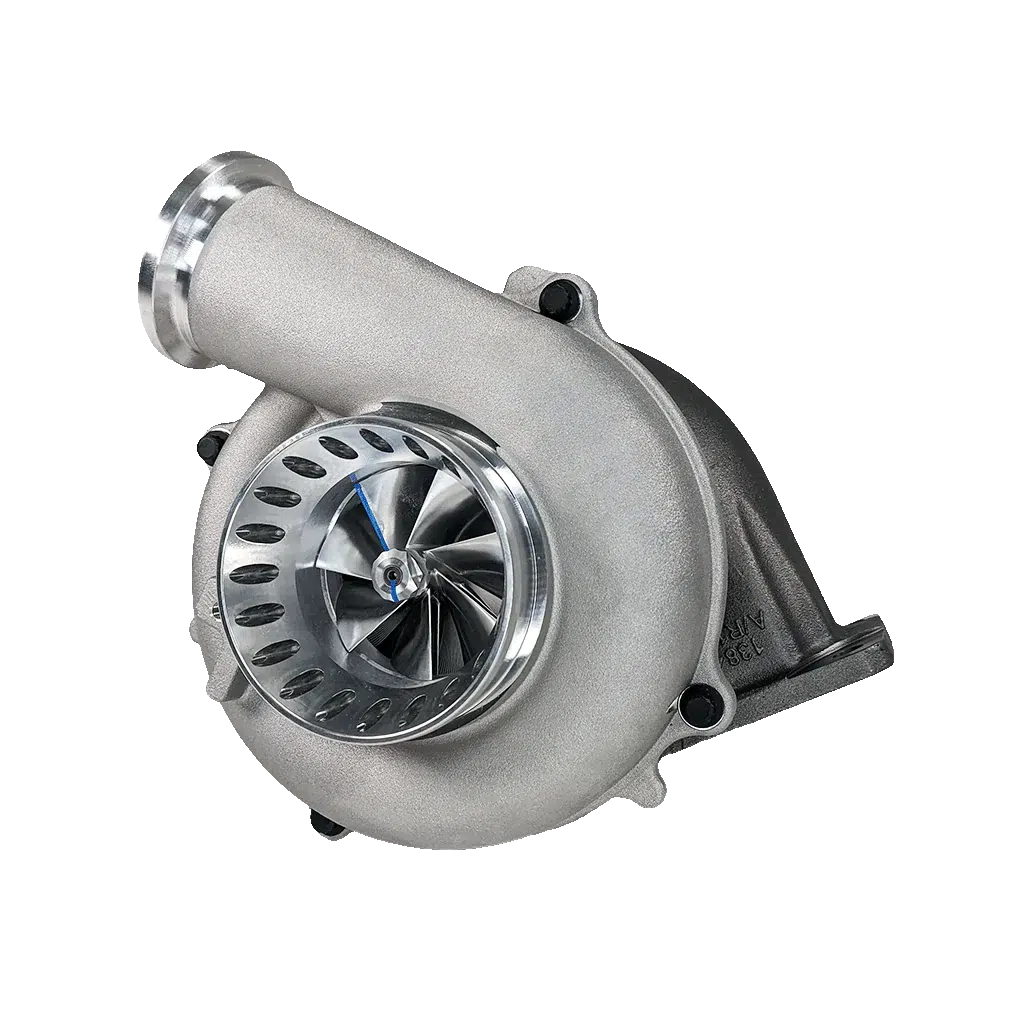

Due to the popularity of the TP38R turbo for the OBS-style trucks, KC Turbos has made a smaller version of the turbo for those running average-size injectors. Also known as the OBS Tiger turbo, this KC Turbos TP38r Turbocharger has a drastically different Compressor Wheel. Modeled after the 366sxe compressor wheel, it utilizes a larger 7x7 wheel that maintains the same profile, shape, and blade style; however, it now has thicker blades, a thicker hub, and thicker rear webbing, and it is in reverse rotation. The turbine shaft thickness has also been increased from 6.4mm to 7.5mm for enhanced durability and longevity.
KC Part Number: 300277
Features
Features
- 3.5" ported housing with drilled hole anti-surge for high flow
- 66mm 7x7 SXE style compressor wheel with extended tip technology
- 73mm SXE style turbine wheel
- High Flow deleted EBPV outlet flange
- Dual Ball Bearing Turbo
- 100% drop-in
- Comes with all gaskets and o-rings to install

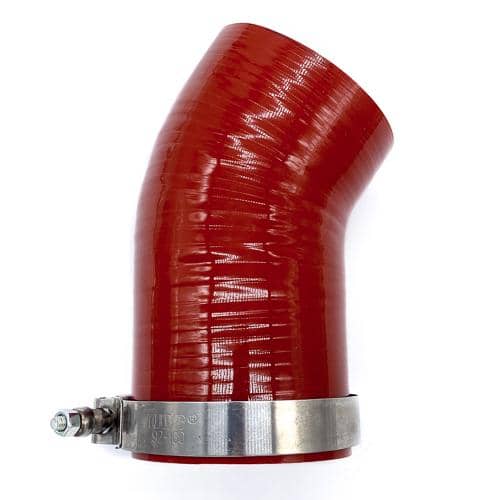

- Comes with new intake boot
Notes
Notes

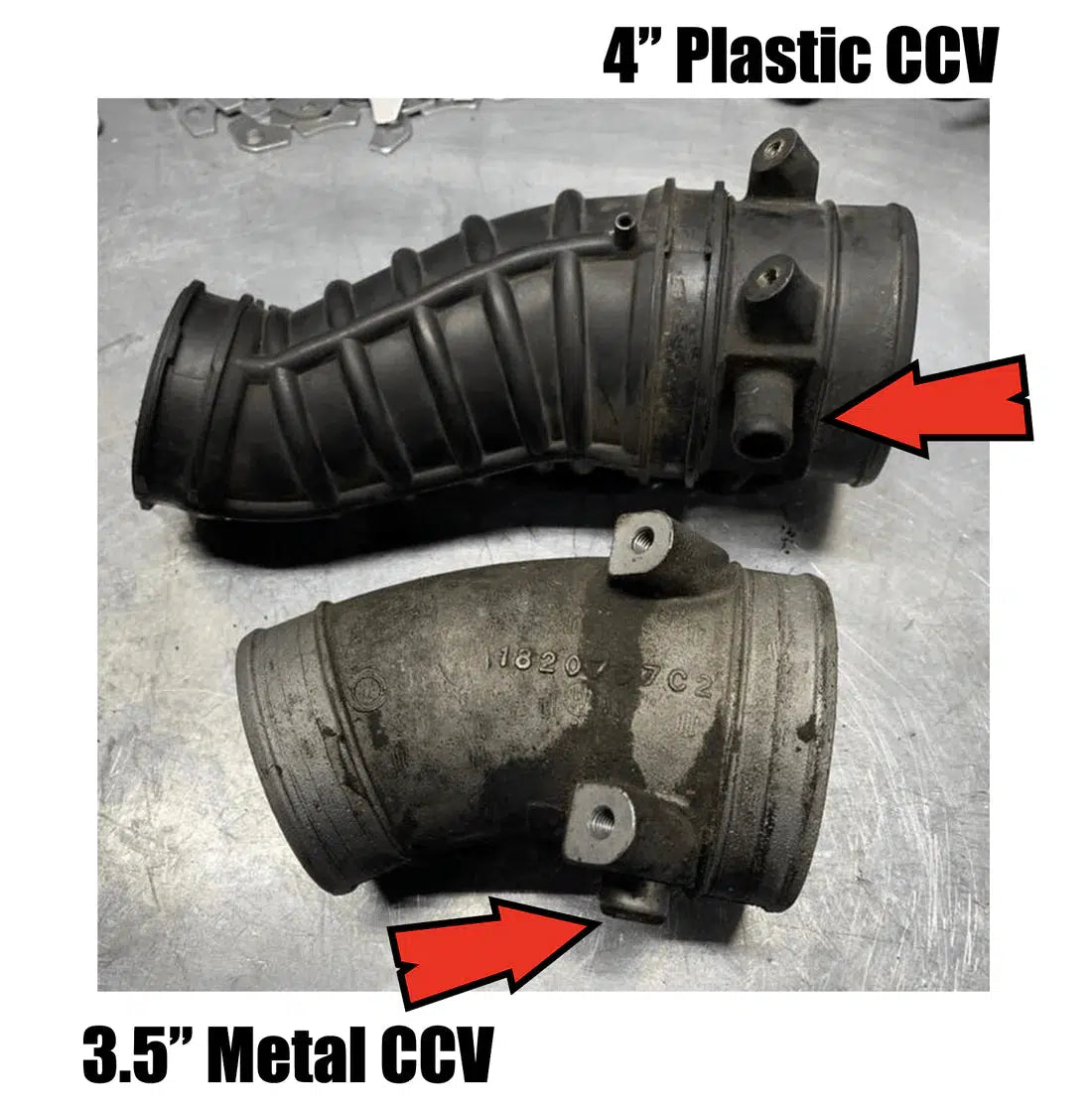

- Please select your truck CCV when ordering
- KC Turbos highly recommends adding these products for best results
- Upgrading your Up-Pipes
- Upgrading EBPV Pedestal
- Running custom tuning
Questions and Answers
Questions and Answers
Previously asked questions
We've compiled a list of questions and answers below.
Don't see your question? Ask us anything about this product.
Ask a Question-
What it's the highest stage I can go with stock injectors
Stock injectors limit you to ~300HP. This Stage 3 TP38R is too large for stock fuel. Stage 1.5-2 turbo would yield the best results if keeping stock injectors.
