1981-1987 GM Square Body Duramax Swap Intercooler & Radiator Kit (WCF100201)

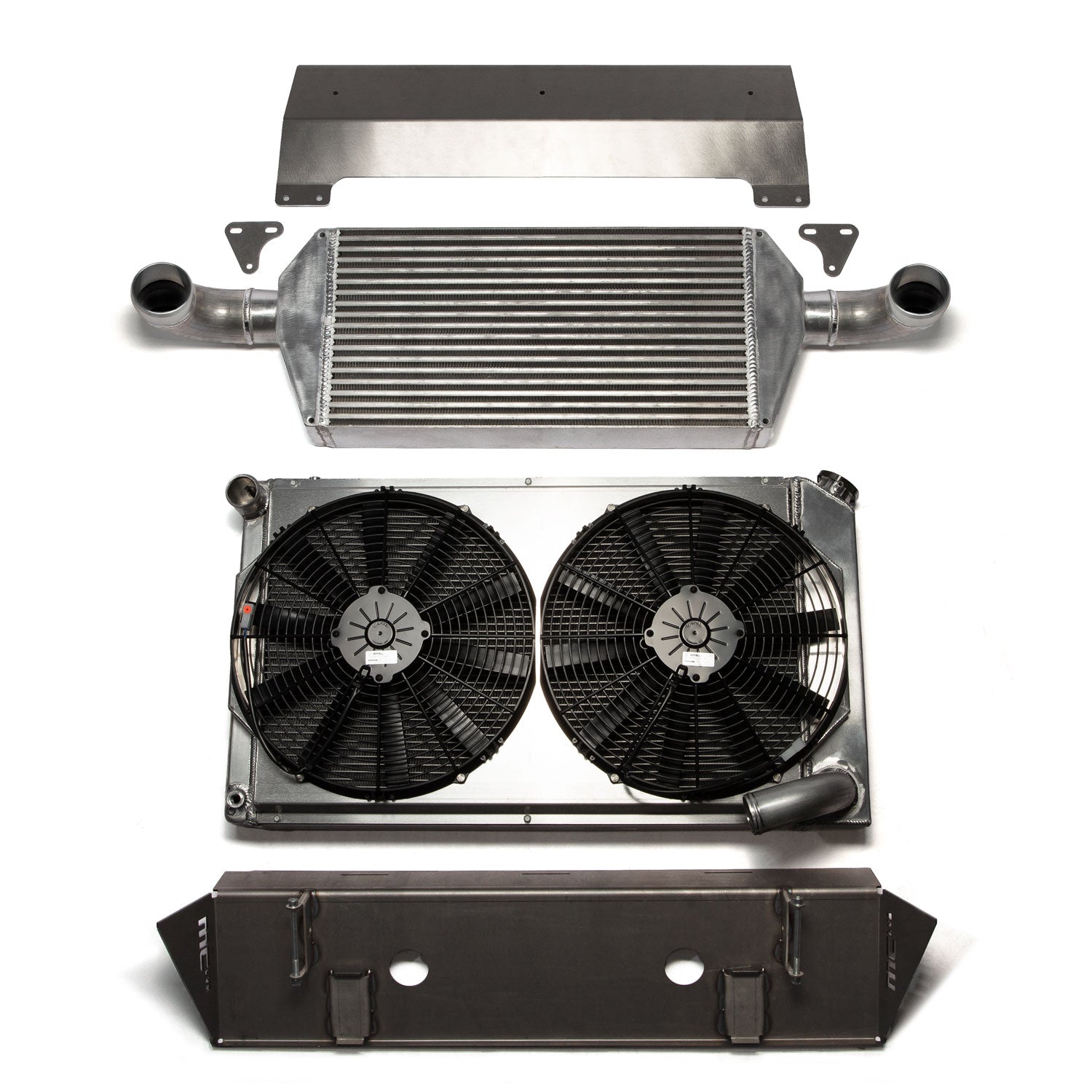

Radiator and intercooler package for putting a 6.6L Duramax into a 1981-1987 GM 3/4-ton or 1-ton square body truck. Wehrli developed it on their own Duramax-swapped square body shop truck, so it is a proven way to mount cooling that keeps up with the engine: a modified Griffin dual-row aluminum radiator with twin 16" electric fans and a customized Vibrant intercooler, plus laser-cut steel core support brackets to hang it all.

The Griffin radiator is 28" x 19" dual row with an aluminum shroud and twin 16" fans moving 2,148 CFM total, with the inlet and outlet modified to Duramax spec. The Vibrant intercooler is 3.5" thick, 12" x 25" core, with 3" bead-rolled inlet and outlet. Upper and lower core support brackets are laser cut and CNC bent steel. Final install of the lower bracket requires welding.

Part Number: WCF100201

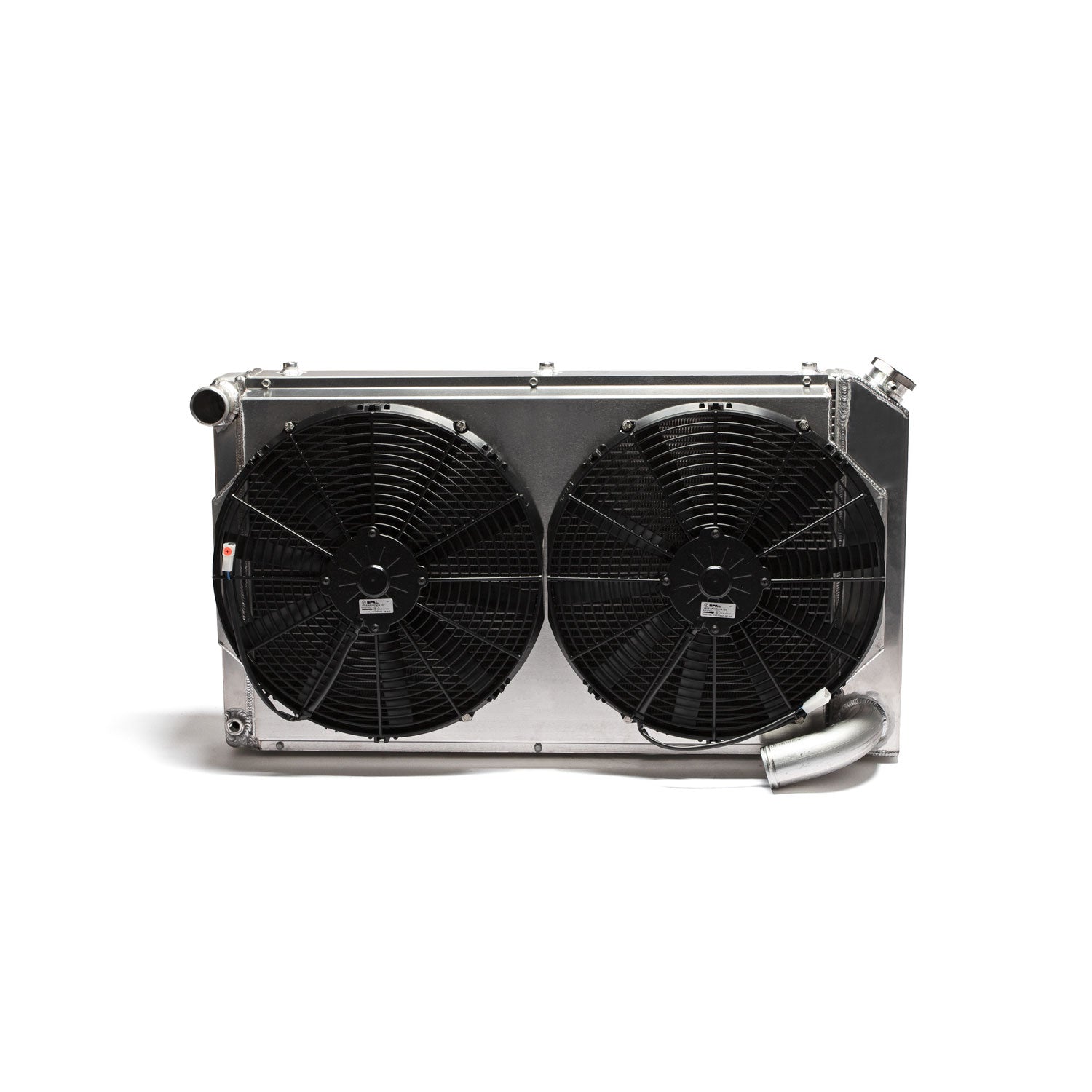

• Griffin 28" x 19" dual-row aluminum radiator with aluminum shroud
• Twin 16" electric fans, 2,148 CFM total
• Radiator inlet and outlet modified to Duramax OEM spec

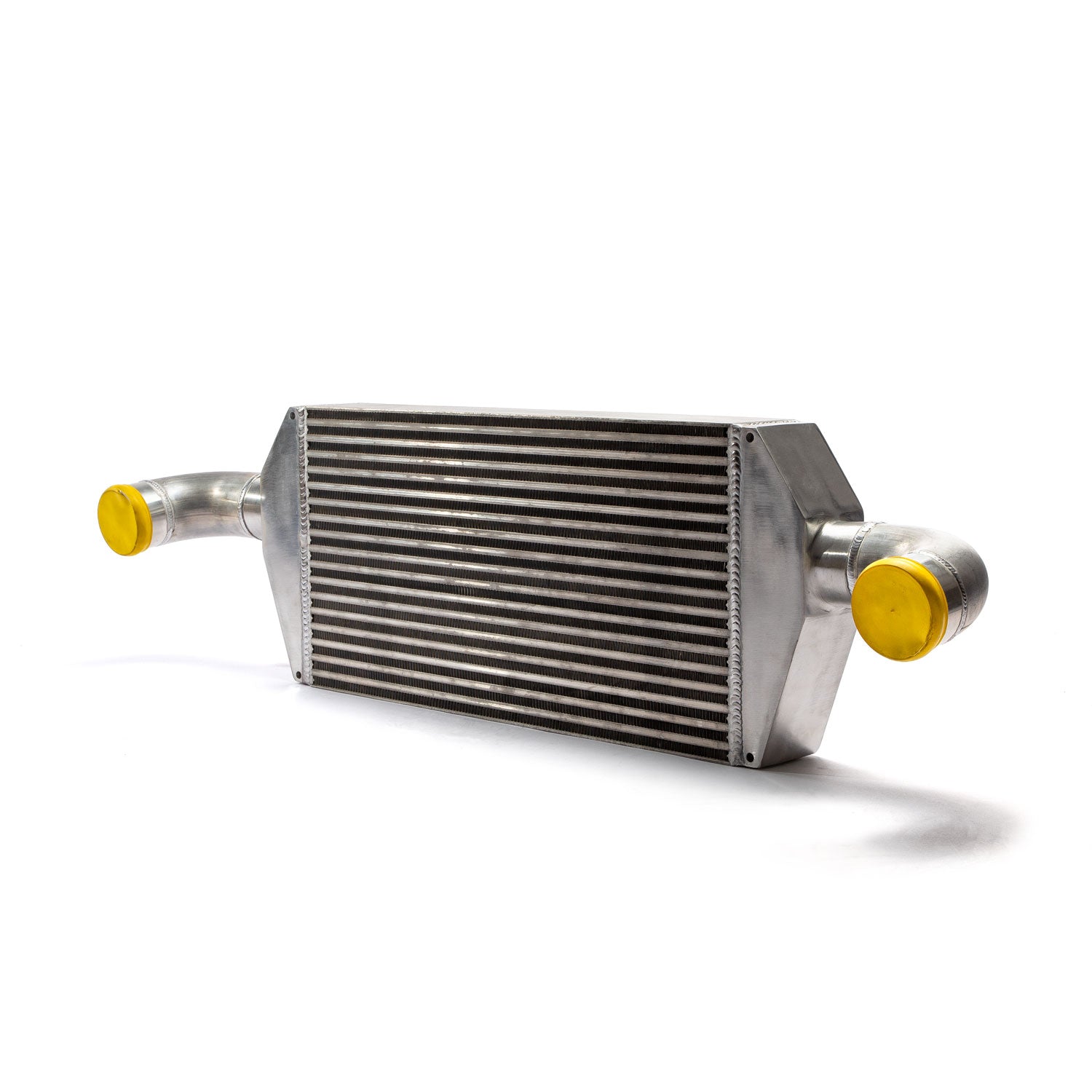

• Vibrant Performance 3.5" thick 12" x 25" intercooler, 3" inlet and outlet with HD bead-roll flanges

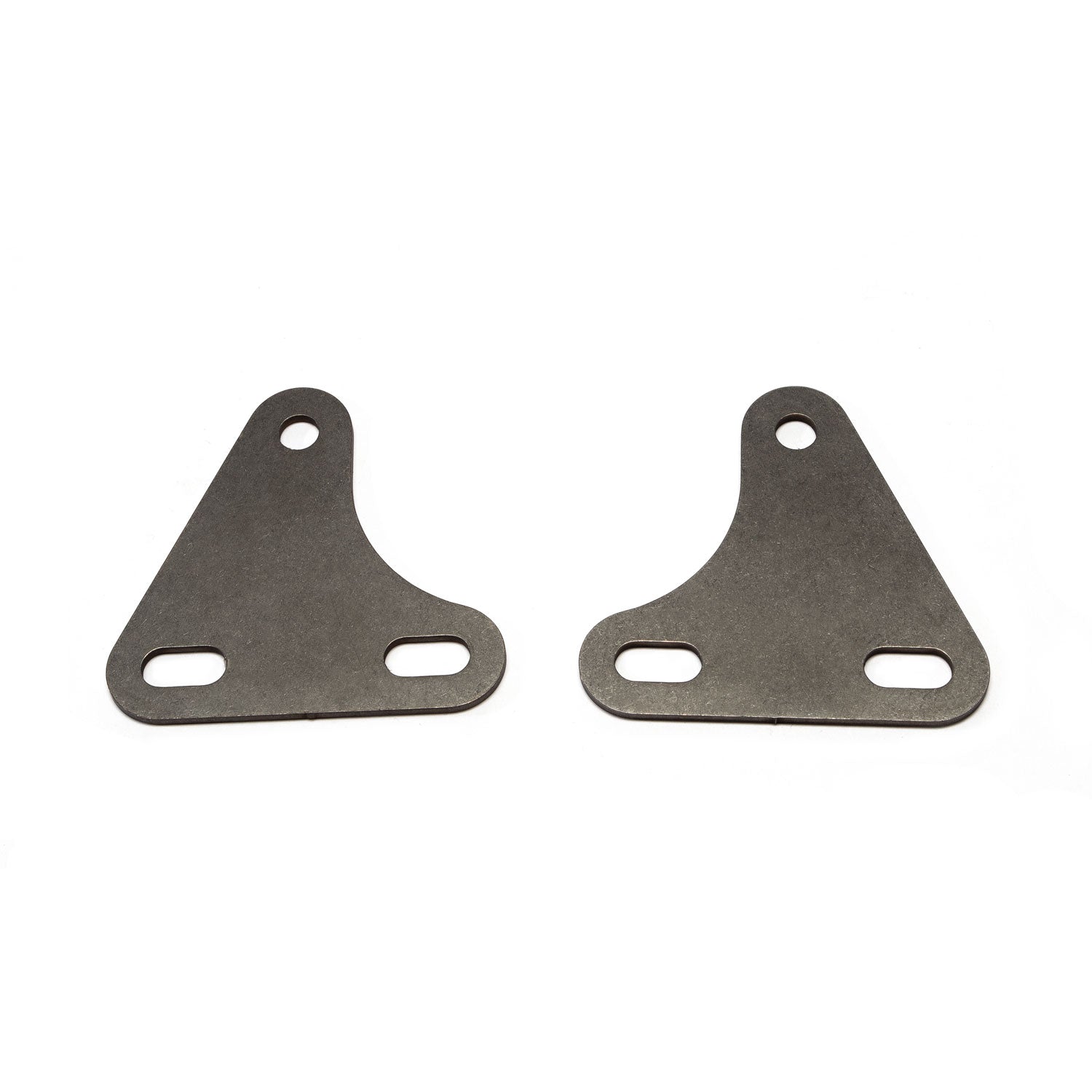

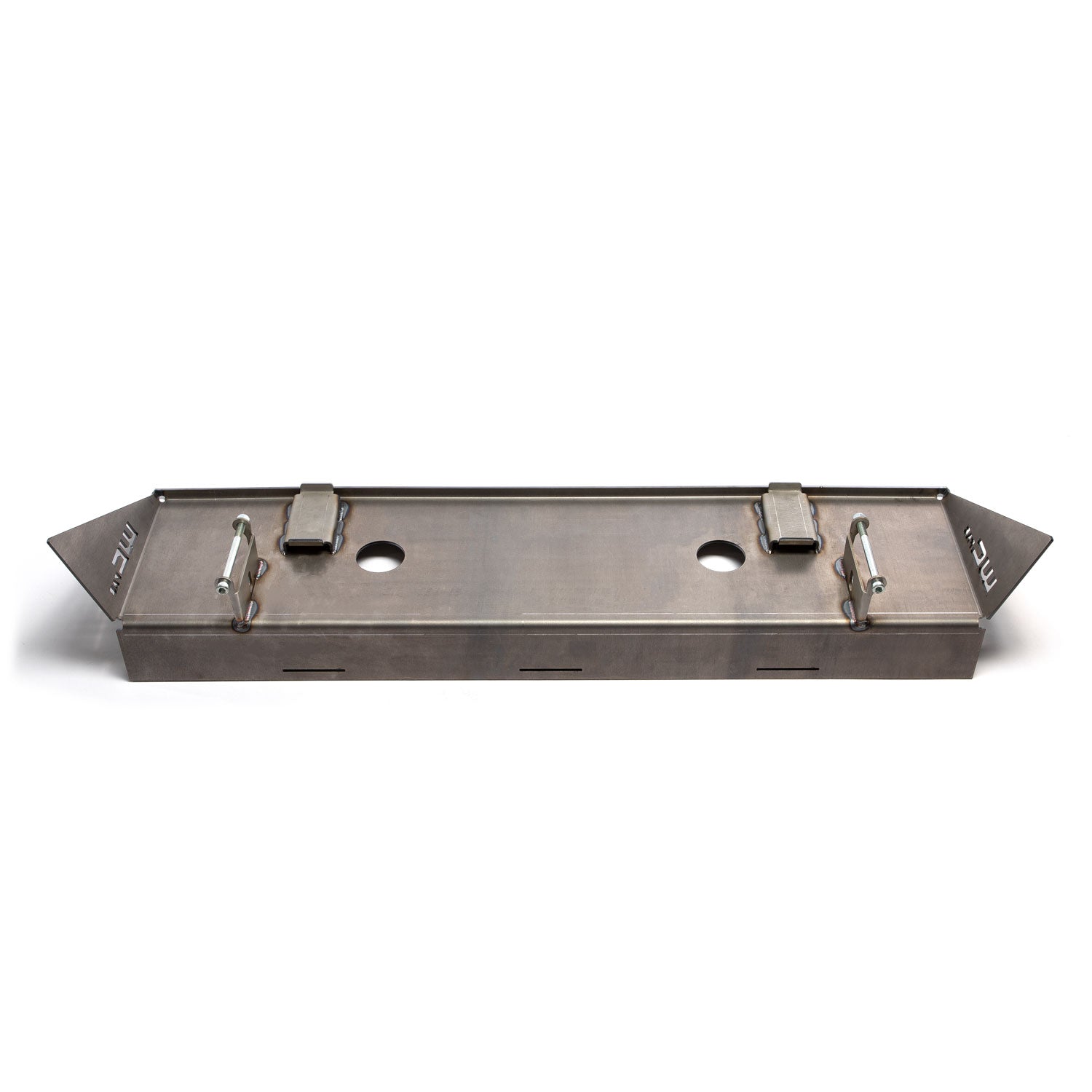

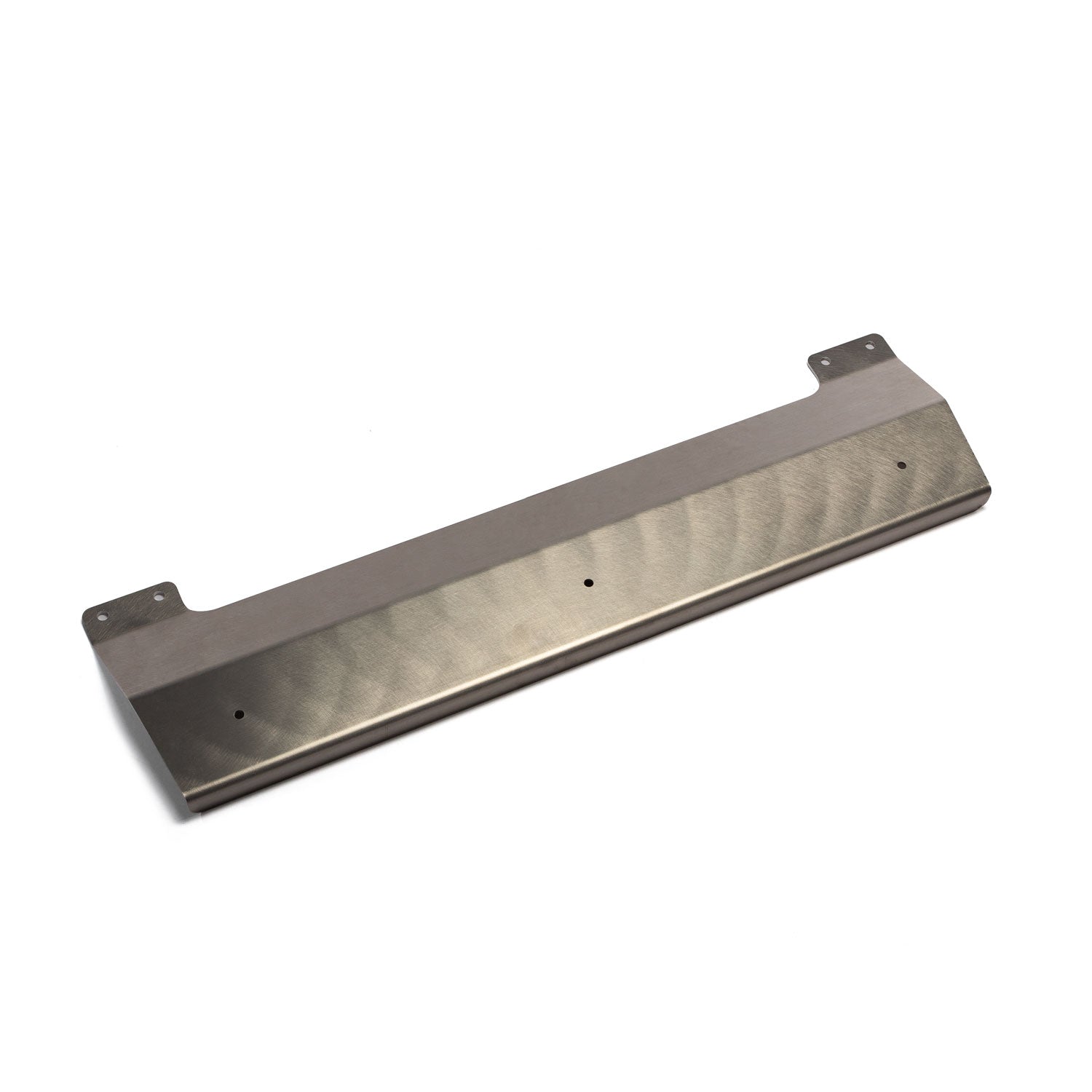

• Laser cut, CNC bent steel upper and lower core support brackets
• Developed on Wehrli's Duramax swapped square body shop truck

• Welding is required to install the lower support bracket.
• May also fit 1973-1980 trucks with modification.
• Companion swap parts: engine mounts WCF100173 and transmission crossmember WCF100177.
