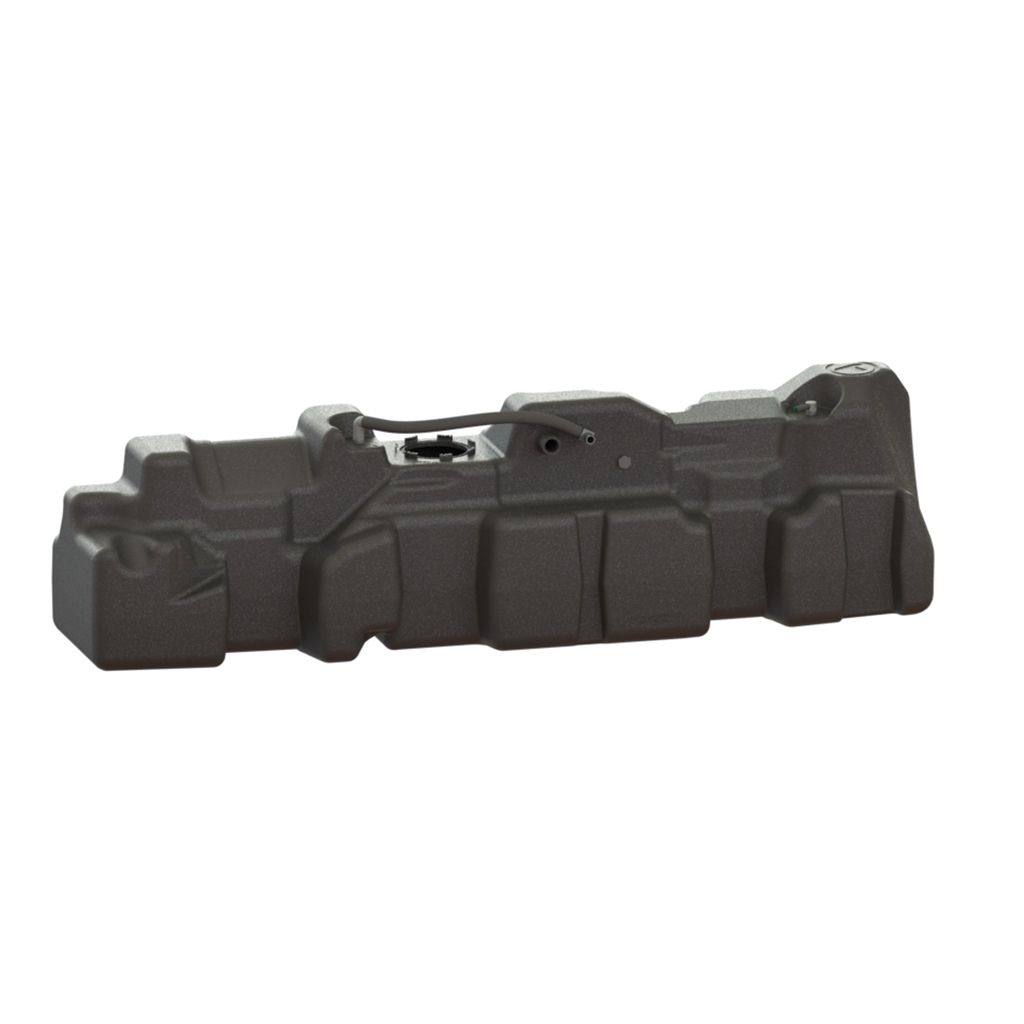

2017-2024 Powerstroke Replacement Tanks (7020xxx)
Titan Tanks
Addons
Description
Fits
| Year | Make | Model | Engine |
| 2017-2024 | Ford | F-350/ F-450/ F550 Cab & Chassis Trucks | 6.7L Powerstroke |
Note: For use with Diesel fuel ONLY. See additional information for fitment/measurements.
Get ready to take your Ford Cab & Chassis to the next level with the arrival of Titan's latest innovation: the XXL xx-gallon midship replacement tank. Whether you're tackling construction projects, delivering goods, or exploring new horizons, this tank ensures you have the fuel capacity you need to get the job done efficiently and effectively.
Crafted from renowned military-grade, cross-linked polymer material, this tank sets a new standard for durability and reliability. With a thickness of at least ¼", it's built to outlast all competitors, standing strong against the toughest conditions. Tougher than steel and more durable than aluminum, this tank is engineered to exceed expectations.
Rest assured, this new design has undergone rigorous testing to ensure unparalleled quality and performance. Backed by Titan's legendary Lifetime Warranty, you can trust that their products are built to last, giving you the peace of mind to tackle any task with confidence.
Don't settle for subpar and outdated metal fuel tanks. Elevate your Ford Cab & Chassis vehicle with Titan's superior midship replacement tank and experience the difference for yourself.

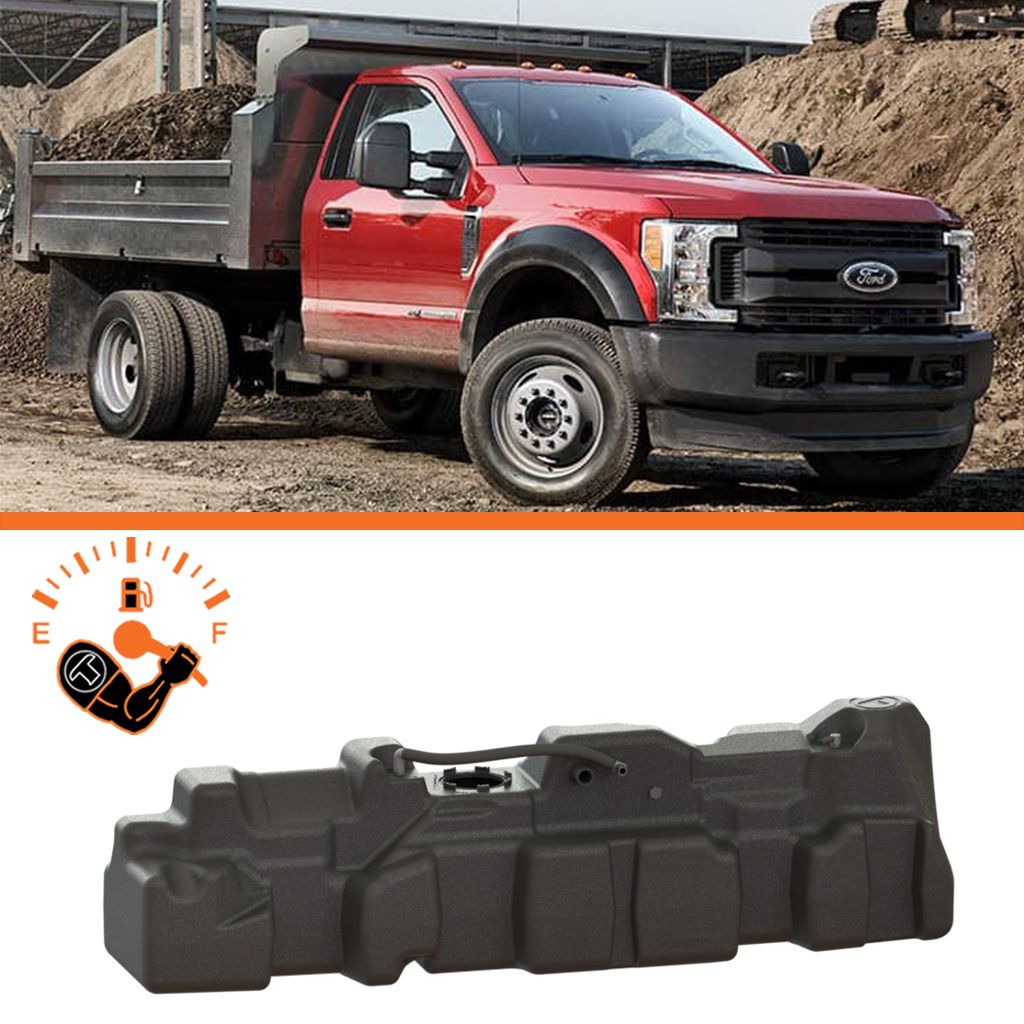

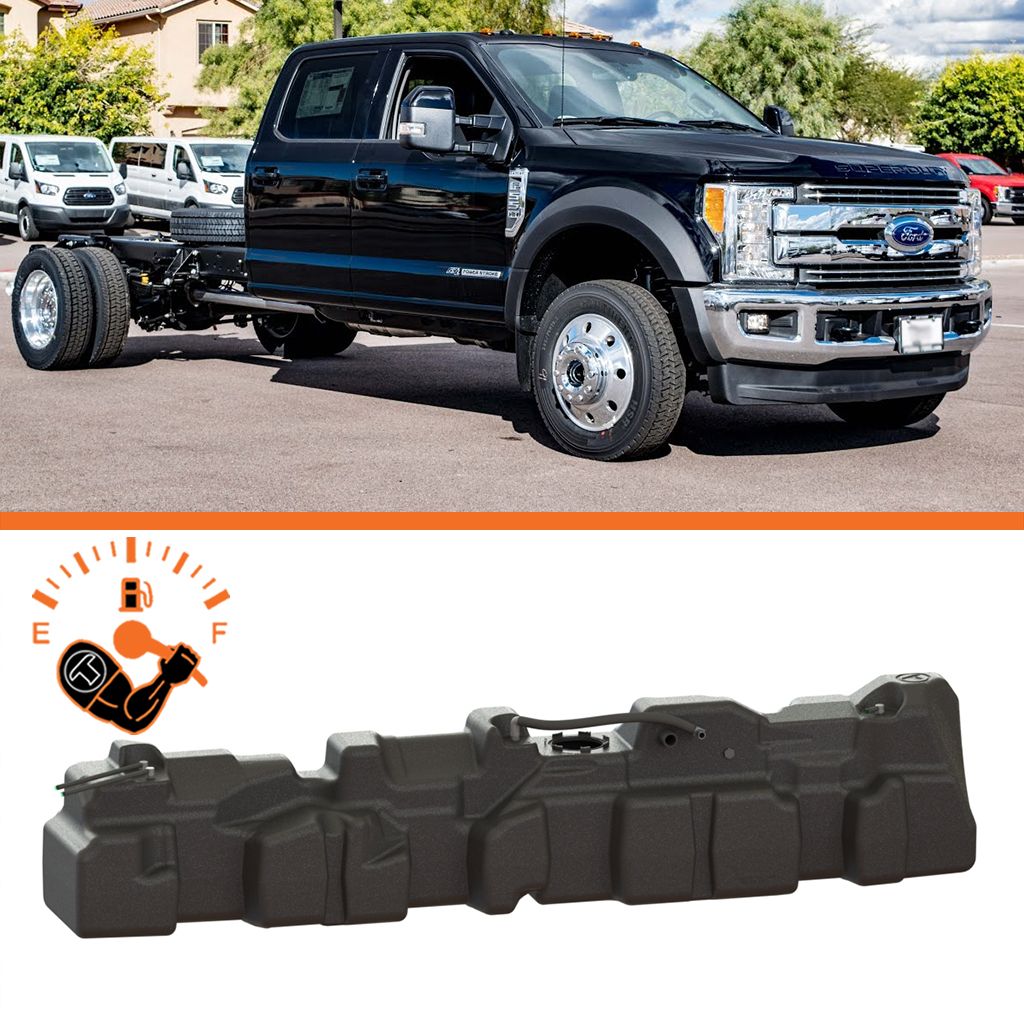

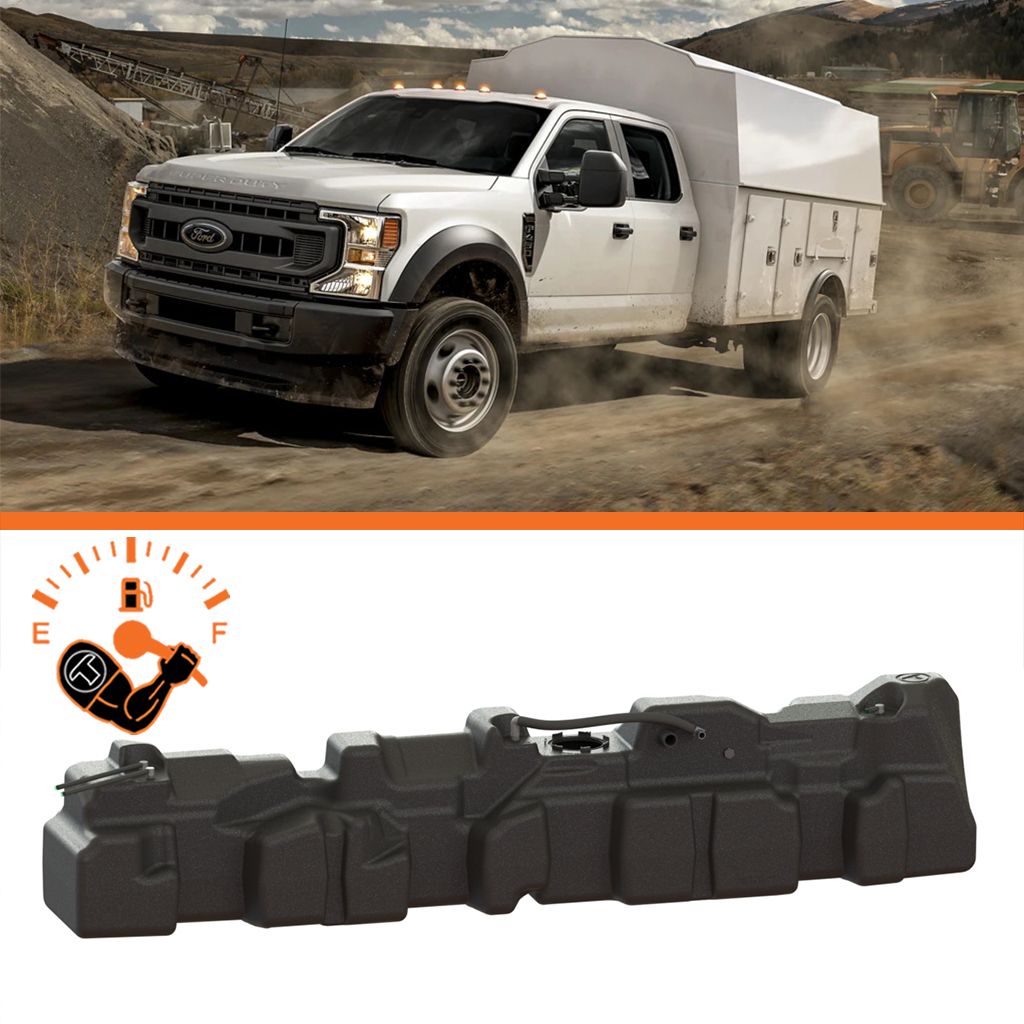

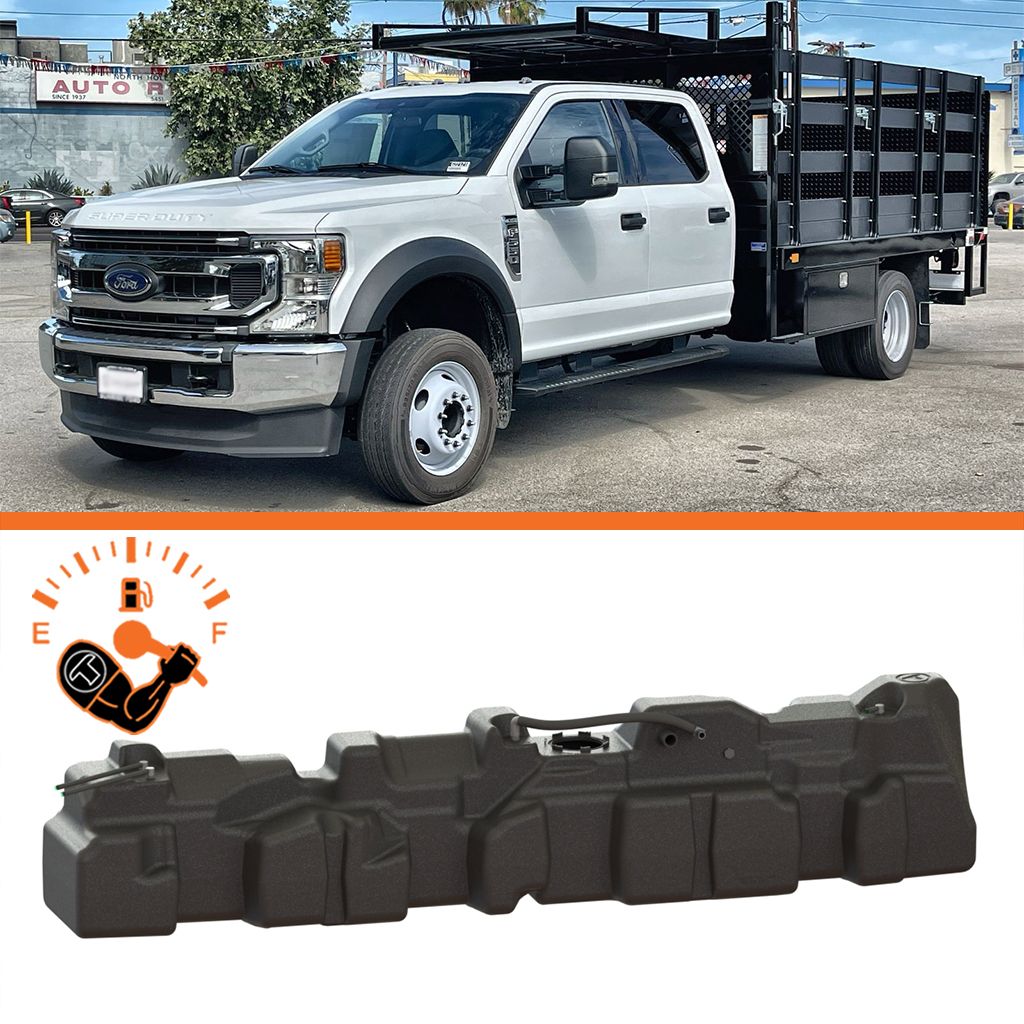

Part Number: 7020417 / 7020517 / 7020617 / 7020717
Features
- Increased fuel capacity
- Military-grade, cross-linked polymer material
- Durability and reliable
- Midship replacement
Installation
Notes
- This mid-ship, replacement fuel tanks utilize the truck’s stock/OE sending unit. An aftermarket or upgraded sending unit is not needed or required in any way.
- Optional filler neck assembly is also available. (Part #: 9900025)
Additional Information
Which tanks fit my truck?
You must know (A) your wheelbase or (B) both the cab style and the CA of your truck.
| Wheelbase | Cab Style | Cab-to-Axle Length (CA) |
7020417 (40 Gal) |
7020517 (54 Gal.) |
7020617 (54 Gal.) |
7020717 (54 Gal.) |
| 145.3" | Reg | 60" | Yes | No | No | No |
| 167.9" | Super/Ext | 60" | Yes | Yes | No | No |
| 169.3" | Reg | 84" | Yes | Yes | No | No |
| 179.8" | Crew | 60" | Yes | Yes | No | No |
| 191.9" | Super/Ext | 84" | Yes | Yes | No | No |
| 193.3" | Reg | 108" | Yes | No | Yes | No |
| 203.8" | Crew | 84" | Yes | Yes | No | No |
| 205.3 | Reg | 120" | Yes | No | No | Yes |
CA or Cab to Axle refers to the distance/length in inches between the back of the cab and the center of the rear axle.
Did my truck come with a midship tank?
YES: Great! All you need to purchase is a Titan tank. You don’t need to worry about anything else here.
NO: You’re going to need a few extra parts. Let’s help you get everything sorted.
Do I need to purchase a DEF tank relocation kit?
If your DEF tank is outside the frame rails on the passenger side: No, you don’t need to relocate your DEF tank. (This is where your DEF tank is located if your truck came with a midship tank.)
If your DEF tank is inside the frame rails on the driver side: Yes, you need to relocate your DEF tank, PN 9900033 is for 2017-22 trucks, PN 9900054 is for 2023+ trucks. This is the typical DEF tank location, but it’s where your midship tank needs to go.
Optional: You should also consider if you want to fill your DEF tank from the driver’s side. If so, you’ll need to purchase a DEF fill neck extension kit from a reputable source.
If my truck didn’t come with a stock midship tank, how do I want to install my tank?
As an Auxiliary Tank: This method transfer fuel from your Titan midship tank into your stock aft-axle tank. This is similar to an auxiliary in-bed tank system. Besides the DEF relocation kit, you’ll also need:
- Titan Ford Chassis Auxiliary Kit - PN: 9900029 (Comes with a sending unit, auxiliary pump, controller, and all necessary wiring.)
- A fill neck for your new tank. Titan offers a Universal Filler Neck Kit - PN: 9900025
As a stock Ford tank by removing my aft-axle tank: Besides the DEF relocation kit, you’ll also need:
- Ford midship-only fuel lines – 6 total. These part numbers vary by wheelbase. Work with your local Ford dealership to get the correct fuel lines.
- A Ford midship sending unit. The aft-axle sending unit is not compatible – it’s too short for the midship tank. Work with your local Ford dealership to get the correct part.
- Titan Sending Unit Electrical Harness Extension Kit – PN: 9900030
As a stock Ford tank by reconfiguring my truck to have stock dual tanks: This installation version is extremely complicated. Please be aware that this will essentially require you to completely replace all fuel lines, sending units, and the entire electrical harness for your vehicle. It will also require reprogramming your vehicle and creating a vent line between the Titan midship tank and your stock aft-axle tank.
If your vehicle requires a dual stock tank set-up, we HIGHLY recommend purchasing a truck that comes with dual stock tanks. That method would only require you to swap out the stock midship for the Titan midship tank.
