Description
Fits:
| Year |
Make
|
Model
|
| 2003-2013 |
Dodge Ram |
2500 4x4 |
| 2003-2012 |
Dodge Ram |
3500 4x4 |
| 2006-2008 |
Dodge Ram |
1500 Megacab 4x4 |

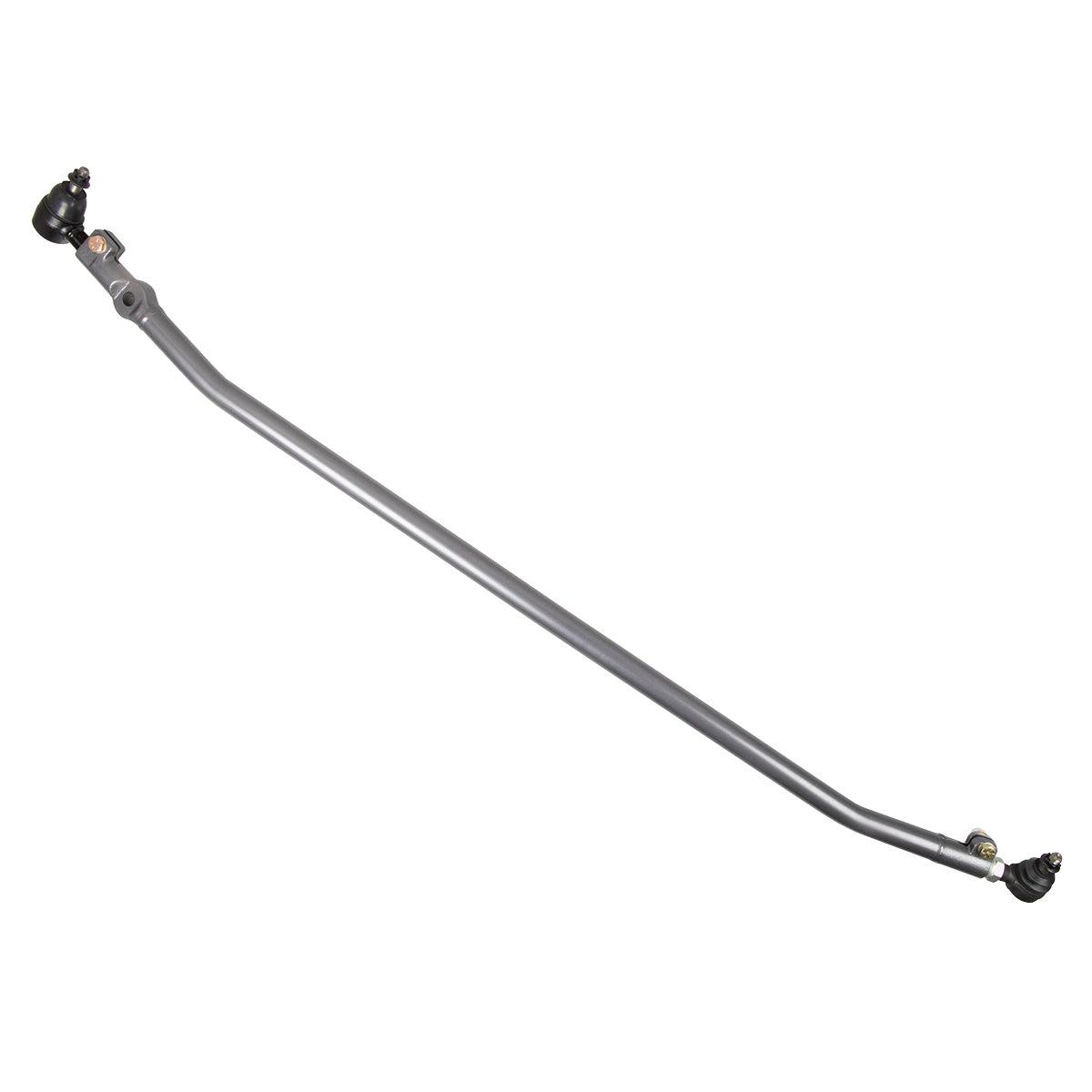

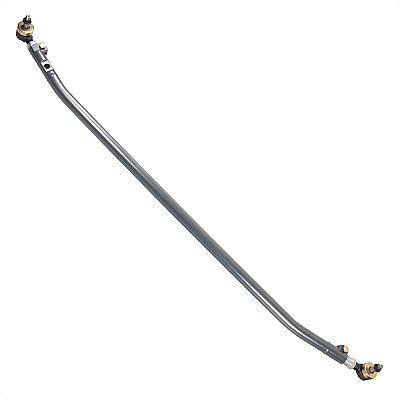

Larger, more robust, Bolt On replacement for the stock steering; utilizing the updated factory T-style steering design to eliminate toe-change caused by Y-style steering, with induced bump steer, & no dead spots in the steering.
Part Number: 8568-21
Superseded Part Number: 8568-01
Features
- Tie Rod is made from 1-1/2" x .188 wall 4130 Chromoly and Heat Treated for maximum strength - 200% stronger than stock tie rod
- Steering components feature an abrasion-resistant powder coat finish for maximum durability and corrosion resistance

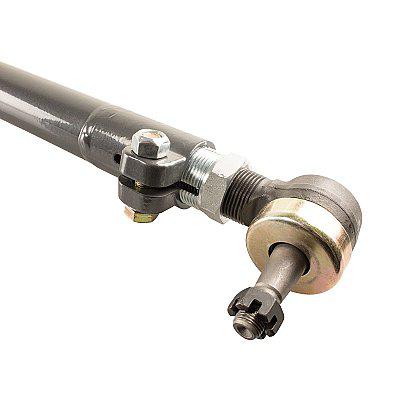

- Synergy Double Adjuster Sleeve & Pinch Bolt Assembly: allows adjustment of the tie rod length without removing it from the vehicle

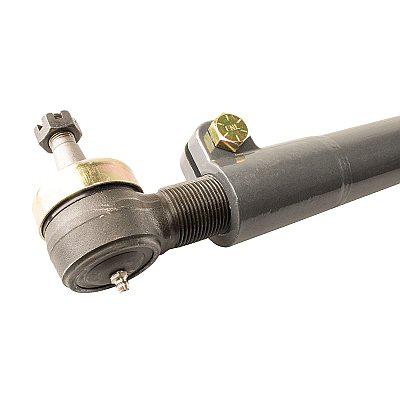

- Metal on metal Synergy tie rod ends, with larger than stock, heat treated chromoly ball studs and shorter shank for greater strength, longevity, and connectivity to the road
- 100% bolt on components assures an easy, trouble free installation with the use of basic hand tools
- Tie rod ends include low misalignment "wobble stopper" grease boots to prevent unwanted Tie Rod "flop"
- The tie rod is bent similar to the factory bar to clear sway bar mounts
- Provides 2" of additional ground clearance from stock tie rod
Benefits
- Single plane tie rod end based off an end used on Synergy's F-450/550 steering kits
- Less unwanted movement in the tie rod end resulting in a more one to one feel when steering
- Less steering wheel play/movement
- Increases the longevity of not only itself but all of the other joints in the steering system
- Lowers the level of misalignment at the T- connection joint when installed
- Causes less wear on the drag link joint increasing longevity
Includes
- (1) 8568-01 Ram tie rod
- (2) 4134-L Ram tie rod ends
- (1) 4134-02 Low misalignment boots (sold as a pair)
- (1) Adjuster sleeve
- (2) Pinch Bolts and hardware
Note
-
Note: We cannot guarantee fitment with aftermarket differential covers. Known compatibility with the following diff covers: AFE Power
-
Warning: 2013 Dodge Ram 3500's were a split year for production. The early model trucks use the T-style steering (drag link is attached to the Tie Rod), Synergy Part # 8525-01. The late model trucks use cross over steering (Drag link is attached to the knuckle and does not attach to the Tie Rod), Synergy Part #8725-01. Please check what style you have before ordering.
Installation
Click here for installation instructions
