Description
Fits
| Year |
Make |
Engine |
| 1998.5-2013 |
Dodge Ram |
5.9L & 6.7L Cummins |
Upgrade your OEM sway bars to the Synergy HD Links; featuring resistance-free articulation, minimal body roll, & 30 degrees of bind-free misalignment these 100% bolt-on links are sure to be a good upgrade.
Part Number: 8515-1x
Features
- Constructed from high quality 1020 CR Solid
- Clear zinc plated for maximum corrosion resistance
- Stem top adapter eliminates the problematic factory "pancake" bushing on the sway bar end
- Trouble-free installation with the use of basic hand tools
- Made in USA

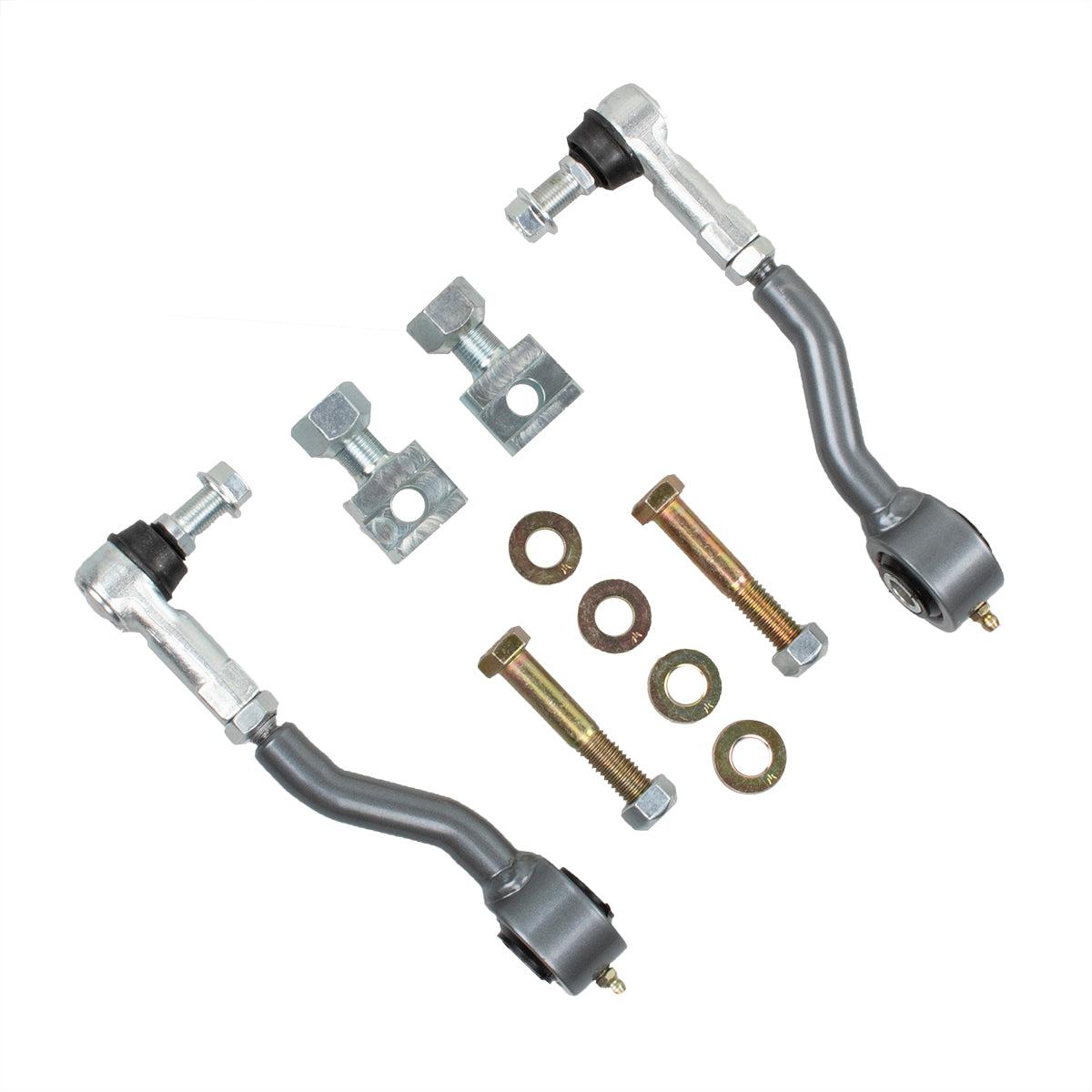

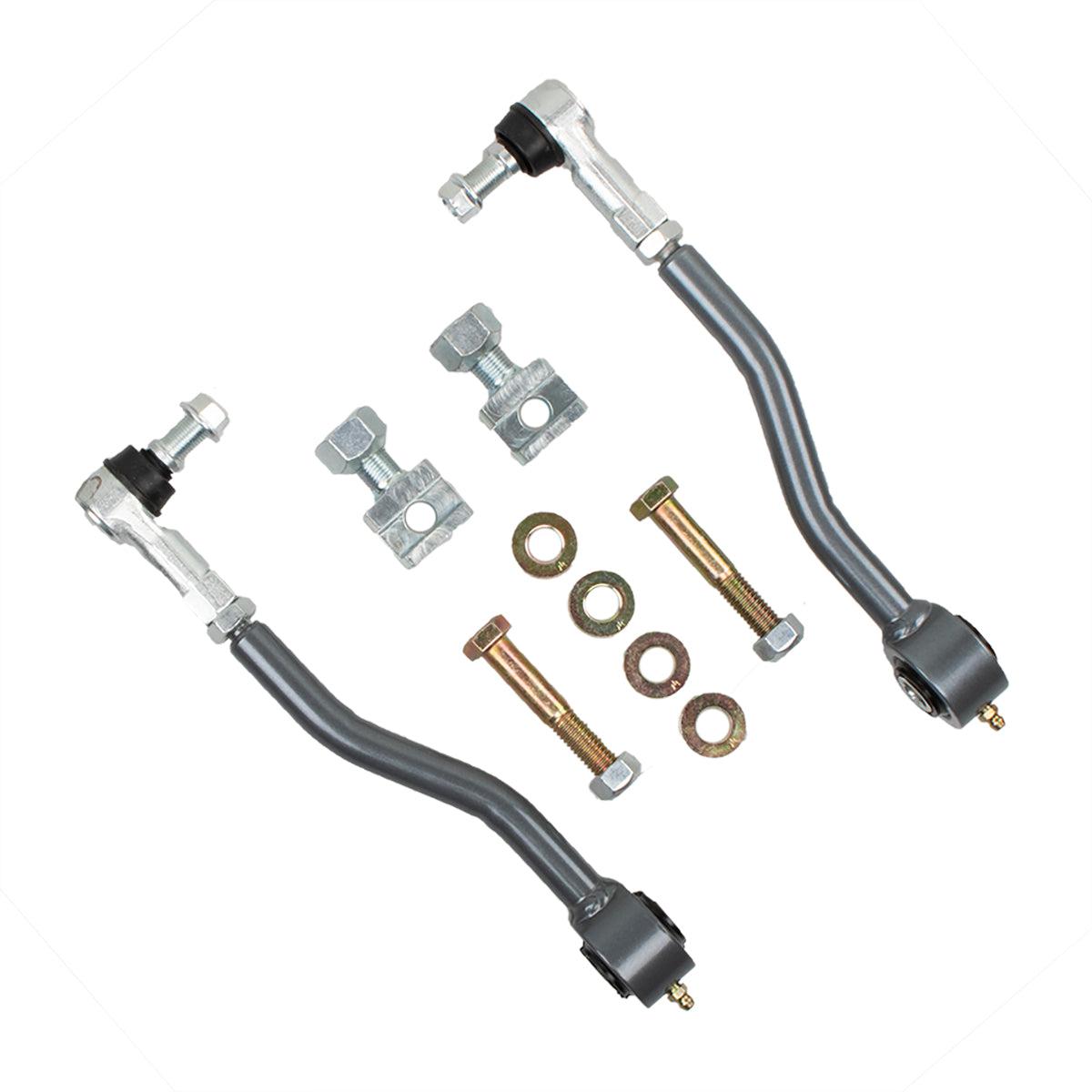

Includes:
- (2) 8515 sway bar links
- (2) Sway bar link ends (sealed tie rod ends)
- (2) ½"-12 UNC jam nuts
- (2) 851501 stem top sway bar link adapter
- (2) 5/8"-18 tapered nuts
- (2) ½"-12 UNC x 3.0" long hex head bolt GR8
- (2) ½"-12 UNC Stover nut
- (4) ½" flat washer GR8
Notes
- Model year 1994-2002 trucks require Synergy Heavy Duty Steering Kit 8525-02 and 8525-03 to be installed for the Sway Bar End link to properly clear the steering linkage.
- For the 8515-11 Heavy Duty Sway Bar Links to be used on a 1998-2002 Ram, part number 4006-01 must be used
- Some early model trucks require minor drilling on axle mount for installation
- Warning: 2013 Dodge Ram 3500's were a split year for production. If your truck has radius arms use Dodge Ram 2014+ pages
