*Discontinued* 2017-2019 Powerstroke 2-pc DS 6.5" Lift Kit (49-2766)

This Product has been Discontinued

Fits:

The ReadyLIFT 49-2766 Lift Kit gives owners an excellent lift kit option that will raise their Superduty a total of 6.5" in front, allowing them to install up to 38" tall off-road tires with no problems. This new off-road kit delivers an uncompromised ride and handling performance!

The 49-2766 6.5" Lift Kit includes custom wound coil springs engineered to provide an incredibly great ride while also enhancing off-road driving performance. The kit also utilizes radius arm drop brackets allowing the use of factory radius arms and correcting caster in the process. Then to lift the rear, Readylift includes their fabricated rear lift blocks with an off-set pin design to relocate the axle bringing the rear up level with the front while providing a factory-like ride. Other great components to this kit include a drop pitman arm, track bar bracket, sway bar end links, drive shaft spacer, and all hardware.

Part Number: 49-2766

• 6.5" Lift
• Increases off-road capabilities
• Maintains the factory ride
• Allows for the installation of up to 38" tires

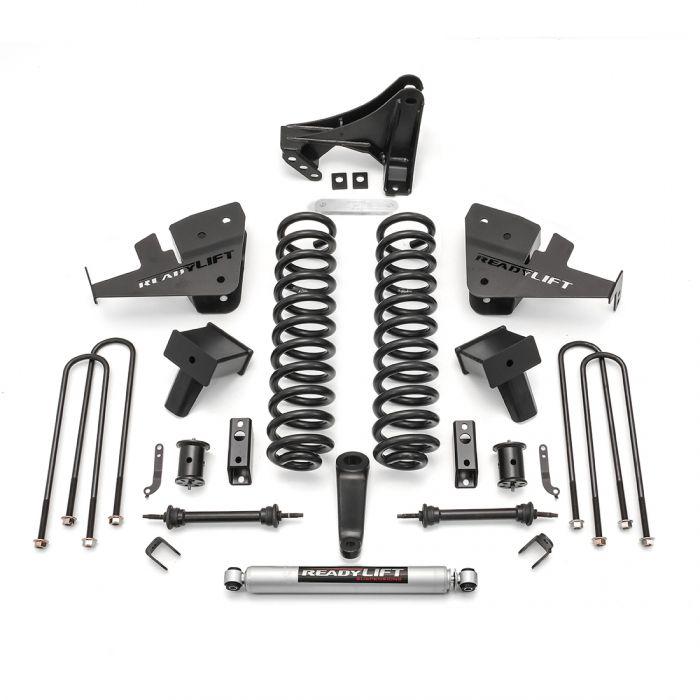

Includes:

• (2) performance coil springs
• (2) CNC machined billet aluminum lower spacers.
• (1) drop pitman arm.
• (1) OEM style cast-iron front track bar bracket.
• (2) radius arm drop brackets.
• (2) bump stop extensions.
• (2) extended length front sway bar end links.
• (2) OEM style cast iron rear lift blocks.
• Longer u-bolts and hardware.
• (1) Carrier bearing spacer

Tires Fitment:

• 38" Maximum tire diameter
• 37x12.50 for no rub on a 9" wide wheel with 0 offset
• 38x13.50 on 10" wide wheel with +12 offset
• 18" - 37X12.5R18
• 20" - 37X12.5R20
• 22" - 325/60R22

• For use on trucks with a two-piece driveshaft only
• Longer shocks are required when using this kit.
• Diesel engines only.
• The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs. The use of this type of airbag system will void all block warranties and can cause the failure of the block bump stop tang.
